Auxiliary Light Bracket for 4 Lights Volkswagen Caravelle T6.1 from 2019-2024

Item ID: 75012-4340

€756

Incl. VAT

Which variant would you like?

Matte Silver

75012-4340

€756

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

75012-4340-O

€756

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

75012-4340-S

€756

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

75012-4340-S80

€756

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

75012-4340-V

€756

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

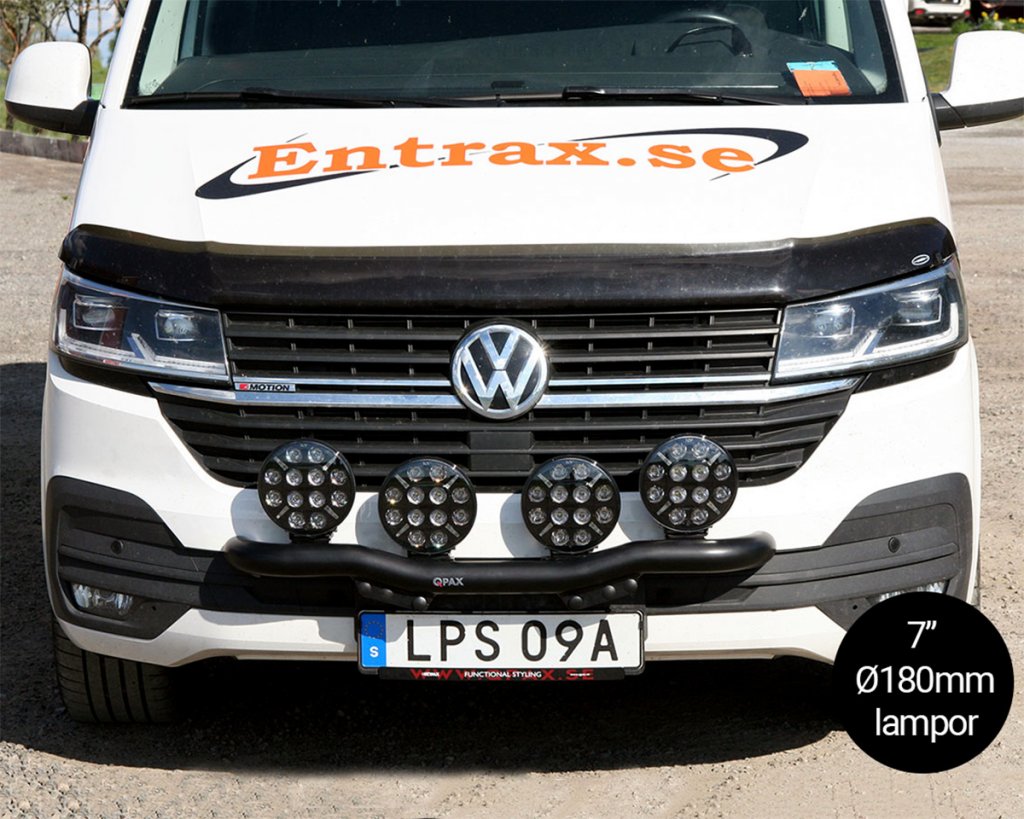

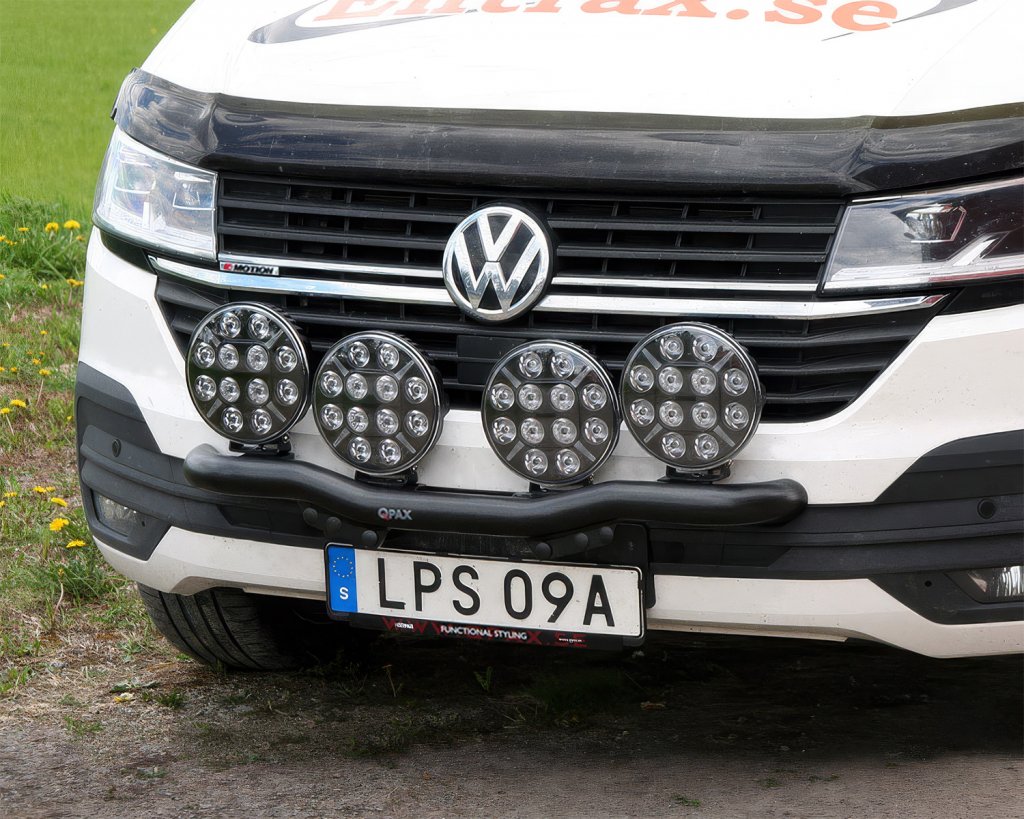

This vehicle-specific auxiliary light bracket for Volkswagen Caravelle T6.1 from 2019-2024 provides a rigid platform when you want to mount auxiliary lights in the front. The bar is equipped with four fixed, welded mounting tabs that accommodate a total of four auxiliary lights with a maximum diameter of 240 mm per lamp.

The bracket is manufactured from 60 mm aluminum tubing and features a durable powder-coated finish that withstands stone chips, road salt, and harsh northern climates. The bar is specifically engineered for your Volkswagen Caravelle T6.1 and is firmly anchored to the vehicle's structural frame for optimal rigidity.

Auxiliary Light Bracket - Vehicle-Specific and Stable Mounting

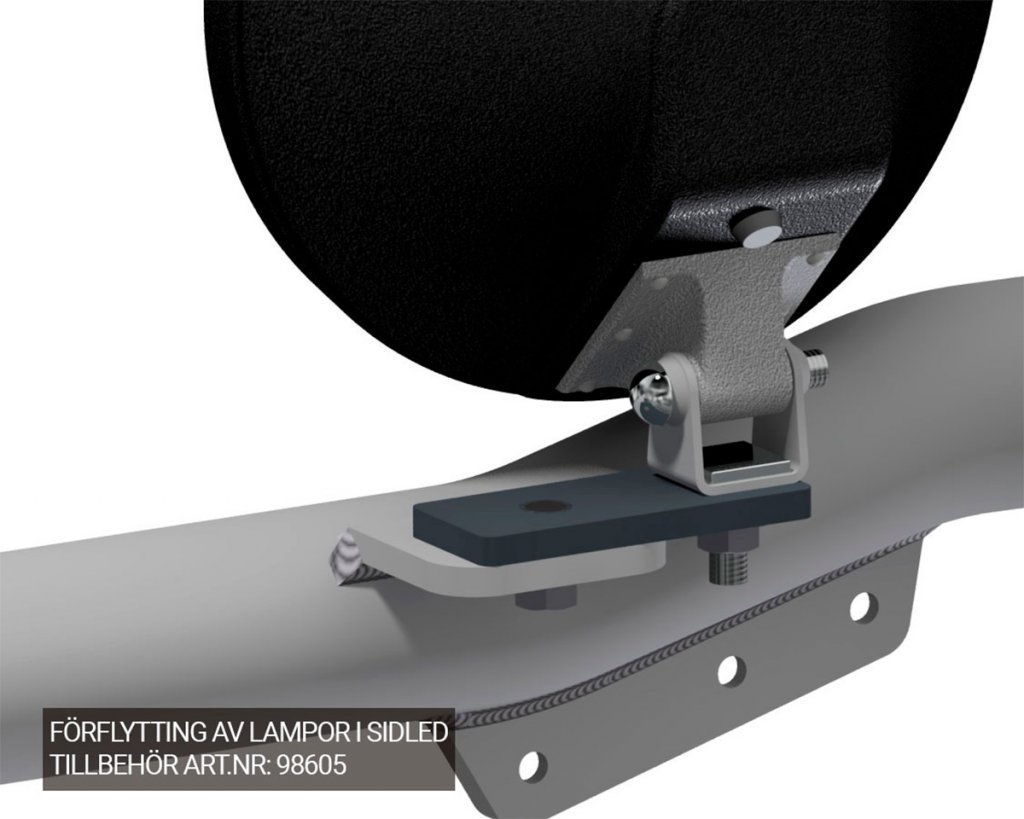

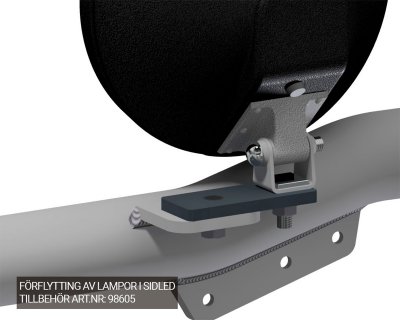

The light bracket is installed using custom-fit brackets where mounting is secured directly to the vehicle's impact beam via brackets for maximum torsional rigidity and stability. Detailed step-by-step instructions for the installation on your Volkswagen Caravelle T6.1 are provided in the installation manual attached as a PDF here on the product page. To ensure a stable and vibration-free beam pattern on rough roads, the auxiliary lights must be stabilized at the top using the included support struts.

Mounting and procedure: Installation is secured using mounting brackets directly onto the vehicle's crash bar. Note that the front bumper needs to be disassembled during installation.

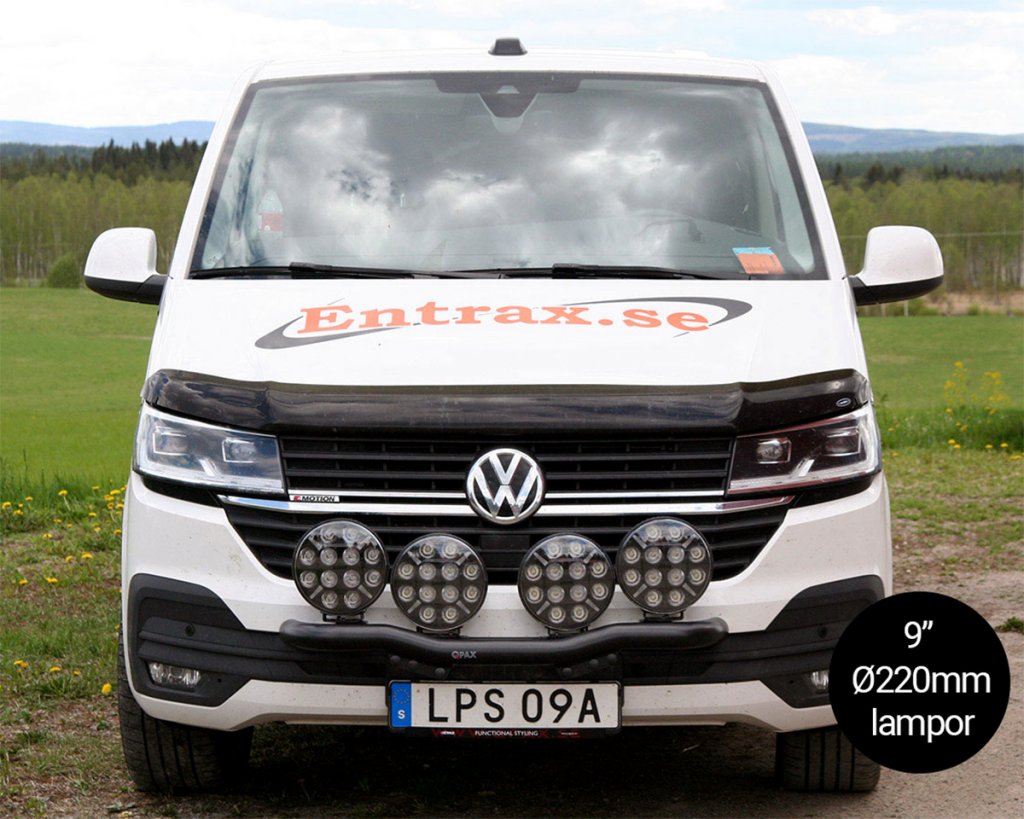

Radar compatibility and light adjustment: The installation does not interfere with the vehicle's radar located behind the emblem (verified through testing with Ø220 mm LED driving lights, reference model Seeker NS9). To maintain a clear line of sight for the radar, the lights must be adjusted as far outward from the center as possible using the adjustment screw on the light mounting base.
Stabilization requirements and maximum weight: Recommended maximum weight is 2 kg per auxiliary light. The included stabilization struts must always be used.

Choose Your Variant for Volkswagen Caravelle T6.1

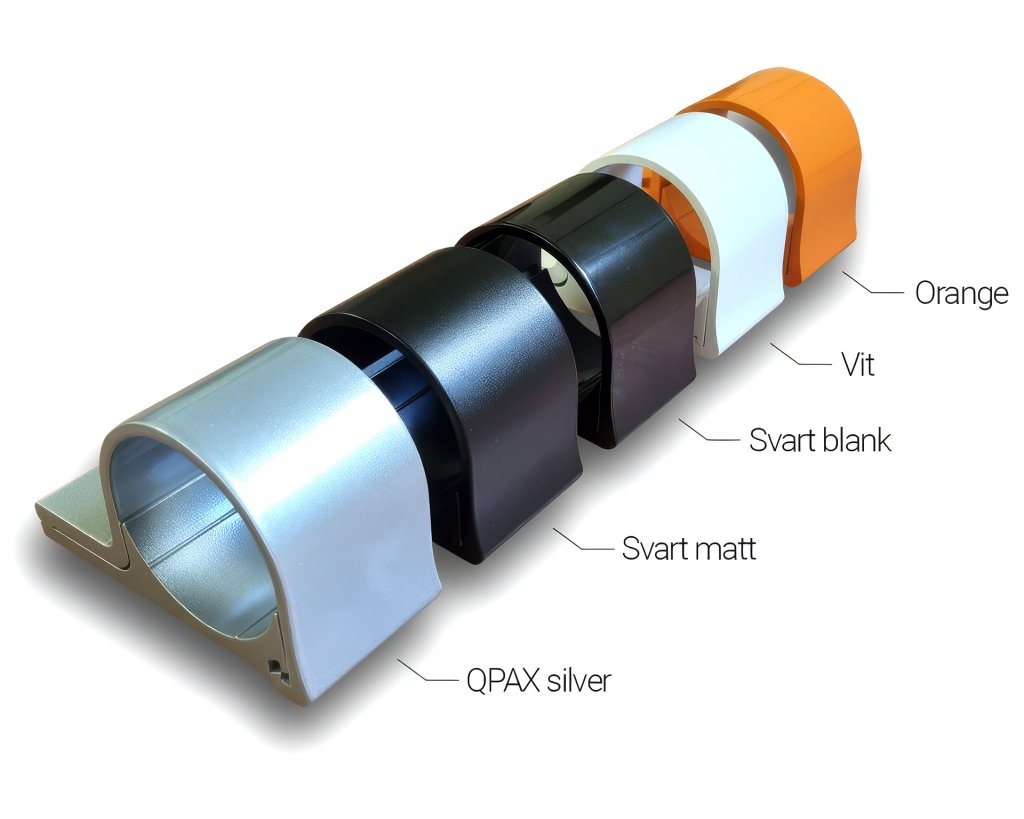

Five available colors (powder coating)

The auxiliary light bracket can be ordered in five different colors to match the paintwork or other details of your Volkswagen Caravelle T6.1:

Silver: Classic powder-coated silver finish.
Velvet Black (matte): Understated matte black finish.
Black (gloss 80): Gloss black finish with an 80 gloss rating.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Material: Aluminum
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/movable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max weight per light: 2 kg each
Mounting: Bracket installation to impact beam – front bumper removed during fitting (see PDF installation manual)

What is Included?

Supplied as a complete kit tailored for Volkswagen Caravelle T6.1 containing:

Auxiliary light bar in 60 mm powder-coated aluminum
Vehicle-specific mounting kit with brackets for the impact beam
Stabilization struts for auxiliary lights
Installation instructions (included and available as a downloadable PDF)

A durable and vehicle-specific solution for Volkswagen Caravelle T6.1 from 2019-2024 providing rock-solid mounting and an optimal light pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Volkswagen Transporter T6.1 2019–2024
