Auxiliary Light Bracket for 4 Lights Volkswagen Caravelle T6 from 2016-2019

Item ID: 75011-4340

€851

Incl. VAT

Which variant would you like?

Matte Silver

75011-4340

€851

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

75011-4340-O

€851

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

75011-4340-S

€851

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

75011-4340-S80

€851

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

75011-4340-V

€851

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

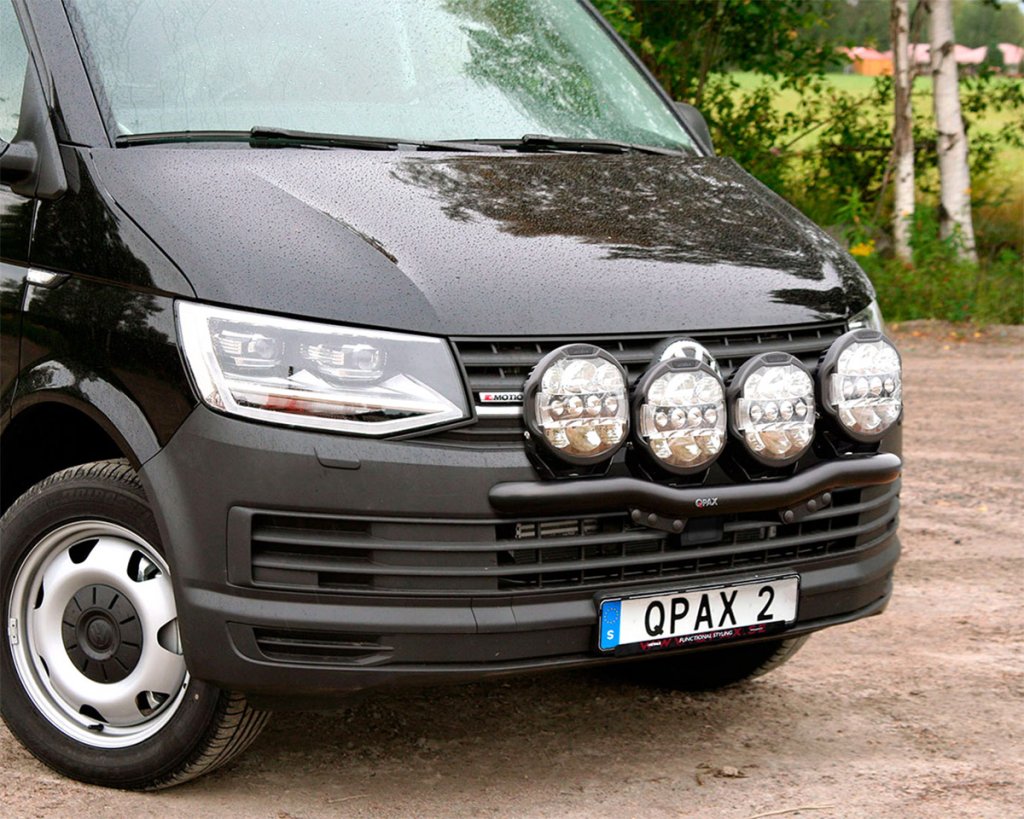

This vehicle-specific auxiliary light bracket for the Volkswagen Caravelle T6 from 2016-2019 provides a sturdy platform for mounting auxiliary lights on the front. The bar is equipped with four fixed, welded mounting tabs that accommodate a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminum tubing and features a durable powder-coated finish that withstands stone chips, road salt, and harsh northern climates. The light bar is specifically designed for your Volkswagen Caravelle T6 and mounts securely to the vehicle's structural frame for optimal strength.

Light Bar - Gentle Q-GRIP Installation Around the Crash Bar

The light bracket is mounted using QPAX's Q-GRIP system, which clamps firmly around the vehicle's existing crash bar to provide a vibration-free mount. Detailed step-by-step instructions for installation on your Volkswagen Caravelle T6 can be found in the mounting manual attached as a PDF on this product page. To ensure a stable beam pattern on rough roads, the lights must be stabilized at the top using the included stay bars.

Mounting and adaptation: Clamps securely around the crash bar using Q-GRIP. Note that space is tight during installation and the front grille mesh must be trimmed for pass-through.
Radar and license plate: Fully compatible with the radar unit in the lower air intake. The license plate remains in its original factory location.
Stabilization requirement and max weight: Recommended maximum weight is 2 kg per auxiliary light. The included stabilizer stays must always be used.
Important safety notice: Heavier lamps (e.g. heavy LED driving lights) must not be mounted on the bar, as the beam that the radar is attached to risks being affected by the increased load.

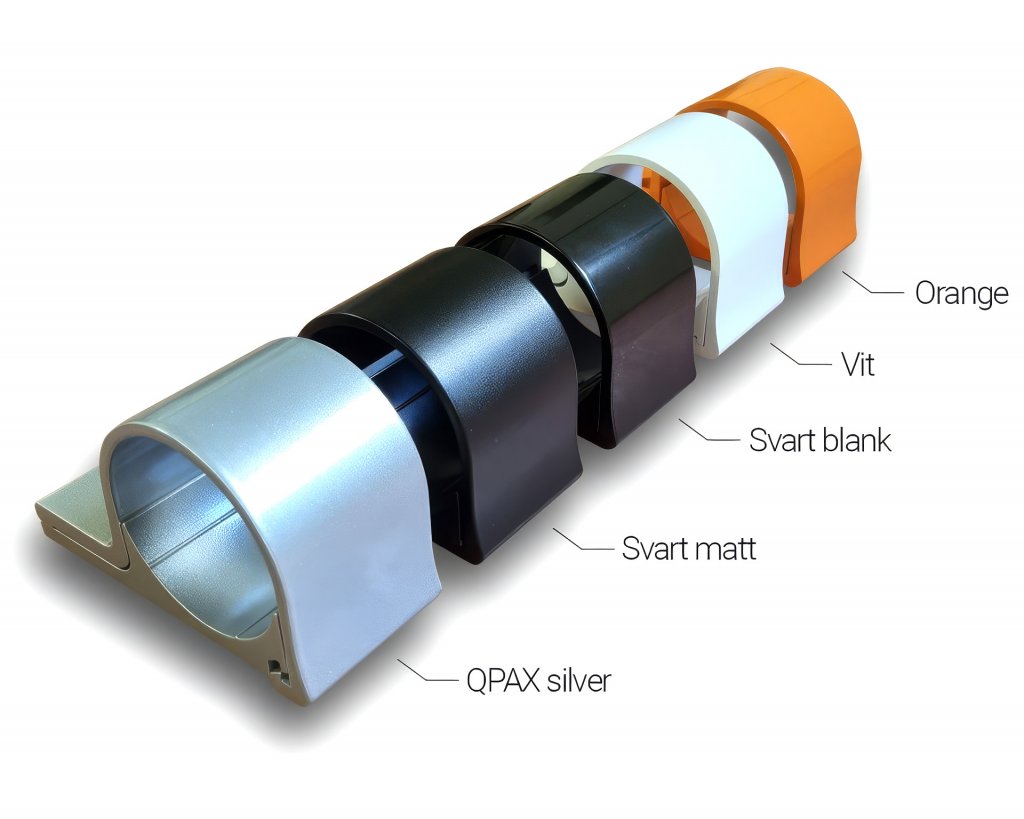

Choose Your Finish for Volkswagen Caravelle T6

Five available colors (powder coating)

The light bracket can be ordered in five different finishes to match the paintwork or other exterior styling of your Volkswagen Caravelle T6:

Silver: Classic powder-coated silver finish.
Velvet Black (matte): Understated matte black finish.
Black (gloss 80): Gloss black finish with a gloss rating of 80.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Material: Aluminum
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm diameter
Recommended max weight per light: 2 kg/pc
Mounting system: QPAX Q-GRIP clamp around crash bar (requires trimming of the grille mesh, see PDF mounting instructions)

What's Included in the Box?

Supplied as a complete kit tailored for the Volkswagen Caravelle T6, including:

Auxiliary light bracket in 60 mm powder-coated aluminum
Vehicle-specific mounting kit (Q-GRIP for crash bar)
Stabilizer stay bars for auxiliary lights
Installation instructions (included and available as a downloadable PDF)

A durable, custom-fit solution for the Volkswagen Caravelle T6 from 2016-2019 that provides stable mounting and an optimal light beam pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Volkswagen Caravelle T6 2016–2019
