XBB Dongle & PowerUnit Porsche Macan from 2024- - Auxiliary Light Connection

Item ID: 58010-3600

€231

Incl. VAT

Which variant do you want?

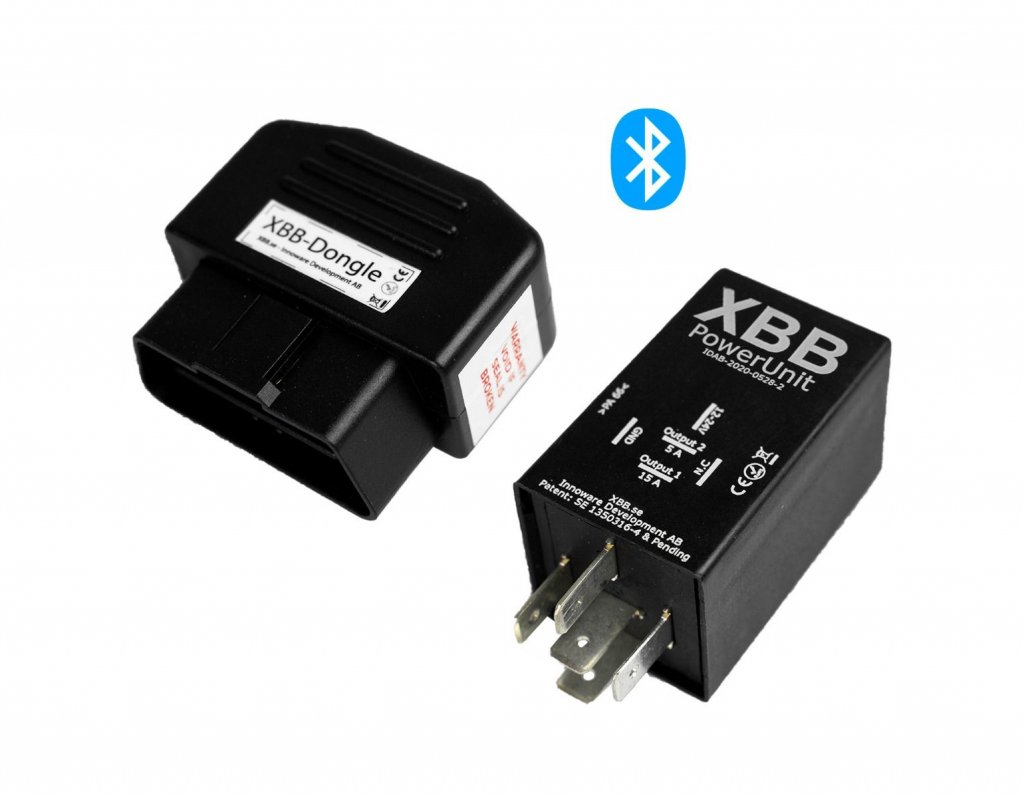

XBB Dongle only + 1 Power Unit (relay)

58010-3600

€231

Available

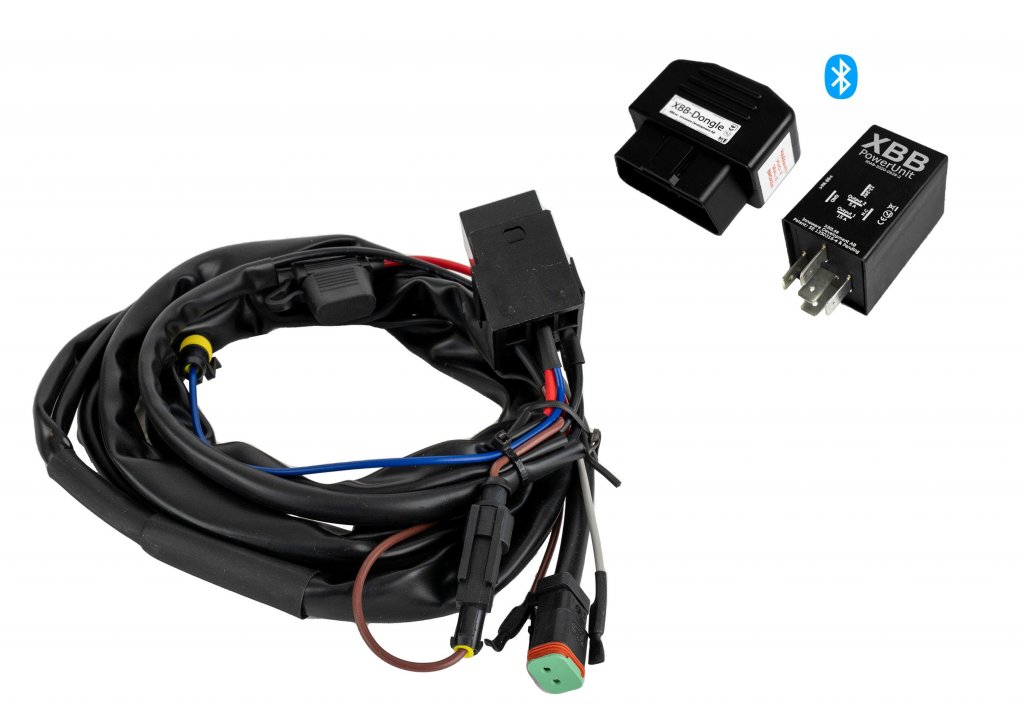

XBB Kit (Cabling with 1 x DT output for e.g. LED ramp)

58010-3601

€288

Available

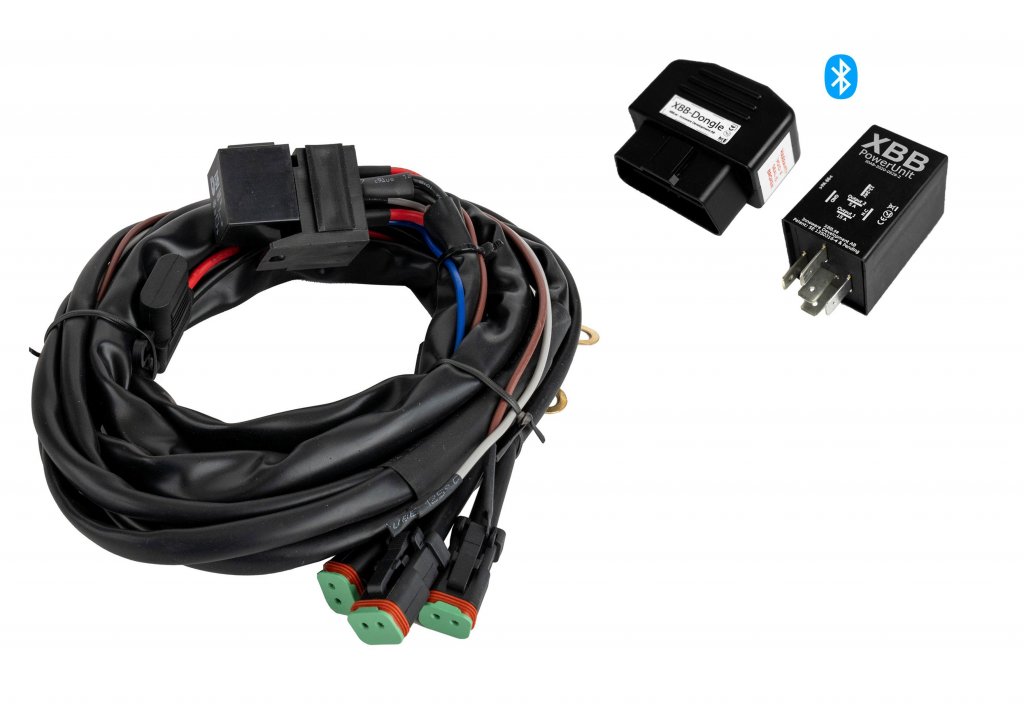

XBB Kit (Cabling with 3 x DT outputs for e.g. 3 extra lights)

58010-3604

€317

Available

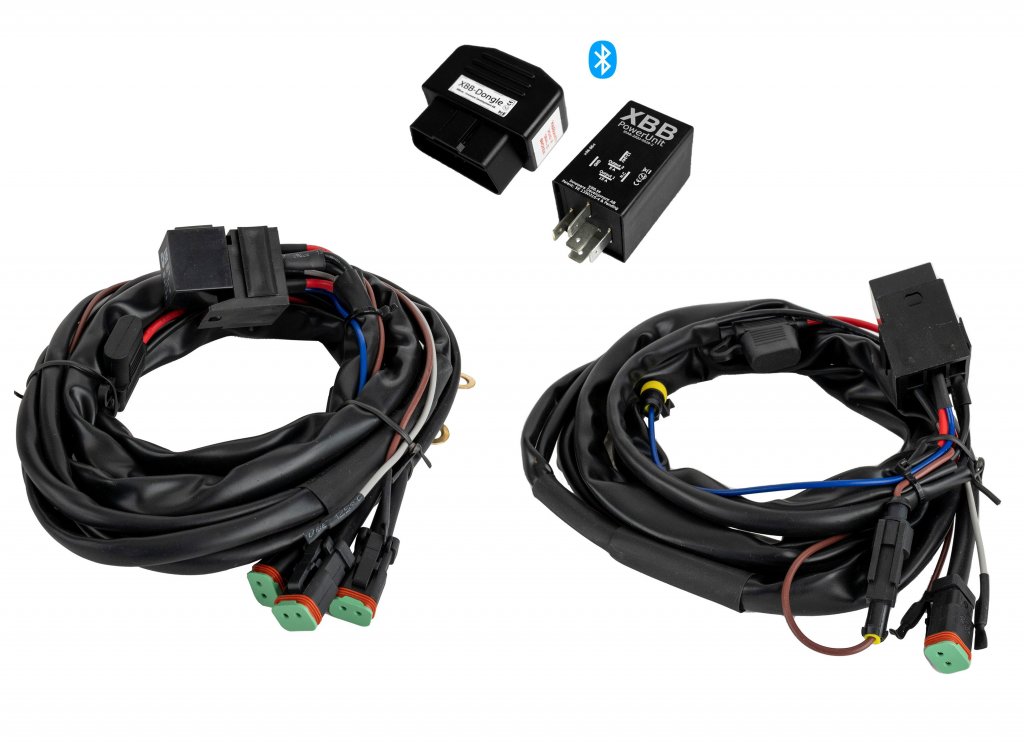

XBB Kit (Cabling with 4 x DT outputs for e.g. 4 extra lights)

58010-3603

€374

Available

In stock at external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 1-4 business days

Product Description:

Are you looking for an easy way to connect auxiliary lights or an LED bar to your Porsche Macan from 2024-? Here you will find an incredibly convenient auxiliary light connection, XBB Dongle and XBB PowerUnit from Swedish XBB. This wireless auxiliary light relay is an innovative and super safe solution where communication between the relay and the car's high beam signal occurs completely wirelessly via Bluetooth.

Wireless installation – No cable routing through the firewall
Quick assembly – done in about 15 minutes
No damage to the electrical system – do not cut any original cables

XBB Dongle and PowerUnit auxiliary light connection for Porsche Macan

With XBB Dongle and PowerUnit for Porsche Macan, installation time is down to about 15 minutes. You avoid time-consuming searching for Canbus cables and do not need to run any cables through the firewall into the engine compartment. The transmitter unit (Dongle) is mounted in the car's OBDII socket and communicates wirelessly with the receiver relay (PowerUnit).

The kit is complete (except for the auxiliary lights/LED bar themselves) and consists of:

OBD-II transmitter (XBB Dongle)
Receiver relay (XBB PowerUnit)
Cabling for 1, 3 or 4 DT outputs depending on choice.

Installation of XBB Dongle and PowerUnit for Porsche Macan

Before installation: Download the free app XBB Configurator via the links below:

Mount the transmitter unit (XBB Dongle) in the vehicle's diagnostic socket (OBDII), usually under the steering wheel.
Mount the relay wiring at the battery or fuse box. The XBB PowerUnit is inserted into the relay holder.
Pull and connect the DT connector to the LED bar/auxiliary lights.
Start the XBB Configurator app, which will guide you to pair the units.
Done!

For more detailed instructions and vehicle-specific settings, see XBB's official quick guide for installation.

Functions and outputs on XBB PowerUnit

The receiver relay (PowerUnit) is equipped with two smart, programmable outputs that allow you to avoid damaging the car's electrical system thanks to the wireless Bluetooth transmission:

Output No. 1 (Max 15A / 180W at 12V): Intended for easy connection of your auxiliary lights or your LED bar.
Output No. 2 (Max 5A / 60W at 12V): Optional output that is perfect for controlling position lights, styling lights, or reverse lights.

With XBB Dongle and PowerUnit auxiliary light connection for Porsche Macan, you get a guaranteed safe, easy, and professional installation without complicated cable splicing.

Technical specification

Operating voltage 9-36V

Physical outputs 1x 15A, 1x 5A

Max load (With 1 output cabling) Max 13A / 156W (at 12V)

Max load (With 3 output cabling) Max 39A / 468W (at 12V)

Max load (With 4 output cabling) Max 52A / 624W (at 12V)

Order your XBB Dongle and PowerUnit for Porsche Macan today and experience how easy, safe, and fast it can be to get professional lighting on the road!

Documents:
attachment

Wiring Diagram Example XBB
