  5. Canbus interface for auxiliary lights - BMW 3 Series from 2005-2012
Categories

Auxiliary light BMW 3 Series 2005-2012

  • Driving lights BMW 3 Series 2005-2012
  • Extra light BMW 3 Series 2005-2012
Item ID:  1216-2400
€106
Incl. VAT
Available
Available in external warehouse | Ships within 2-7 business days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 2-7 business days
Product Description:

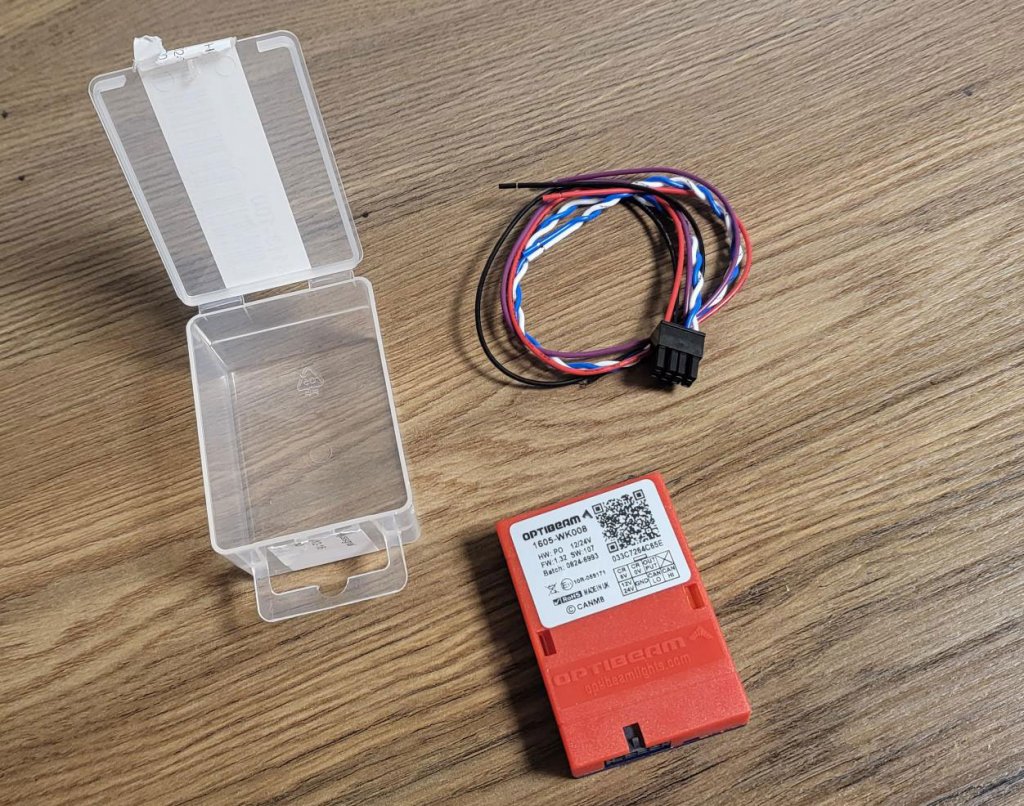

Convenient CANBUS interface for connecting auxiliary lights on your BMW 3 Series from 2005-2012. The CANBUS interface works just as well if you instead want to install an LED ramp or other extra lighting in front.

The CANBUS interface provides the control signal to your external relay kit, which means that the auxiliary lights are started together with the car's high beam. If the car is equipped with adaptive high beam, this function will also follow the auxiliary lights / LED ramp.

The installation is done specifically for each individual car to the car's electrical system. The CANBUS interface needs contact with the CAN HI and CAN LO functions to be able to read when the car's high beam is activated.

BMW 3 Series auxiliary lights - Connection:

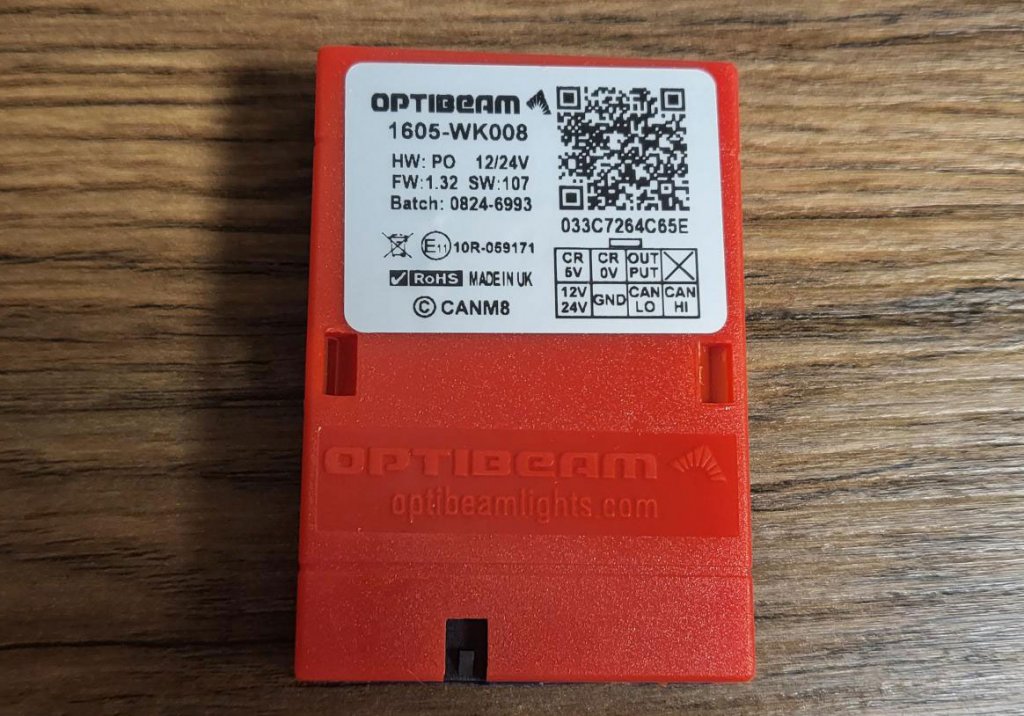

The CANBUS interface has a hidden LED next to the connector that indicates the status of contact with the vehicle as shown below:

Solid red: CANBUS interface has contact but the vehicle is not identified
Flashing red: the CANBUS interface is in contact with the vehicle and checking the vehicle status
Solid green: CANBUS interface is in contact and the vehicle is identified
Flashing green: CANBUS interface is in contact and the vehicle is identified, and the CANBUS interface indicates that the vehicle is moving



From the CANBUS interface you get 5 cables with the following functions:

  • RED - Connects to +12V from the car battery/plus pole (fused 5A)
  • BLACK - Connects to a ground point / negative terminal on the car battery
  • WHITE - Connects to CAN HI (connection point specified in the installation instructions)
  • BLUE - Connects to CAN LO (connection point specified in the installation instructions)
  • PURPLE - Connects to external relay input 85 (control current/relay switching), providing +12V (maximum 1A)

Installation instructions are attached below.
Supplied individually


Documents:
attachment Mounting desciption for canbus interface 1216-2400

Fits the following car models:

BMW 3-series from 2005-2012

Cars manufactured from September 2005 to August 2012

BMW 3-series Touring from 2002-2004 BMW 3-series Touring from 2005-2012 BMW 3-series Touring from 2013-2020

Engine:

  • Gasoline
  • Diesel

Body:

  • Sedan (E90/E90 LCI)
  • Touring (E91/E91 LCI)
  • Coupé (E92/E92 LCI)
  • Cabriolet (E93/E93 LCI).
