Auxiliary lights Audi Q3 from 2012-2018

Item ID: 1117-2400

€106

Incl. VAT

Available

Available in external warehouse | Shipped within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 1-4 business days

Product Description:

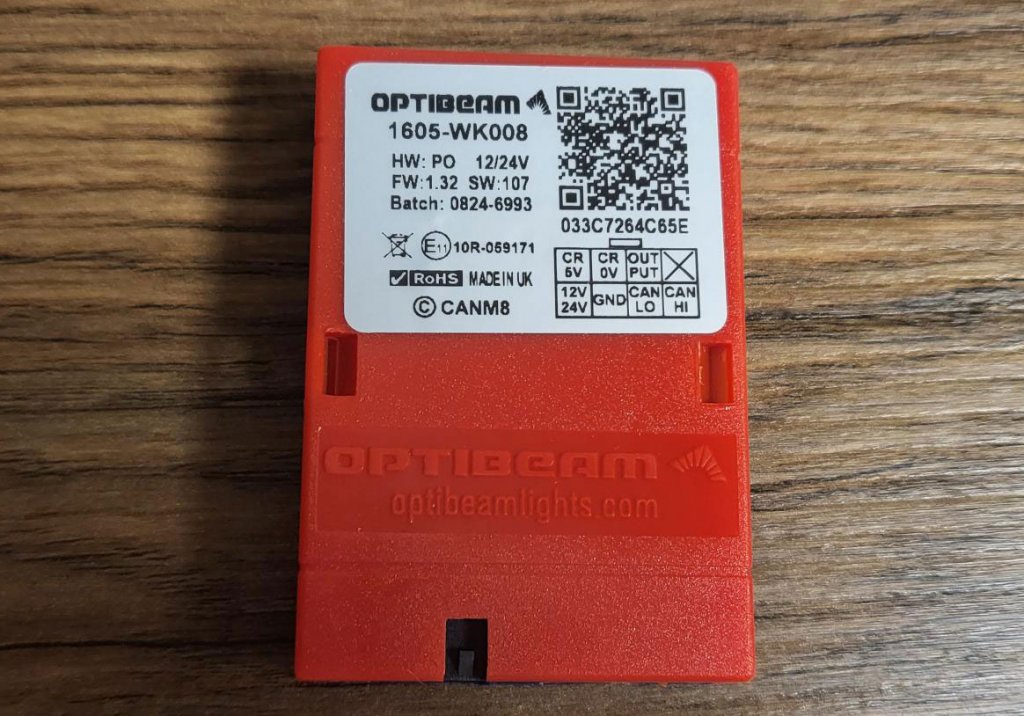

Convenient CANBUS interface for connecting auxiliary lights on your Audi Q3 from 2011-2018. The CANBUS interface works just as well if you instead want to install an LED ramp or other extra lighting in front.

The CANBUS interface provides the control signal to your external relay kit, which means that the auxiliary lights are started together with the car's high beam. If the car is equipped with adaptive high beam, this function will also follow the auxiliary lights / LED ramp.

The installation is done specifically for each individual car to the car's electrical system. The CANBUS interface needs contact with the CAN HI and CAN LO functions to be able to read when the car's high beam is activated.

The CANBUS interface has a hidden LED next to the connector that indicates the status of contact with the vehicle as shown below:

	Solid red: CANBUS interface has contact but the vehicle is not identified
	Flashing red: the CANBUS interface is in contact with the vehicle and checking the vehicle status
	Solid green: CANBUS interface is in contact and the vehicle is identified
	Flashing green: CANBUS interface is in contact and the vehicle is identified, and the CANBUS interface indicates that the vehicle is moving

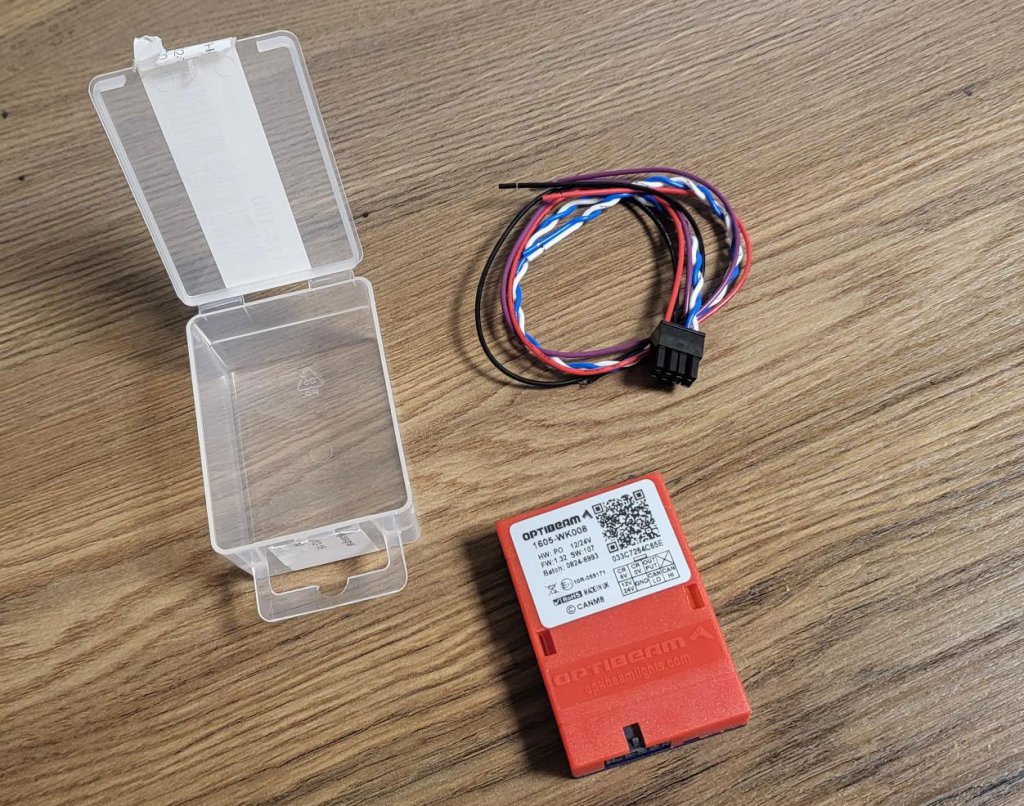

From the CANBUS interface you get 5 cables with the following functions:

RED - Connects to +12V from the car battery/plus pole (fused 5A)
BLACK - Connects to a ground point / negative terminal on the car battery
WHITE - Connects to CAN HI (connection point specified in the installation instructions)
BLUE - Connects to CAN LO (connection point specified in the installation instructions)
PURPLE - Connects to external relay input 85 (control current/relay switching), providing +12V (maximum 1A)

Installation instructions are attached below.
Supplied individually

Documents:
attachment

Mounting desciption for canbus interface 1117-2400
