  5. Canbus interface for auxiliary lights for Audi A3 from 2012-2020
Categories

Auxiliary lights Audi A3 from 2012-2020

  • Audi A3 auxiliary lights from 2012-2020
  • Auxiliary lights Audi A3 from 2012-2020
Item ID:  1112-2400
€106
Incl. VAT
Available
Available in external warehouse | Shipped within 2-7 working days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 2-7 working days
Product Description:

Flexible CANBUS interface for connecting extra lights on your Audi A3 from 2012-2020. The CANBUS interface works just as well if you instead want to install an LED ramp or other extra lighting in front.

Auxiliary light A3 2012-2020

The CANBUS interface provides the control signal to your external relay set, which means that the auxiliary lights are started together with the car's main beam. If the car is equipped with adaptive main beam, this function will also be included in the auxiliary lights / LED ramp.

The installation is done specifically for each individual car to the car's electrical system. The CANBUS interface needs contact with the CAN HI and CAN LO functions to be able to read when the car's high beam is activated.

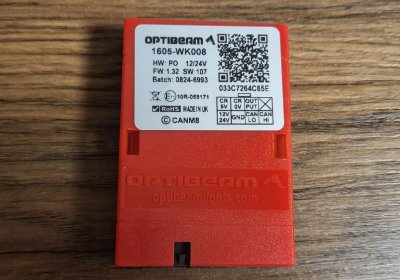

The CANBUS interface has a hidden LED next to the connector that indicates the status of contact with the vehicle as shown below:

Solid red: CANBUS interface has contact but the vehicle is not identified
Flashing red: the CANBUS interface is in contact with the vehicle and checking the vehicle status
Solid green: CANBUS interface is in contact and the vehicle is identified
Flashing green: CANBUS interface is in contact and the vehicle is identified, and the CANBUS interface indicates that the vehicle is moving

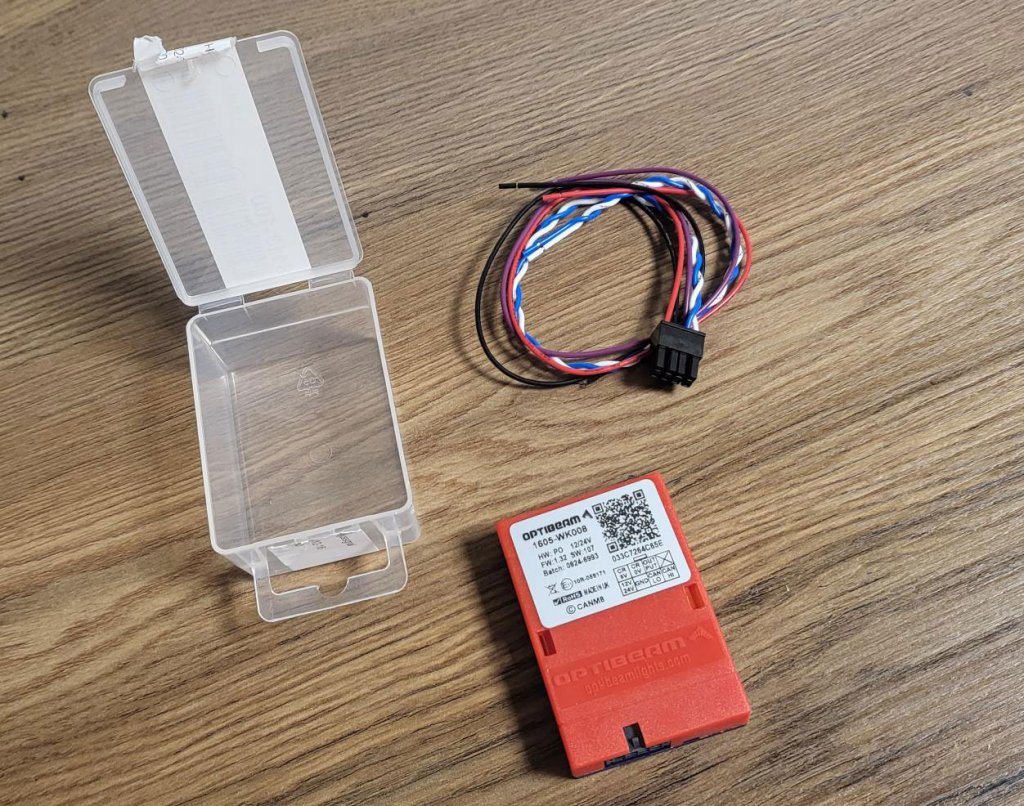

From the CANBUS interface you get 5 cables with the following functions:

  • RED - Connects to +12V from the car battery/plus pole (fused 5A)
  • BLACK - Connects to a ground point / negative terminal on the car battery
  • WHITE - Connects to CAN HI (connection point specified in the installation instructions)
  • BLUE - Connects to CAN LO (connection point specified in the installation instructions)
  • PURPLE - Connects to external relay input 85 (control current/relay switching), providing +12V (maximum 1A)

Installation instructions are attached below.
Supplied individually


Documents:
attachment Mounting desciption for canbus interface 1112-2400

Fits the following car models:

Audi A3 from 2012-2020

Cars manufactured from August 2012 to April 2020

Audi A3 from 2009-2011 Audi A3 from 2012-2020 Audi A3 from 2021-

Body code: 8V

Motor: Body:

  • Convertible
  • Sedan
  • 3-door
  • Sportback (5-door)

Assembly time: about 30 minutes

Warranty: 1 year warranty
