Product Description:

Enormously flexible extra light connection from Swedish XBB for Range Rover Evoque from 2011-2018.

  • Super easy installation where the communication between relay and signal for the high beam is done wirelessly via Bluetooth
  • XBB Extra Light Connector Range Rover Evoque has a short installation time - 15 minutes!

XBB Extra Light Connector Range Rover Evoque

Installation is super easy and communication between the OBD reader and auxiliary light relay is completely wireless via Bluetooth, meaning everything can be ready in as little as 15 minutes! No more time-consuming searching for Canbus cables or any wiring inside the car, no cable to be pulled through the torpedo wall out into the engine compartment and the like.

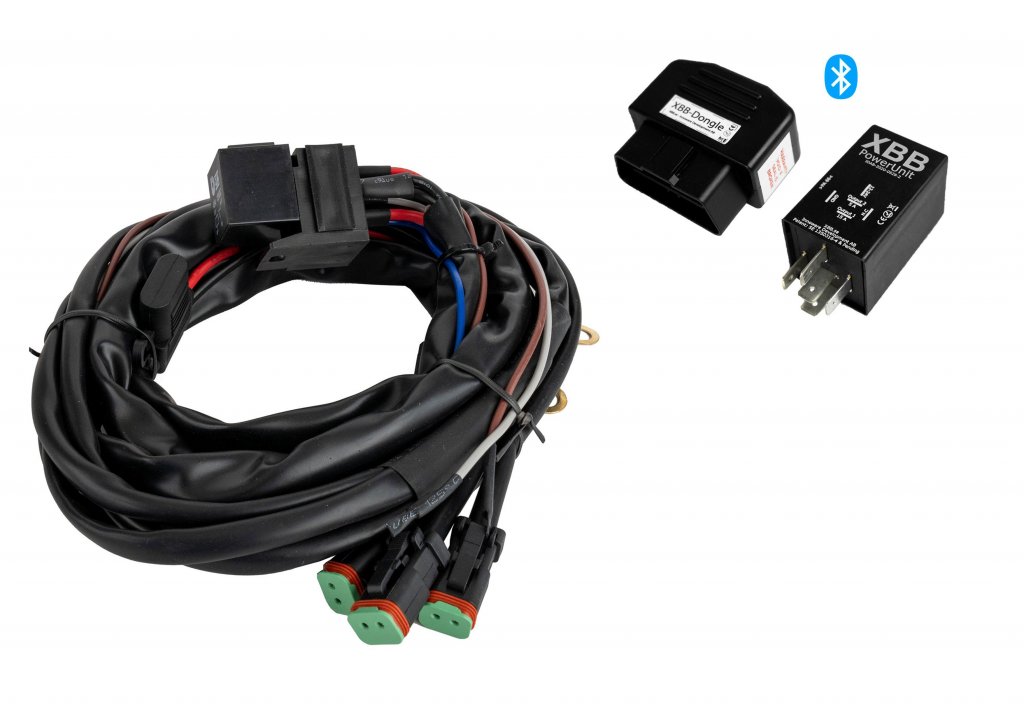

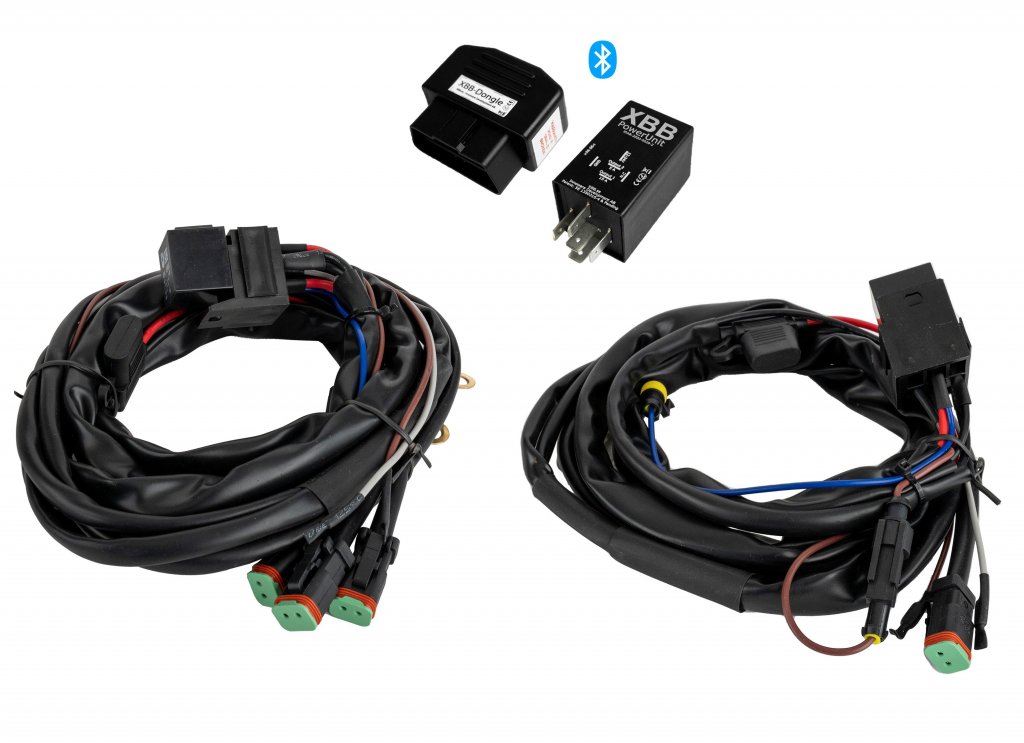

The kit, which is complete (except for the auxiliary light/LED-ramp), consists of the following:

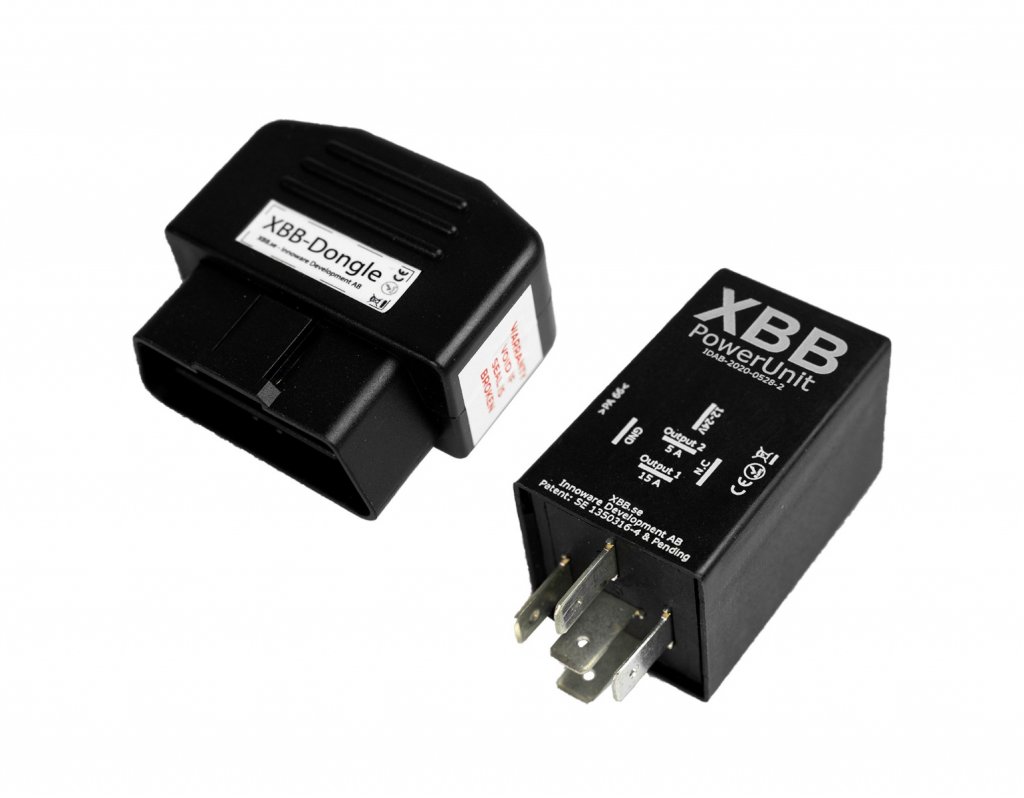

  • OBD-II transmitter (Dongle)
  • Receiver relay (Powerunit)
  • Wiring for 1, 3 or 4 DT outputs depending on how many ramps/extra lights you want to connect.

Installation of XBB kit (complete quick guide here):

Before installation: Download the free app XBB Configurator for your Android phoneor XBB Configurator for your iPhone and ensure that your vehicle is compatible with the kit.

  1. Install the transmitter unit (XBB Dongle) in the vehicle's diagnostic socket, the OBDII socket. This socket is usually located under the steering wheel
  2. Install the relay cable (included in the complete kits) at the vehicle battery or fuse box in the engine compartment. The XBB Power Unit is then plugged into the relay holder on the harness
  3. Pull out and connect the DT connector(s) to the LED ramp/extra lights
  4. Launch the XBB Configurator app which will guide you step-by-step to pair the units and finalize the settings.
  5. Done!

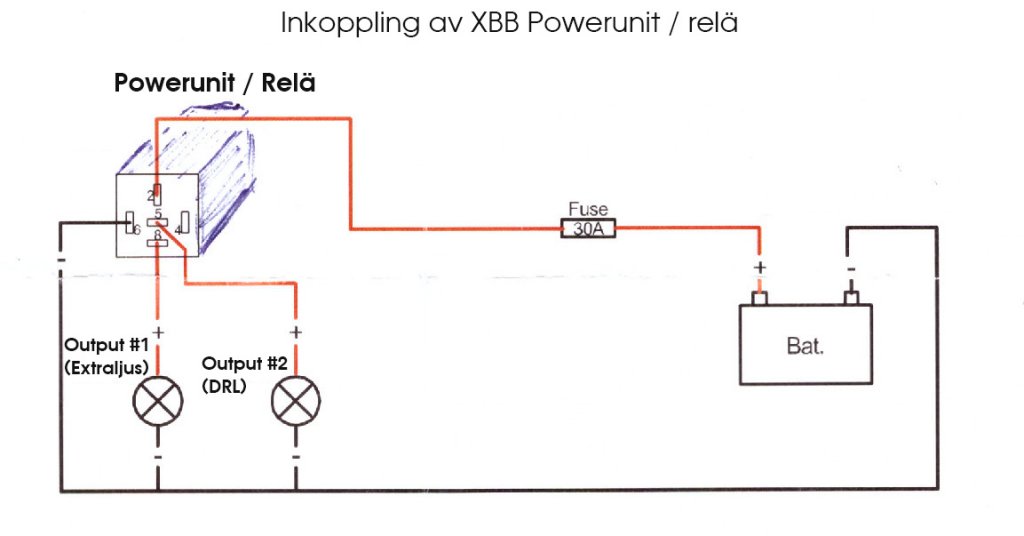

Outputs on Receiver Relay (Power Unit):

The receiver relay communicates wirelessly with the transmitter (Dongle) via bluetooth/bluetooth and has two independent outputs. These outputs can handle up to 15A and up to 5A respectively.

For example, you can use the outputs on the Power Unit like this:

  • Output no. 1 (max 15A, 180W at 12V) for extra light / LED ramp
  • Output no. 2 (max 5A, 60W at 12V) for position light / reversing light (this output is optional to use)

You can easily set these outputs yourself using the XBB Configurator app.

You do not have to connect to the car's electrical system, but the extra light signal goes between the transmitter unit and the relay via Bluetooth. The XBB Auxiliary Light Connector Range Rover Evoque makes it very easy to install auxiliary lights.

Technical specification:

  • Working voltage: 9-36V
  • Outputs: 1x15A, 1x5A
  • Loads:
    • At 1 output: Max 13A/156W (at 12V, total)
    • At 3 outputs: Max 39A/468W (at 12V, total)
    • At 4 outputs: Max 52A/624W (at 12V, total)

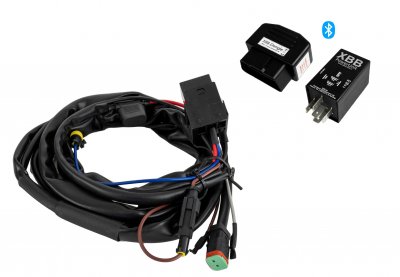

XBB Extra light connector Range Rover Evoque supplied individually




Passar till följande bilmodeller:



Land Rover Range Rover Evoque från 2011-2018

Bilar tillverkade från September 2011 till Mars 2019

Land Rover Range Rover Evoque från 2011-2018 Land Rover Range Rover Evoque från 2018-

Karosskod: L538

Motor:

  • Bensin
  • Diesel

Kaross:

  • SUV
  • Cabriolet

Strålkastare:

  • Bixenon
  • LED

Tillverkare: XBB logotyp

Monteringstid: ca 15 minuter

Garanti: 1 års garanti
