XBB Dongle & PowerUnit Jaguar XF 2016-

Item ID: 3104-3600

€232

Incl. VAT

Which variant do you want?

XBB Dongle only + 1 Power Unit (relay)

3104-3600

€232

Available

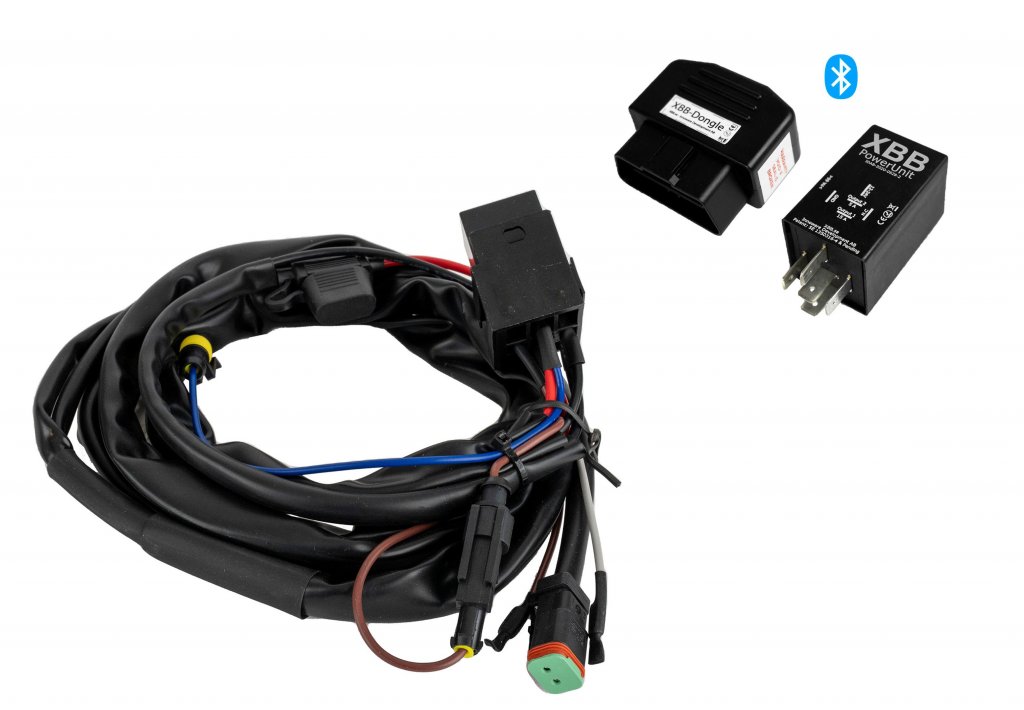

XBB Kit (Cabling with 1 x DT output for e.g. LED ramp)

3104-3601

€289

Available

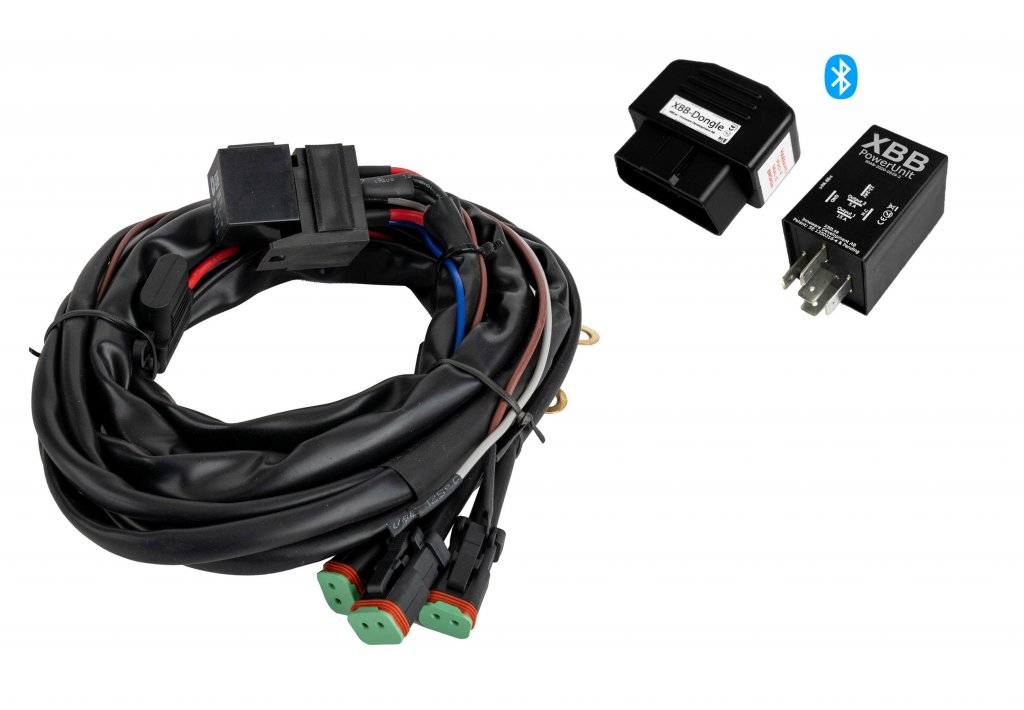

XBB Kit (Cabling with 3 x DT outputs for e.g. 3 extra lights)

3104-3604

€318

Available

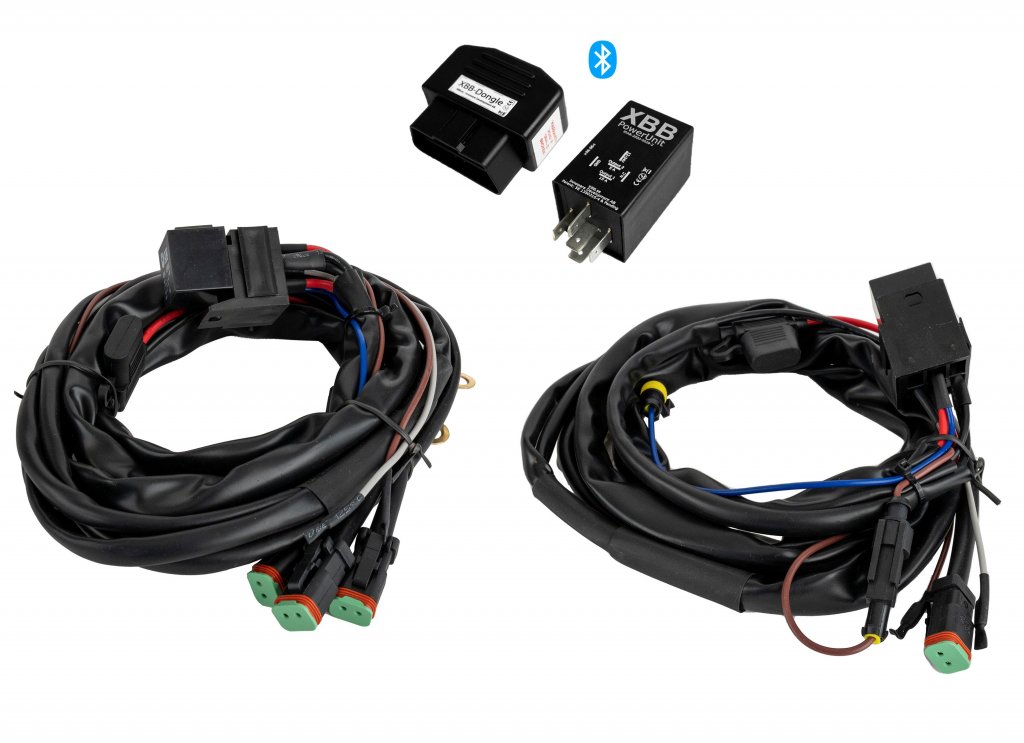

XBB Kit (Cabling with 4 x DT outputs for e.g. 4 extra lights)

3104-3603

€376

Available

Made to order | Shipped within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | Shipped within 2-7 business days

Product Description:

Here you will find an extremely convenient XBB Dongle and PowerUnit auxiliary light kit from Swedish XBB for Jaguar XF from 2016 onwards. It is an innovative solution for super simple installation where the communication between the relay and the high beam signal occurs completely wirelessly via Bluetooth.

XBB Dongle and PowerUnit auxiliary light kit Jaguar XF

With the XBB Dongle and PowerUnit auxiliary light kit Jaguar XF, installation time is reduced to approximately 15 minutes. You avoid time-consuming searches for Canbus cables and do not need to route any wires through the firewall into the engine bay. The transmitter unit (Dongle) is mounted in the car's OBDII socket and communicates wirelessly with the receiver relay (PowerUnit).

Installation of XBB Dongle and PowerUnit Jaguar XF

The kit is complete (excluding the auxiliary lights/LED bar themselves) and consists of:

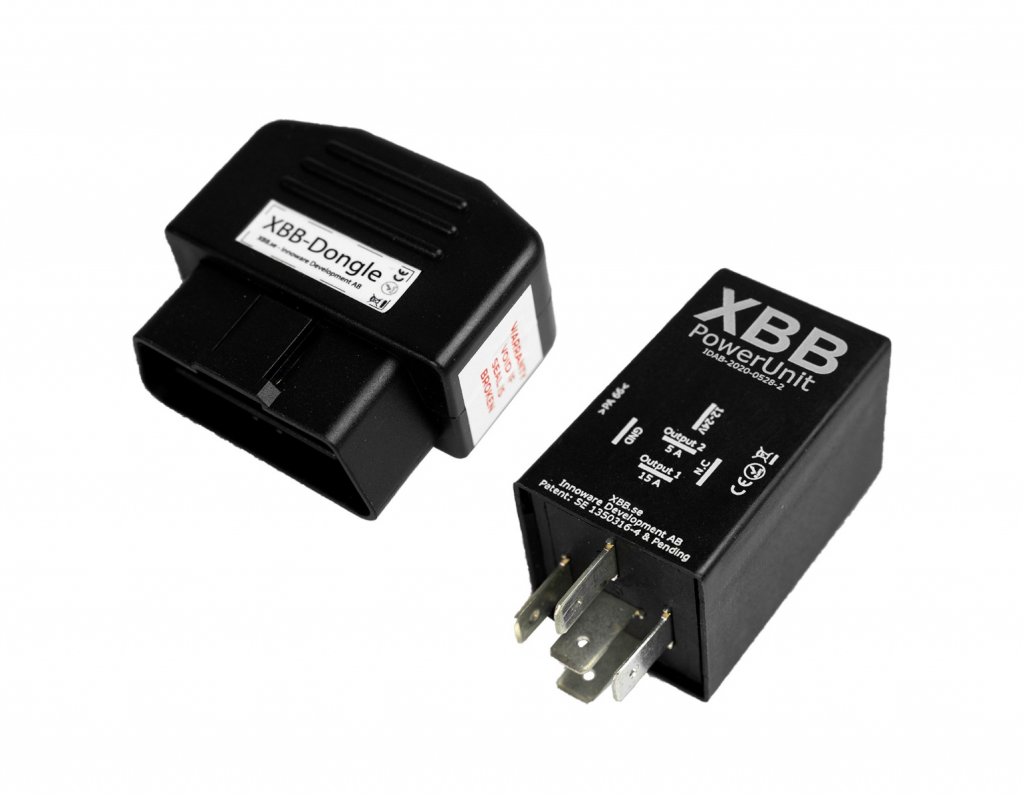

OBD-II transmitter (XBB Dongle)
Receiver relay (XBB PowerUnit)
Cabling for 1, 3, or 4 DT outputs depending on your choice.

How to install (complete quick guide here):

Before installation: Download the free app XBB Configurator for Android or Xbb Configurator for iPhone and ensure that your vehicle is compatible.

Mount the transmitter unit (XBB Dongle) in the vehicle's diagnostic port (OBDII), usually located under the steering wheel.
Mount the relay cabling near the battery or fuse box. The XBB PowerUnit plugs into the relay holder.
Route and connect the DT connector to the LED bar/auxiliary lights.
Start the XBB Configurator app which guides you to pair the units.
Done!

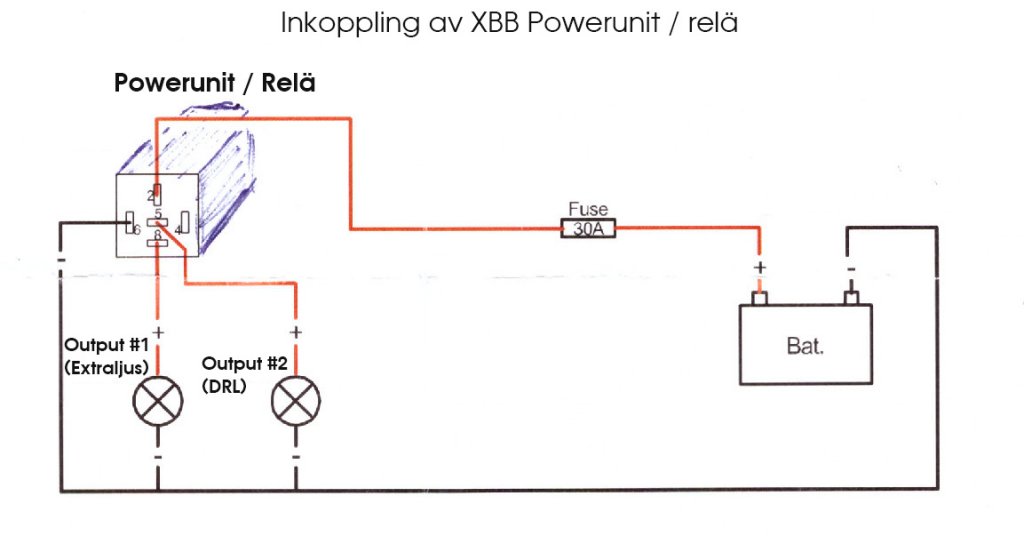

Outputs on Receiver Relay (PowerUnit):

Output No. 1 (max 15A, 180W at 12V) for auxiliary lights / LED bar
Output No. 2 (max 5A, 60W at 12V) for position lights / reverse lights (optional)

You avoid splicing into the car's electrical system as the signal travels via Bluetooth. XBB Dongle and PowerUnit auxiliary light kit Jaguar XF makes the installation safe and easy.

Technical Specifications:

Operating voltage: 9-36V
Outputs: 1x15A, 1x5A
Loads:
- At 1 output: Max 13A/156W (at 12V)
- At 3 outputs: Max 39A/468W (at 12V)
- At 4 outputs: Max 52A/624W (at 12V)
