XBB Audi A1 from 2015-2019

Item ID: 11019-3600

€232

Incl. VAT

Which variant do you want?

XBB Dongle only + 1 Power Unit (relay)

11019-3600

€232

Available

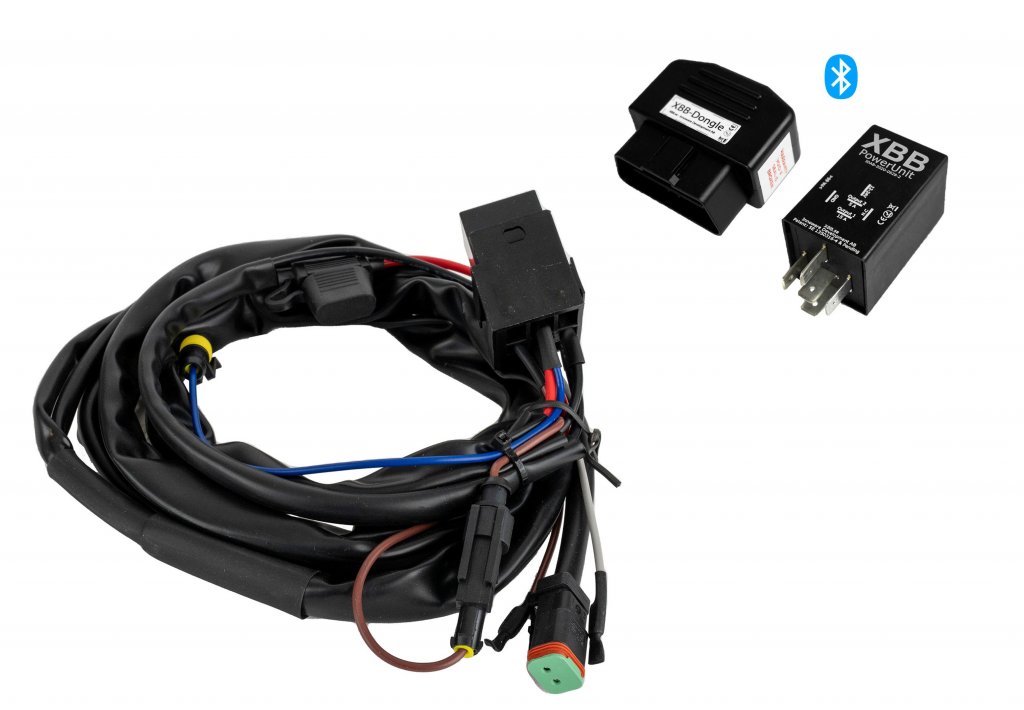

XBB Kit (Cabling with 1 x DT output for e.g. LED ramp)

11019-3601

€289

Available

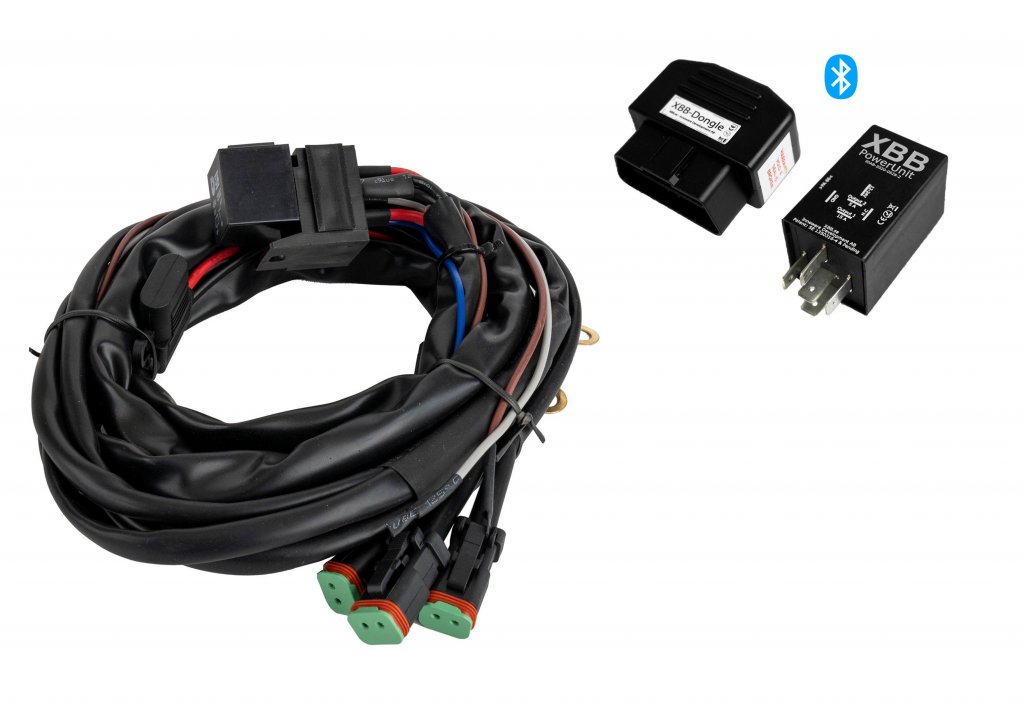

XBB Kit (Cabling with 3 x DT outputs for e.g. 3 extra lights)

11019-3604

€318

Available

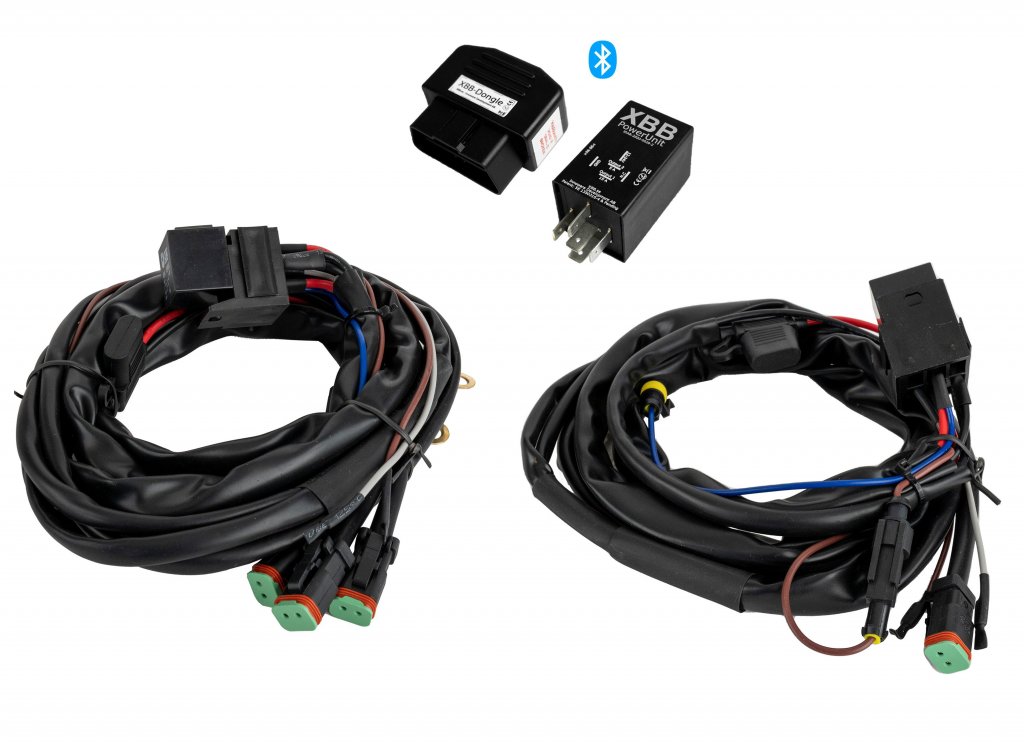

XBB Kit (Cabling with 4 x DT outputs for e.g. 4 extra lights)

11019-3603

€376

Available

Made to order | Shipped within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | Shipped within 2-7 business days

Product Description:

Extremely flexible extra light connection from Swedish XBB. XBB Audi A1 from 2015-2019 has a short installation time of only 15 minutes.

Super easy installation where the communication between relay and signal for the high beam is done wirelessly via Bluetooth
The XBB Audi A1 auxiliary light connector has a short installation time - 15 minutes!

Extra light connection XBB Audi A1

Installation is super simple and communication between the OBD reader and auxiliary light relay is completely wireless via Bluetooth, meaning everything can be ready in as little as 15 minutes! No more time-consuming searching for Canbus cables or any wiring inside the car, no cable to be pulled through the torpedo wall out into the engine compartment and the like.

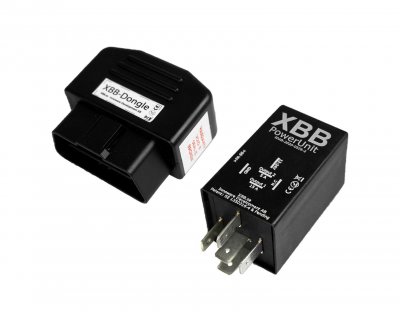

The kit, which is complete (except for the auxiliary light/LED-ramp), consists of the following:

OBD-II transmitter (Dongle)
Receiver relay (Powerunit)
Wiring for 1, 3 or 4 DT outputs depending on how many ramps/extra lights you want to connect.

Installation of XBB kit (complete quick guide here):

Before installation: Download the free XBB Configurator app for your Android phone or Xbb Configurator for your iPhone and make sure your vehicle is compatible with the kit.

Install the transmitter unit (XBB Dongle) in the vehicle's diagnostic socket, the OBDII socket. This socket is usually located under the steering wheel
Fit the relay cable (included in the complete kits) to the vehicle battery or fuse box in the engine compartment. The XBB Power Unit is then plugged into the relay holder on the harness
Pull out and connect the DT connector(s) to the LED ramp/extra lights
Launch the XBB Configurator app which will guide you step-by-step to pair the units and finalize the settings.
Done!

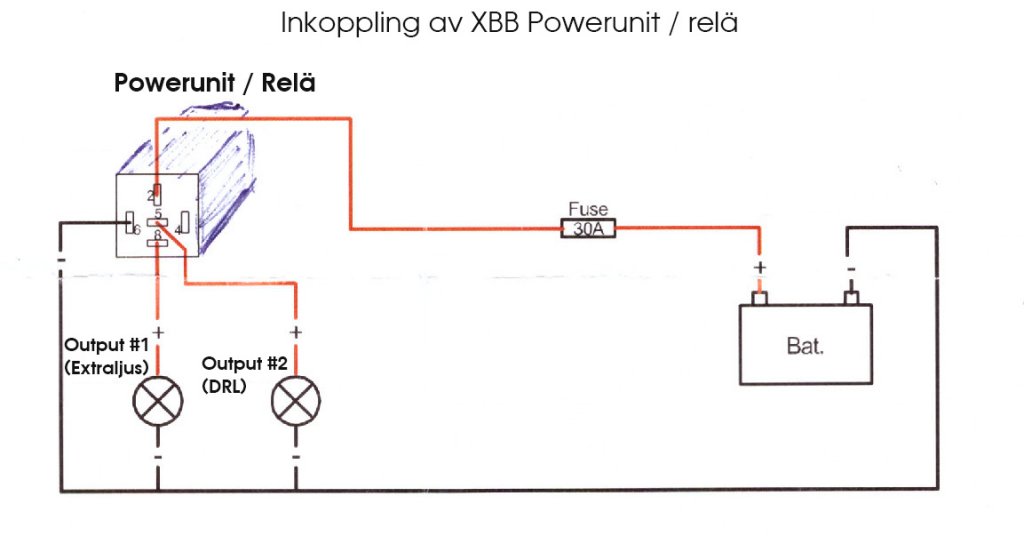

Outputs on Receiver Relay (Power Unit):

The receiver relay communicates wirelessly with the transmitter (Dongle) via bluetooth/bluetooth and has two independent outputs. These outputs can handle up to 15A and up to 5A respectively.

For example, you can use the outputs on the Power Unit like this:

Output #1 (max 15A, 180W at 12V) for extra light / LED ramp
Output no. 2 (max 5A, 60W at 12V) for position light / reversing light (this output is optional to use)

You can easily set these outputs yourself using the XBB Configurator app.

You do not have to connect to the car's electrical system, but the extra light signal goes between the transmitter unit and the relay via Bluetooth. The XBB Audi A1 auxiliary light connector makes it very easy to install auxiliary lights.

Technical specification:

Working voltage: 9-36V
Outputs: 1x15A, 1x5A
Loads:
- At 1 output: Max 13A/156W (at 12V, total)
- At 3 outputs: Max 39A/468W (at 12V, total)
- At 4 outputs: Max 52A/624W (at 12V, total)

XBB Audi A1 is delivered individually
