Wireless rear view camera system 7" screen incl. 1st camera

Wireless rear view camera system 1080P 7" screen with 1 camera

Rear view camera wireless 7-inch screen with 1 rear view camera

Item ID: VNP-706TS

€542

Incl. VAT

Available

Made to order | ~4-8 weeks delivery time

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | ~4-8 weeks delivery time

Product Description:

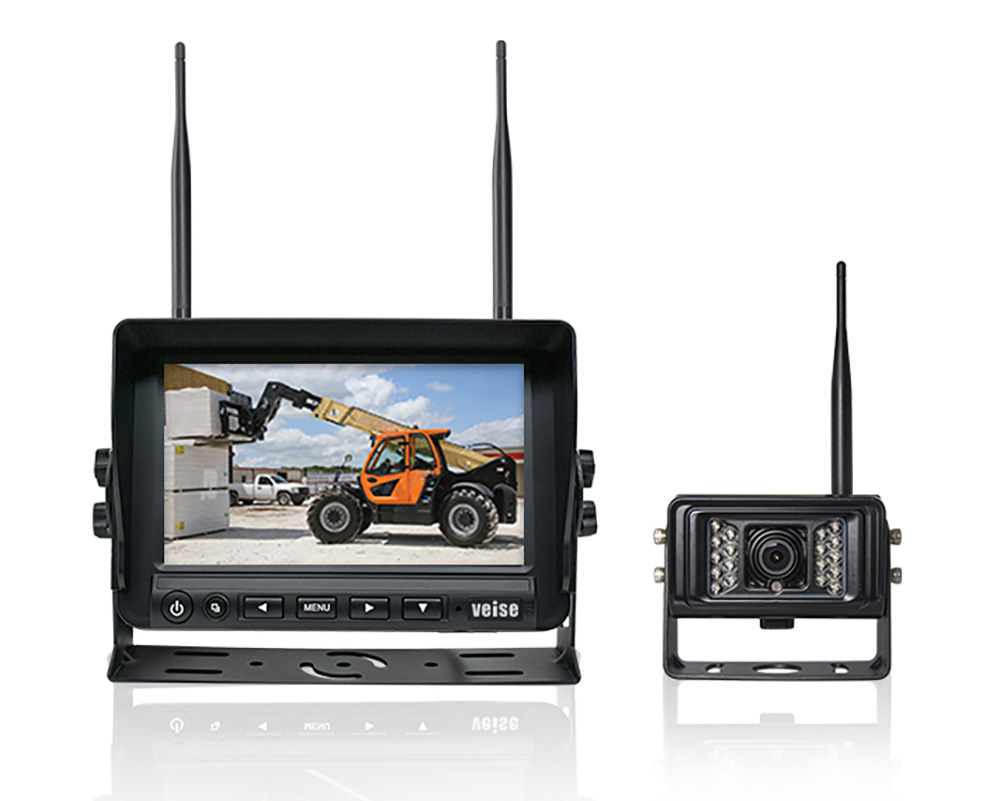

Digital wireless rear view camera system with high resolution LCD color screen and Sony 1/4 CMOS sensor in the camera resulting in a very clear and detailed image reproduction and fast response time. The screen and camera have the ability to mirror the image.

The wireless rear view camera is paired with the monitor, which means that it is not affected by other wireless signals.

With digital transmission technology, a stable transmission is provided between the rear view camera and the screen, which is significantly different from an analog system where interference is common.

Range: Approximately 30-40m. Distance measurement has been done with a clear view without obstacles in between.

While traveling: Can handle transmission between screen and camera at speeds up to 70km / h.

If you are on the limit in terms of distance / transmission, our amplification antenna VN-183 is recommended. Can be connected to both camera and monitor.

Specifications monitor:

Screen type: 7-inch digital TFT-LCD color monitor
Voltage range: 11-32 V
Resolution: 800 x 480
Contrast: 500:1
Brightness: 400 cd/m2
Dimensions incl. bracket: W 207 mm x H 149 mm x D 82 mm

A small wireless rear view camera designed for our tough Nordic conditions with very clear and detailed image reproduction.

Specifications camera:

Voltage range: 11-32 V
Wide angle: 130 degrees
Optics: Sony 1/4 CMOS
Sensitivity: 0 Lux / F 1.2 (IR on)
IR diodes: 18 pcs
Range in darkness: 15 m
Protection class: IP69K
Vibration resistance: 10 G
Working temperature: Down to -30°C

Supplied complete for connection.

NOTE: Are you unsure if a wireless system works on your particular application? Contact us for advice before ordering.
