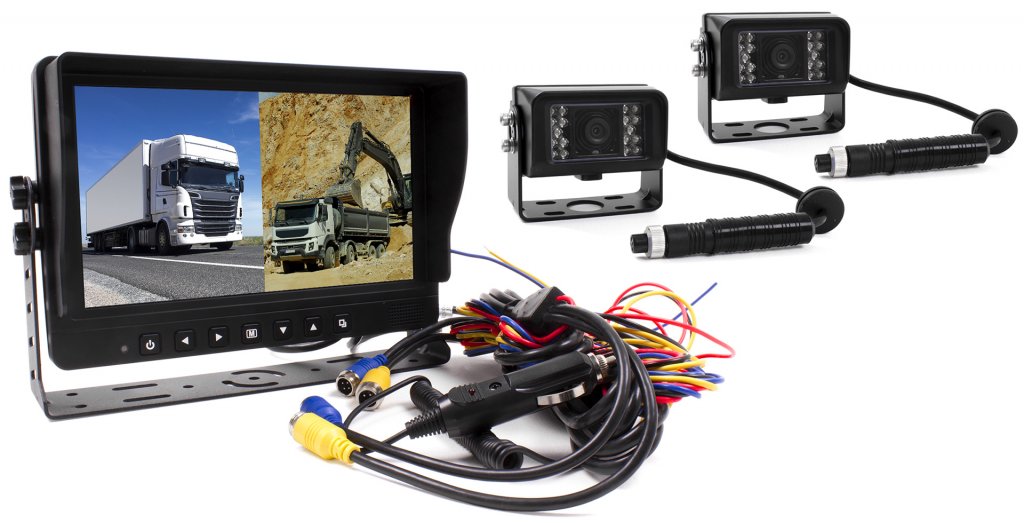

Split system 9" monitor incl. 2 standard cameras

Item ID:  VN-905SS-55

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

RM90SS - 9 inch monitor that has the function to display images from up to 4 cameras simultaneously. This package includes 2 cameras of type RC25.

9 inch screen is very suitable for professional use and is used advantageously in eg. truck, machine, truck, bus, camper, forestry machine etc. This is a monitor that reproduces a very clear and detailed image, but which also has a fast response time. The matte screen surface and the included sunshade minimize reflections and the keypad is backlit in LED.

The screen can display images from up to 4 cameras simultaneously. Our RC25 reversing camera is a wired camera designed to withstand our harsh Nordic climate. The image reproduction is very clear and detailed. In short, a very nice reversing camera that together with our monitor RM90SS gives you a very nice reversing camera system.

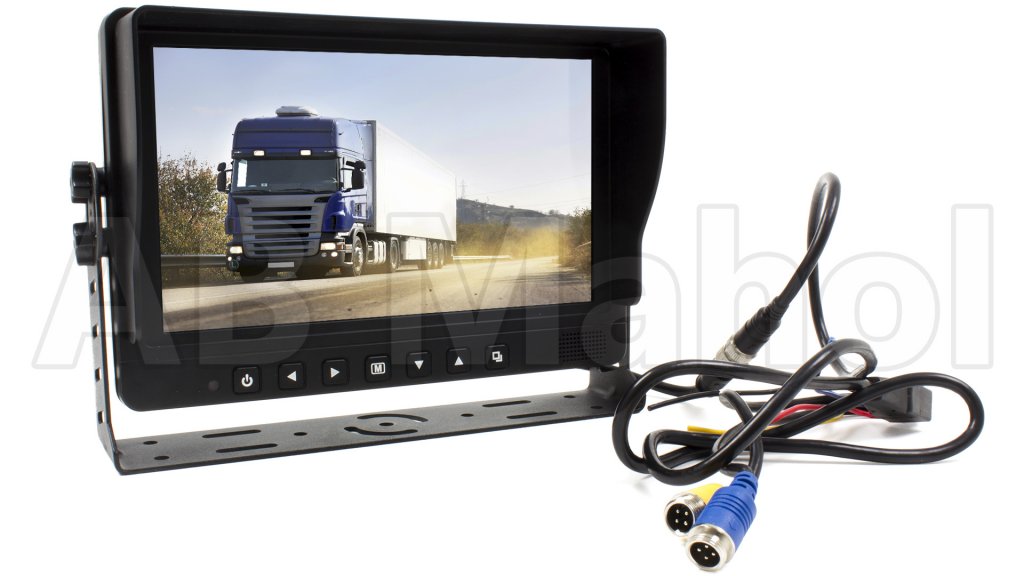

Monitor RM90SS:

  • Screen type: 9-inch digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Resolution: 800 x 480
  • Contrast: 500:1
  • Brightness: 400 cd/m2
  • Camera connections: 2 pcs
  • Dimensions incl. bracket: W 224 mm x H 179 mm x D 81 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes

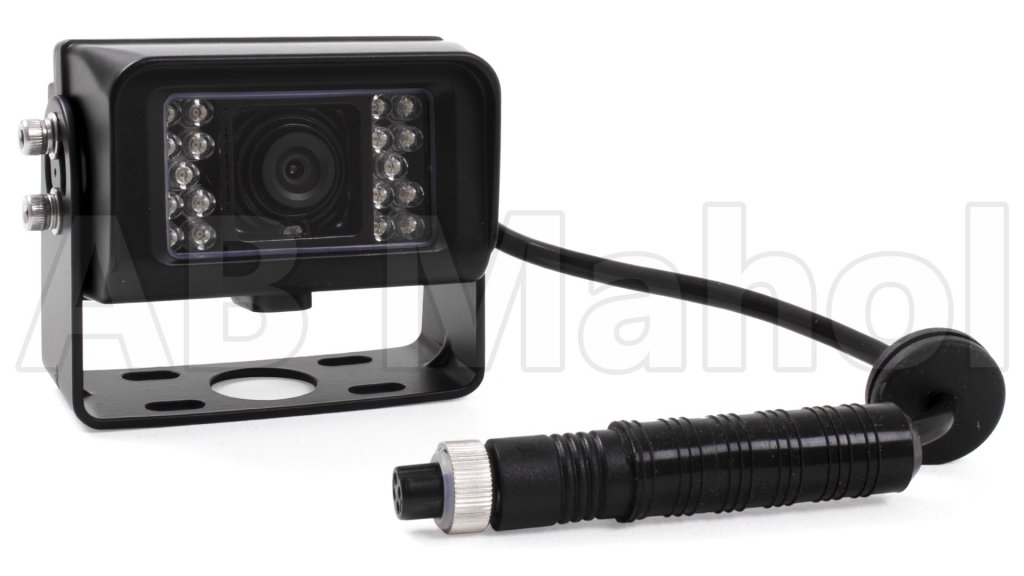

Rear view camera RC25:

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • Dimensions incl bracket: W 82 mm H 73 mm D 68 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 18 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

Supplied complete for connection. Select the cable length in the drop-down list below the price
