Split system 9" monitor incl. 1 standard & 1 visor

Item ID:  VN-940SS-55

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

The 9-inch RM90SS monitor is very suitable for professional use. Suitable for most types of industries and installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. LCD screen that provides a detailed image and has a fast response time. The package includes a camera of type RC25 and a camera of type RC30. Rear view camera RC25 is our standard camera, a wired camera with very good image reproduction. Rear view camera RC30 is our visor camera, a wired camera with very good image reproduction that has an automatic visor that protects the camera lens when the camera is not in use.

Matte screen surface and sunshield minimize reflections and the keypads are backlit with LEDs. The screen can display images from up to 4 cameras simultaneously (splitscreen).

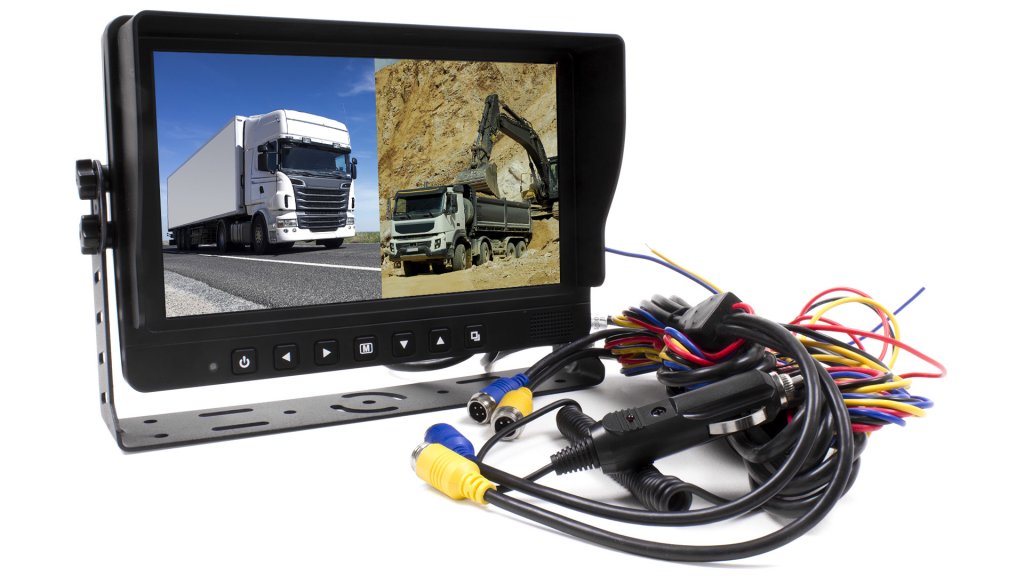

Monitor RM90SS:

  • Screen type: 9-inch digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Resolution: 800 x 480
  • Contrast: 500:1
  • Brightness: 400 cd/m2
  • Camera connections: 2 pcs
  • Dimensions incl. bracket: W 224 mm x H 179 mm x D 81 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes

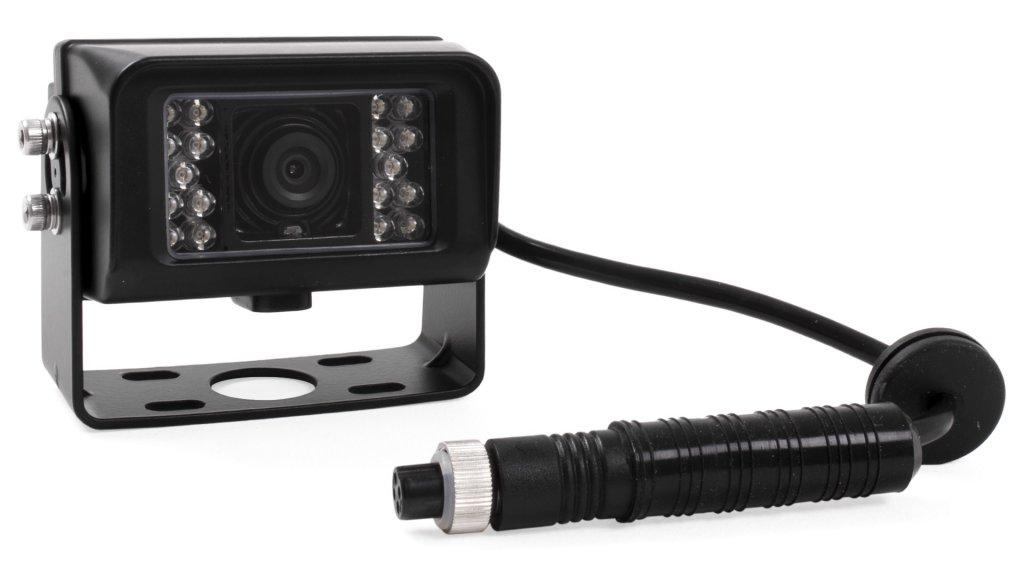

Rear view camera RC25:

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • Dimensions incl bracket: W 82 mm H 73 mm D 68 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 18 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

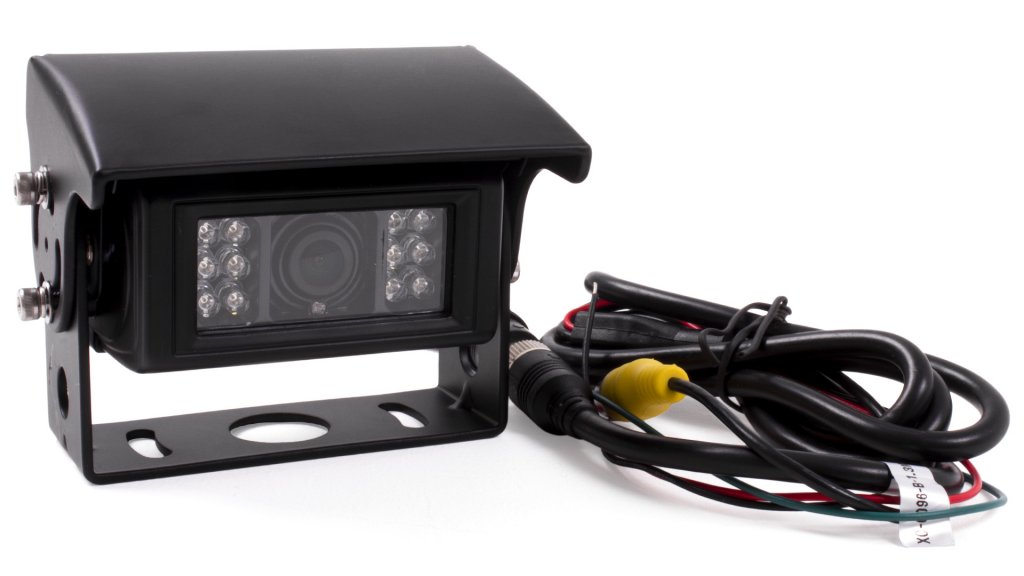

Rear view camera RC30:

  • Voltage range: 10-32 V
  • Dimensions incl bracket: H 83 mm W 99 mm D 89 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 12 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

Supplied complete for connection. Choose the cable length in the drop-down list below the price
