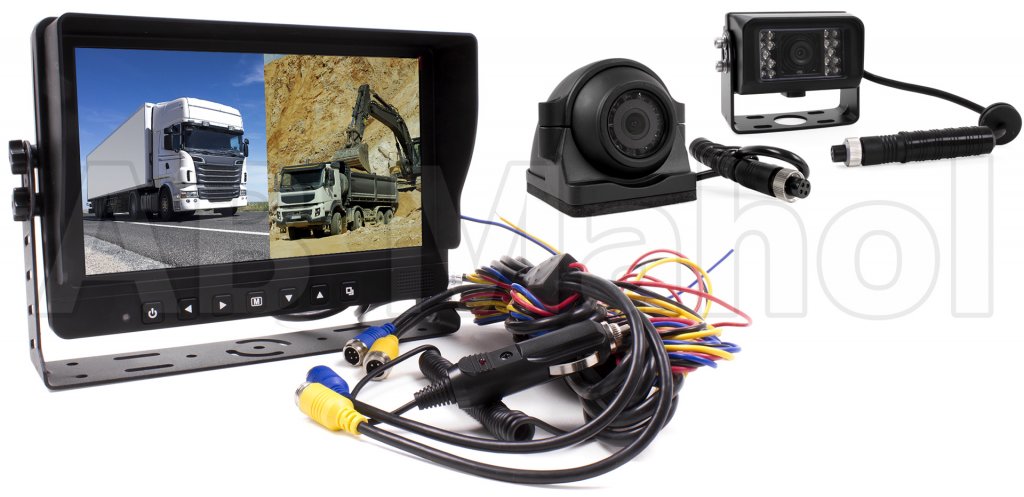

Split system 9" monitor incl. 1 standard camera & 1 rotatable side camera

Split system 9" monitor incl. 1 standard camera & 1 rotatable side camera

Item ID: VN-925SS-55

Sorry - this product is currently not avaiable for purchase.

The RM90SS 9" monitor is very suitable for professional use. Suitable for most types of industries and is installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. The LCD screen provides a detailed image and has a fast response time. The package contains one camera of the type RC25 & one RC8 .

RC25 is our standard camera, a wired camera with very good image reproduction. Rear camera R8 is our side camera, a wired camera with very good image reproduction where you can manually turn the lens, and get the camera angle that suits your needs.

Matte screen surface and sunshade minimize reflections. The keypads are backlit with LEDs.

The screen can display images from up to 4 cameras simultaneously.

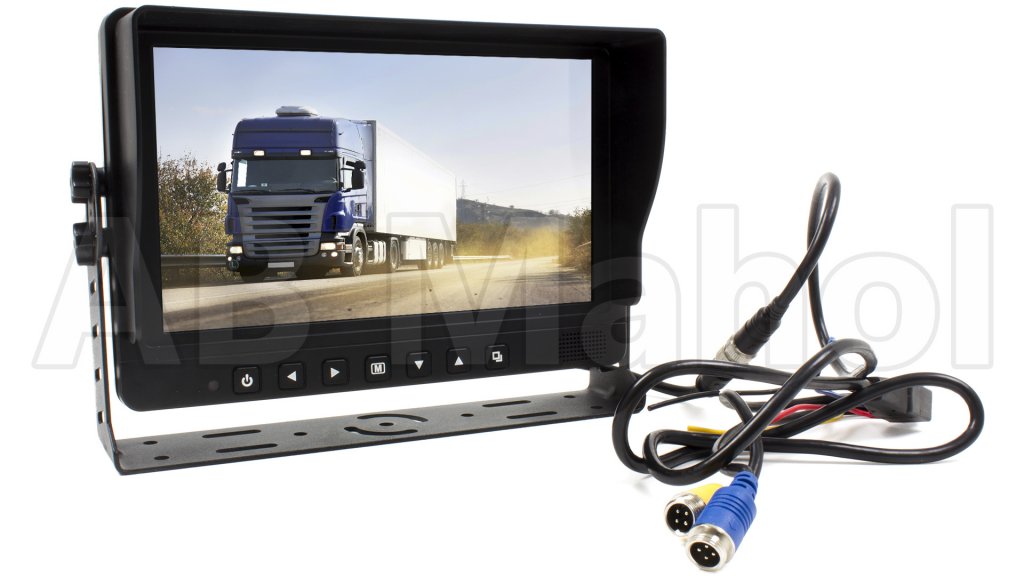

Monitor RM90SS:

Screen type: 9-inch digital TFT-LCD color monitor
Connection: 4-pin/4-pin
Voltage range: 10-32 V
Resolution: 800 x 480
Contrast: 500:1
Brightness: 400 cd/m2
Camera connections: 2 pcs
Dimensions incl. bracket: W 224 mm x H 179 mm x D 81 mm
Temperature range: -20 to +60 degrees
Trigger control: Yes
Remote control: Yes

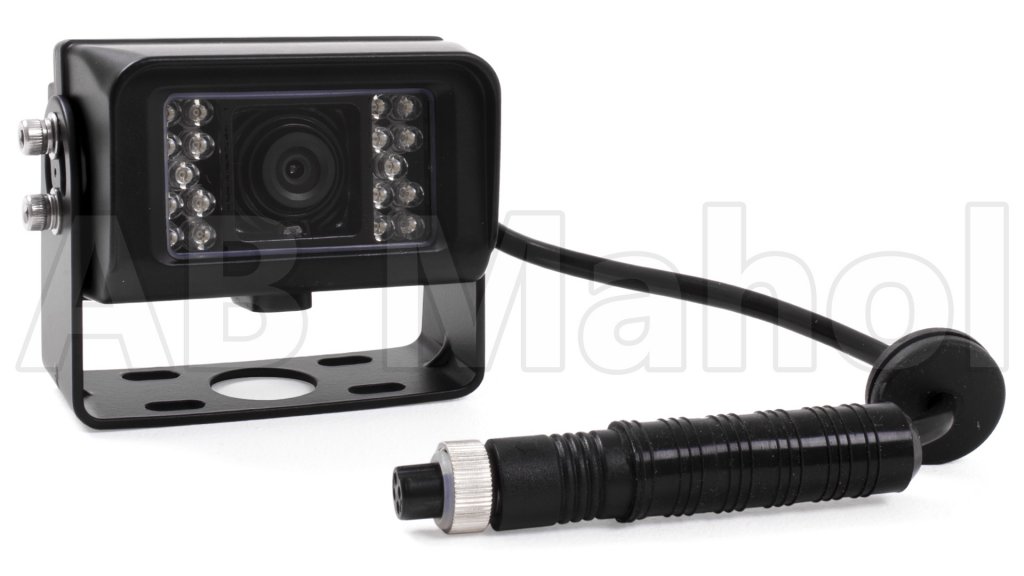

Rear view camera RC25 (Standard camera):

Voltage range: 12 V (12-24 V when connected to monitor)
Dimensions incl bracket: W 82 mm H 73 mm D 68 mm
Wide angle: 130 degrees
Optics: 1/3" Sharp CCD
Sensitivity: 0 Lux / F 1.2 (IR on)
IR diodes: 18 pcs
Range in darkness: 15 m
Protection class: IP69K
Vibration resistance: 10 G

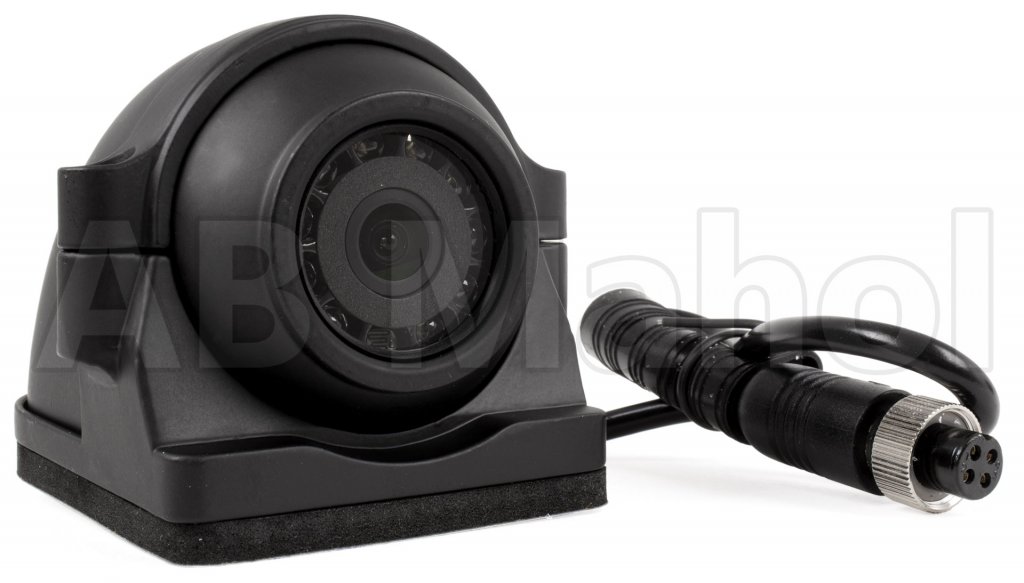

Camera RC8 (Side camera):

Voltage range: 12 V (12-24 V when connected to monitor)
Dimensions incl bracket: W 61 mm H 60 mm D 83 mm
Wide angle: 120 degrees
Optics: 1/3" Sharp CCD
Sensitivity: 0 Lux / F 1.2 (IR on)
IR diodes: 9 pcs
Range in darkness: 10 m
Protection class: IP69K
Vibration resistance: 10 G

Supplied complete for connection. Select the cable length in the drop-down list below the price
