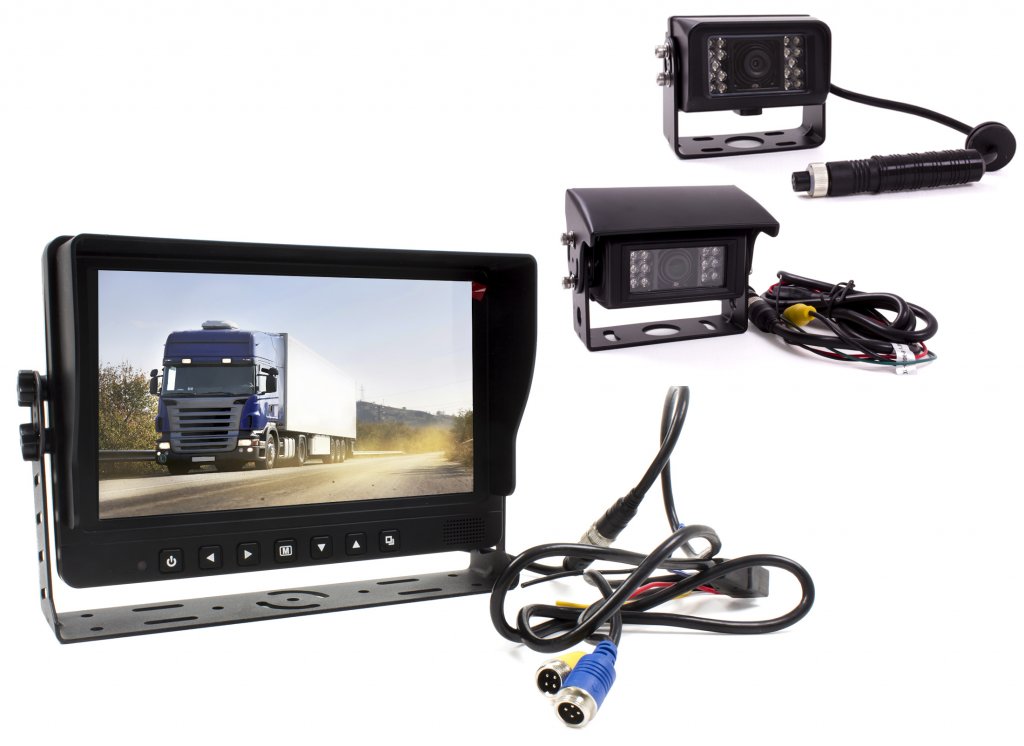

Rear view camera system 9" monitor with 1 standard & 1 visor

  • 9-inch reversing camera system with 1 standard & 1 visor camera
  • 9-inch reversing camera system with 1 standard & 1 visor camera
  • 9-inch rear view camera system with 1 standard & 1 visor camera
  • 9-inch rear view camera system with 1 standard & 1 view camera
  • Rear view camera system 9-inch with 1 standard & 1 visor camera
  • Rear view camera system 9-inch with 1 standard & 1 visor camera
  • Rearview camera system 9-inch with 1 standard & 1 visor camera
  • Rear view camera system 9 inch with 1 standard & 1 visor camera
Item ID:  VN-925-55

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

The 9" monitor is very suitable for professional use. Suitable for most types of industries and is installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. The LCD screen provides a detailed image and has a fast response time.

Matt screen surface and sun protection minimize reflections. The keypads are backlit with LED technology.

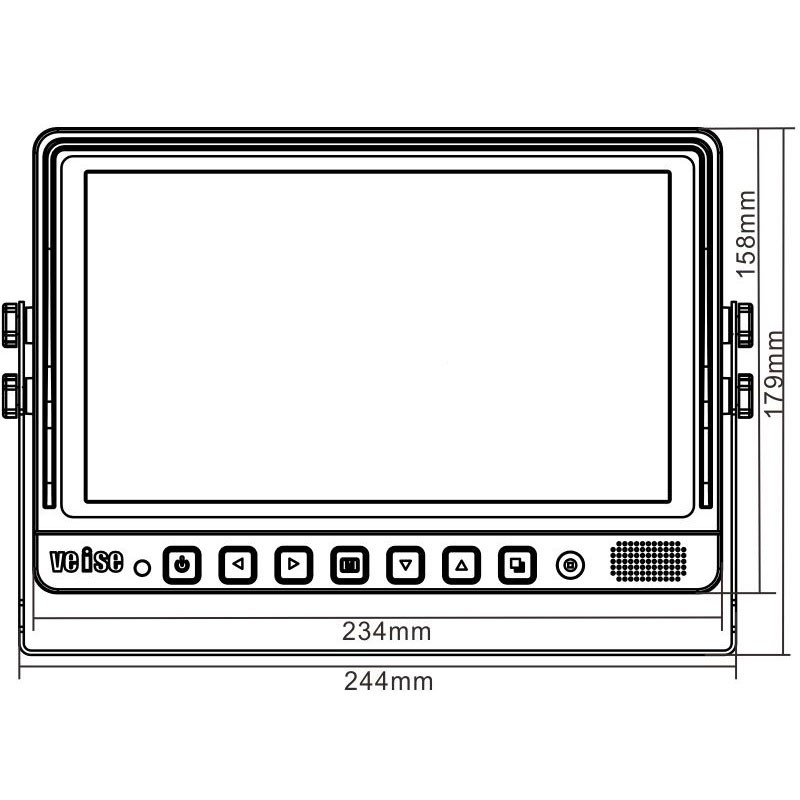

Specifications monitor:

  • Screen type: 9-inch digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Resolution: 800 x 480
  • Contrast: 500:1
  • Brightness: 400 cd/m2
  • Camera connections: 2 pcs

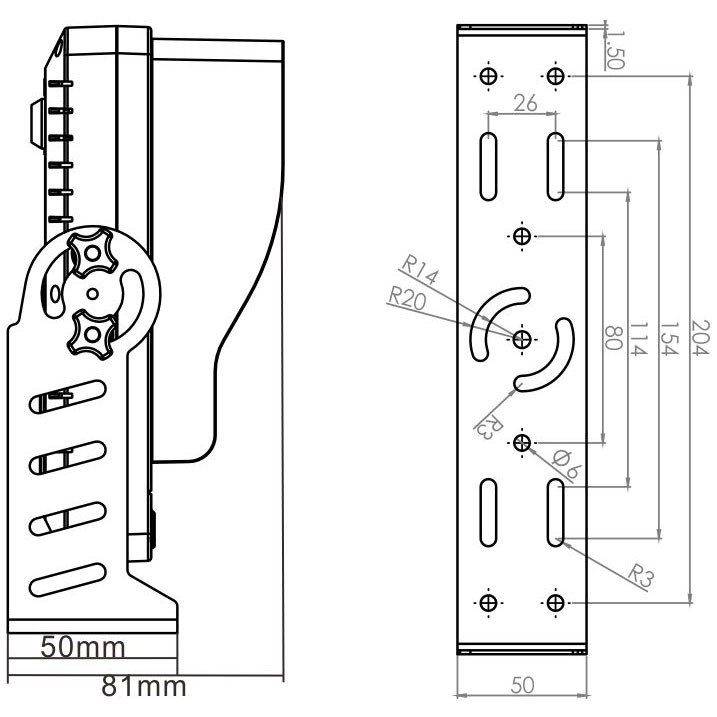

  • Dimensions incl. bracket: W 224 mm x H 179 mm x D 81 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes

A small wired reversing camera designed for our tough Nordic conditions with very clear and detailed image reproduction.

Automatic heating of the camera lens is available as an option. Prevents fogging and frost on the lens in cold weather.

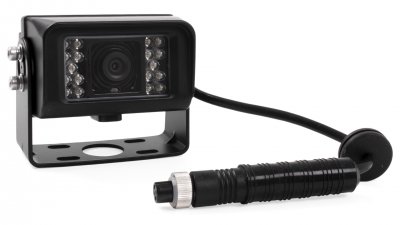

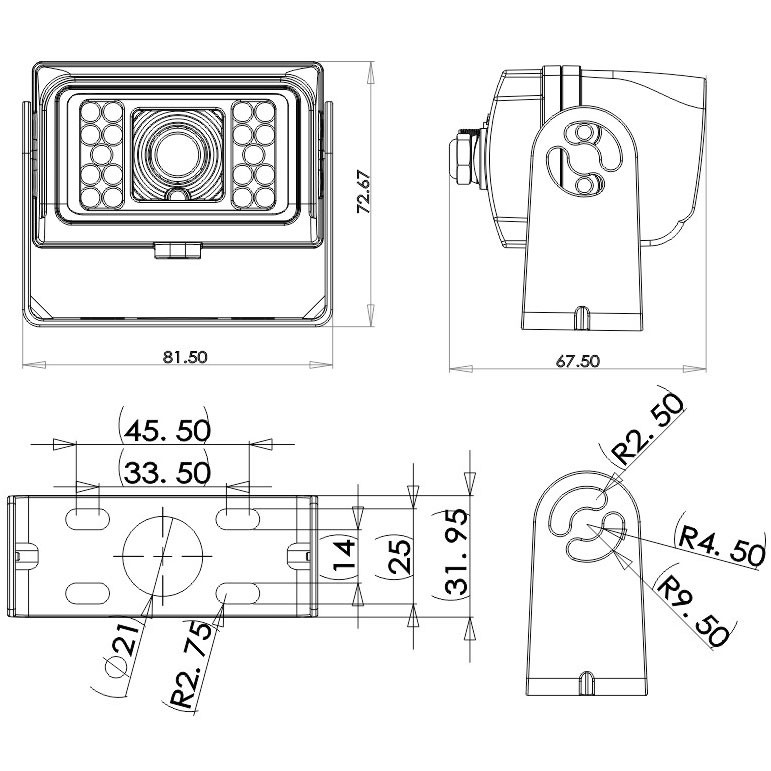

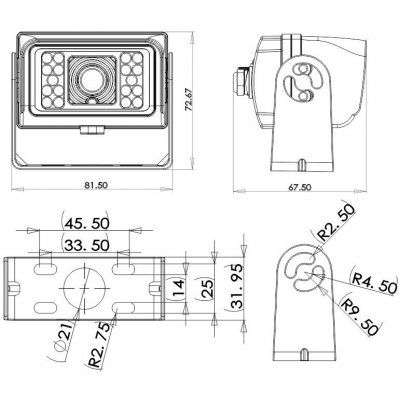

Specifications standard camera RC25:

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • Dimensions incl bracket: W 82 mm H 73 mm D 68 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 18 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

A small wired visor camera designed for our tough Nordic conditions with very clear and detailed imaging. Advantageously used for professional use.

Automatic heating of the camera lens is available as an option. Prevents fogging and frost on the lens in cold weather.

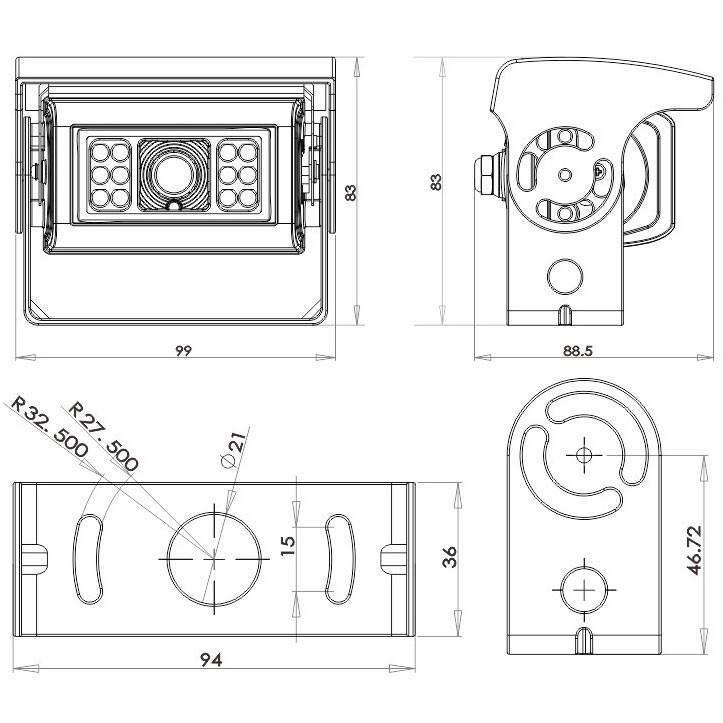

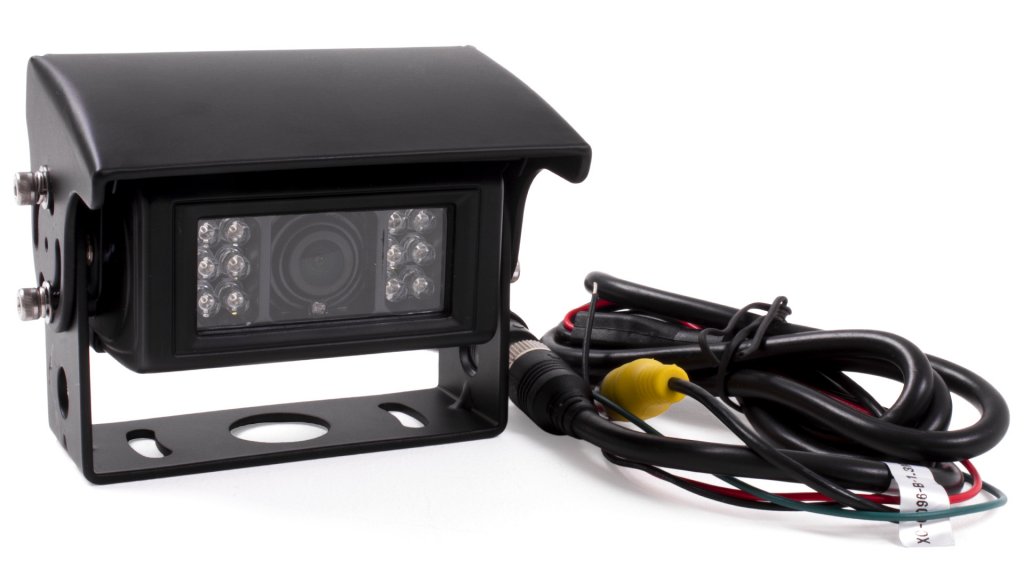

Specifications visor camera RC30:

  • Voltage range: 10-32 V
  • Dimensions incl bracket: H 83 mm W 99 mm D 89 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 12 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

Supplied complete for connection. Choose the cable length in the drop-down list below the price
