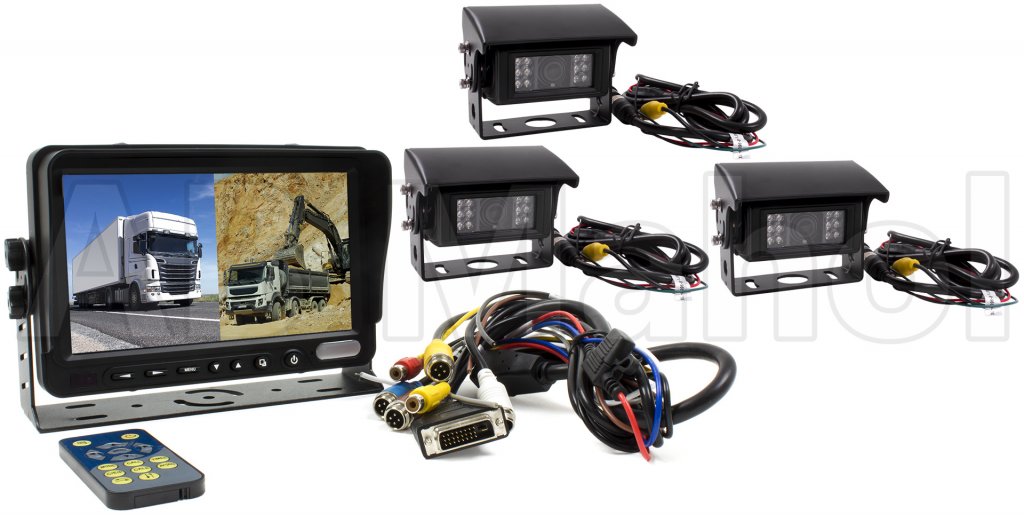

Split system 7" monitor incl. 3 visor cameras

Item ID:  VN-745SS-15AU

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

The 7" monitor is very suitable for professional use. Suitable for most types of industries and installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. The LCD screen provides a detailed image and has a fast response time.

Matt screen surface and sun protection minimize reflections. The keypads are backlit with LED technology.

This package includes 3 RC30 cameras and the screen has the capacity to display images from up to 4 cameras simultaneously.

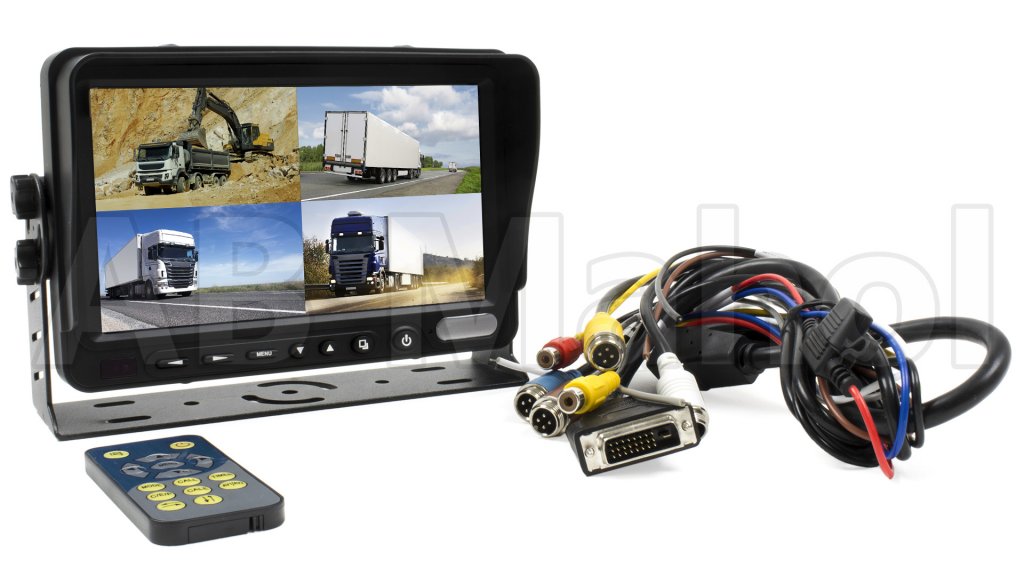

Specification Monitor RM70SS:

  • Screen type: 7-inch digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Resolution: 800 x 480
  • Contrast: 500:1
  • Brightness: 400 cd/m2
  • Camera connections: 2 pcs
  • Dimensions incl. bracket: W 185 mm x H 122 mm x D 50 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes

Three wired visor cameras designed for our tough Nordic conditions with very clear and detailed image reproduction. Advantageously used for professional use.

Automatic heating of the camera lens, which prevents fogging and frost on the lens in cold weather.

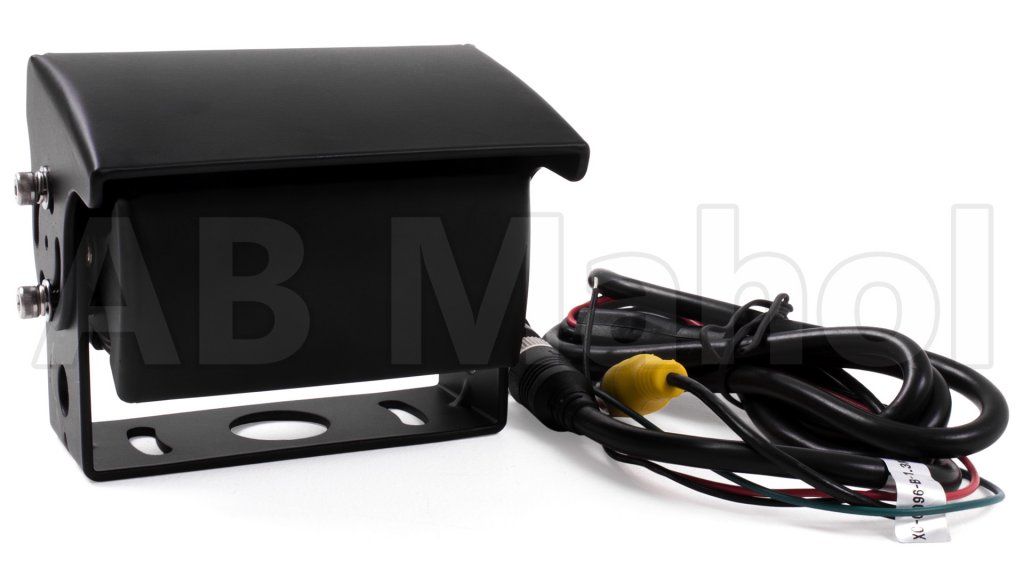

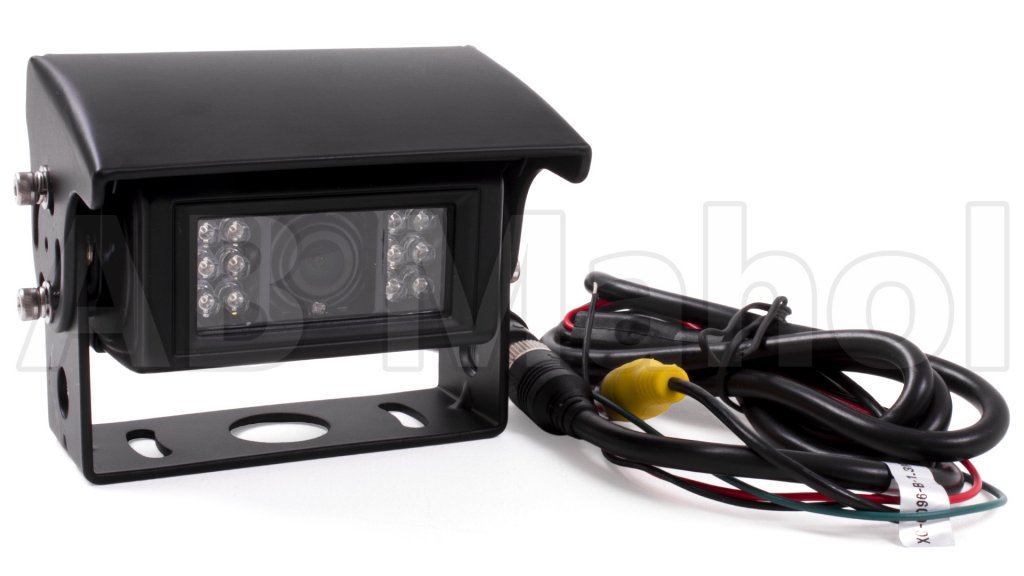

Specification View camera RC30:

  • Voltage range: 10-32 V
  • Dimensions incl bracket: H 83 mm W 99 mm D 89 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 12 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

Supplied complete for connection. Cable length is 15 m per camera.
