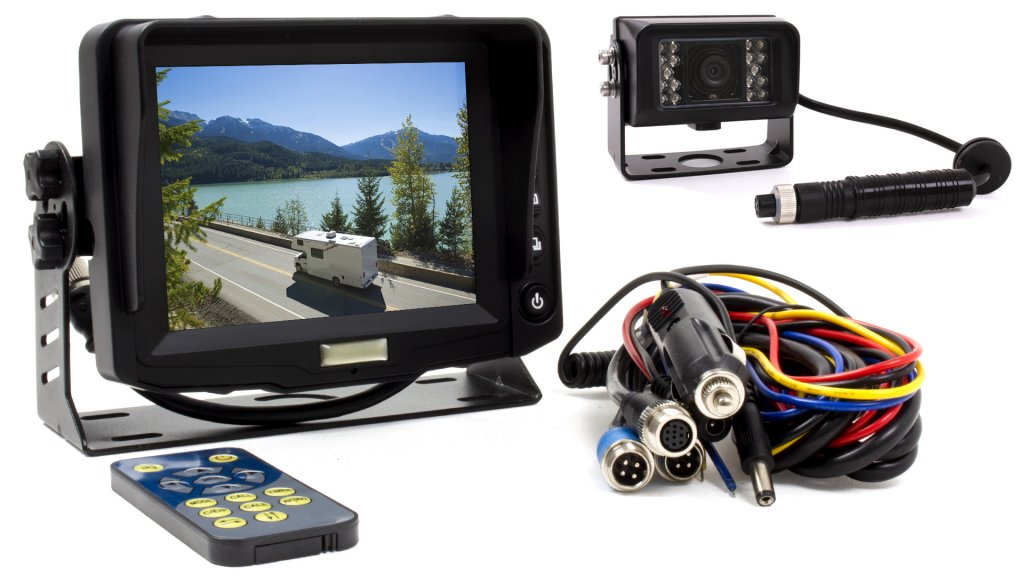

Rear view camera system 5" monitor including one standard camera

  • Rear view camera system 5-inch including 1 standard camera
  • 5-inch reversing camera system including 1 standard camera
  • Rear view camera system 5-inch including 1 standard camera
  • Rear view camera system 5-inch including 1 standard camera
  • Rear view camera system 5-inch including 1 standard camera
  • Rear view camera system 5-inch including 1 standard camera
  • Rear view camera system 5-inch including 1 standard camera
Item ID:  VN-505-5M

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

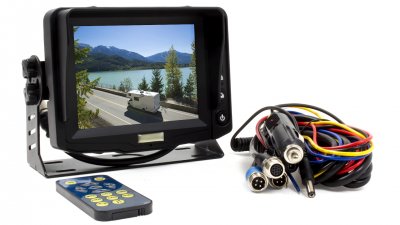

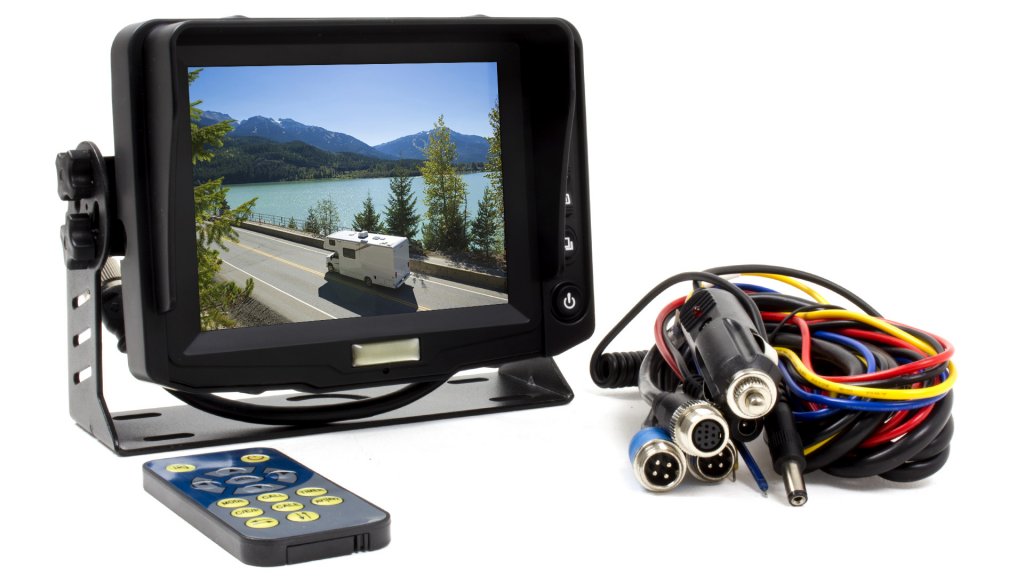

The 5" monitor is very suitable for professional use. Suitable for most types of industries and installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. The LCD screen provides a detailed image and has a fast response time.

Matt screen surface and sun protection minimize reflections. The keypads are backlit with LED technology.

Specifications monitor:

  • Screen type: 5-inch digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Resolution: 640 x 480
  • Contrast: 500:1
  • Brightness: 300 cd/m2
  • Camera connections: 2 pcs

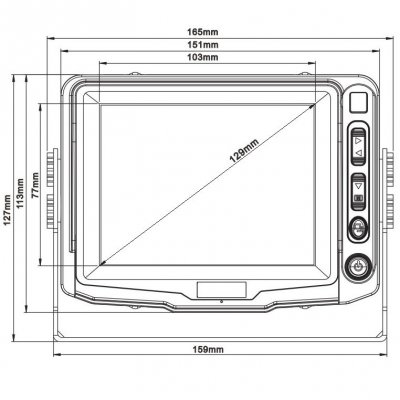

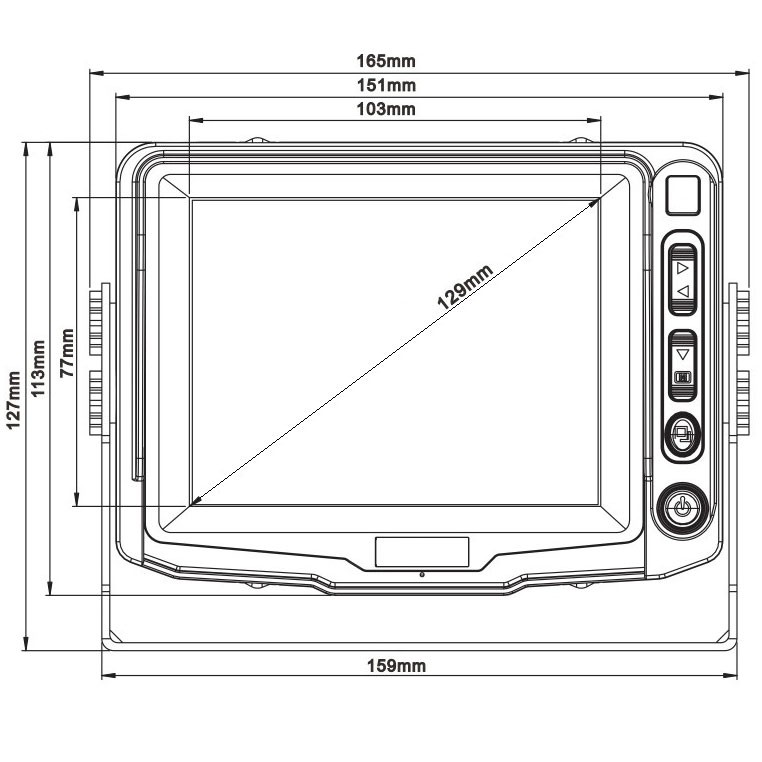

  • Dimensions incl. bracket: W 165 mm x H 127 mm x D 86 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes
  • Automatic heating: Yes

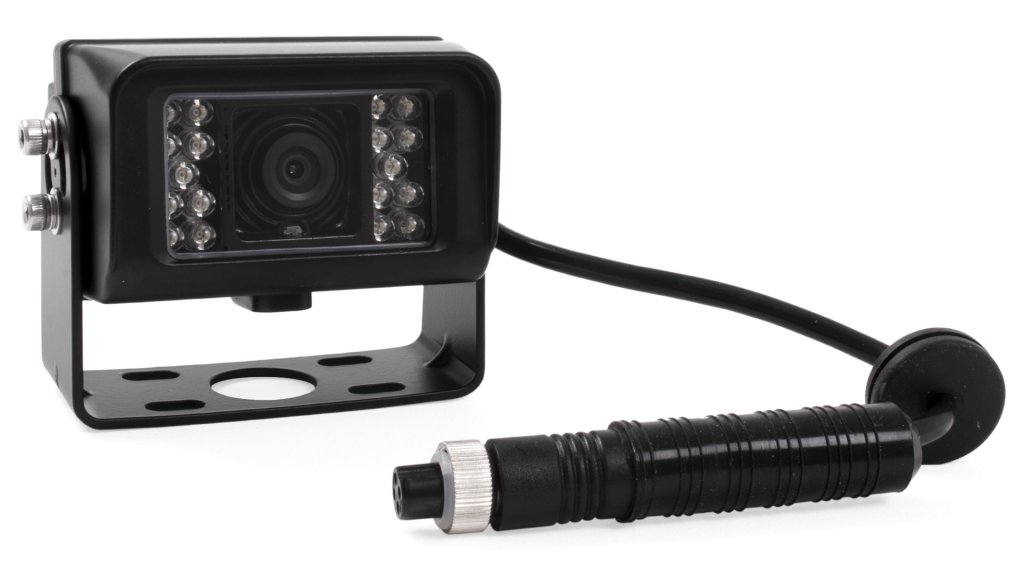

A small wired reversing camera designed for our tough Nordic conditions with very clear and detailed imaging.

Automatic heating of the camera lens, prevents fogging and frost on the lens in cold weather.

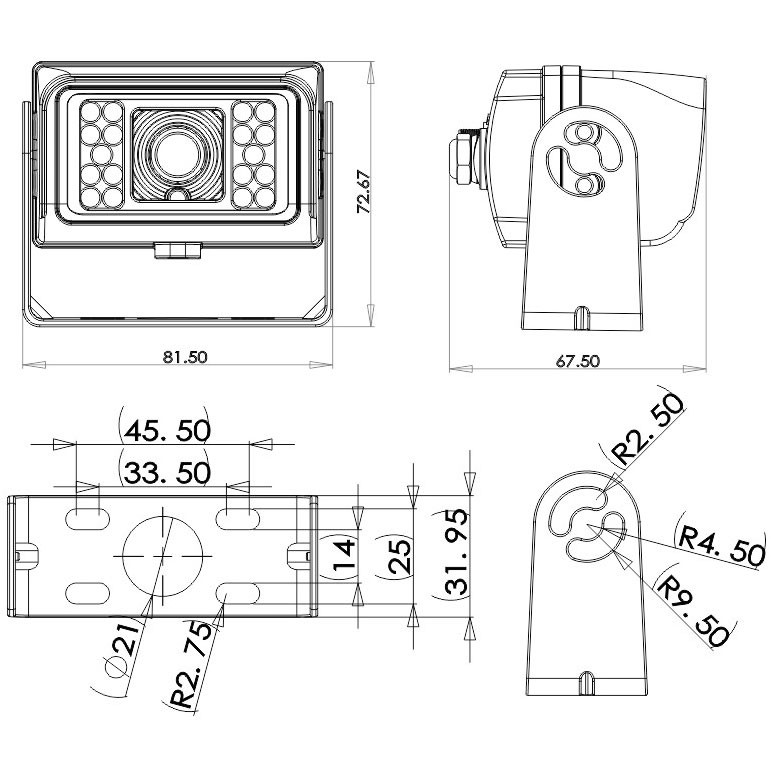

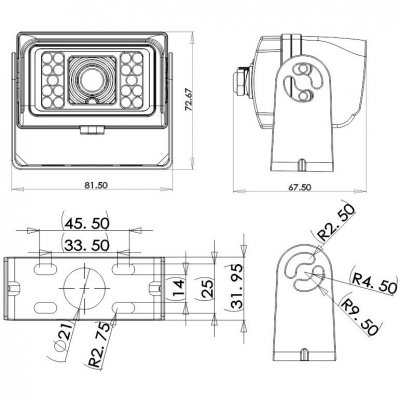

Specifications standard camera RC25:

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • Dimensions incl bracket: W 82 mm H 73 mm D 68 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 18 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

Supplied complete for connection. Select the cable length in the drop-down list below the price



To the web shop's start page »

Sitemap »


Recommended accessories

  • Rear view camera system 7 monitor incl. one standard camera
    Have selection options

    Rear view camera system 7" monitor including one standard camera

    €471
    Buy

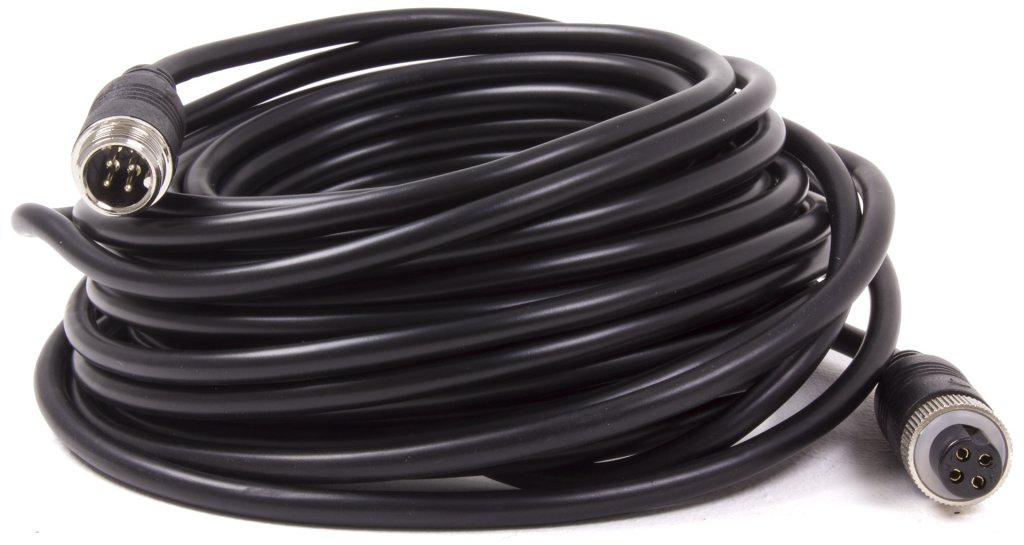

  • 5 m extension cable for connection between rear view camera and screen.
