Rear view camera system
5’ rear view camera system

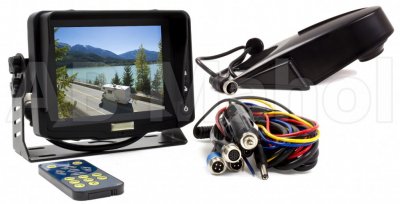

Rear view camera system 5" monitor incl. van camera

Rear view camera system 5" monitor incl. van camera

Item ID: VN-555-5M

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

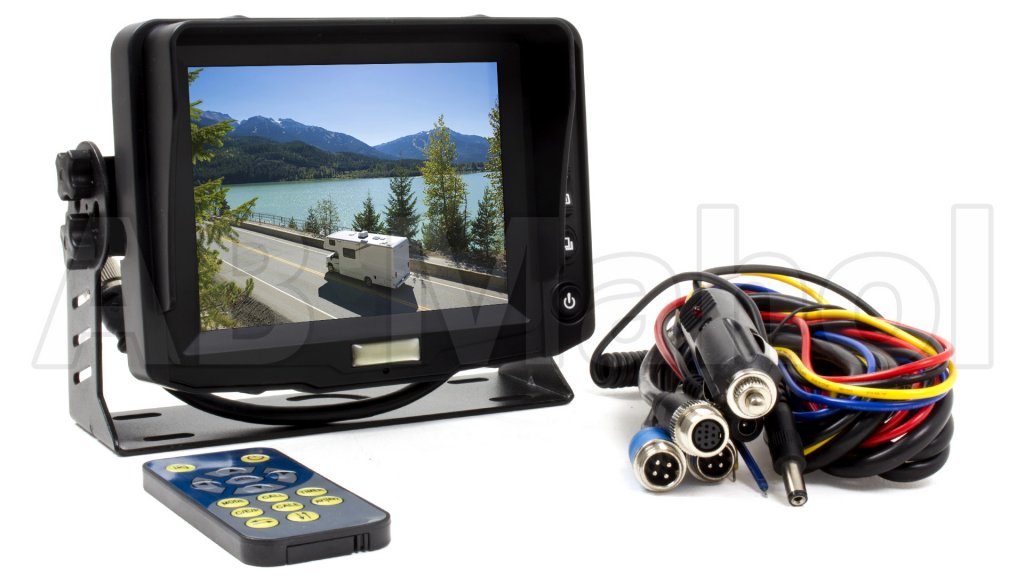

The 5" monitor is very suitable for professional use. Suitable for most types of industries and installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. The LCD screen provides a detailed image and has a fast response time.

Matt screen surface and sun protection minimize reflections. The keypads are backlit with LED technology.

Specifications monitor:

Screen type: 5-inch digital TFT-LCD color monitor
Connection: 4-pin/4-pin
Voltage range: 10-32 V
Resolution: 640 x 480
Contrast: 500:1
Brightness: 300 cd/m2
Camera connections: 2 pcs

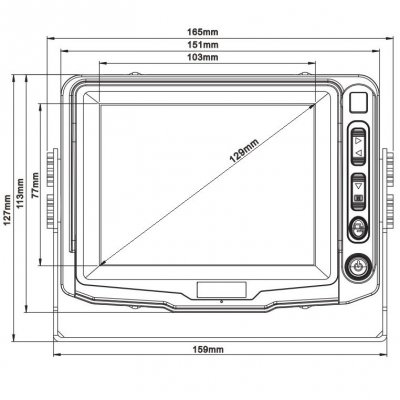

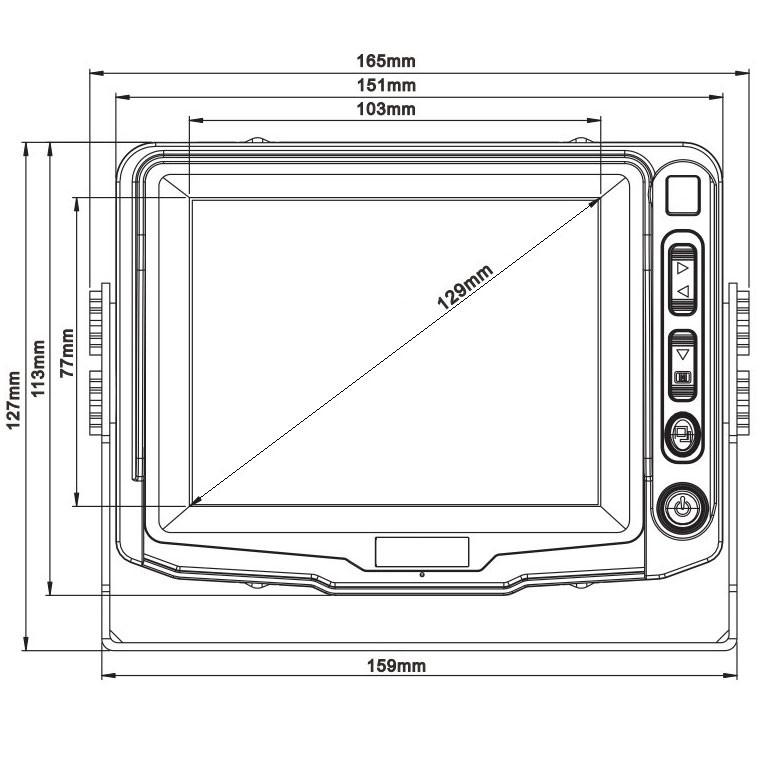

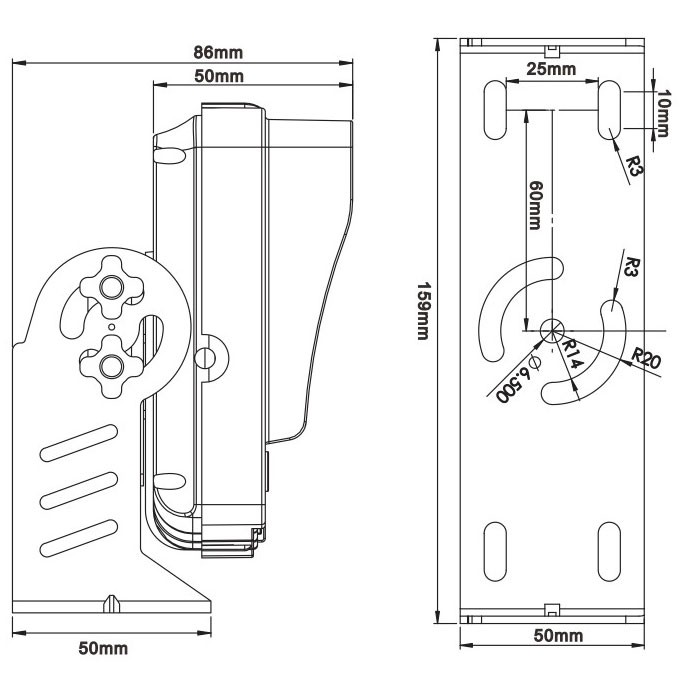

Dimensions incl. bracket: W 165 mm x H 127 mm x D 86 mm
Temperature range: -20 to +60 degrees
Trigger control: Yes
Remote control: Yes

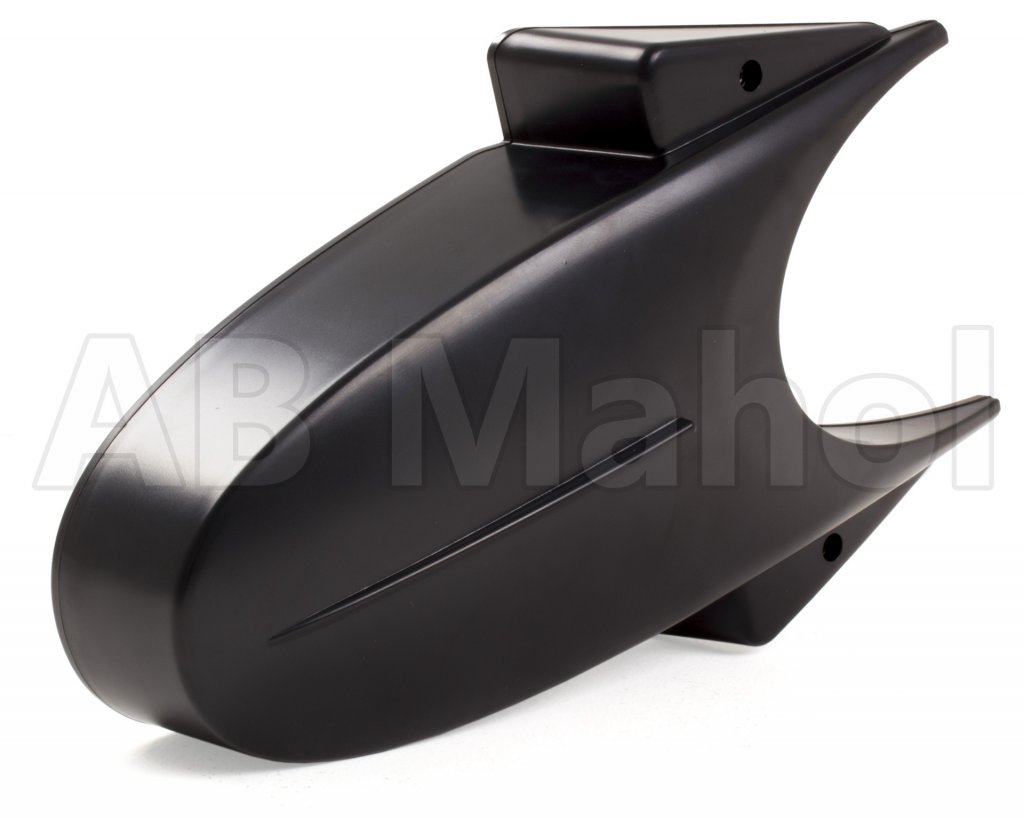

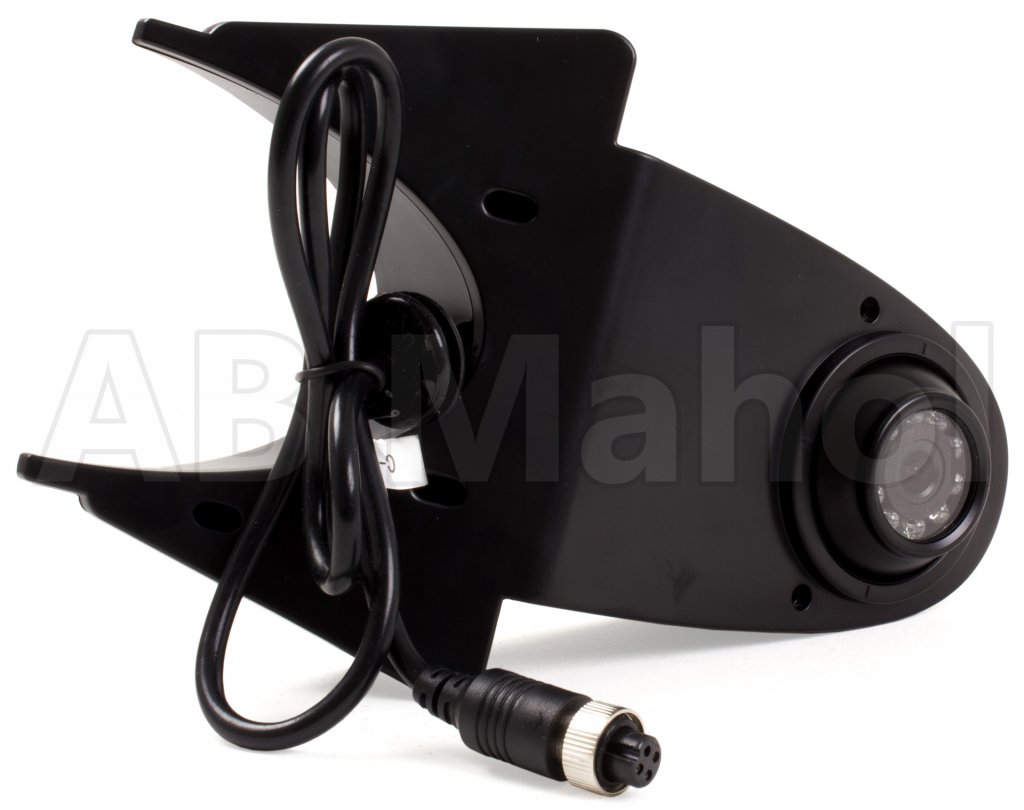

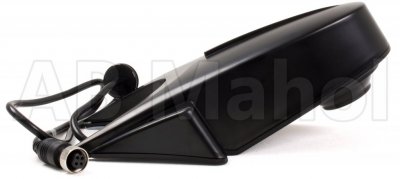

The van camera is specially designed for vehicles where the camera module must protrude over e.g. the rear doors to see the tow bar etc.

The van camera also has a fully adjustable camera lens for optimal function!

The van camera is of very high quality and delivers a very fine and detailed image to the monitor.

Specifications camera

Voltage range: 12 V (12-24 V when connected to monitor)
Dimensions incl bracket: W 210 mm H 50 mm D 135 mm
Wide angle: 120 degrees
Optics: 1/3" Sharp CCD
Sensitivity: 0 Lux / F 1.2 (IR on)
IR diodes: 9 pcs
Range in darkness: 10 m
Protection class: IP69K
Vibration resistance: 10 G

Supplied complete for connection. Select the cable length in the drop-down list below the price
