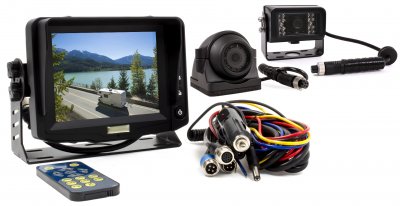

Rear view camera system 5" monitor with 1 side camera & 1 standard

  • 5-inch rear view camera system including 1 standard camera and a ball camera
  • 5-inch rear view camera system including 1 standard camera and a ball camera
  • Rear view camera system 5-inch including 1 standard camera and a ball camera
  • Back camera system 5-inch including 1 standard camera and a ball camera
  • Rearview camera system 5-inch including 1 standard camera and a ball camera
  • Rear view camera system 5-inch including 1 standard camera and a ball camera
  • Rearview camera system 5-inch including 1 standard camera and a ball camera
  • Rear view camera system 5-inch including 1 standard camera and a ball camera
Item ID:  VN-535-5M-5M

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

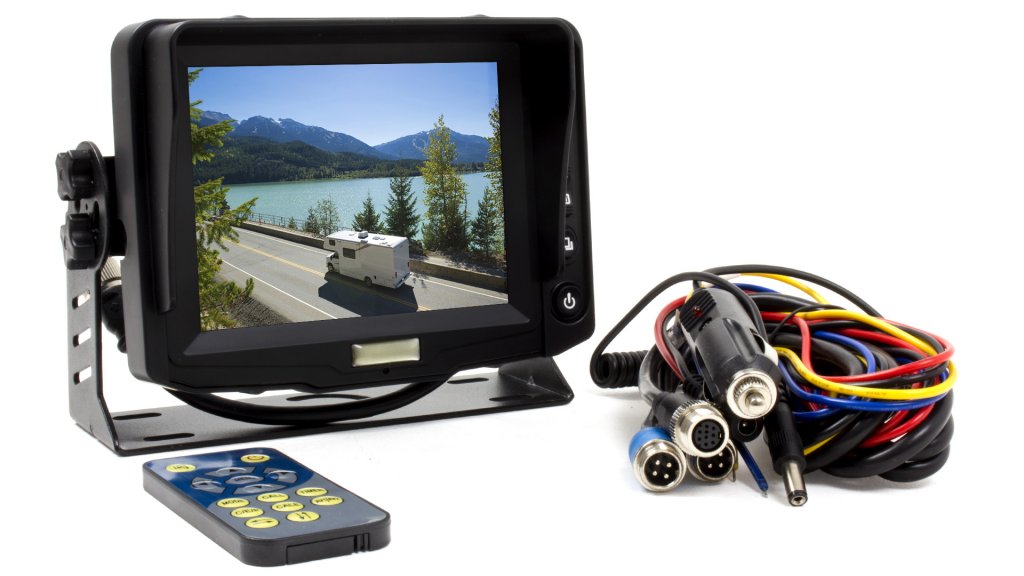

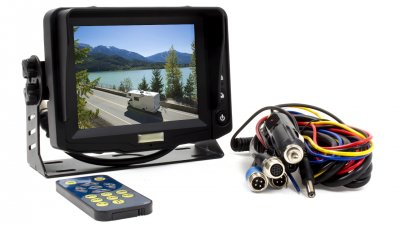

The 5" monitor is very suitable for professional use. Suitable for most types of industries and installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. The LCD screen provides a detailed image and has a fast response time.

Matt screen surface and sun protection minimize reflections. The keypads are backlit with LED.

Specifications monitor:

  • Screen type: 5-inch digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Resolution: 640 x 480
  • Contrast: 500:1
  • Brightness: 300 cd/m2
  • Camera connections: 2 pcs

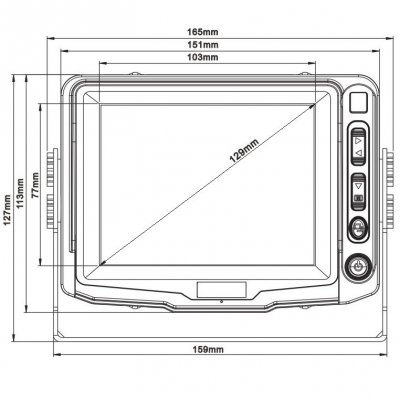

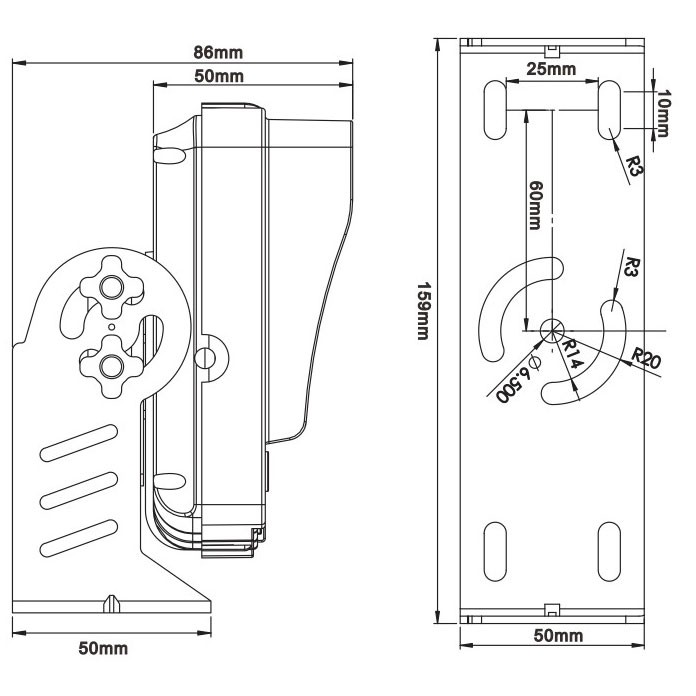

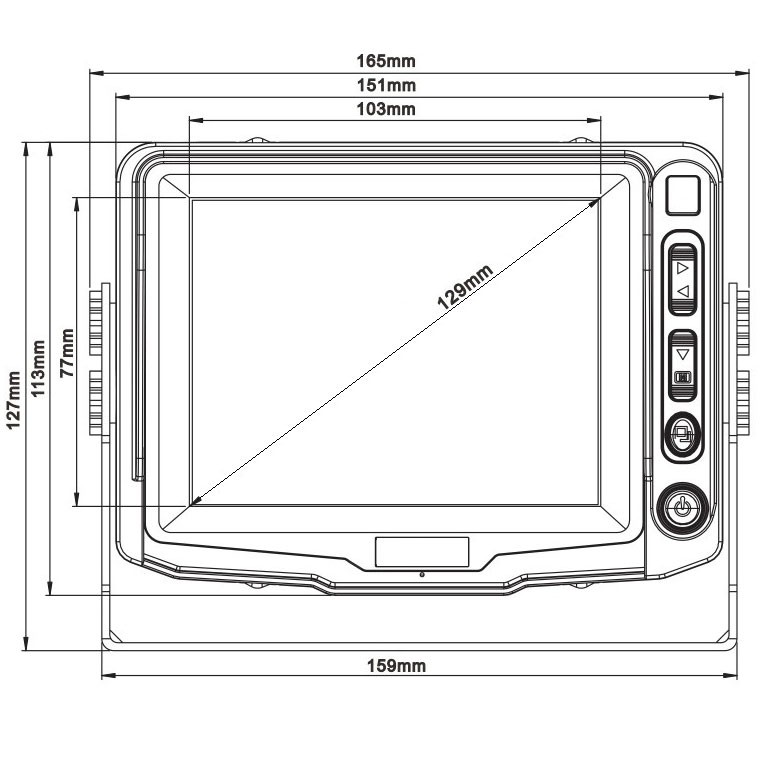

  • Dimensions incl. bracket: W 165 mm x H 127 mm x D 86 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes

Two-piece wired reversing cameras designed for our tough Nordic conditions with very clear and detailed image reproduction.

Can also be used as a side camera due to its rotatable lens.

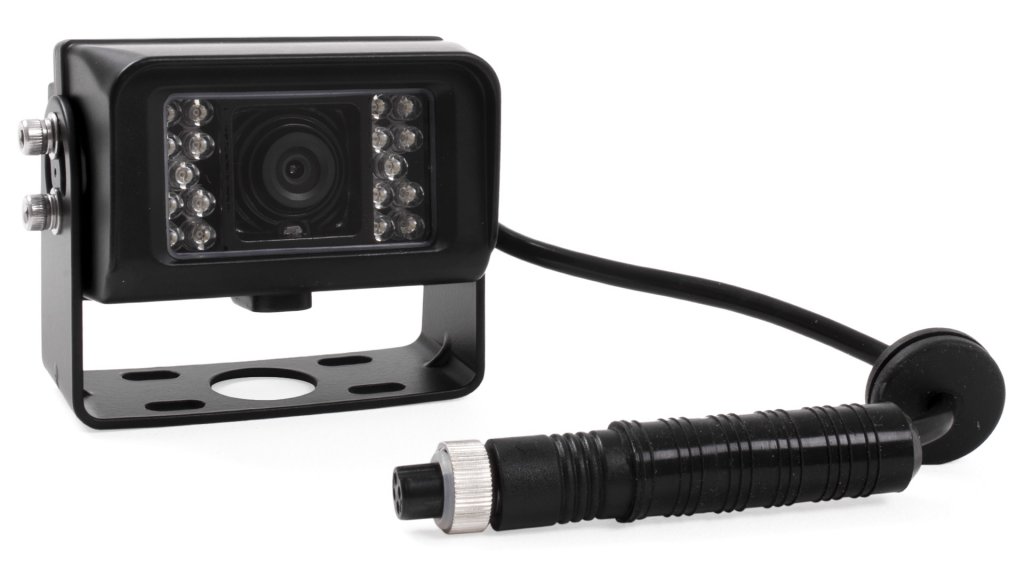

Specifications camera 1, standard camera RC25:

  • Voltage range: 12 V (12-24 V when connected to monitor)

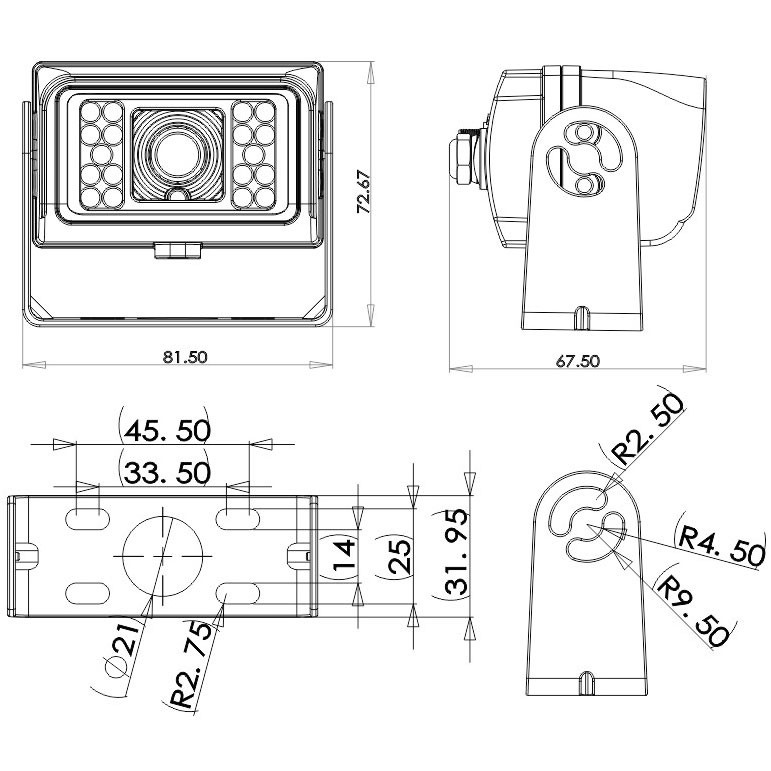

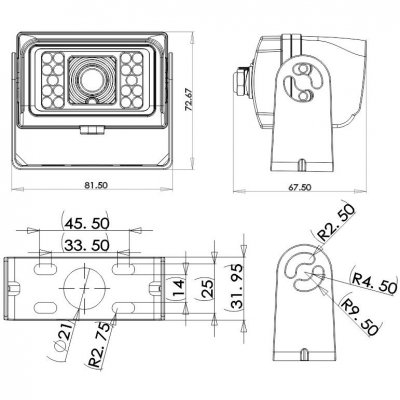

  • Dimensions incl bracket: W 82 mm H 73 mm D 68 mm
  • Wide angle: 130 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 18 pcs
  • Range in darkness: 15 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

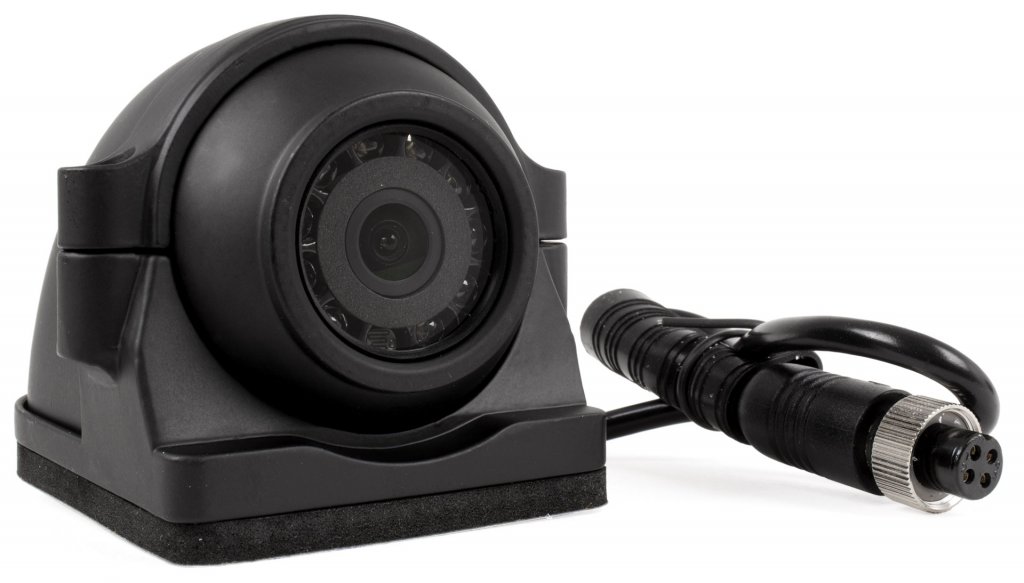

Specifications camera 2, with rotatable lens (Side camera):

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • Dimensions incl. bracket: W 61 mm H 60 mm D 83 mm
  • Wide angle: 120 degrees
  • Optics: 1/3" Sharp CCD
  • Sensitivity: 0 Lux / F 1.2 (IR on)
  • IR diodes: 9 pcs
  • Range in darkness: 10 m
  • Protection class: IP69K
  • Vibration resistance: 10 G

Supplied complete for connection. Select the cable length in the drop-down list below the price



To the web shop's start page »

Sitemap »


Recommended accessories

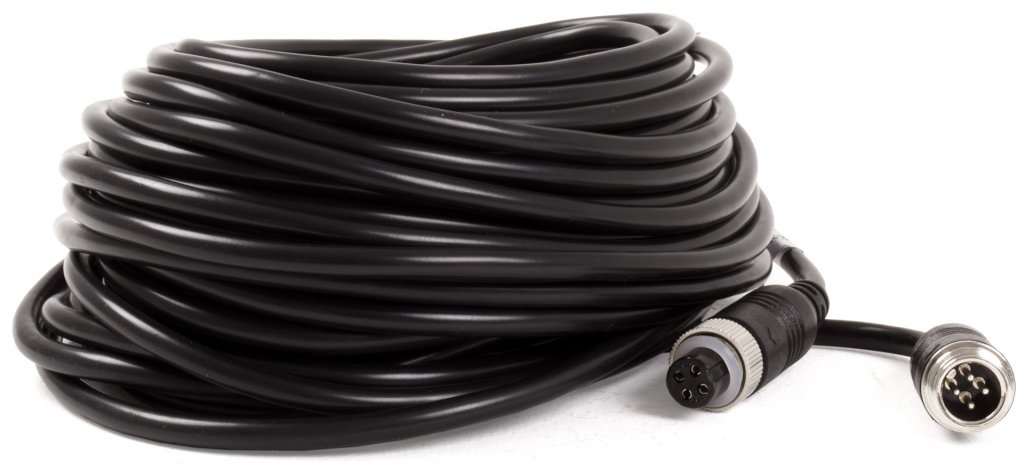

  • Extension cable 10 m. For rear view camera and screen.
