Rear view camera system
5’ rear view camera system

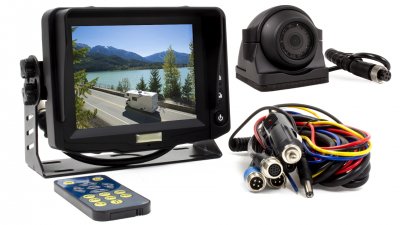

Rear view camera system 5" monitor incl. one rotatable camera

Rear view camera system 5" monitor incl. one rotatable camera

Item ID: VN-540-5M

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

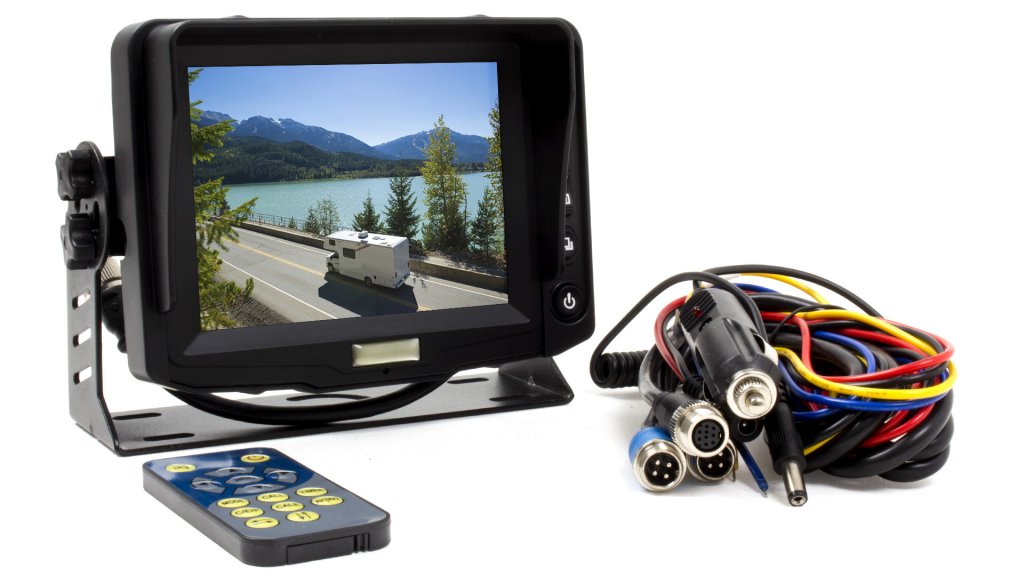

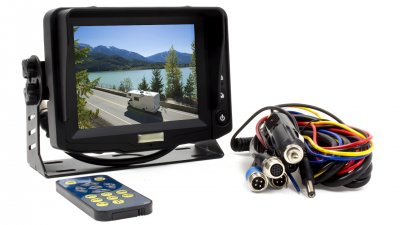

The 5" monitor is very suitable for professional use. Suitable for most types of industries and installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. The LCD screen provides a detailed image and has a fast response time.

Matt screen surface and sun protection minimize reflections. The keypads are backlit with LED.

Specifications monitor:

Screen type: 5-inch digital TFT-LCD color monitor
Connection: 4-pin/4-pin
Voltage range: 10-32 V
Resolution: 640 x 480
Contrast: 500:1
Brightness: 300 cd/m2
Camera connections: 2 pcs
Dimensions incl. bracket: W 165 mm x H 127 mm x D 86 mm
Temperature range: -20 to +60 degrees
Trigger control: Yes
Remote control: Yes

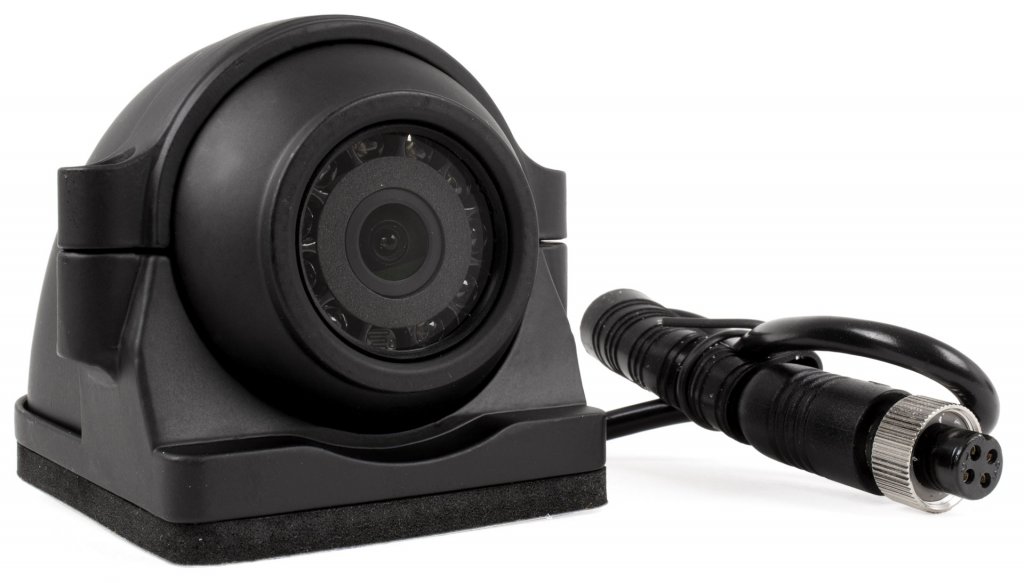

A small wired rear view camera designed for our tough Nordic conditions with very clear and detailed imaging.

Can also be used as a side camera due to its rotatable lens.

Camera specifications

Voltage range: 12 V (12-24 V when connected to monitor)
Dimensions incl bracket: W 61 mm H 60 mm D 83 mm
Wide angle: 120 degrees
Optics: 1/3" Sharp CCD
Sensitivity: 0 Lux / F 1.2 (IR on)
IR diodes: 9 pcs
Range in darkness: 10 m
Protection class: IP69K
Vibration resistance: 10 G

Supplied complete for connection. Select the cable length in the drop-down list below the price
