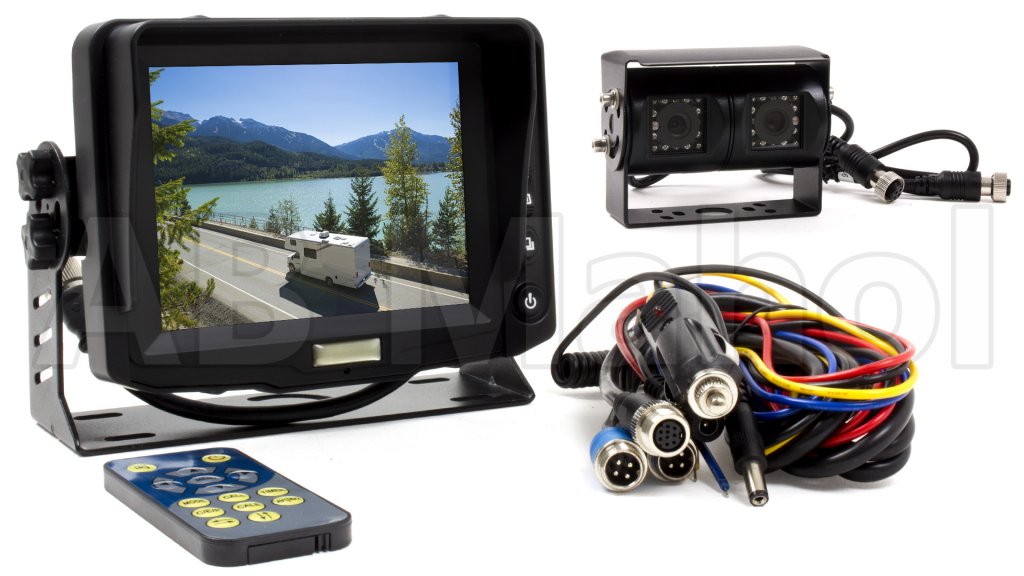

Rear view camera system 5" monitor incl. dual lens camera

Rear view camera system 5" monitor incl. dual lens camera

Item ID: VN-520-5M

Sorry - this product is currently not avaiable for purchase.

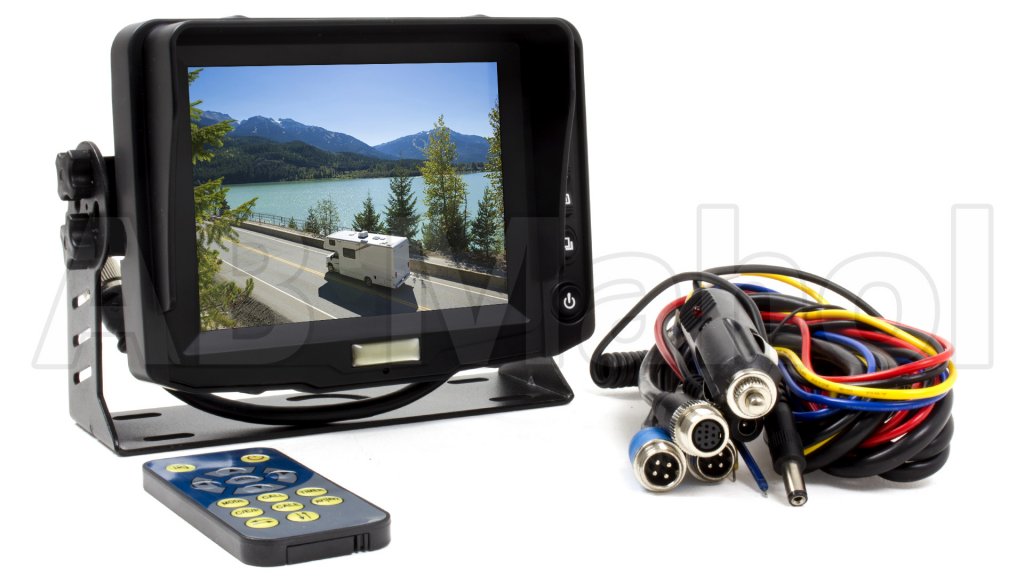

The 5" monitor is very suitable for professional use. Suitable for most types of industries and installed with advantage in eg. truck, machine, truck, bus, camper, forestry machine etc. The LCD screen provides a detailed image and has a fast response time.

Matt screen surface and sun protection minimize reflections. The keypads are backlit with LED technology.

Specifications monitor:

Screen type: 5-inch digital TFT-LCD color monitor
Connection: 4-pin/4-pin
Voltage range: 11-32 V
Resolution: 640 x 480
Contrast: 500:1
Brightness: 300 cd/m2
Camera connections: 2 pcs

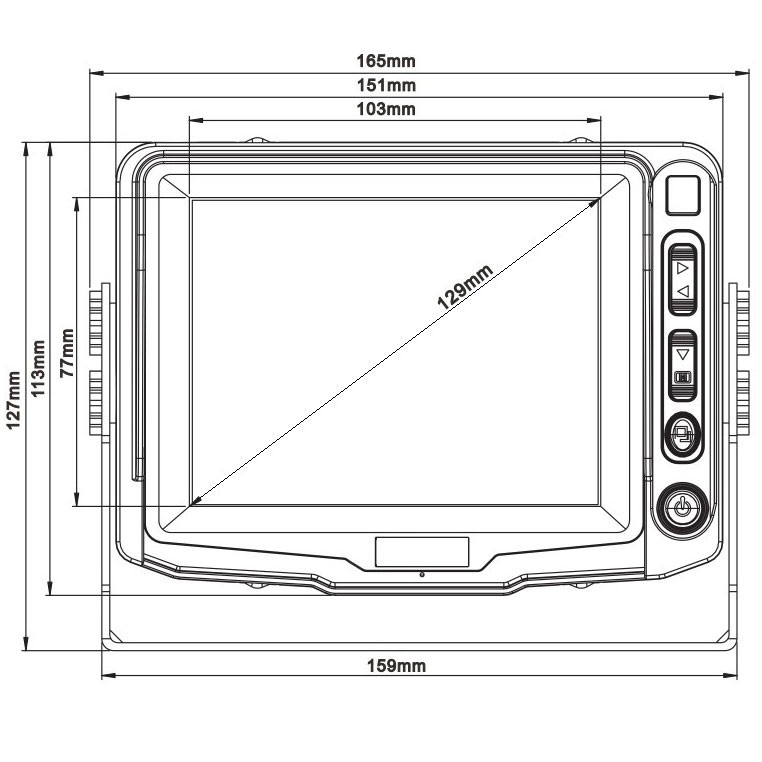

Dimensions incl. bracket: W 165 mm x H 127 mm x D 86 mm
Temperature range: -20 to +60 degrees
Trigger control: Yes
Remote control: Yes

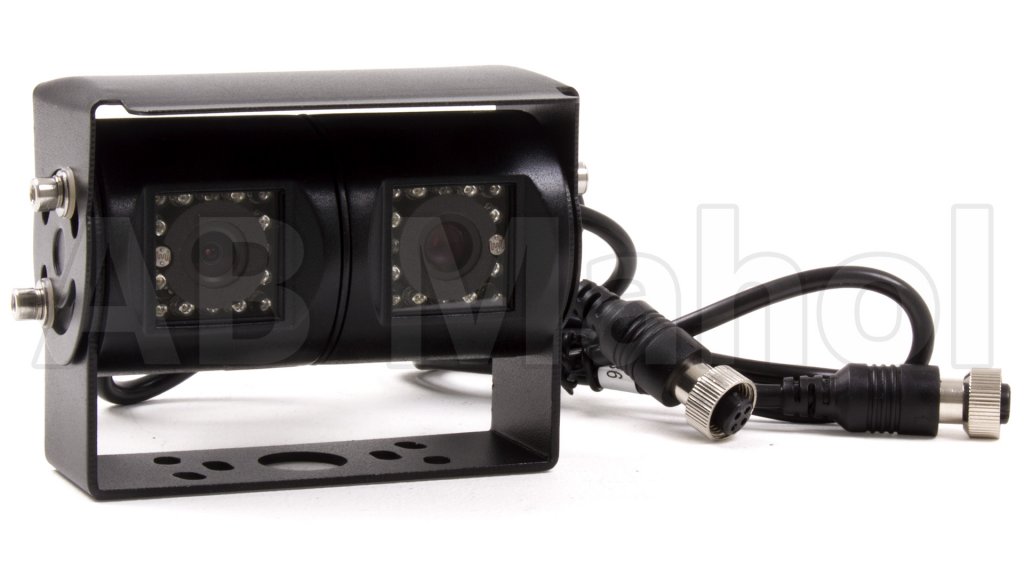

Dual lens camera with two individually adjustable camera lenses. Possibility to direct one towards the towbar and the other backwards to get an overview behind the vehicle.

Very robust camera specially designed for our tough Nordic conditions and resists weather and wind elegantly! Detailed and clear image reproduction!

Camera specifications

Voltage range: 10-32 V (12-24 V when connected to monitor)
Dimensions incl bracket: W 105 mm H 80 mm D 75 mm
Wide angle lens 1: 120 degrees
Wide angle lens 2: 45 degrees
Optics: 1/3" Sharp CCD
Sensitivity: 0 Lux / F 1.2 (IR on)
IR diodes: 18 pcs
Range in darkness: 15 m
Protection class: IP69K
Vibration resistance: 10 G

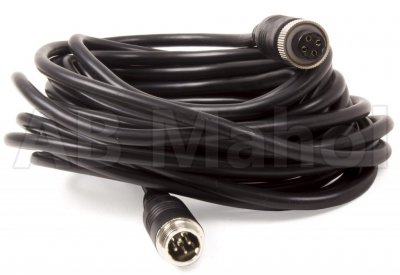

Supplied complete for connection. Select the cable length in the drop-down list below the price
