LEDSON OptoGuard - LED Flashlight Ramp

Item ID: 5130113

€863

Incl. VAT

What length do you want?

834 mm

5130083

€730

Available in external warehouse | Ships within 1-4 business days

1132 mm

5130113

€863

Available in external warehouse | Ships within 1-4 business days

1429 mm

5130143

€1 140

Available in external warehouse | Ships within 1-4 business days

1726 mm

5130172

€1 296

Available in external warehouse | Ships within 1-4 business days

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

LEDSON OPTOGUARD SK2 flashlight - Modern slim with low profile (only 40 mm high + 210 mm wide), with strong 3W LED. Class 2 means that the ramp has 2 different brightness levels: one for daytime and one for evening/night. Very high quality (polycarbonate lens and aluminum body) together with a well thought out design (interchangeable modules) make this flashlight ramp a winner!

This flashlight ramp is approved according to ECE R65 and EMC-proof ECE R10 and comes with a 36-month warranty.

For length 365 mm:

Connection: With cig plug (controls the flash light patterns via button)
Mounting: Magnetic bracket (250 mm has two magnetic feet, 365 mm has four magnetic feet)

For length 834 mm or longer:

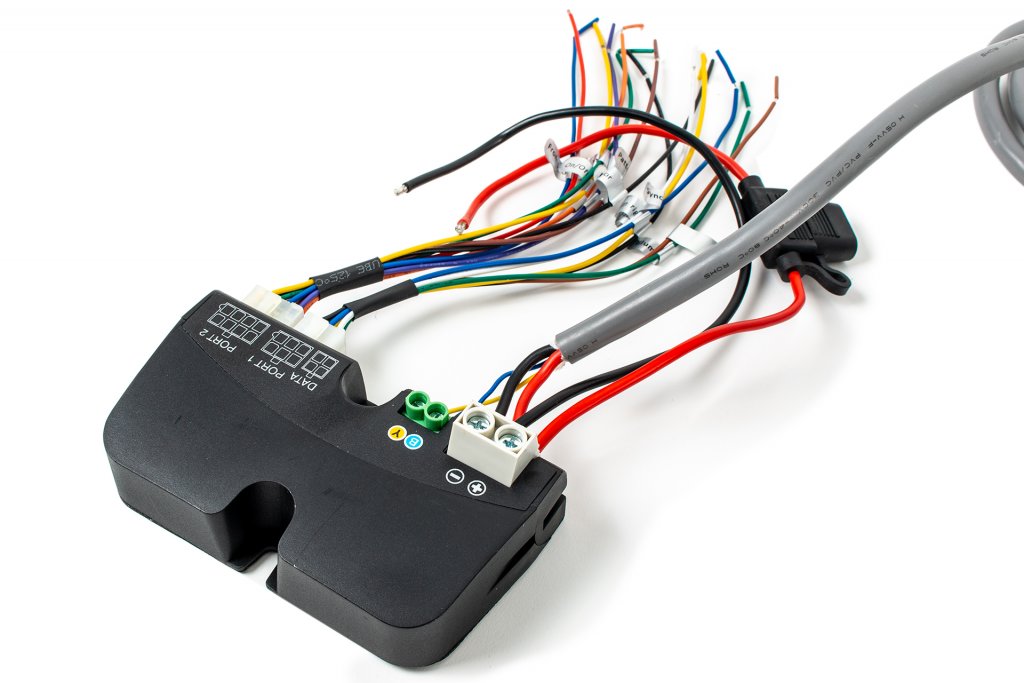

Connection: Directly via the supplied 3-meter cable with associated junction box to separate switches (extra accessory) to control individual functions.As an accessory, we can also offer a separate control box that can easily and clearly utilize all 29 flash light patterns:Control box (item no. 5130001)
Mounting: Included stainless steel universal brackets or via our model-adapted brackets for the most common car models

Specifications:

E-marked: ECE R65
EMC-protected: ECE R10
Lens in clear polycarbonate
Heavy-duty aluminum frame for good heat dissipation and stability
Well thought out construction
Service-friendly with easily replaceable modules
Temperature range -30 to +60
Flash patterns: 26 or 29 (depending on length)
Number of LEDs: 30 to 180 x 3W (depending on length)
Power: 90W-540 W (depending on length)
Glass color: Clear glass
LED color: Orange
Voltage: 9-33 V
IP rating IP67 (waterproof)
36 months warranty

Dimensions: Dimensions

Width: 210 mm
Height: 40 mm
Height (incl feet): 90 mm
CC dimension between t-tracks under the ramp: 150 mm
Cable length: 3 meters

Supplied as a complete kit

Documents:
attachment

Optoguard installation instructions
