Optoguard Pod/Minirotella LED warning light
The Optoguard Pod is the most compact yet powerful warning light on the market - ideal for both confined spaces and large open areas. Despite its small size, the Pod delivers an intense and reliable light using a full 20 high-quality diodes, ensuring excellent visibility in all directions.
With 12 different flash patterns, including an ECE R65 approved mode, the Optoguard Pod is a perfect choice for those who need a versatile and approved warning light for professional use.
Specifications:

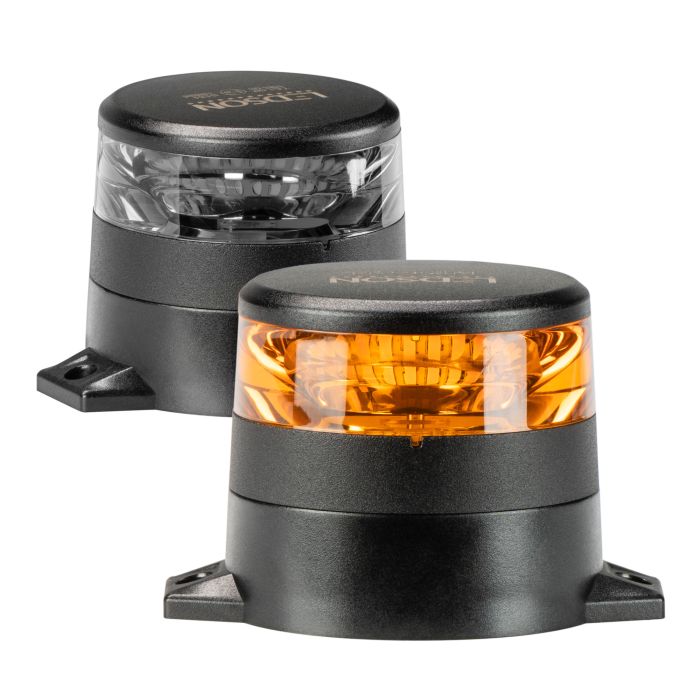

- Smoke coloured or orange glass
- 12 different flash patterns
- Multiple units can be synchronised with each other
- ECE R65 class 1, SAE J845 class 1
- ECE R10 (EMC protected)
- Mounted with two screws
- IP67-rating (waterproof and dustproof)
- 10-80V
- 2.3A at 12V
- 1.2A at 24V
- 20 x 1W LEDs
- Aluminium housing
- Polycarbonate lens

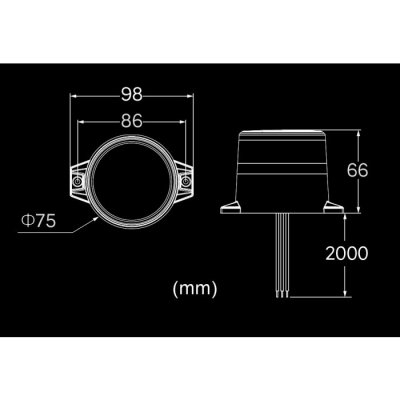

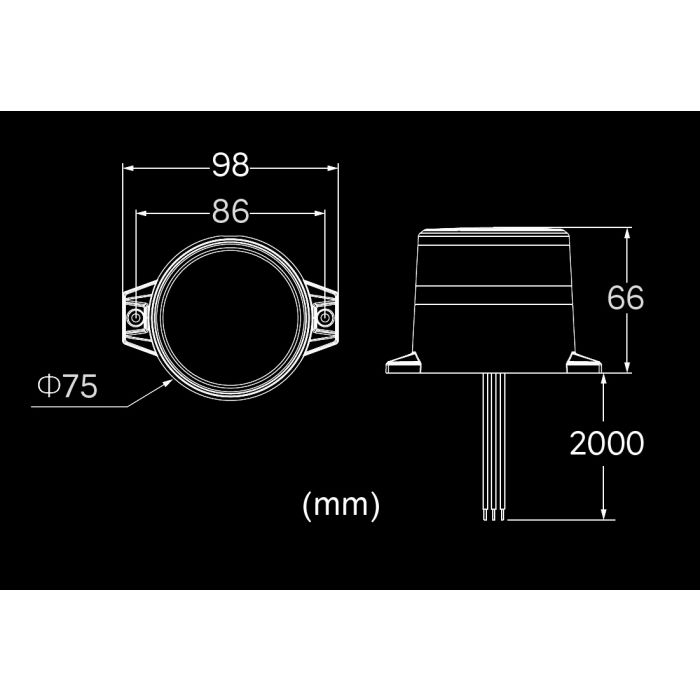

Dimensions:
- Height: 66 mm
- Diameter: 75 mm
- Hole spacing (cc): 86 mm
- Cable length: 2 metres
Flash Light Patterns
| # | Pattern | BPM |
|---|
| 1 | Single flash, SAE J845 class 1 | 60 BPM |
| 2 | Single flash | 75 BPM |
| 3 | Double flash | 125 BPM |
| 4 | Triple flash | 125 BPM |
| 5 | Quadruple flash | 125 BPM |
| 6 | Quintuple flash | 125 BPM |
| 7 | Single flash alternating left and right, half | 125 BPM |
| 8 | Rotating | — |
| 9 | Combination single / triple flash | — |
| 10 | Combination single / quintuple flash | — |
| 11 | Strobe | 600 BPM |
| 12 | Cruise mode (30% brightness at night) | — |
BPM = Flashes Per Minute
