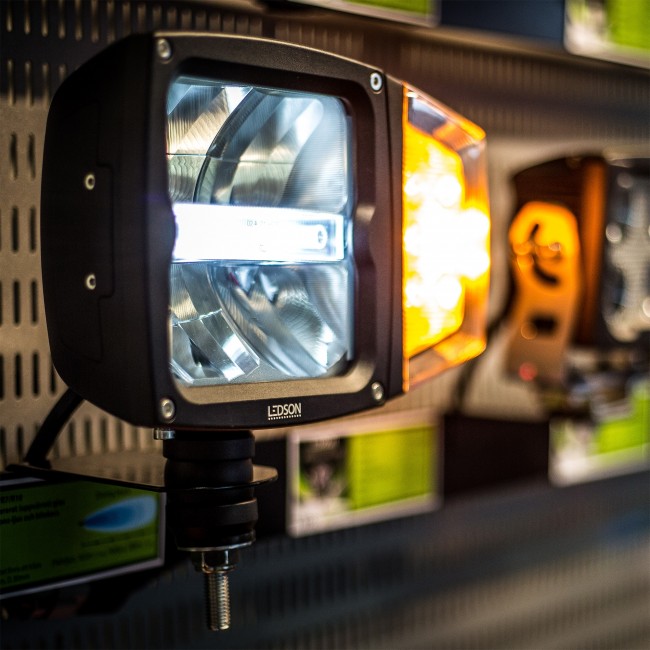

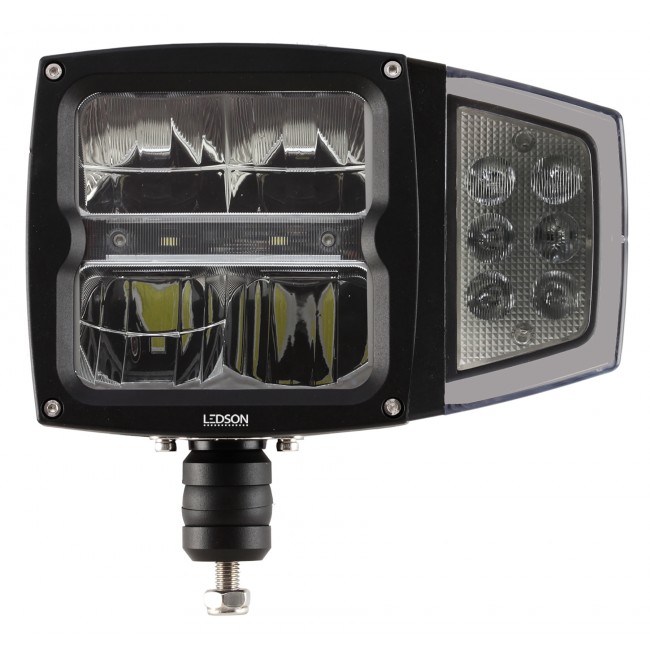

LED Plow light with high beam (38W), low beam (20W), position light (1.5W) and turn signal (20W)
NOTE: The plow light is equipped with a patented tempered (heated) glass system to effectively melt away ice and snow.
Scenario: If it is -25 degrees and 5 mm of ice on the lens and the heating function is activated, the lens temperature will be:
- -18 degrees after one minute
- -1 degree after five minutes
- +15 degrees after 10 minutes
- +68 degrees after 60 minutes (maximum temperature)
Specification:

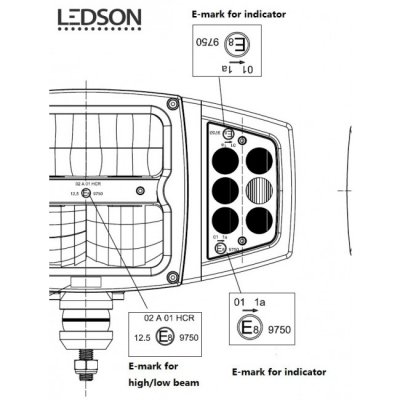

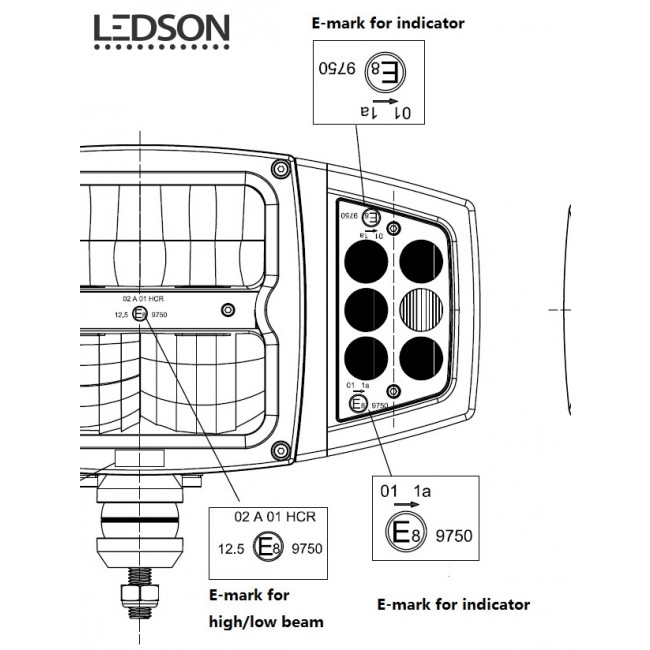

- E-marked ECE R112/R7/R10/R6 (E8)
- Patented system for melting ice and snow

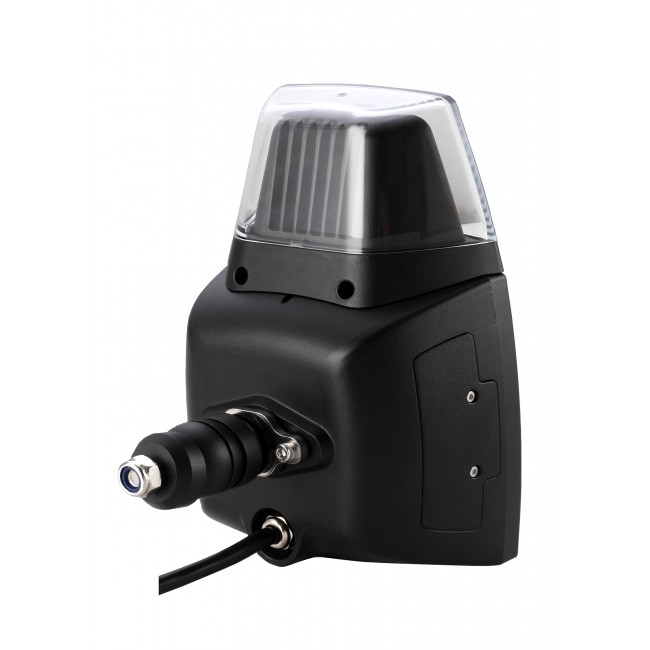

- Possibility to mount turn signals on either the left side, right side or on top of the plow light
- Reflector Facing Technology
- 5500K color temperature
- UV protected
- Shockproof
- Dual mounting options (below or behind the light)
- Surge protection
- IP68 rating
- Polycarbonate reflector
- Aluminum housing
- Tempered glass lens (heated)
- 50 000 hours expected LED lifetime
- Connector, bracket, screws and installation instructions included

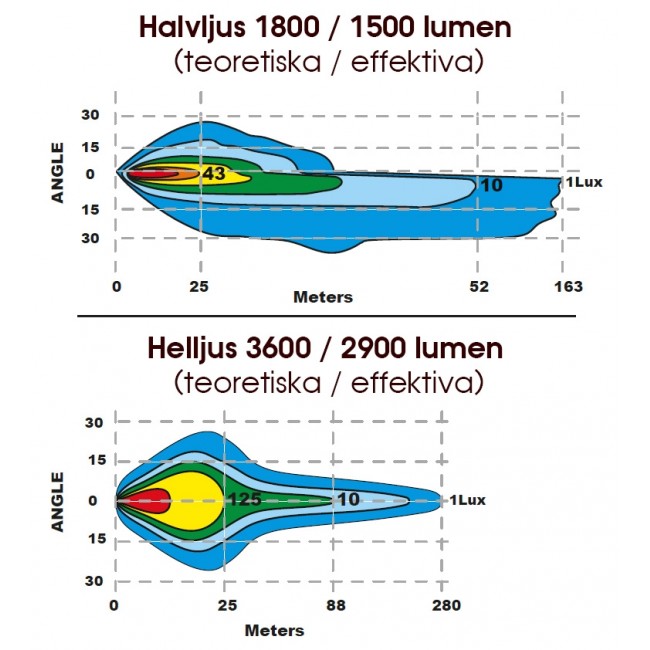

- High beam: 3600 / 2900 lumens (theoretical / effective)
- Low beam: 1800 / 1500 lumens (theoretical / effective)

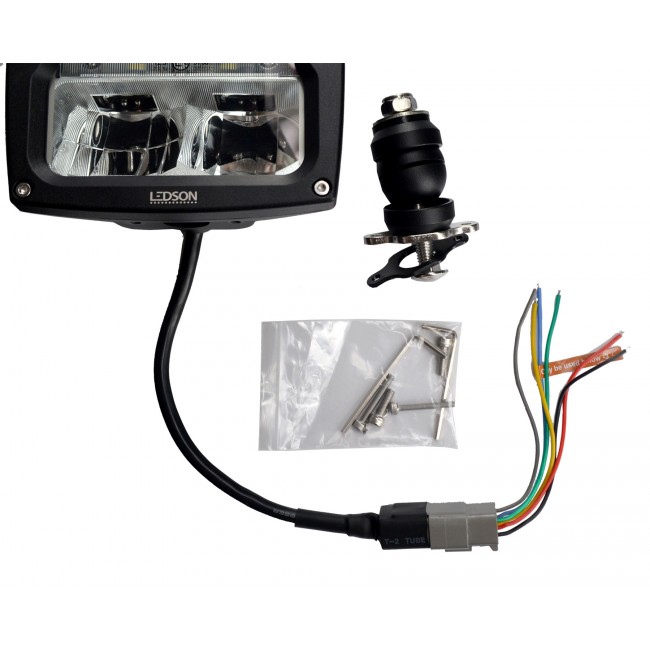

What is included in the package?
- 1x LED Plow Light
- 1x LED Blinkers (can be attached right / left / top of the lamp)
- 1x wiring harness
- 1x bracket with dual mounting options (below or behind the lamp)
- 1x instruction manual

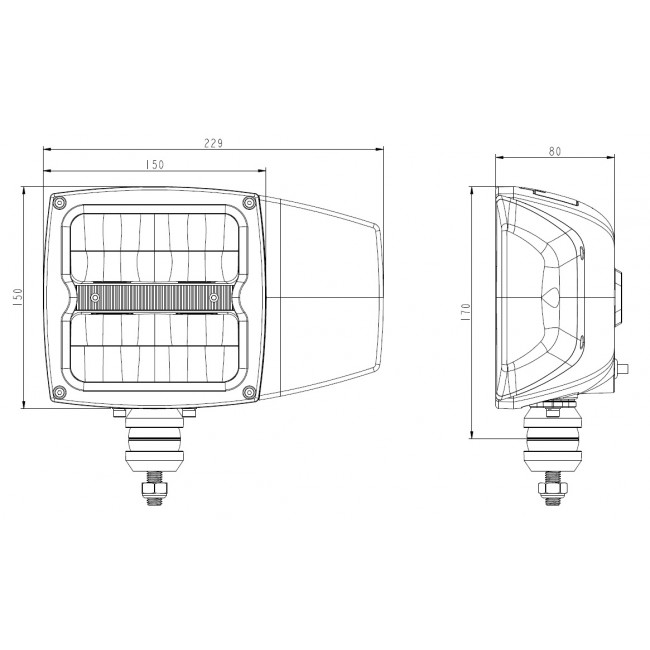

Dimensions & weight
- Width: 229 mm (incl. turn signal)
- Height: 170 mm (incl. bracket)
- Depth: 80 mm
- Cable length: 30 cm
- Weight: 1,3 kg

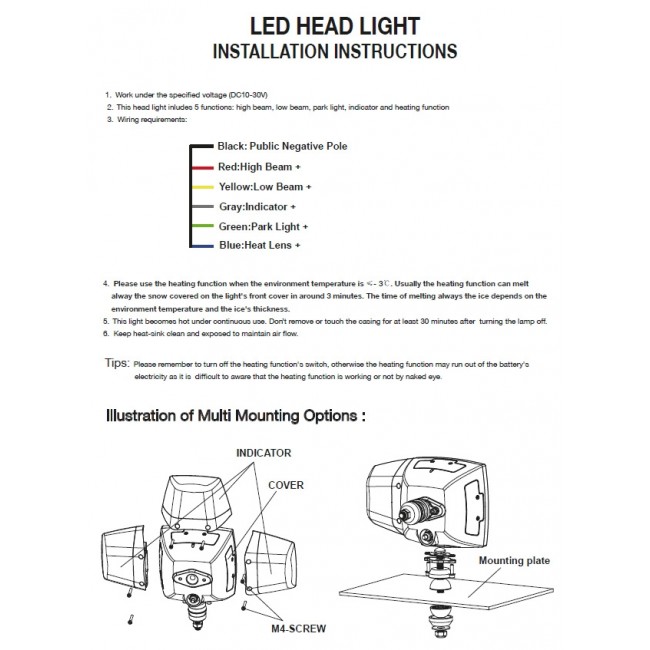

Electrical connection
- Black: Earth (minus)
- Red: High beam +
- Yellow: Low beam +
- Gray: Turn signals +
- Green: Parking lights +
- Blue: Glass heating +
- The DT connector must not be cut, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.
Delivered individually.
