LEDSON Commander | Remote controlled relay box Gen 2 | 12/24V

LEDSON Commander | Remote controlled relay box Gen 2 | 12/24V

Item ID: 7800320

€383

Incl. VAT

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

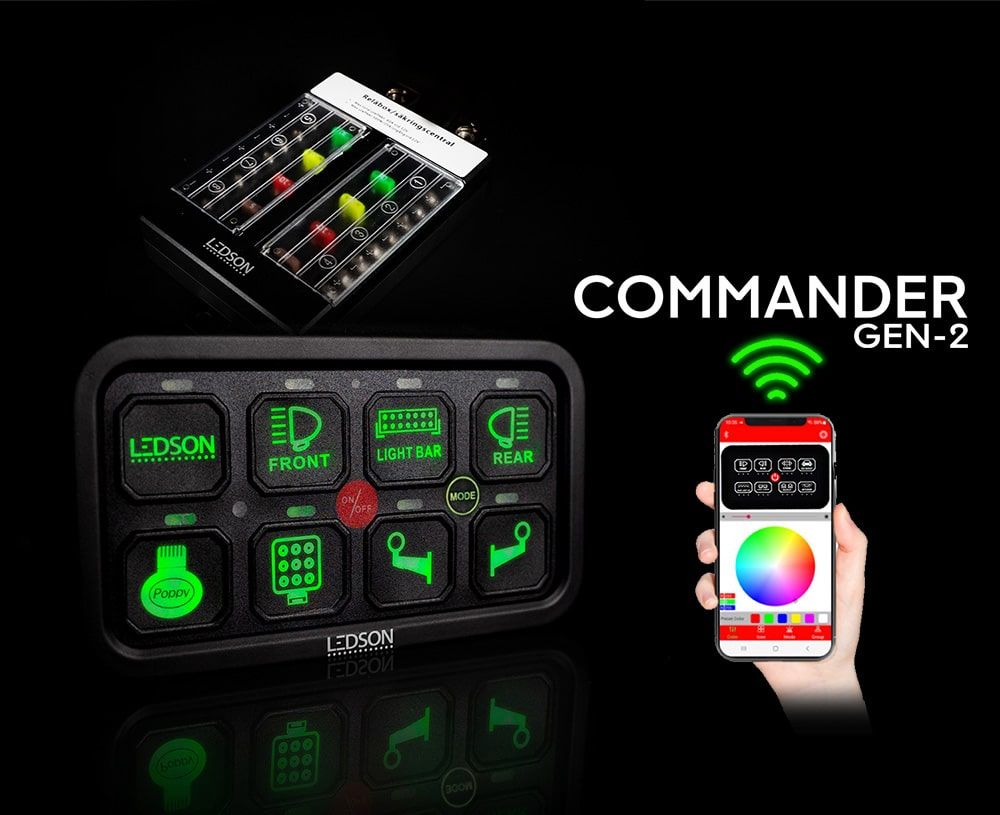

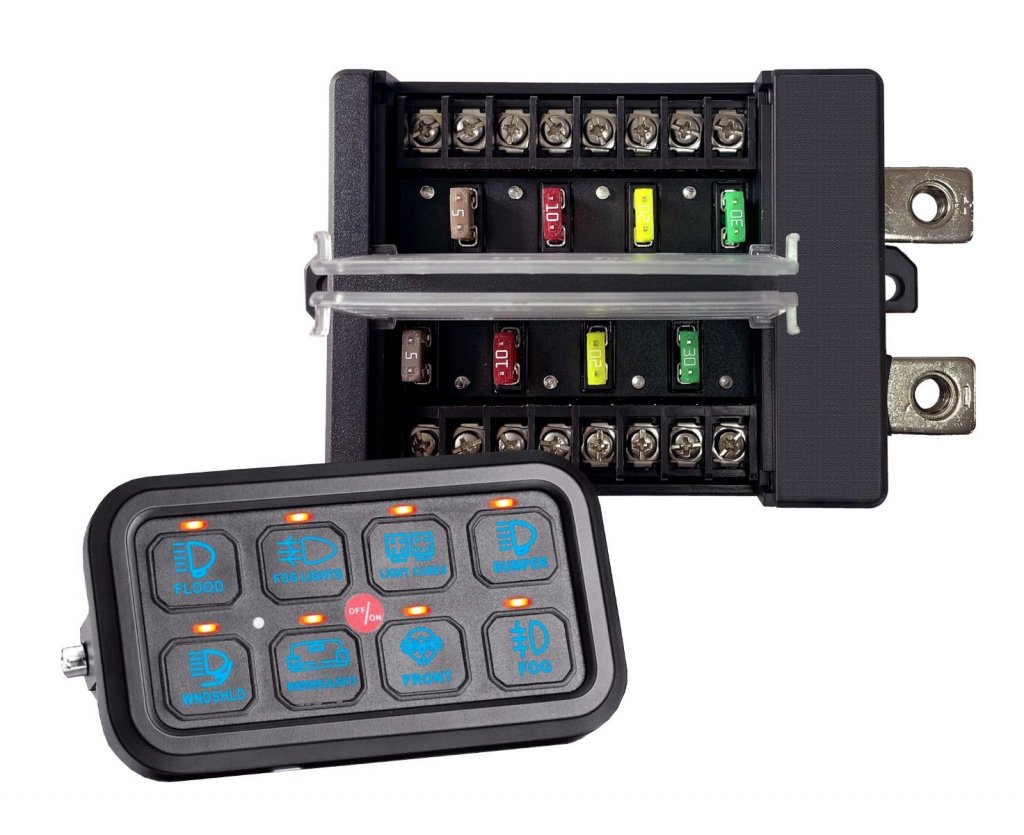

LEDSON Commander Relay Box/Electrical Control Center Gen 2 - turn on and off LED ramps, auxiliary lights, work lights, etc. or turn on and off other devices with the push of a button! Programmable control panel with 8 individual outputs, control up to 8 devices separately or together. Remote control with adjustable backlight (RGB, choose exactly the color you want!) included, with 2.5 meter cable. There is also app support with SwitchPanel for control via Bluetooth(Android and Apple).

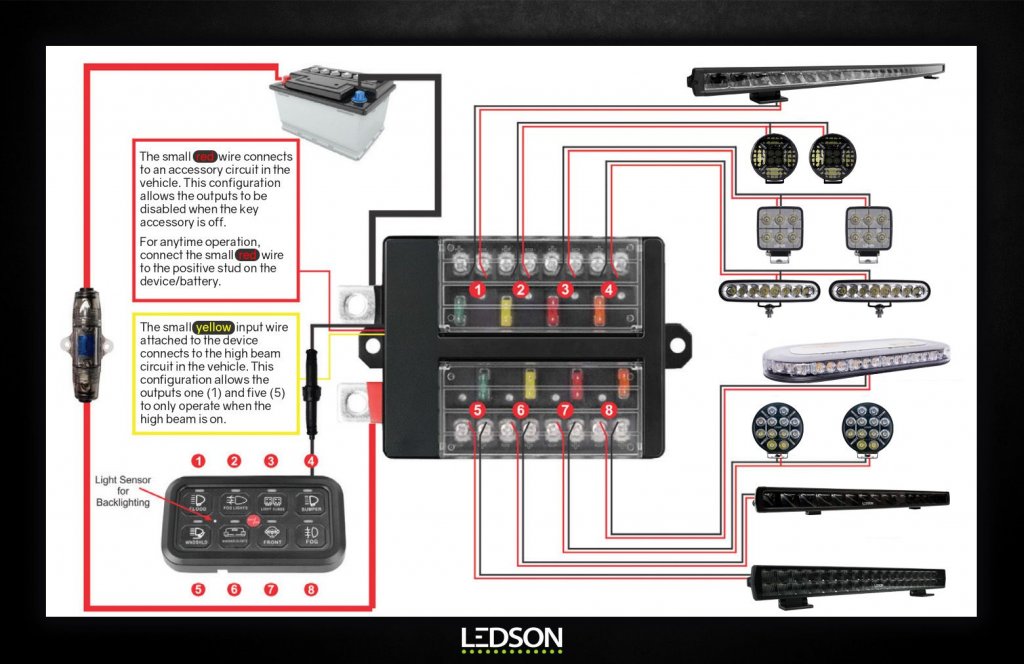

LEDSON Commander has a direct input (yellow cable) to be able to control LED ramp/extra light etc via the vehicle's analog high beam signal/high beam lamp. 12V/24V with MosFet/electronic relays, protection against overheating, overload, short circuit and polarity protection.

Max total current: 60A (720W at 12V).
8 individually programmable switches.
The maximum total current of this device is 60A.
Maximum current per output at 12V:
- Output fuses 1 and 5 are 30A - activated when yellow wire is energized
- Output fuses 2 and 6 are 20A
- Output fuses 3 and 7 are 10A
- Output fuses 4 and 8 are 5A
- If the output has been overloaded, a red LED will indicate next to the fuse that has blown
The maximum power for an output should not be more than 300W (25A @ 12V).
Built-in Bluetooth for app control.
Protection against overheating, overload, short circuit, polarity protection.
Direct high beam control to circuit 1 and circuit 5.
Programmable icons.

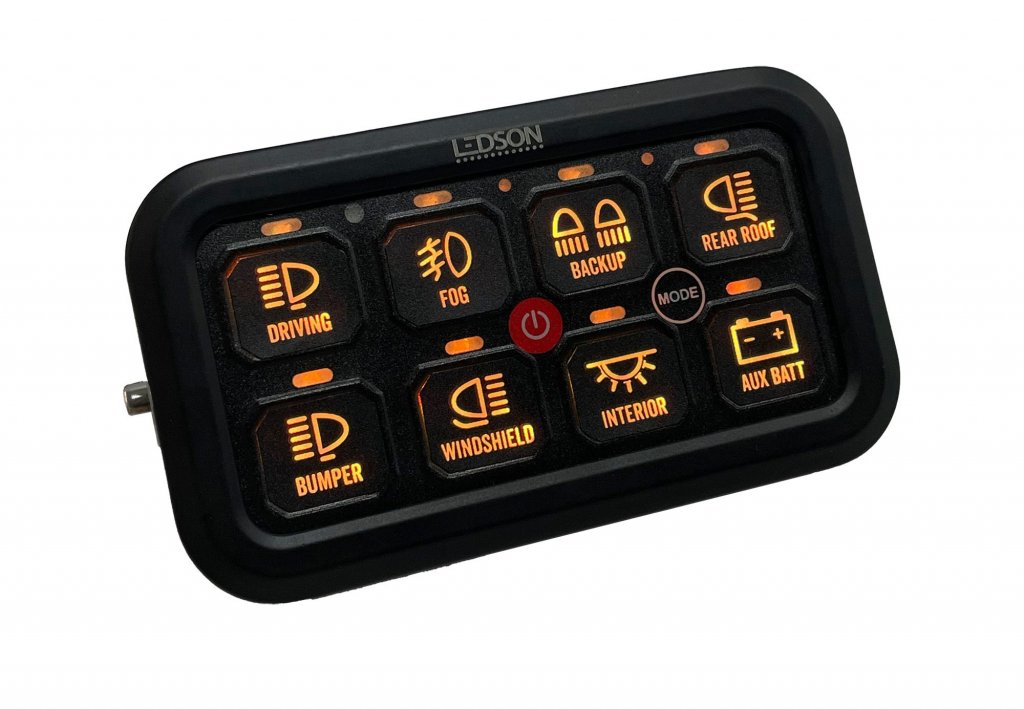

Backlit switches with selectable backlighting.
LED indication for overload/blown fuse.
Each switch can be programmed for three different functions:
- Switch between On/Off
- Switch between On/Off as long as the button is pressed
- Size of remote control: Length: 115mm, width: 65mm, depth: 14mm

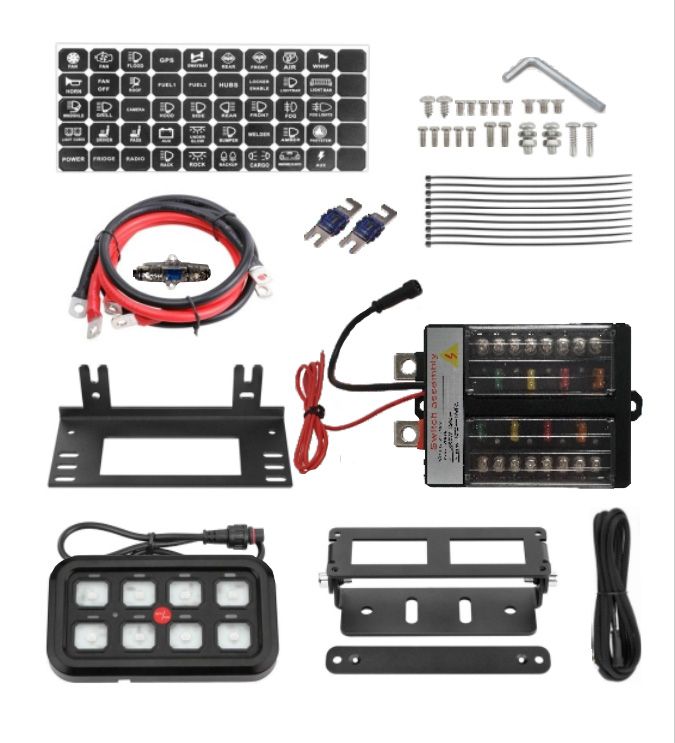

What is included:

Commander relay box with remote control
Battery cable with fuse
Spare fuses

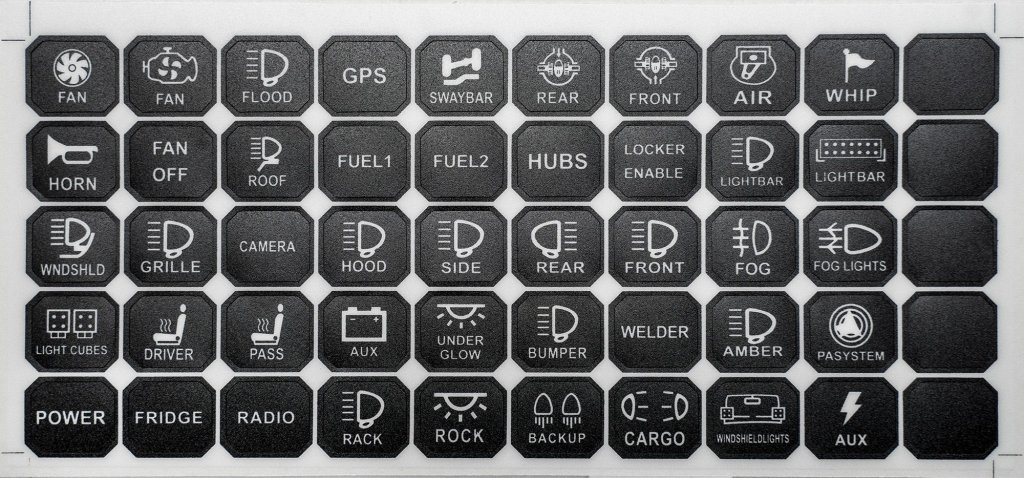

50 different stickers with symbols to attach to the remote control
Mounting bracket with screws for relay box and remote control

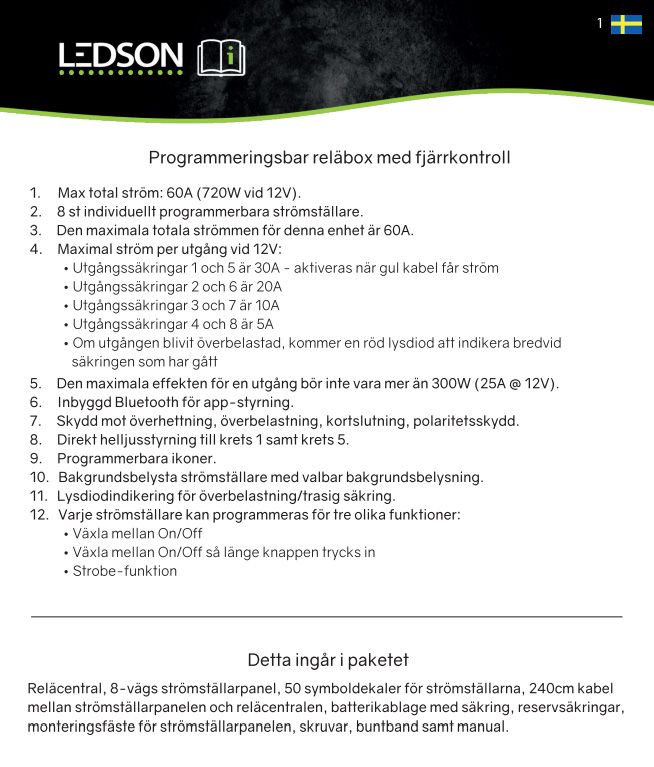

Mounting instructions.
