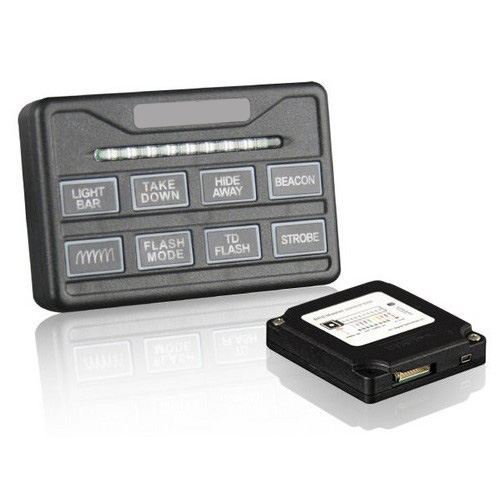

Control system BR8 with 8 separate switches - 10-30V

Control system BR8 with 8 separate switches - 10-30V

Item ID: 9026-001

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

With a control system, there is no need to fold various switches into the dashboard. All consumers are easily controlled from a single backlit keypad. Each switch can handle a consumer of 15W (2A), which allows control of e.g. warning lights, cabinet lighting, work lighting and more.

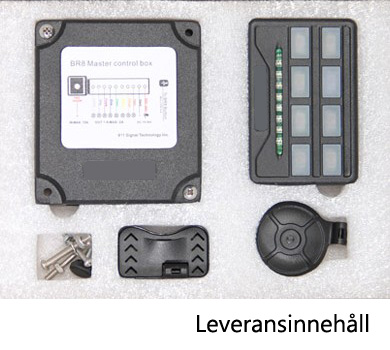

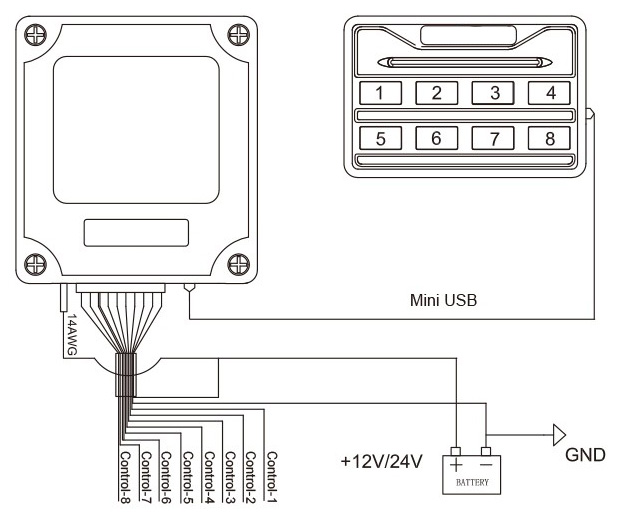

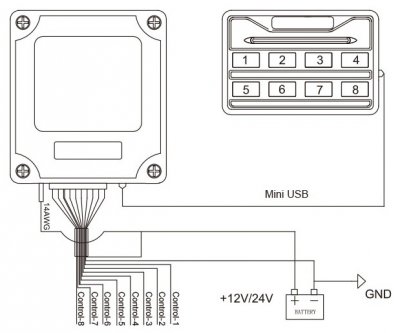

Supplied with separate control panel and control box. 6m miniUSB cable connects the two units.

For more powerful consumers, it is recommended to use a relay to ensure operational safety, avoid voltage drops, etc.

Technical data.

Voltage range: 10-30V
Watt: 15W max per switch
Amps: 2A max per switch
Backlit buttons: Yes
Dimensions (mm) control panel: L 90 x W 60 x D 22
Dimensions (mm) control box: L 98 x W 90 x D 22
