Relay/cable set for Lazer LED ramp with position light

Relay kit Lazer LED light bar with position light

Item ID: 931081

€67

Incl. VAT

Which variant do you want?

For 1 Lazer handrail | 20 A fuse

931081

€67

Available in external warehouse | Ships within 1-4 business days

For 2 Lazer handrails | 30 A fuse

931082

€87

Available in external warehouse | Ships within 1-4 business days

Available at central storage | ~3 days delivery time

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

Relay kit for Lazer led ramp with position light. This wiring kit is specially designed to easily and reliably install Lazer Lamp's high-performance LED lighting. With three-pin Superseal connectors, no configuration procedures are needed, making installation quick and easy.

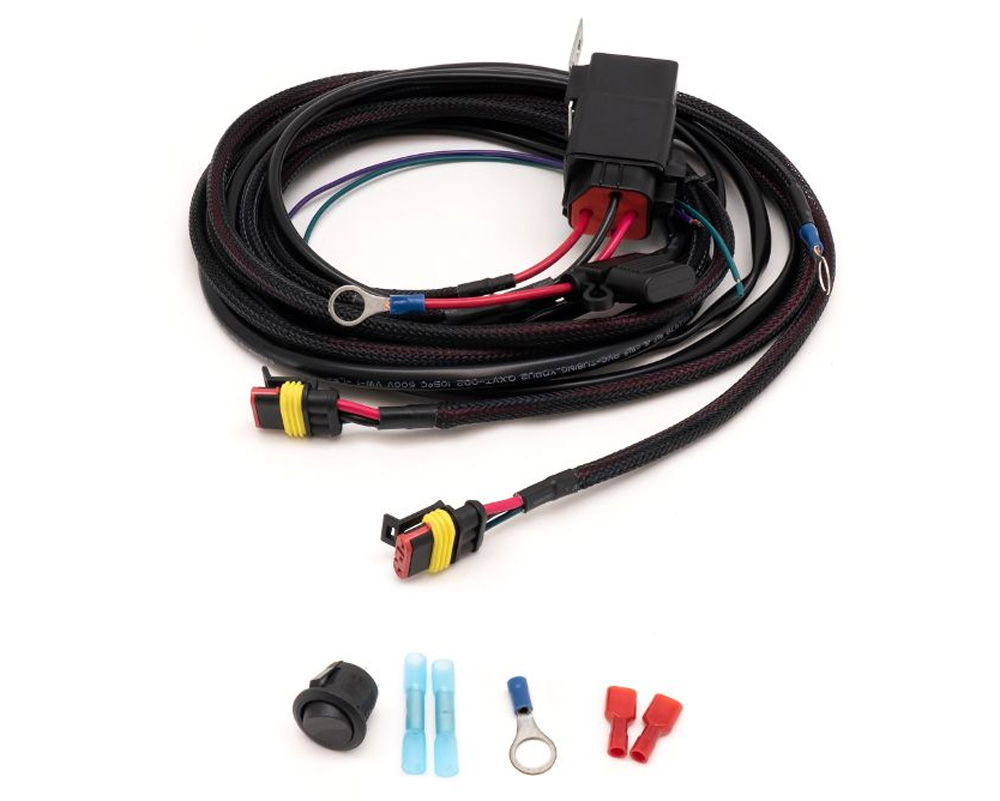

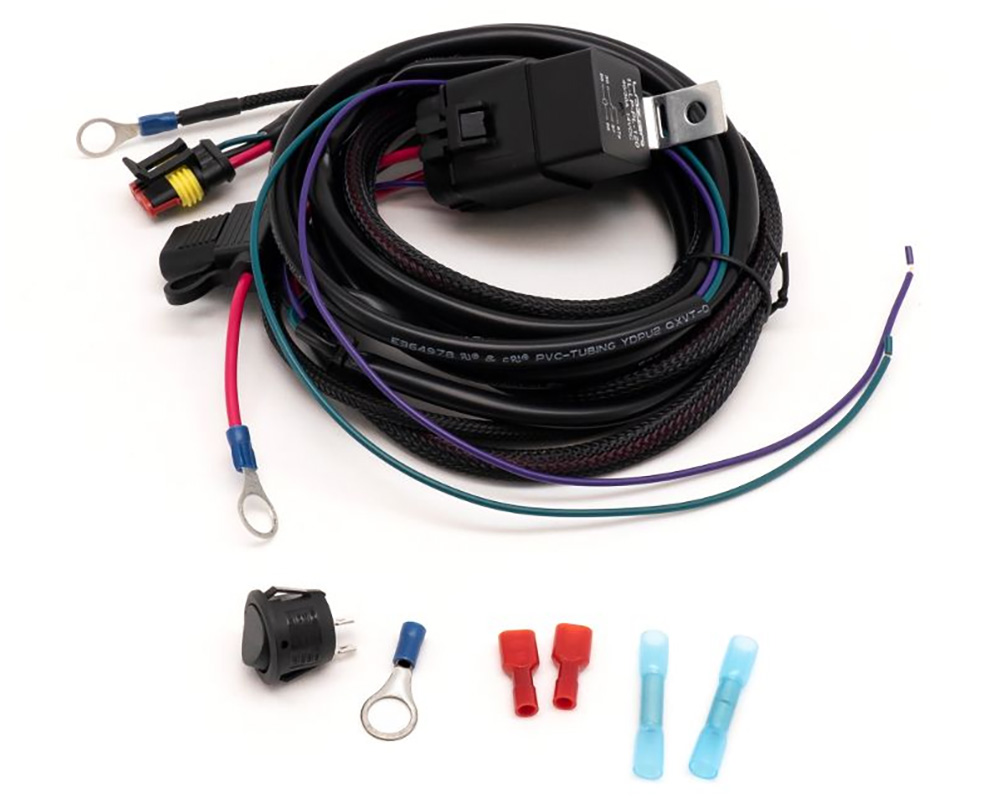

The kit includes a 12V relay with waterproof housing, a fuse, a battery terminal and 1.2 meters of flexible cable to the lamp. It allows operation of Lazer products either in parallel with the vehicle's standard lighting or via an independent switch that can be mounted inside the vehicle.

All Lazer lamps come with a pre-wired female connector that connects to the male connector of the lamp cable, facilitating integration with your vehicle system.

Product features

Cable length: 1.2 meters
Includes a 12 V relay with waterproof housing and a 20 or 30 A fuse
The relay holder is IP53 approved when mounted in a vertical position
Equipped with three-pin Superseal connectors
Optional On/Off button allowing independent operation of high beam
Braided cable sections for extra protection in the engine compartment

Suitable for the following articulated ramps:

Triple-R 750 (Gen2)
Triple-R 850 (Gen2)
Triple-R 1000 (Gen2)
Triple-R 1250 (Gen2)
Linear-12 Elite with position light
Linear-18 Elite with position light
Sentinel standard with position light
