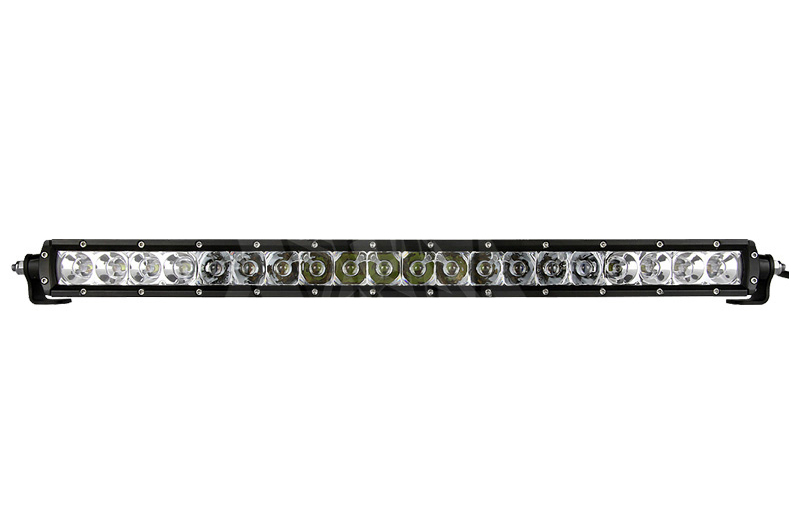

Rigid SR-Series LED Ramp - 543 mm (20") - 76W

Item ID: 92031EM

Sorry - this product is currently not avaiable for purchase.

Rigid Industries benefits:

5 year warranty.
Virtually indestructible outer shell.
Unbreakable polycarbonate lens
All manufacturing is done in the USA.
Patented lens technology provides incredible lighting performance.

The most popular product, SR20 from Rigid Industries, has now been E-marked for use as an auxiliary light.

The SR series is Rigid Industries' smoothest ramp series, this 20-inch model provides a full 7500 lumens (in comparison, 35W xenon extra light has 3200 lumens / piece).

With a lightning fast ignition time, high luminosity and efficient optics, this ramp is a highly efficient auxiliary light, and the slim dimensions allow for neat installation. All Rigid Industries products come with a five-year warranty, the longest on the market.

Optics:

American Rigid Industries utilizes three patented optical systems, Hybrid, Specter and Hyperspot. Each has its uses and individual strengths.

SR uses the Hybrid system, which has a round reflector.

The Spot/Flood Combo has Spot optics in the center and Flood optics at the outer edges of the ramp. The Spot optics provide a long and narrow light pattern with 10-degree spread with very little lateral spread, while the Flood optics with 20-degree spread angle at the outer edges provide slightly more width. The combination beam is suitable as a semi-narrow driving light on a road/highway. The lux amount at 10 meters is 1750, the combination beam is suitable as semi-narrow driving light on road/highway.

Electronics and cooling:

Rigid Industries has the most efficient and highest quality electronics on the market, with a whopping 97% efficiency (only 3% becomes waste heat). This, together with the well-dimensioned heat sinks, keeps the LEDs at optimum temperature, which means that the lifetime can be guaranteed. Rigid Industries products are always covered by a 5-year product warranty.

Casing:

The outer casing of the SR is made of aluminum, with a two-layer, UV-protected polyester powder coating that is highly durable and weather resistant. The outer lens is made of polycarbonate (PC, Lexan) and is impact resistant and tough. It does not shatter under force, but instead deforms slightly. The SR is extremely impact resistant and resistant to vibration, impact and moisture.

Specification:

Manufacturer: Rigid Industries
The lamp housing is made of powder coated 6061 type aluminum.
Voltage: 9-32 V
Current consumption: 5.5 A
Over and under voltage protection, short circuit protection.
Moisture-proof cable with fuse and on/off switch included.
Withstands harsh weather conditions, extremely resistant to vibration and shock.
Protection class: IP68
Vibration rating: MIL810-STDG
Salt spray rated: ASTMB117
E-marked: Yes

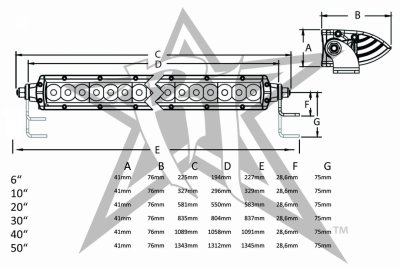

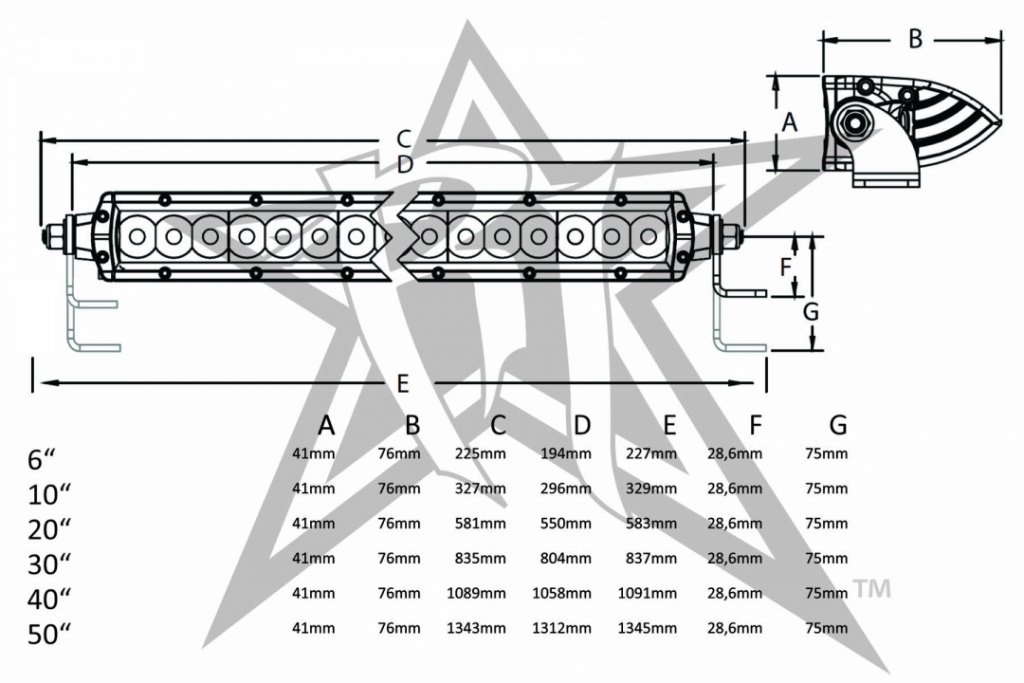

Length: 543 mm
Height: 41 mm
Depth: 76 mm
Number of LEDs: 20
Number of lumens: 7500
Wattage: 76
Lifetime: Up to 50 000 hours
Working range: -40°c to +63°c
Lens: Polycarbonate
Patented optics
5 years warranty

Light pattern:

Spot/Flood combination (wide beam with a long, narrow "tip")
Lux @ 10m: 1750
Distance with one lux: 418 meters
Distance with 0.25 lux: 837 meters

The DT connector must not be cut off, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.

Delivered individually
