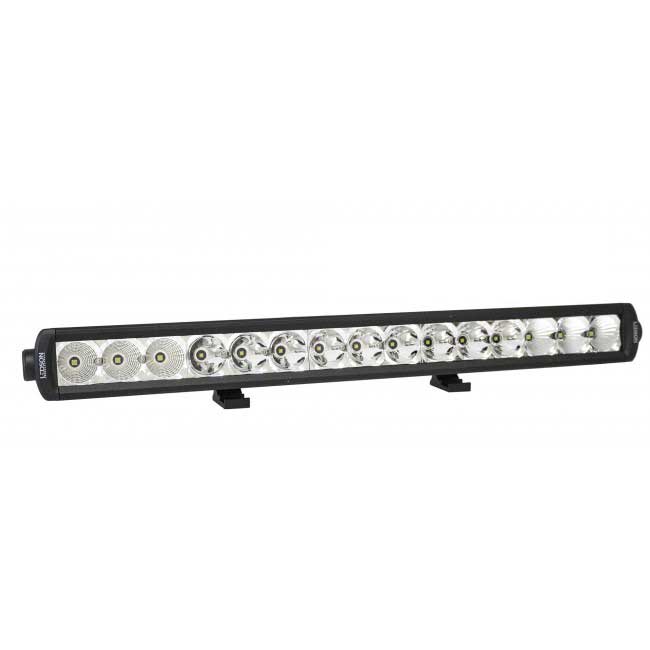

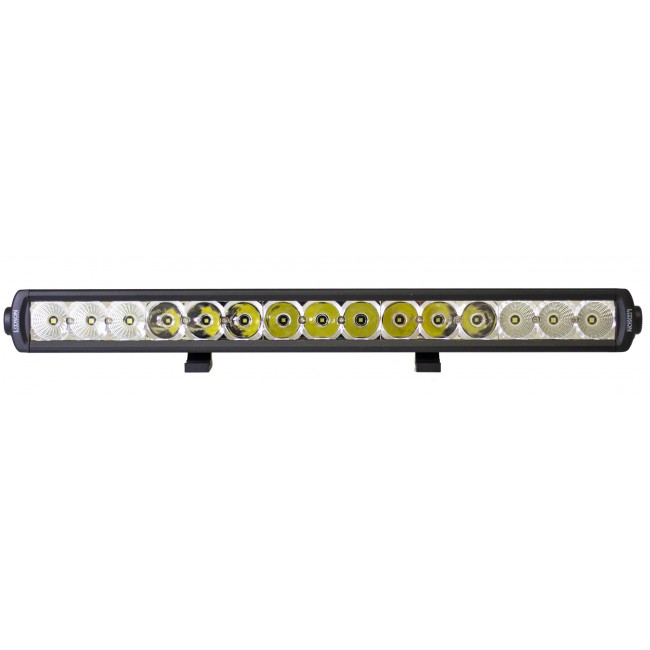

LEDSON SLIM LED Ramp - 524 mm (20.5"), 57W, 10-30V

LEDSON SLIM LED Ramp 524 mm (20.5") 57W

Item ID: 33305157

Sorry - this product is currently not avaiable for purchase.

This versatile ramp is a significant upgrade of the regular LED ramp SLIM and is exclusive in our range in that it is equipped with Dual Wattage. Often you have to compromise between length and fender flares and let this be decisive for the choice of ramp where you gain one but lose the other. You don't have to do that now.

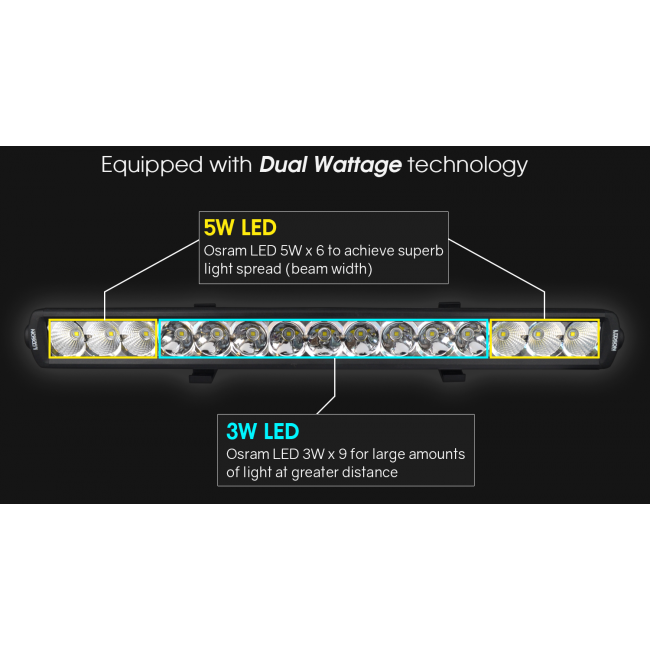

Dual Wattage technically means that we have equipped SLIM DW with both 3W and 5W diodes, in one and the same ramp. This unique combination gives you the most optimal fender flares and length of light. The combination of two different types of OSRAM diodes gives a higher lumen and lux value. This means that you get more of the actual brightness, what is actually relevant: SLIM provides 3990 actual lumens while SLIM DW provides a full 6344 actual lumens!

Features

Dual Wattage technology with two different types of LEDs
Enables an optimal width + length of light without compromise
Combined light pattern (wide and oblong)
OSRAM CSHP and OSRAM P8
7380 lumens (theoretical), 6344 lumens (actual)
Color temperature 5000K (neutral white)
Range 1010 m (0.25 lux), 505 m (1 lux)

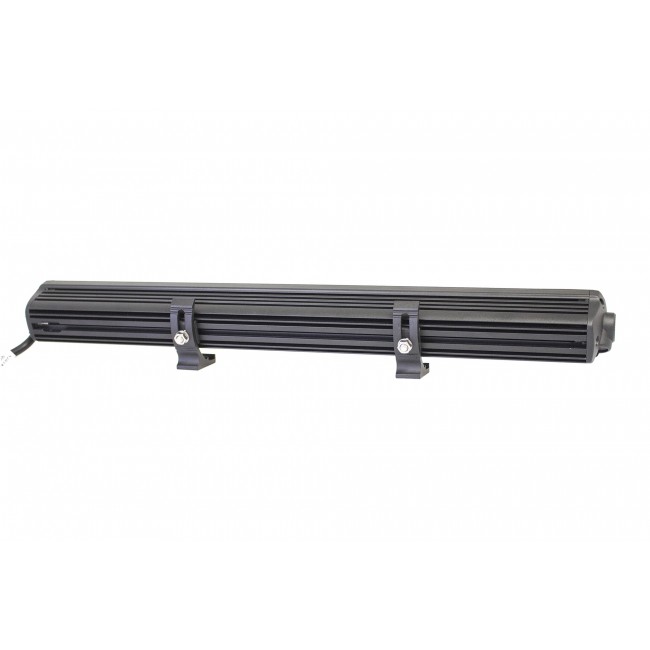

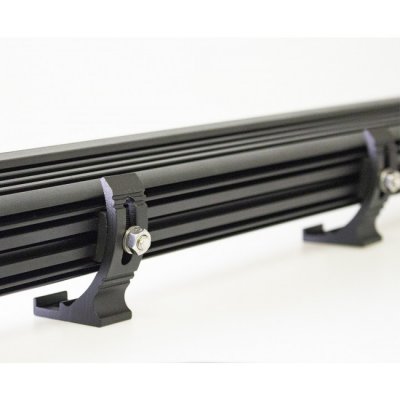

Dual mounting options

Technical data

Total 75W
IP67 (water/dust proof)
Aluminum housing with polycarbonate lens
5.87 A at 12 V and 2.92 A at 24 V
Pressure equalization membrane

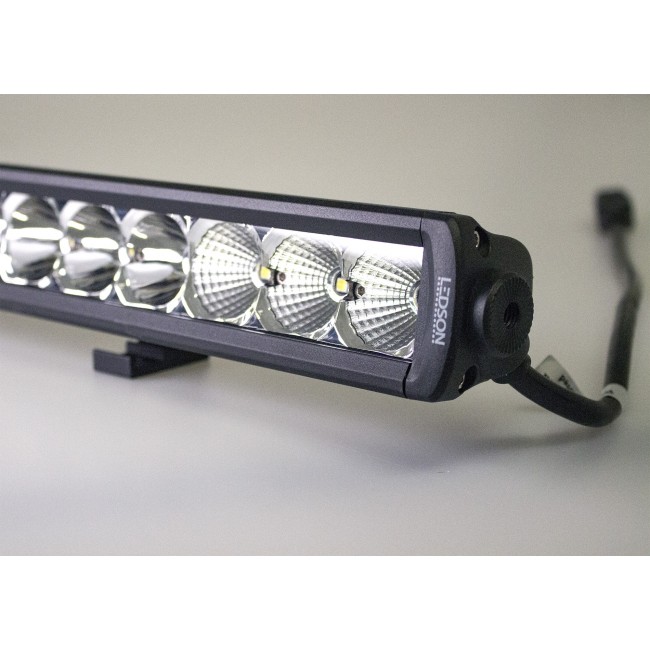

DT connector (included)

Dimensions: Dimensions

Width: 524 mm
Height: 47 mm
Depth: 44 mm (excl. brackets)
Weight: 1,2 kg
Cable length: 450 mm

The DT connector must not be cut, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.

Delivered individually
