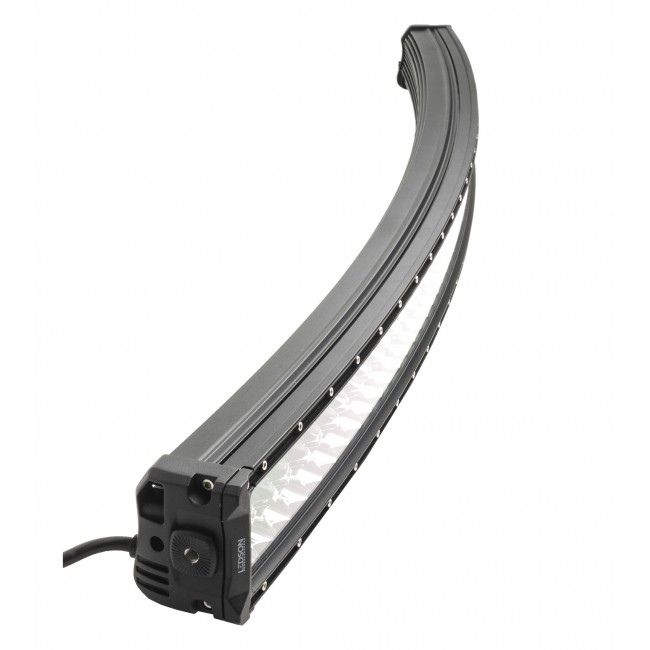

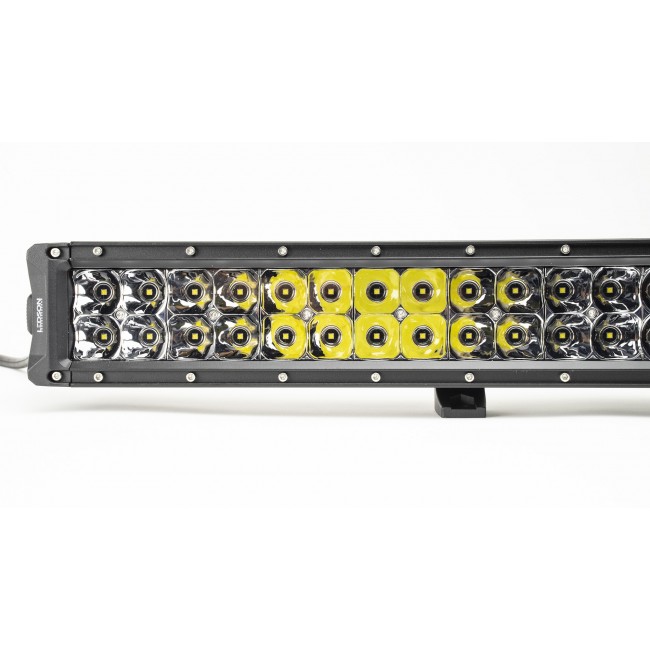

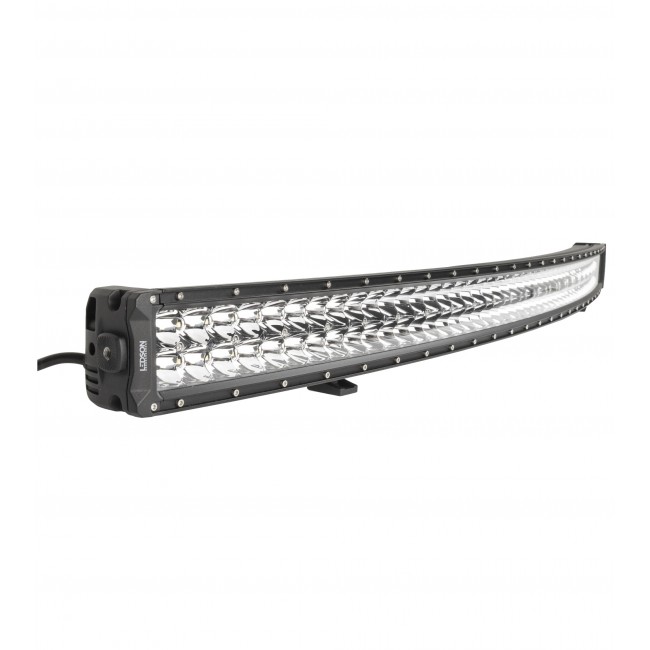

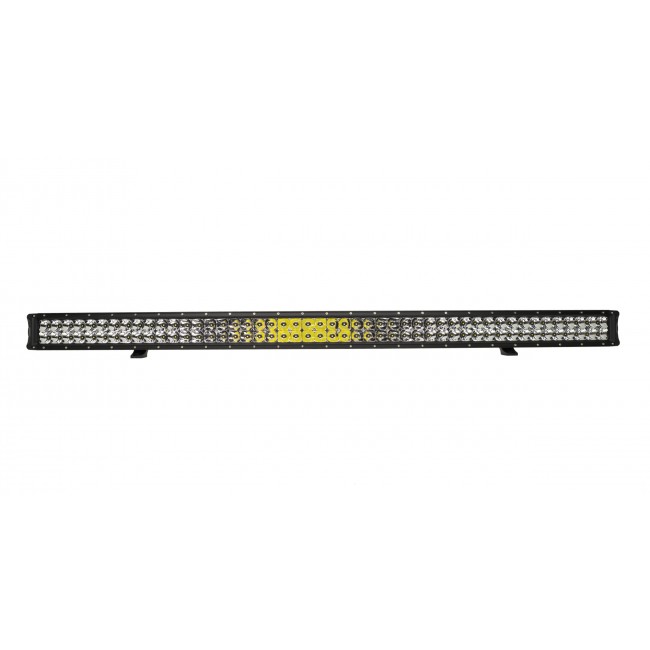

LEDSON LED Ramp Curved - 1265 mm (48.5"), 288W, 10-30V

LEDSON LED Ramp 1265 mm (48.5") 288W

Item ID: 33303963

Sorry - this product is currently not avaiable for purchase.

Curved LED ramp from LEDSON for the large vehicle. With 127.3 cm and Hi-Lux (powerful Osram diodes), the ramp provides 25920 lumens!

A lightbar equipped with Hi-Lux has what we call "maximized diodes". This means that the most possible power has been extracted from each LED to deliver as much light as possible when the ramp is lit - for those who want maximum brightness!

Combined light pattern (combo)

A combo light is a mix between a high beam (distance) and a low beam (width). The ramp has diodes that reflect light both straight ahead and to the sides. This beam pattern is ideal if you want a lot of light close to the vehicle for the smaller roads, but still have the length to light up the road far ahead.

V2.0 means that the ramp comes with dual mounting options:

Side-mounted legs that rotate around their own axis to angle the ramp
Sliding, rear-mounted brackets that can be adjusted along the entire length of the ramp for highly flexible mounting

Features

96 LED x 3W
LED lifetime 30 000 hours (expected)
Total power: 288W
Hi-LUX (means higher lumens thanks to Osram diodes)
Range: 1311 m (0.25 lux)
Load: 17,2A @ 12V and 8,2A @ 24V
Luminous flux: 25920 lumens
Combined light pattern (combo: a mix between spot and flood)
Pressure equalization membrane
EMC protected
Aluminum housing
Adjustable side bracket and sliding brackets at the rear (dual mounting options)
ATP connector (included)
Maximized reflectors
IP67 enclosure rating
Voltage: 10-30V
Polycarbonate lens
Color temperature: 6000K

Dimensions: Dimensions

Width: 1265 mm (1270 mm incl. the "ears" used to mount side-mounted legs)
Height: 85 mm
Depth: 65 mm
Weight: 6,2 kg

The ATP connector must not be cut off, as this increases the risk of moisture damage. Damage to the ATP connector will void the warranty.

Delivered in pieces
