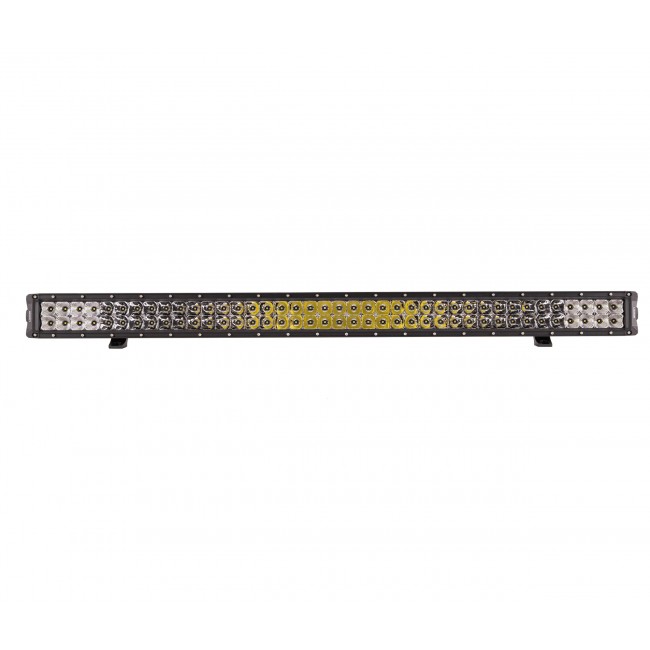

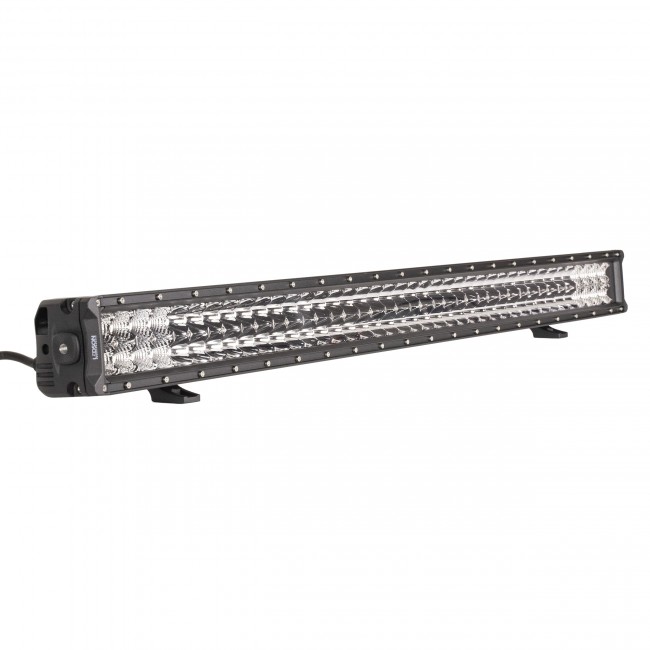

LEDSON LED Ramp - 1073 mm (41.5"), 240W, 10-30V

LEDSON LED Ramp 1073 mm (41.5") 240W

Item ID: 33303808

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

107 cm wide LED lightbar, EMC protected with pressure equalization membrane and double mounting possibilities!

A lightbar equipped with Hi-Lux has what we call "maximized diodes". This means that the most power has been extracted from each LED to deliver as much light as possible when the ramp is on - for those who want maximum brightness!

Combined light pattern (combo)

A combo light is a mix between a high beam (distance) and a low beam (width). The ramp has diodes that reflect light both straight ahead and to the sides. This beam pattern is ideal if you want a lot of light close to the vehicle for the smaller roads, but still have the length to light up the road far ahead.

V2.0 means that the ramp comes with dual mounting options:

Side-mounted legs that rotate around their own axis to angle the ramp
Sliding, rear-mounted brackets that can be adjusted along the entire length of the ramp for highly flexible mounting

Features and characteristics

Total power: 240W
Range: 1273 m (0.25 lux)
LED lifetime 30 000 hours
Voltage: 10-30V
IP67 (water and dust proof)
15.9A @ 12V and 7.1A @ 24V
Color temperature: 6000K
Aluminum housing
Polycarbonate lens
EMC safe
Pressure equalization membrane
Light pattern: combined (combo) 8 degrees spot and 90 degrees flood

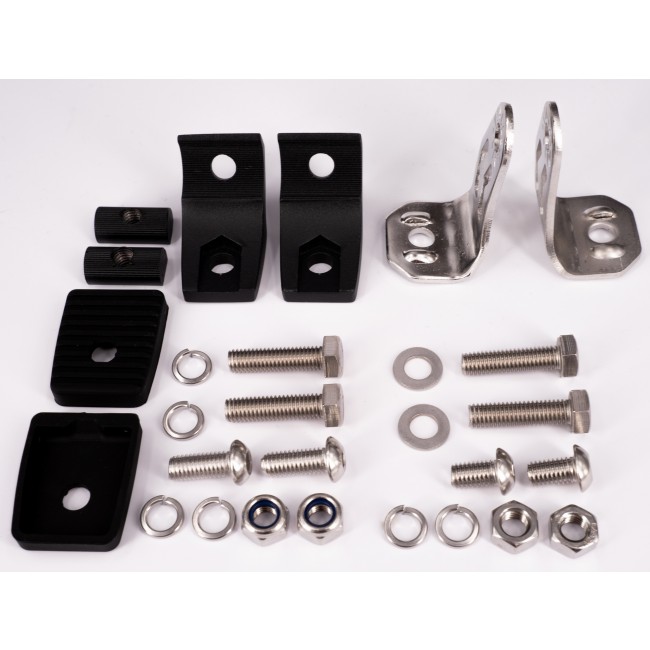

Dual mounting options: side mounted legs (in two heights) and sliding brackets
ATP connector (included)

Dimensions: Dimensions

Width: 1073 mm
Height: 78,5 mm
Depth: 65 mm

The ATP connector must not be cut off, as this increases the risk of moisture damage. The warranty is void if the ATP connector is damaged.

Supplied individually
