Item ID:  33501859

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

Juno - Super slim! Approved according to ECE R112/R10

The low build height makes this LEDSON ramp one of the most easily positioned ramps on the market! From a distance it is barely visible, but the closer you get, the more visible its distinctly aggressive and modern exterior becomes. This is an articulated ramp for those who want the latest & the thinnest but something that still confidently adds attractive value to the vehicle.

And of course the most important thing: Juno is loaded with light output that will put your high beam to shame! 4690 actual lumens radiate from 18 sharp OSRAM LEDs.

Characteristics of Juno

  • E-marked (ref. 37.5), ECE R112 (approved as an auxiliary light)
  • EMC-protected according to ECE R10

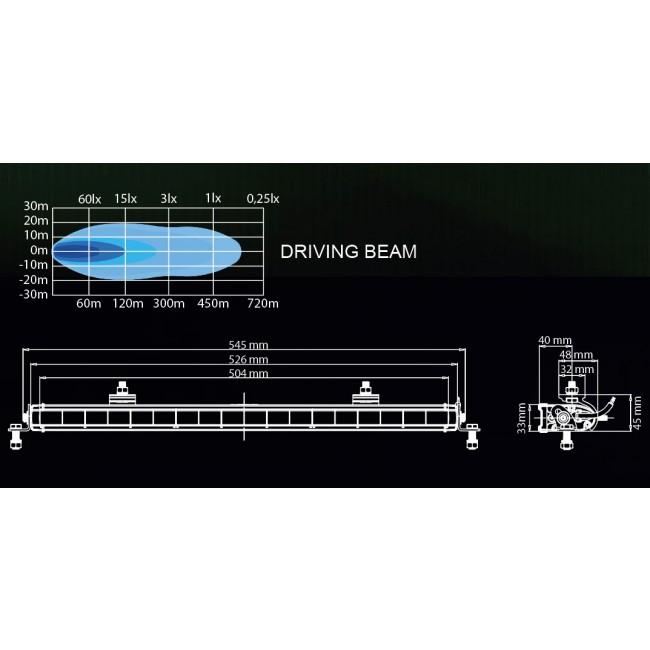

  • "Driving beam" light pattern (wide and oblong)
  • 7560 lumens (theoretical), 4690 lumens (actual)
  • Color temperature 5700K (cool white)
  • Range 720 m (0.25 lux), 450 m (1 lux)
  • Dual mounting options

Technical data

  • 90 W (18 x 5 W OSRAM LED)
  • IP68 (water/dust proof)
  • Aluminum housing and polycarbonate lens
  • 6.35 A at 12 V and 3.03 A at 24 V
  • DT connector (included)
  • Voltage: 10-48 V

Dimensions: Dimensions

  • Width: 528 mm
  • Height: 33 mm (excl. brackets)
  • Depth: 68 mm
  • Weight: 1.28 kg
  • The DT connector must not be cut off, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.

Delivered individually
