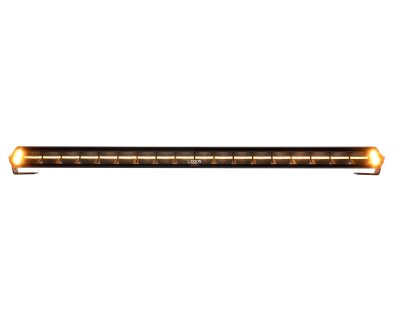

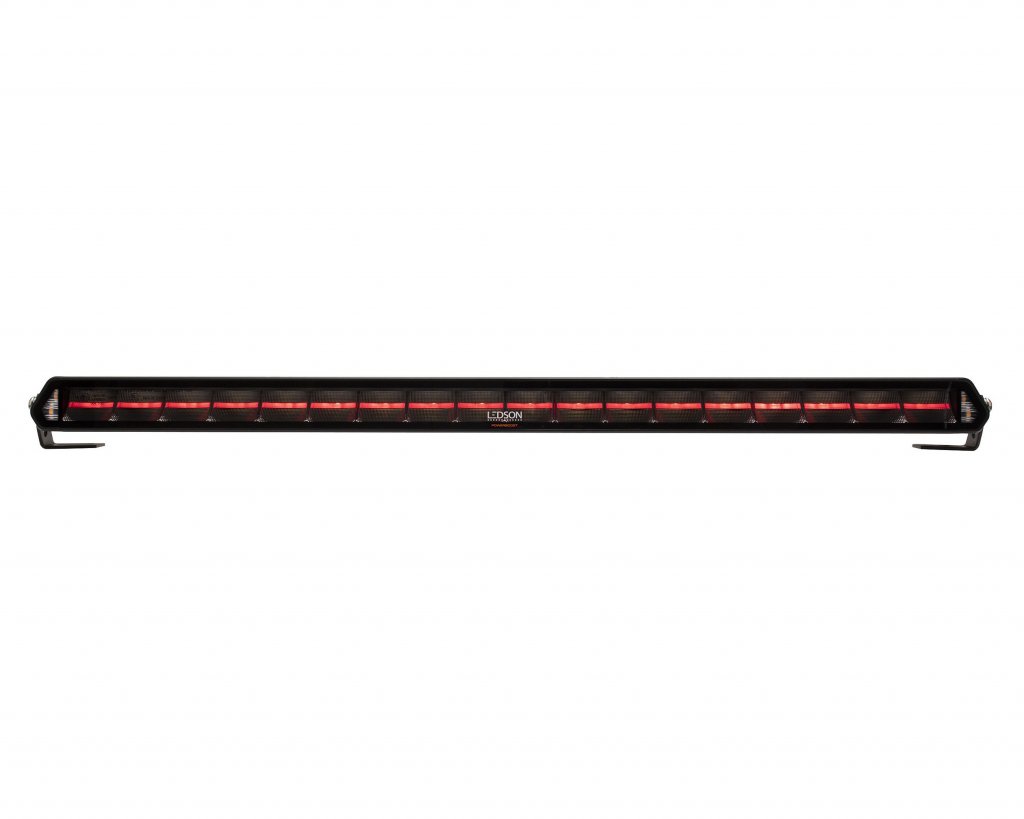

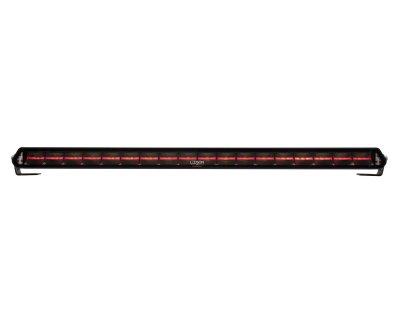

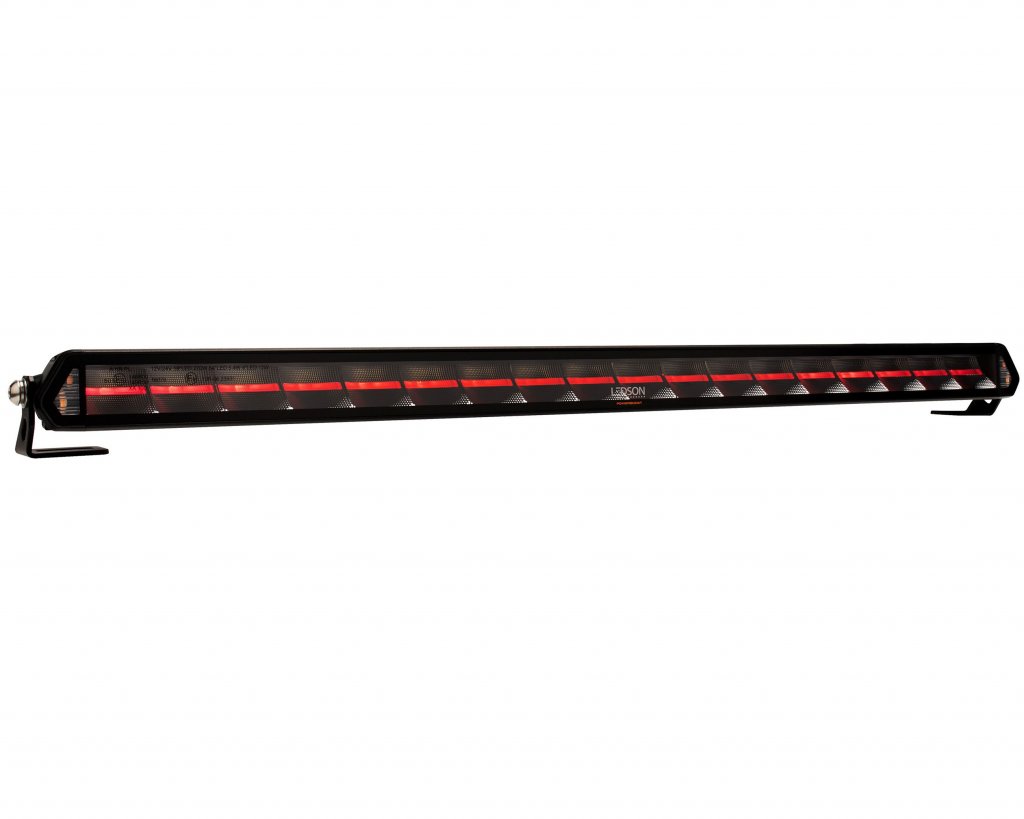

EPIX30+ Work Light Ramp 270W | Warning Light

Item ID: 334915184

€479

Incl. VAT

Available

Available in external warehouse | Shipped within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 1-4 business days

Product Description:

The EPIX30+ Work Strobe is a high-performance work light that combines modern design with impressive brightness to meet all working conditions. With its powerful 270 W, it delivers a work light with a range of 167 meters at 1 lux and a wide 120° beam angle, providing maximum light over a large area.

High-performance task light with exclusive design - Powerful lighting that combines style with functionality.
Integrated position light - Choose between red or yellow/orange for customized visibility.
Wide light distribution and R65 approved flashing light - Provides optimal visibility and increased safety in all working conditions.

EPIX30+ Worklight 270W

Exceptional brightness - 16,300 actual lumens for optimal illumination
Natural white light - 5000K color temperature for clear and pleasant lighting
Wide light distribution - 120° spread for even light distribution across the work surface
Flexible mounting - Proprietary smart brackets allow the ramp to be mounted virtually anywhere on the vehicle

Whether you're working in dark or demanding environments, the EPIX30+ Work Strobe gives you the brightness and reliability you need to work efficiently and safely.

EPIX30+ Work Strobe - Features & Technical Data

Dynamic position light - Unique ignition integrated in the reflector
ECE approved - E-marked according to ECE R148 (R1, SM1), R65 and R10 (EMC rated)
Selectable position light - Red or yellow/orange for customized visibility
Wide beam pattern - 120° diffuse light spread for maximum workspace
Side reflective optics - Provides improved lateral visibility
Electronic thermal management - For optimal performance and longevity

Brightness & Range

Range: 167 m at 1 lux
Brightness: 23,200 lumens (theoretical), 16,300 lumens (actual)
Color temperature: 5000K (natural white light)

Technical Data

Power: 270 W (18 x 15 W LED)
Voltage: 9-36V
Protection class: IP69K (water and dust proof)
Material: Aluminum housing & polycarbonate lens
Pressure equalization membrane to prevent condensation
Connection: DT connector (included)
Power consumption:
- 16 A at 12V
- 7.8 A at 24V

Included in the package

EPIX30+ Work Strobe LED Ramp
Bolts and screws for mounting
Brackets for end mounting
Brackets for rear mounting (vertical/hanging)
DTP connector (2-pin) & DT connector (4-pin)
- NOTE: You will need a 2-pin DTP cable kit (available here)
Installation instructions

Dimensions & Weight (excl. brackets)

Wide: 740 mm
Height: 43 mm
Depth: 61 mm
Weight: 2 kg

Flashing light pattern

Single flash (synchronous/asynchronous): 2.2 Hz
Triple flash (synchronous/asynchronous): 1.1 Hz
Quadruple flash (synchronous/asynchronous): 1.25 Hz
Combination flash (1 long, 5 short, synchronous/asynchronous): 0.83 Hz
Flash series (synchronous/asynchronous): 10 Hz

Documents:
attachment

Assembly instructions for article 334915184 Swedish
attachment

Assembly instructions for article 334915184 English
