LED light bar 4" Elite X1 | 20W

  • Single row LED light bar Elite X1
  • Single row LED light bar Elite X1
  • Single row LED light bar Elite X1 - 153 mm (4), 20W
  • Single row LED light bar Elite X1 - 153 mm (4), 20W
  • Single row LED light bar Elite X1 - 153 mm (4), 20W
  • Single row LED light bar Elite X1 - 153 mm (4), 20W
  • Single row LED light bar Elite X1 - 153 mm (4), 20W
  • Single row LED light bar Elite X1 - 153 mm (4), 20W
Item ID:  9022-X14

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

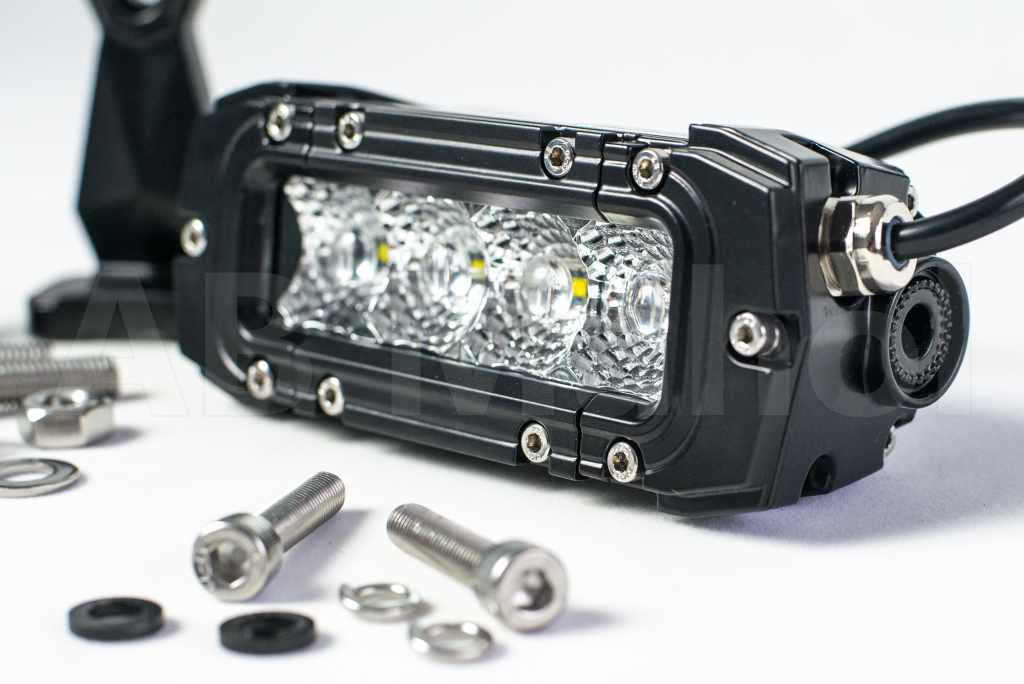

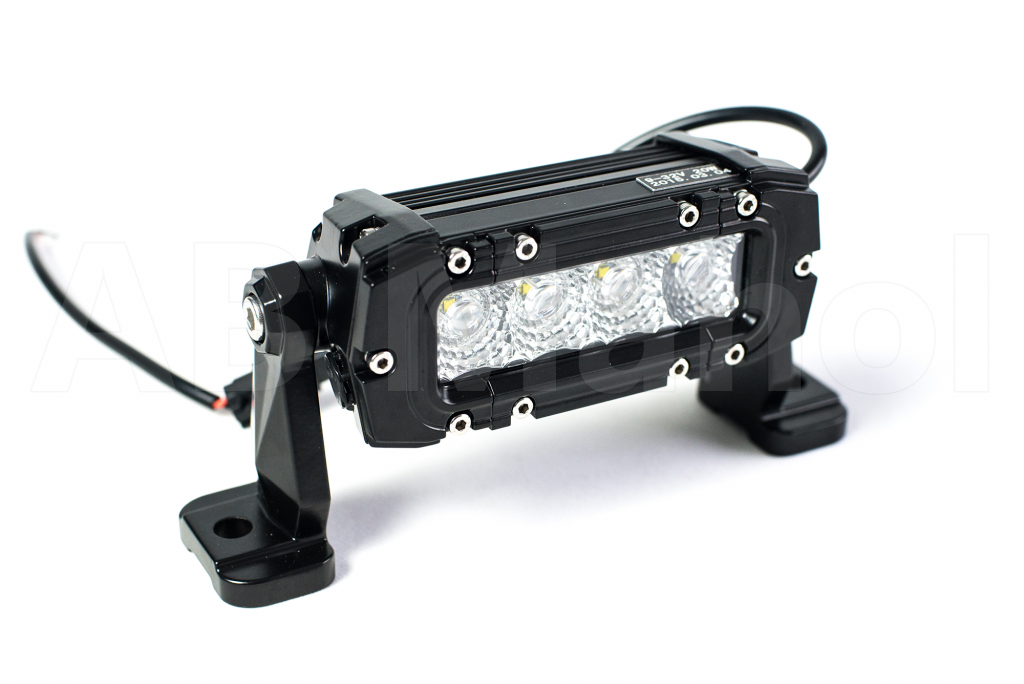

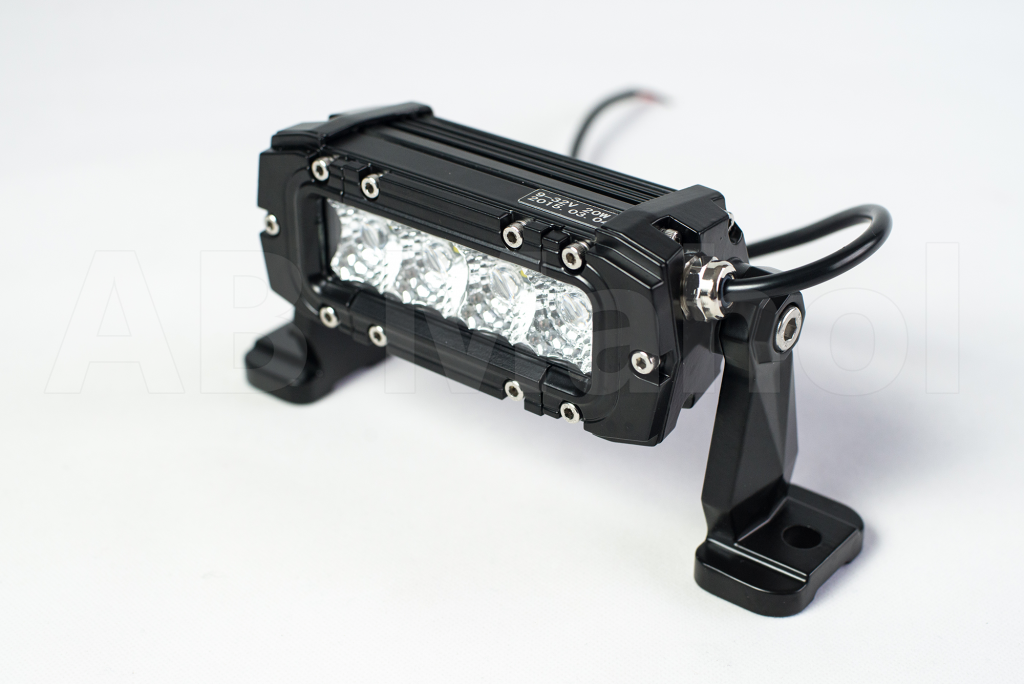

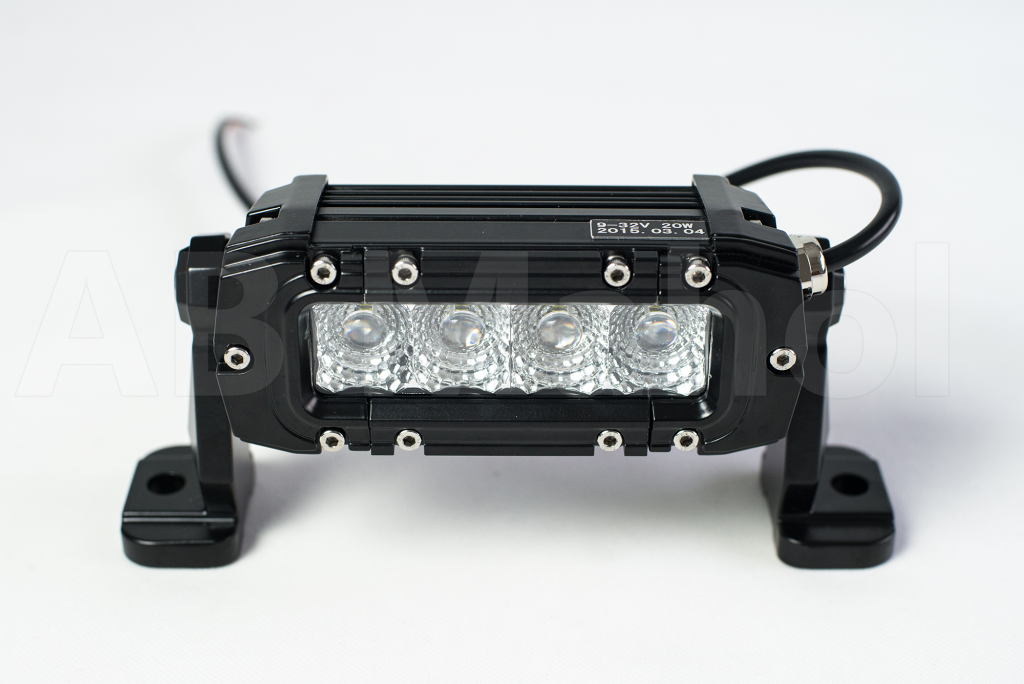

LED light bar measuring 153 mm (4"), illuminated with 4 bright Cree diodes.

Mount the LED light bar on bull bars, roof bars or using an auxiliary light holder behind the license plate. Thanks to its small dimensions, it is also ideal for folding into the radiator air intake (grill grille) for a discreet installation that does not stand out in front of the car.

LED light bar Elite X1

The full 3-year product warranty guarantees quality, function and performance in absolute top class!

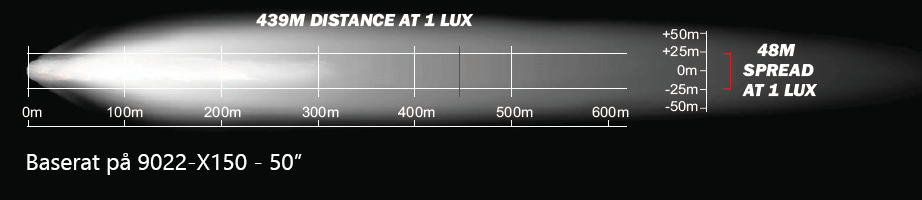

The light pattern for the Elite X1 ramp is combined with pencil and distance reflectors. This combination provides an optimal light image with a large spread and good range.

Technical data

  • Voltage: 9-32V
  • Power consumption: 1.72A at 12V
  • Under- & overvoltage protection: Yes
  • Radio interference suppression: Yes, CISPR 25
  • Number of watts per diode: 5W
  • Diode type: CREE
  • Lifetime diodes: +50 000 hours
  • Total wattage: 20W
  • Actual lumens: 2328
  • Kelvin number (color temperature): 6000K
  • Light dispersion pencil: 10 degrees
  • Chassis made of: 6063 Aluminum
  • Surface treatment: TGIC, Polyester powder coating (resists road salt and UV radiation very well)
  • Lens: Unbreakable polycarbonate plastic
  • Operating temperature: -45 to +95 degrees
  • Protection class/enclosure class: IP68

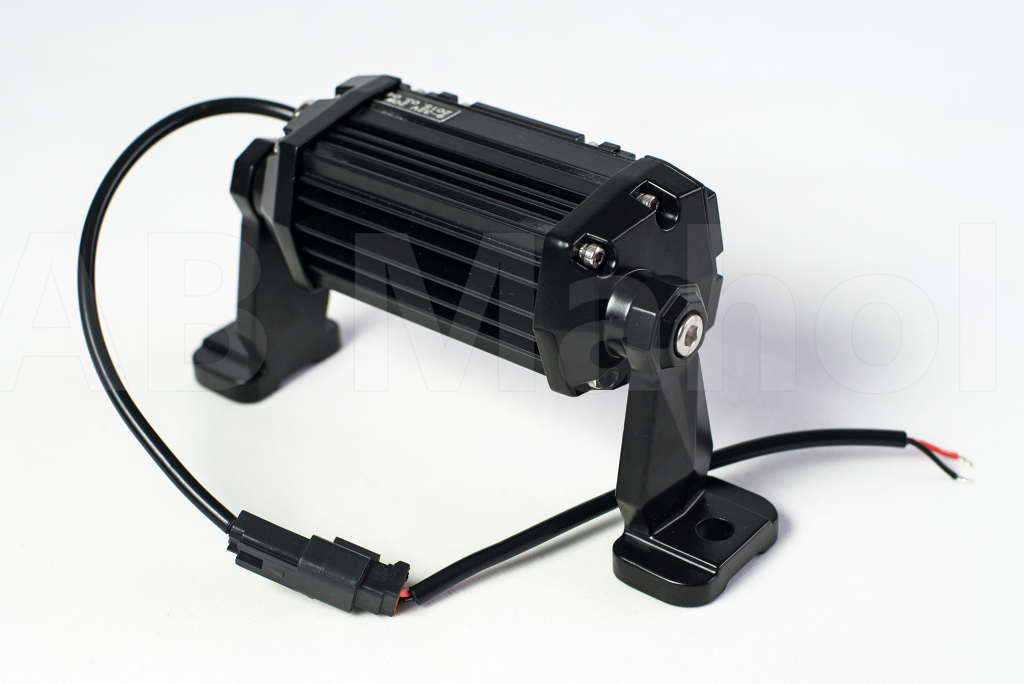

  • Connector: Deutsch plug (matching male with plus/minus cable included)
  • Dimensions (excl. brackets): H66 x D63 mm
  • Type approvals: Only E-marked for R10 EMC
  • Product warranty: 3 years

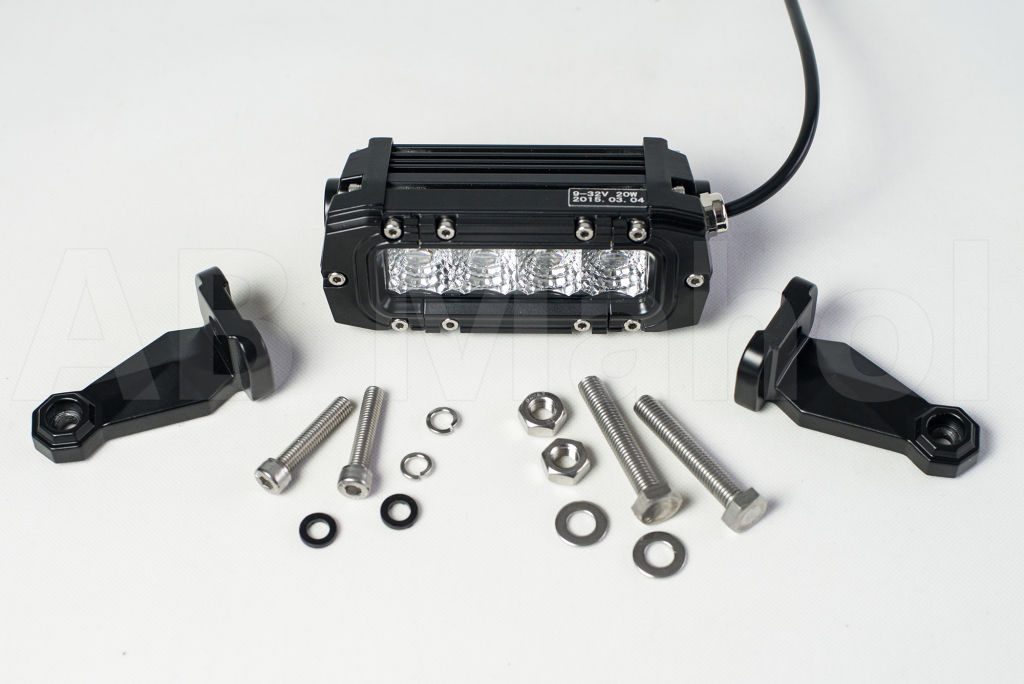

Supplied individually together with bracket.
