LED light bar 10.8" Elite X3 | 274 mm | 40W

  • LED light bar 10,8 - 40W
  • LED light bar 10,8 - 40W
  • LED light bar 10,8 - 40W
  • LED light bar 10.8 - 40W
Item ID:  9022-X3108

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

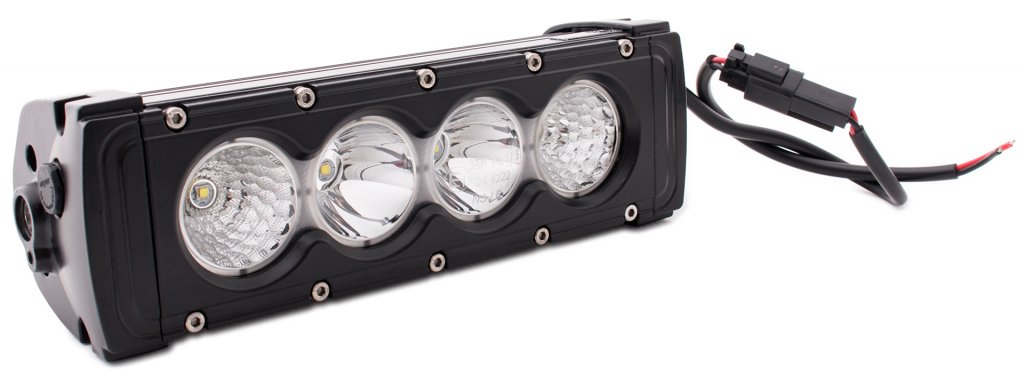

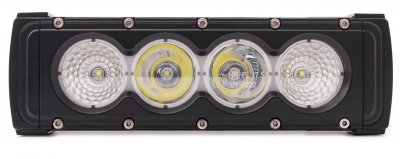

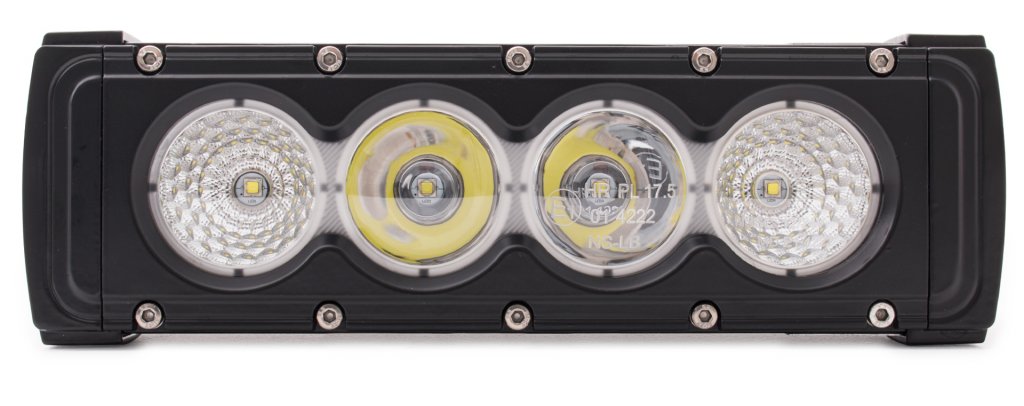

LED light bar measuring 274 mm (10.8"), illuminated with 4 extra bright Cree diodes of 10W each!

The LED auxiliary light bar can be mounted on both front bows, roof bows or using an auxiliary light holder behind the license plate. Thanks to its small dimensions, it is also ideal for folding into the radiator's air intake (grill grille) for a discreet installation that does not stand out in front of the car.

Elite X3 LED light bar

The Elite X3 LED auxiliary light bar uses advanced LED and reflector technology, generates full power instantly when switched on and is not affected by vibrations, unlike halogen or xenon lights.

The full 3-year product warranty guarantees quality, function and performance in absolute top class!

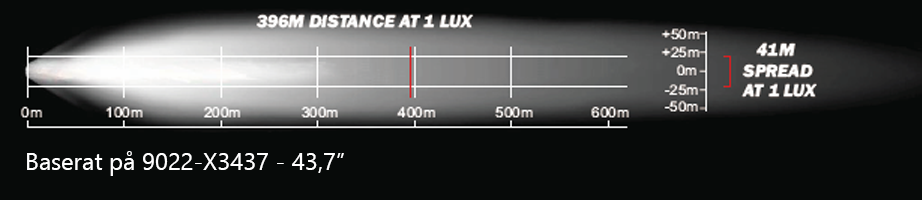

The light pattern of the Elite X3 ramp is combined with pencil and distance reflectors. This combination provides an optimal light image with a large spread and good range.

Specifications.

  • Voltage: 9-32V
  • Power consumption: 3.44 A at 12V
  • Under- & overvoltage protection: Yes
  • Radio interference suppression: Yes, CISPR 25
  • Number of watts per diode: 10W
  • Diode type: CREE
  • Lifetime diodes: +50 000 hours
  • Total wattage: 40 W
  • Actual lumens: 5200
  • Color temperature: 6000 K
  • Light dispersion pencil: 10 degrees
  • Light dispersion remote: 35 degrees
  • Chassis made of: 6063 Aluminum
  • Surface treatment: TGIC, Polyester powder coating (resists road salt and UV radiation very well)
  • Lens: Unbreakable polycarbonate plastic
  • Operating temperature: -45 to +95 degrees
  • Protection class/enclosure class: IP68
  • Connector: Deutsch plug (matching male with plus/minus cable included)
  • Dimensions (excl. brackets): H81.2 x D78.7 mm
  • Type approvals: E-marked (R10 EMC & R112), CE & RoHS
  • Product warranty: 3 years

Supplied individually together with bracket.
