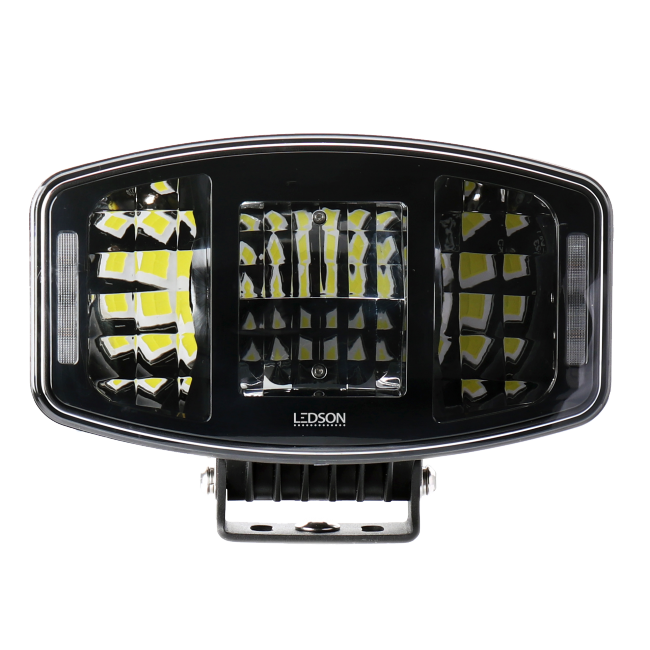

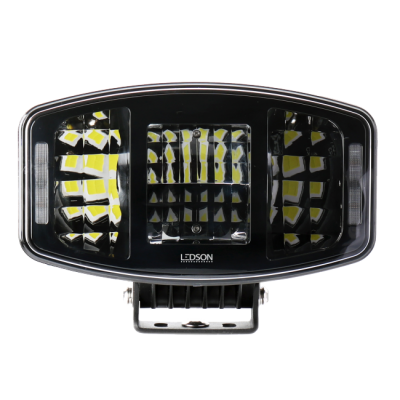

Orion+ LED extra light | 100W | Optional position light in white/orange

LEDSON Orion+ LED extra light 100W

Item ID: 33490425

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

Futuristic design with stylish selectable position light in white or orange
Orion+ delivers ample performance, 1 lux at 425 m
E-marked according to ECE R112/R10/R7
8500 actual lumens

LEDSON Orion+

In addition to the futuristic design of Orion+, the auxiliary light is also equipped with a stylish position light that is switchable between xenon white and orange: you choose which you want. Orion+ is E-marked according to ECE R112, R10 and R7, is ETM/EMC cut-off to not interfere with radio reception, 8500 actual lumens, 6000K light temperature and much more.

Comes in Driving Beam, which makes a great combo of even light across the entire roadway.

Features:

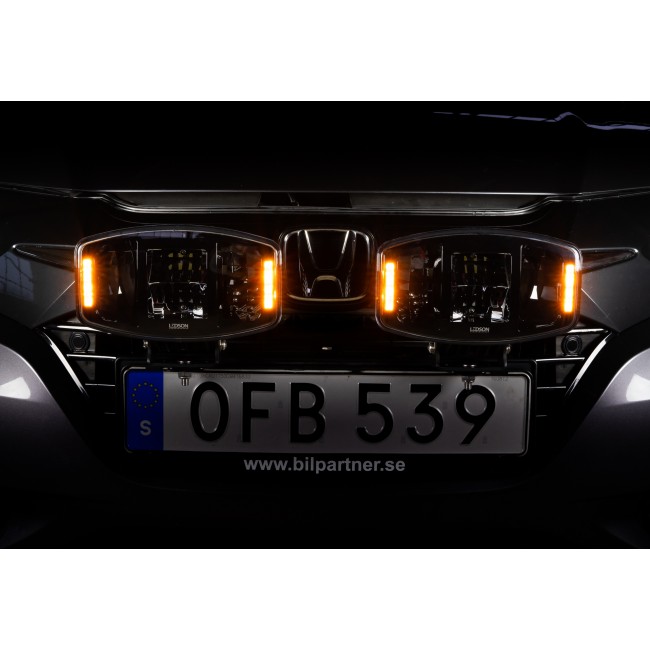

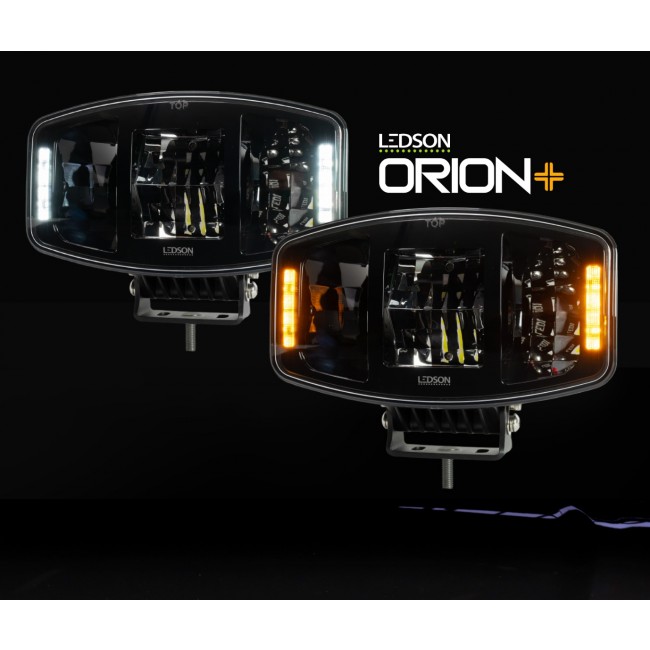

With position light, yellow-orange or xenon white (plug in the color of your choice)
Driving beam light pattern that mimics and enhances the vehicle's regular light pattern
E-marked E9 (Ref. 37.5), ECE R112 / R10 / R7 (white position light)
Range: 850 m (0.25 lux), 425 m (1 lux)
EMC-proof (does not interfere with radio)
10000 lumens (theoretical), 8500 lumens (actual)
Cool white light (6000 K)
ETM (Electronic Thermal Management) - adjusts the intensity of the diodes depending on how hot they are for optimal life

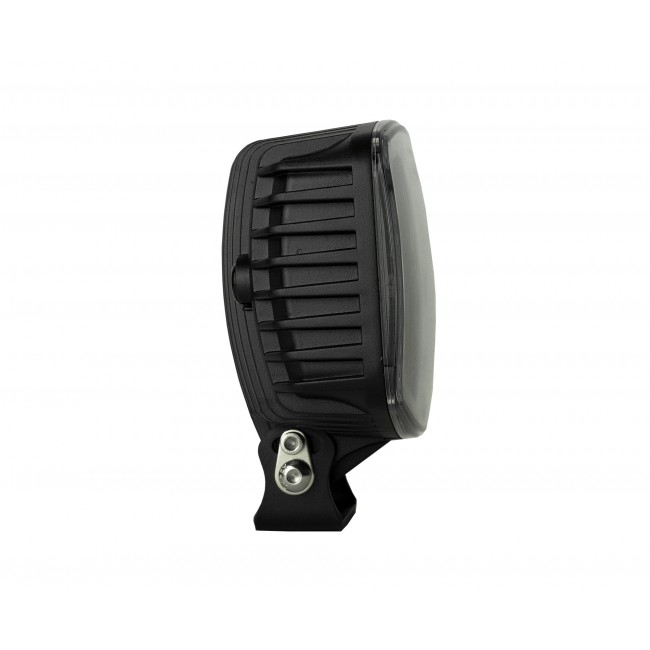

Side reflective optical system
Pressure equalization membrane

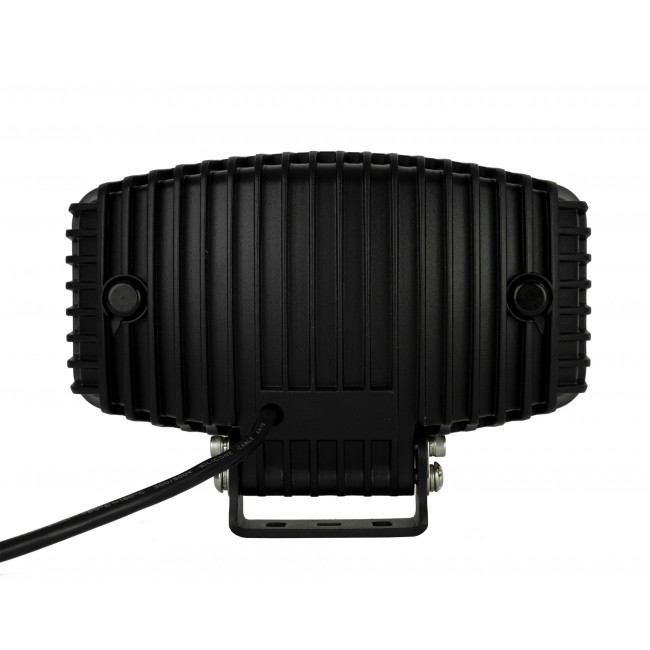

Aluminum heat sink
Adjustable stainless steel bracket
Lexan polycarbonate front cover
24 months warranty

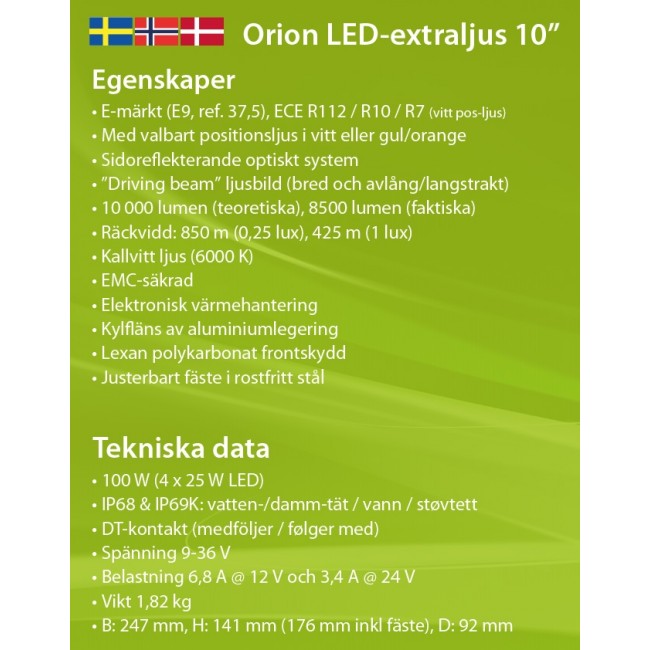

Technical data

100W (4 x 25W LED)
IP68/IP69K (water/dust tight)
DT connector / DT adapter 2-4 pin included
Voltage 9-36 V
Load 6.8 A @ 12 V and 3.4 A @ 24 V

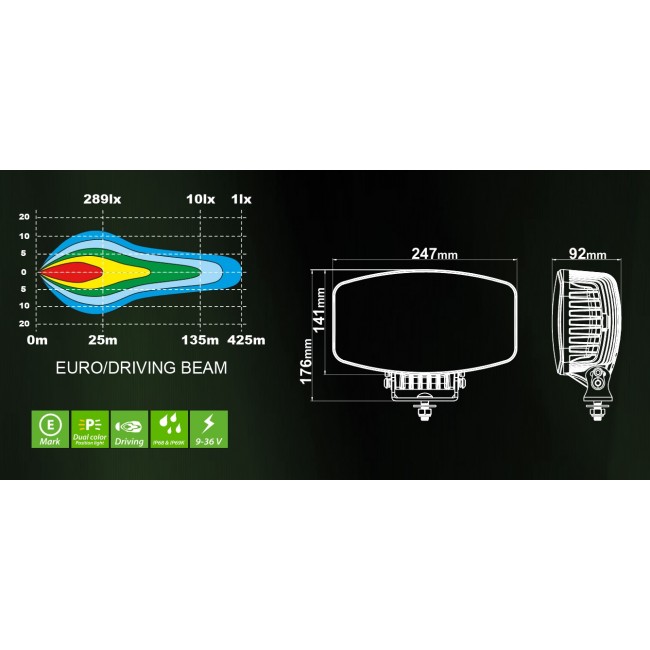

Dimensions & Weight

Width: 247 mm
Height: 141 mm (176 mm incl bracket)
Depth: 92 mm
Weight: 1.82 kg

What is included?

LEDSON Orion+ LED auxiliary light
Bracket, bolts and screws to attach the extra light with either one or two fixing points.
DT connector (4-pin)
Installation instructions

Wiring:

Red: Auxiliary light (+)
Black: Extra light / Position light (- earth)

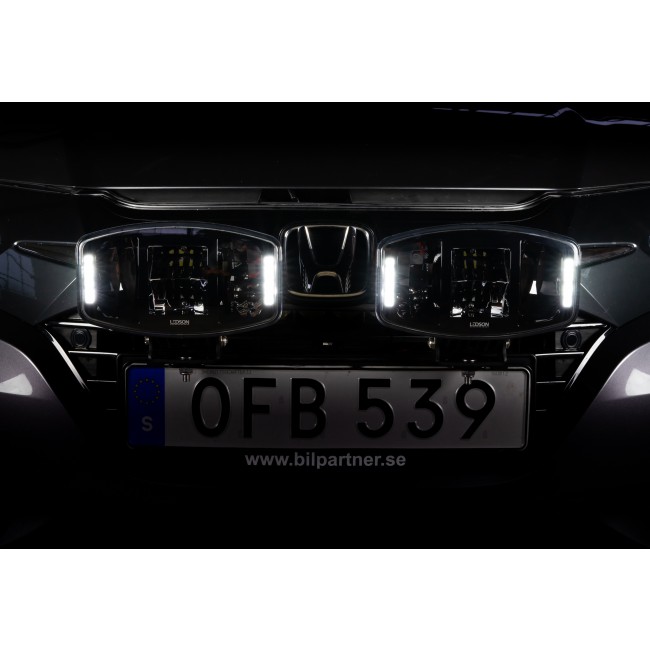

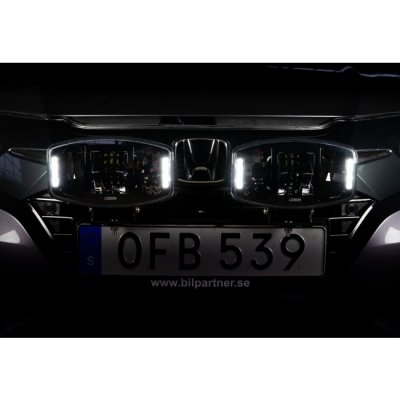

White: Position light (+) white light

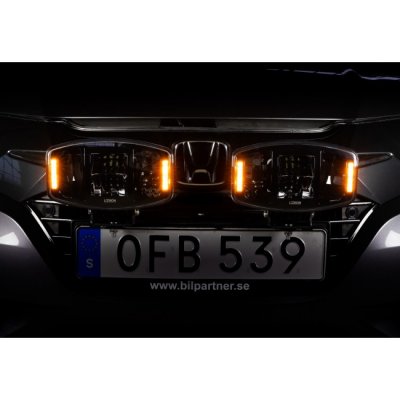

Yellow: Position light (+) yellow-orange light

Delivered individually

The DT connector must not be cut off, as this increases the risk of moisture damage. Damage to the DT connector will void the warranty.
