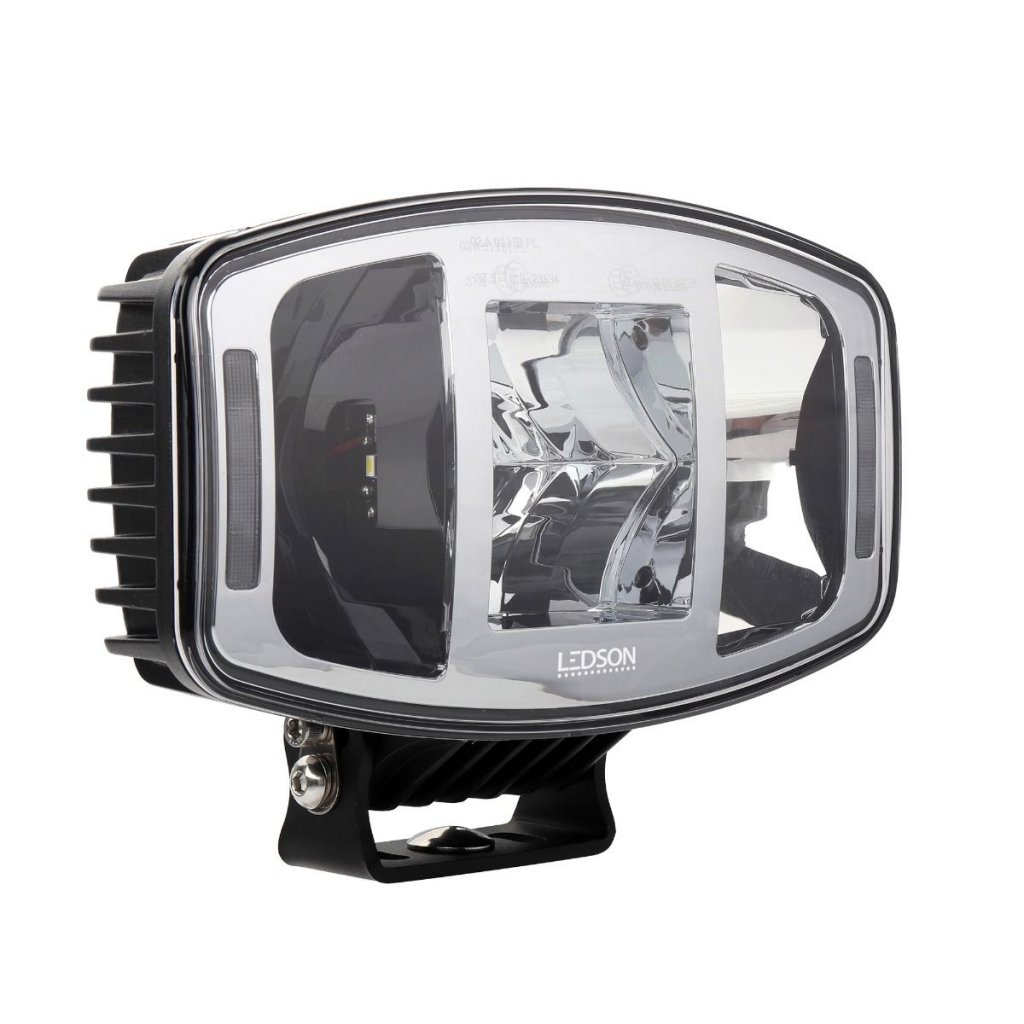

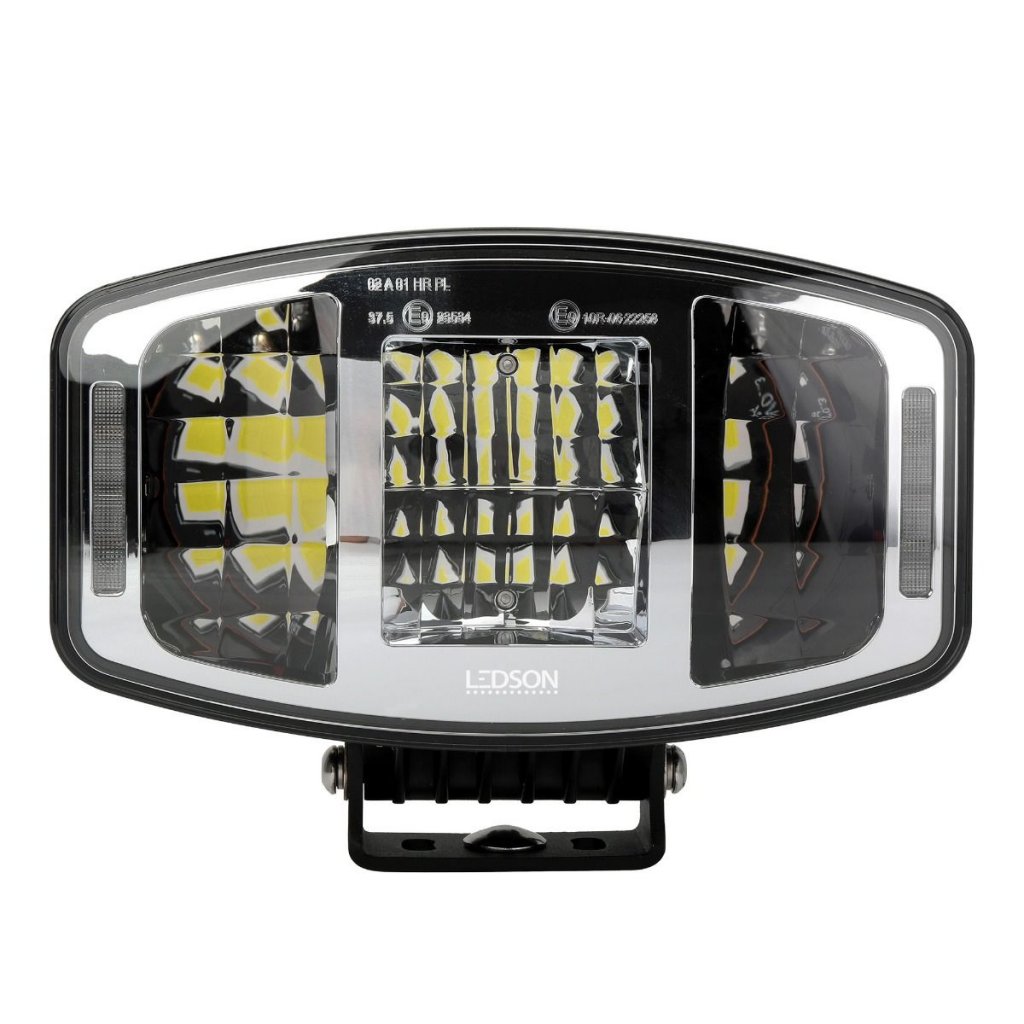

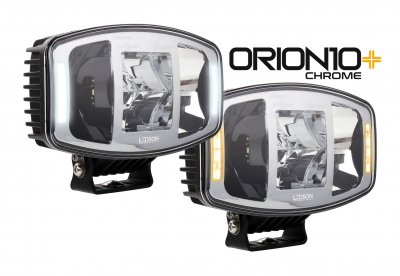

Orion+ Chrome LED extra light | 100W | Optional position light in white/orange

Item ID: 33490426

€191

Incl. VAT

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

With its deliciously futuristic design, it's hard not to spend a good amount of time looking at the Ledson Orion10+. We know how important it is to have an extra light that not only shines beyond expectations, but is also really nice to look at! Do you want to own something that turns you into an eye-catcher? That raises the status of your vehicle in the automotive world? But which also dutifully pushes away the darkness in the evenings and makes your driving significantly safer?

Futuristic design with stylish selectable position light in white or orange
Orion+ delivers ample performance, 1 lux at 425 m
E-marked according to ECE R112/R10/R7
8500 actual lumens

In addition to the futuristic design of Orion+, the auxiliary light is also equipped with a stylish position light that is switchable between xenon white and orange: you choose which you want. Orion+ is E-marked according to ECE R112, R10 and R7, is ETM/EMC cut-off to not interfere with radio reception, 8500 actual lumens, 6000K light temperature and much more.

Comes in Driving Beam, which makes a great combo of even light across the entire roadway.

Features:

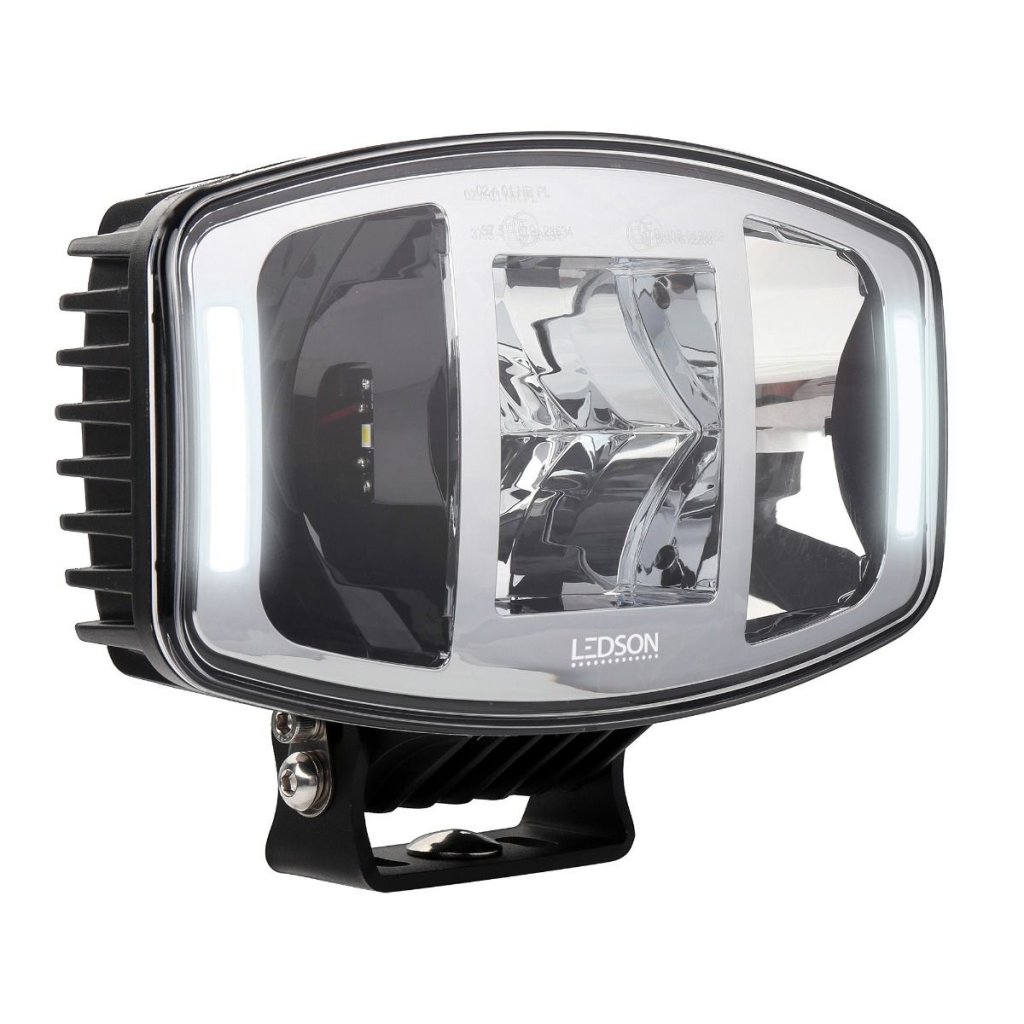

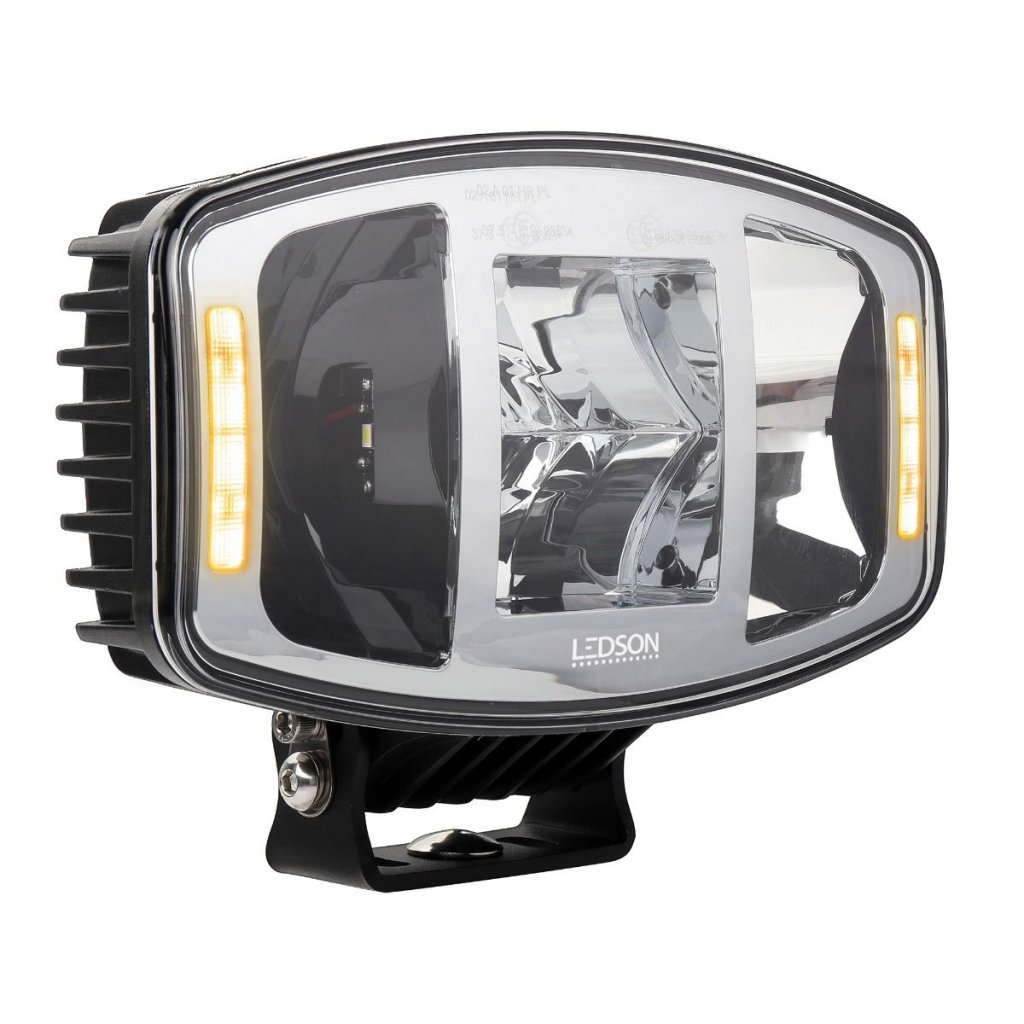

With position light, yellow-orange or xenon white (plug in the color of your choice)

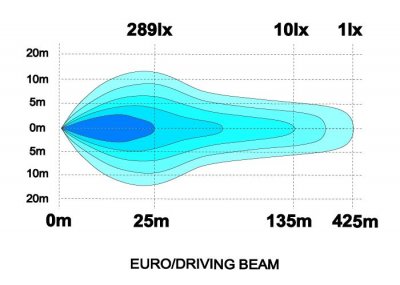

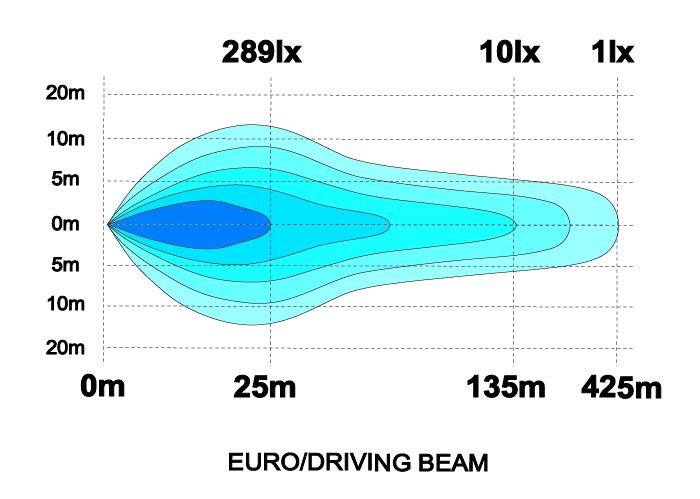

Driving beam light pattern that mimics and enhances the vehicle's regular light pattern
E-marked E9 (Ref. 37.5), ECE R112 / R10 / R7 (white position light)
Range: 850 m (0.25 lux), 425 m (1 lux)
EMC-proof (does not interfere with radio)
10000 lumens (theoretical), 8500 lumens (actual)
Cool white light (6000 K)
ETM (Electronic Thermal Management) - adjusts the intensity of the diodes depending on how hot they are for optimal life
Side reflective optical system
Pressure equalization membrane

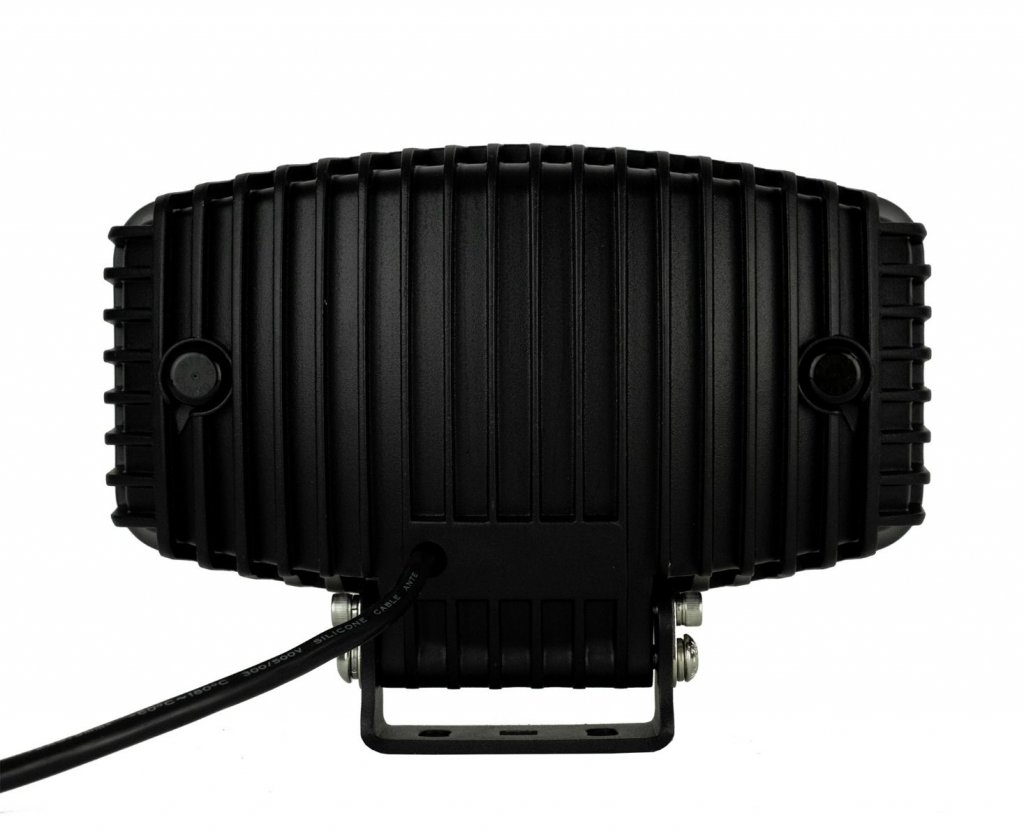

Aluminum heat sink

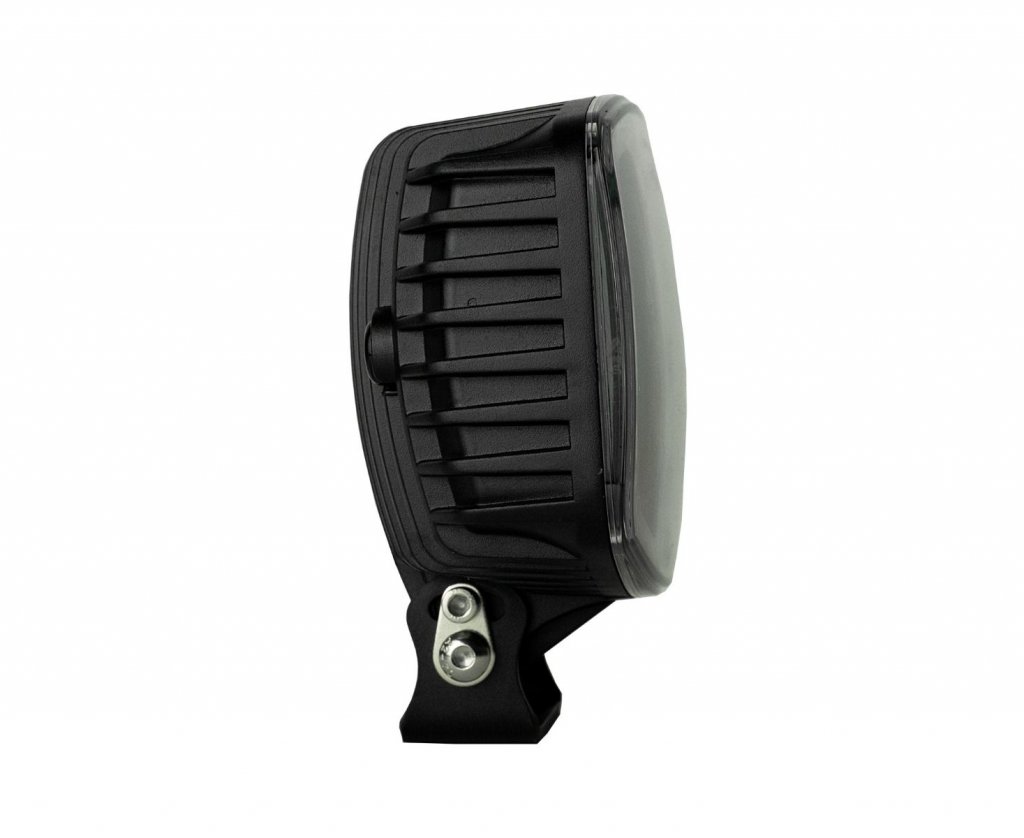

Adjustable stainless steel bracket
Lexan polycarbonate front cover
36 months warranty

Technical data

100W (4 x 25W LED)
IP69K (water/dust proof)
DT connector / DT adapter 2-4 pin included
Voltage 9-36 V
Load 6.8 A @ 12 V and 3.4 A @ 24 V

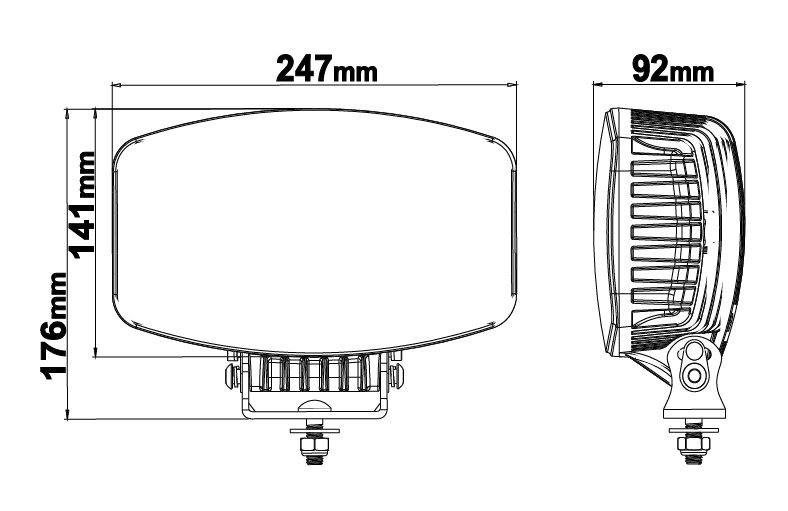

Dimensions & Weight

Width: 247 mm
Height: 141 mm (176 mm incl bracket)
Depth: 92 mm
Weight: 1.82 kg
Cable length: 650 mm

What is included?

Ledson Orion10+ Chrome LED extra light 10"
Bracket, bolts and screws to attach the extra light with either one or two fixing points
DT connector (4-pin)
Installation instructions

Wiring:

Red: Auxiliary light (+)
Black: Extra light / Position light (- earth)
White: Position light (+) white light
Yellow: Position light (+) yellow-orange light

Delivered individually

The DT connector must not be cut off, as this increases the risk of moisture damage. Damage to the DT connector will void the warranty.
