LED Extra Light 228 mm (9") - 75W, 6750 Lumen, 10-30V

LEDSON LED Extra Light 9" (228 mm) 75W

Item ID: 33303259

Sorry - this product is currently not avaiable for purchase.

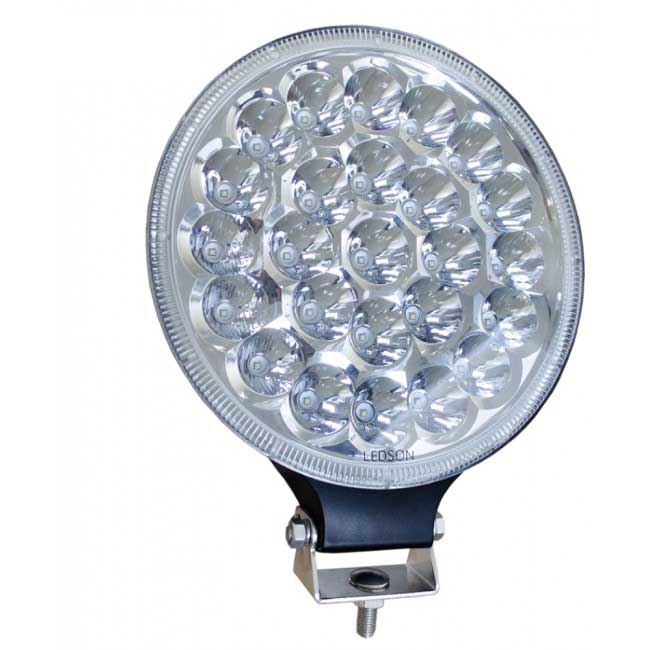

Super thin LED auxiliary light with a diameter of 228 mm (9").

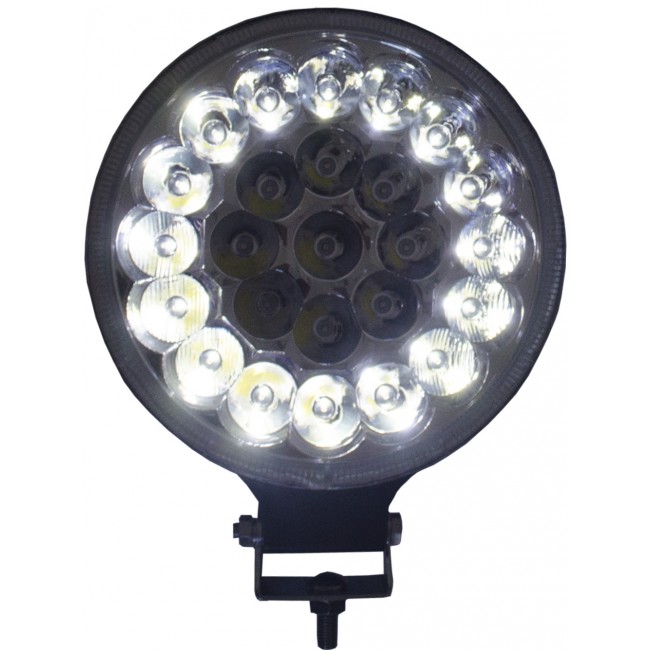

25 Osram diodes of 3 W each ensure that you get a proper addition to the high beam image with a full 6750 lumens. Stylish position light in a ring around the entire auxiliary light.

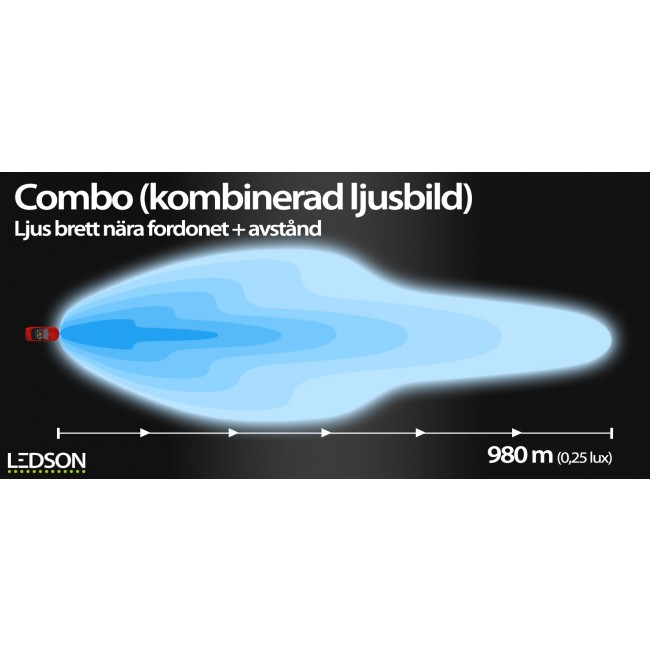

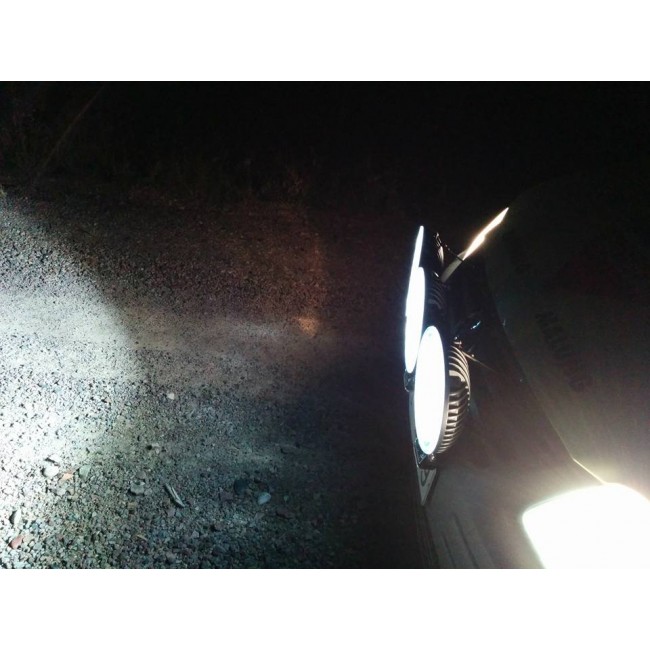

A combined light pattern is a mix between high beam (distance) and floodlight (width). The auxiliary light has diodes that reflect light both straight ahead and to the sides. This beam pattern is ideal if you want a lot of light close to the vehicle for the smaller roads, but still have the length to light up the road far ahead.

Specifications

EMC protected
Voltage: 10-30V
Load: 5,0A @ 12V and 2,5A @ 24V
Power: 75W
Osram diodes: 25 x 3W
Enclosure rating: Dust and waterproof according to protection class IP67
Range: 980m (0,25 lux)
Power: 6750 lumens
Dispersion: combination light pattern
Operating temperature: -40C to 100C
Color temperature: 6000K (cool white)

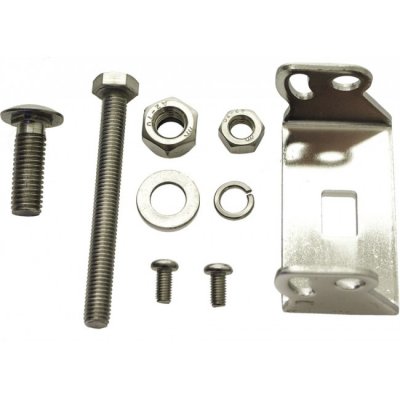

Two different brackets included (see product images)
DT connector included

Dimensions & weight

Width: 228,6 mm
Height: 259,3 mm (286,3 mm incl bracket)

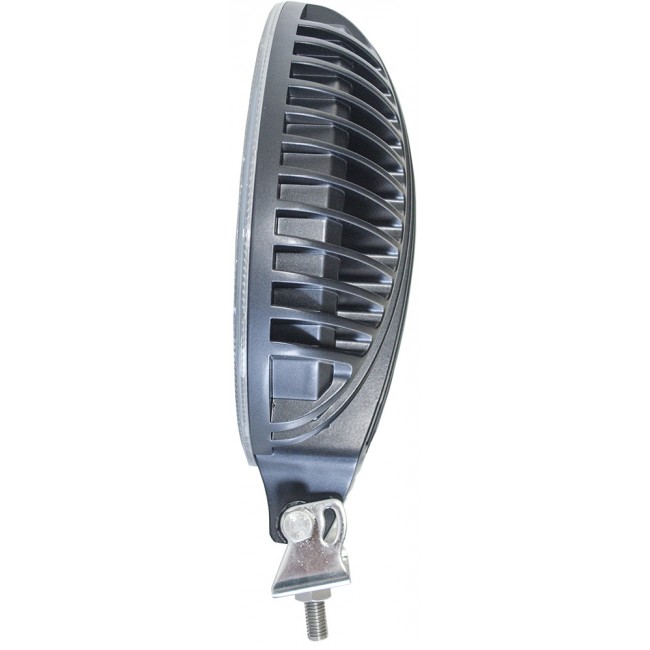

Depth: 73,5 mm
Size: 9"
Weight: 2,71 kg

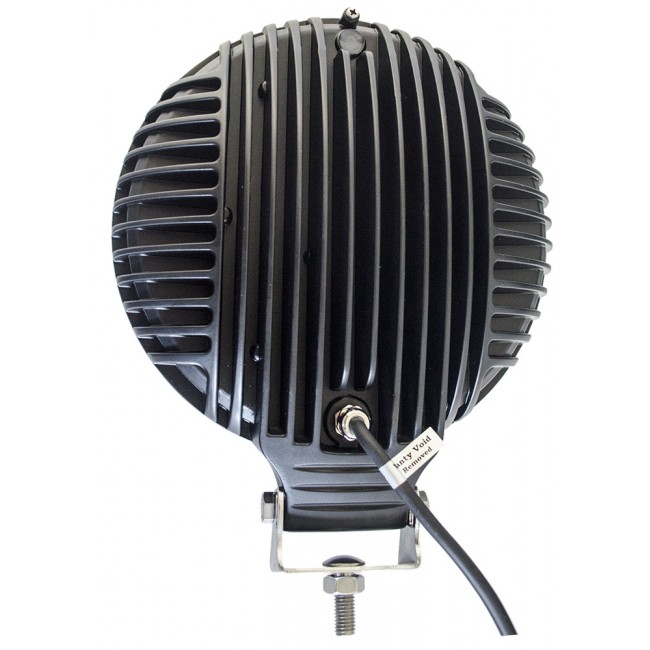

Can be mounted both vertically and horizontally thanks to the flexible stainless steel base.

The DT connector must not be cut off, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.

Supplied individually.
