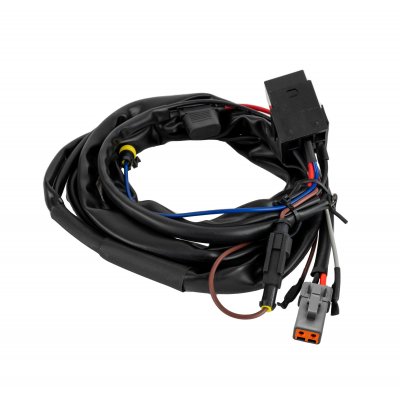

LEDSON Connect Relay cable ATP/DTP connector

Item ID: 7801010

€65

Incl. VAT

Which variant do you want?

1 x DTP connector with 2-pin (Max 300W)

7801010

€65

Available in external warehouse | Shipped within 1-4 business days

2 x DTP connector with 2-pin (Max 500W)

7801019

€82

Available in external warehouse | Shipped within 1-4 business days

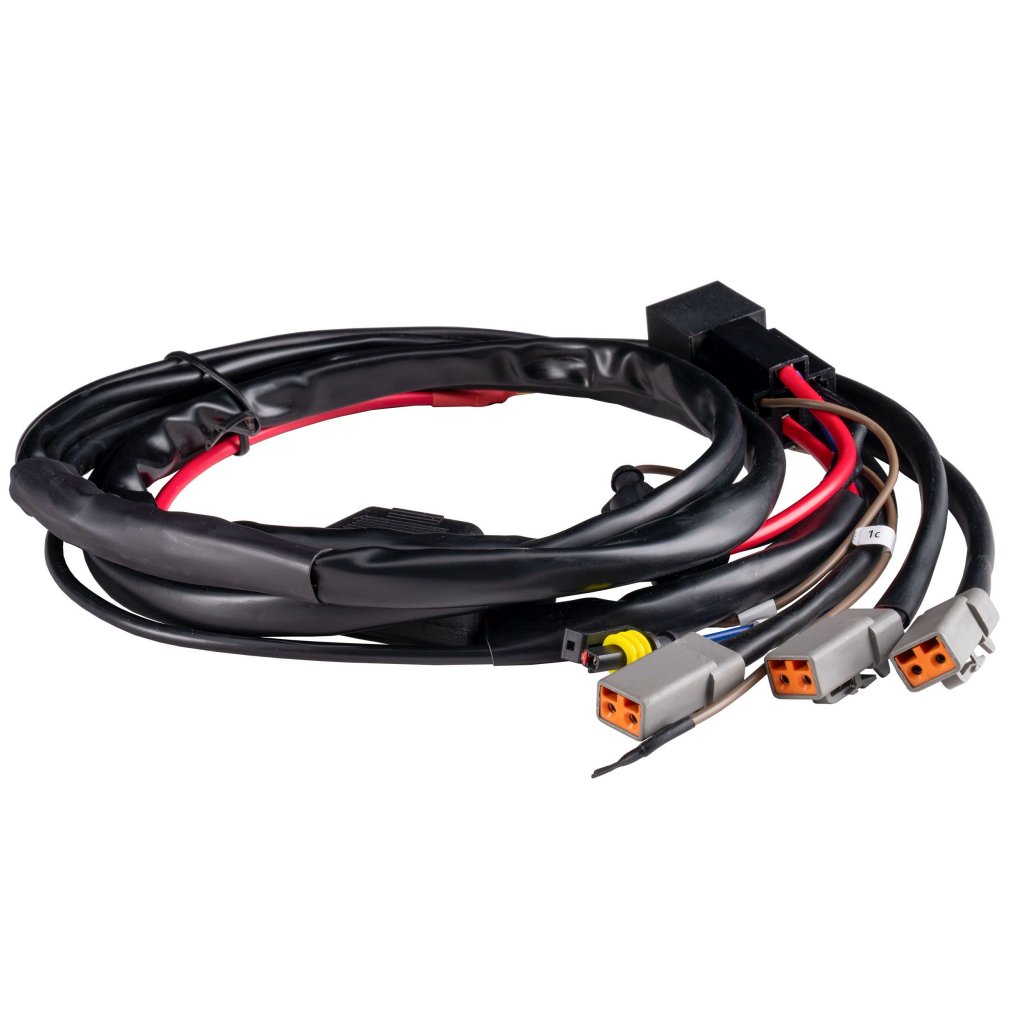

3 x DTP connector with 2-pin (Max 750W)

7801020

€91

Available in external warehouse | Shipped within 1-4 business days

Available

Available in external warehouse | Shipped within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 1-4 business days

Product Description:

Install extra lights, LED ramps or work lights quickly, easily and safely with Ledson Connect. You avoid complicated connections and save both time and energy. Installation can be done with direct connection or with XBB. It has never been easier to install lighting on your vehicle!

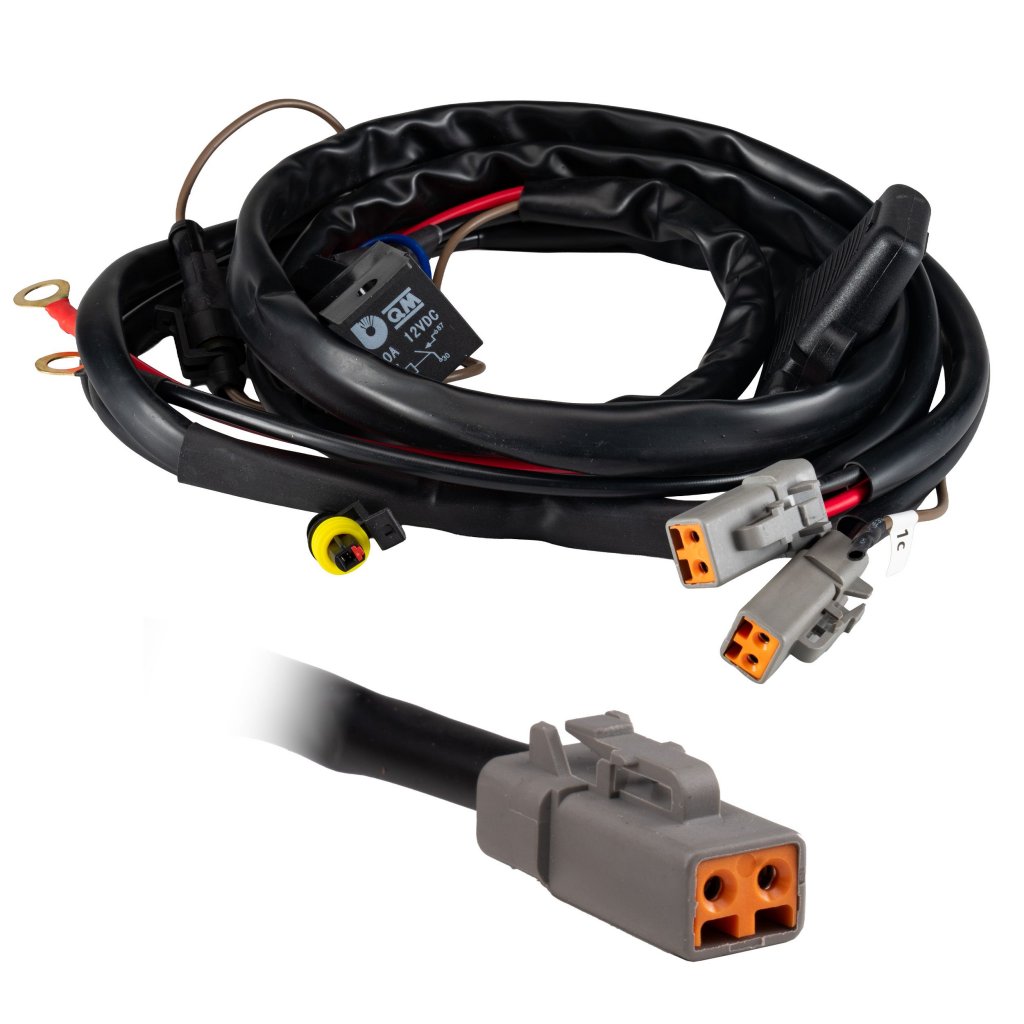

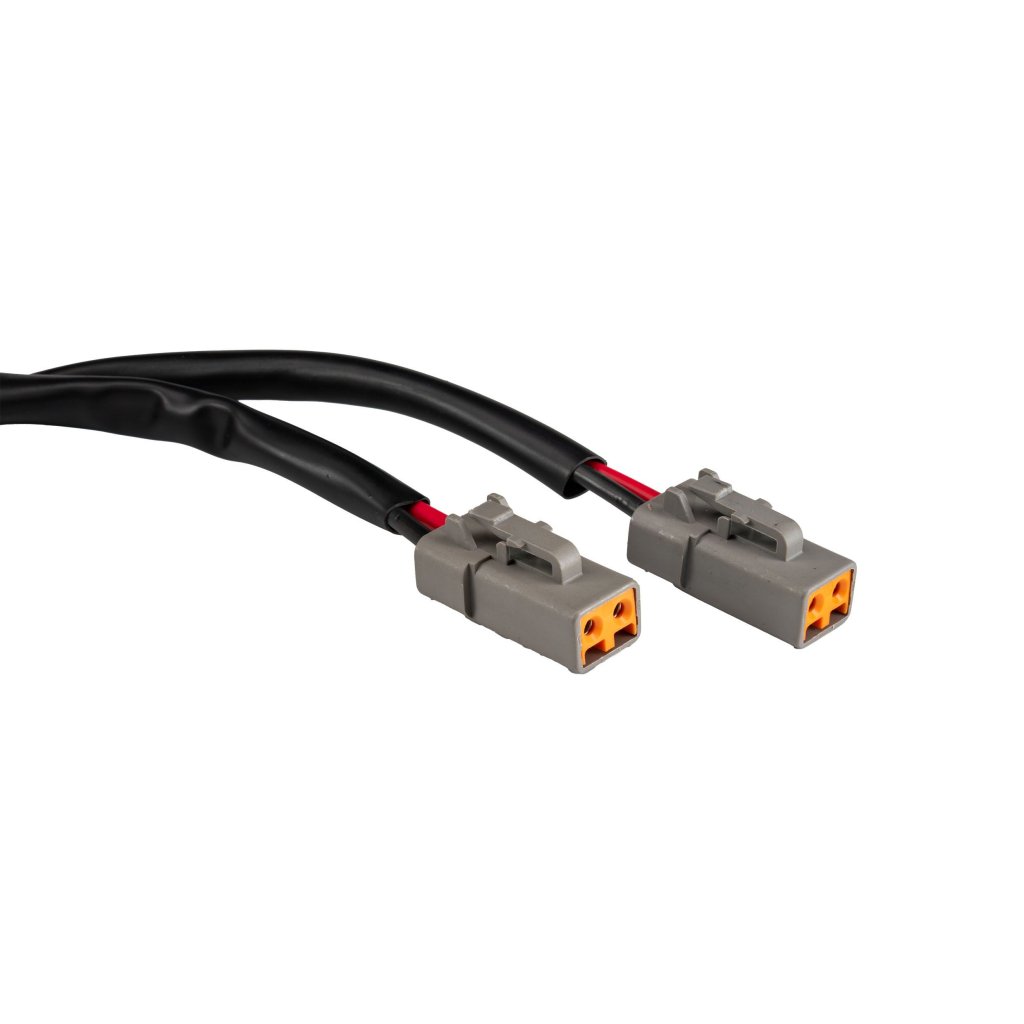

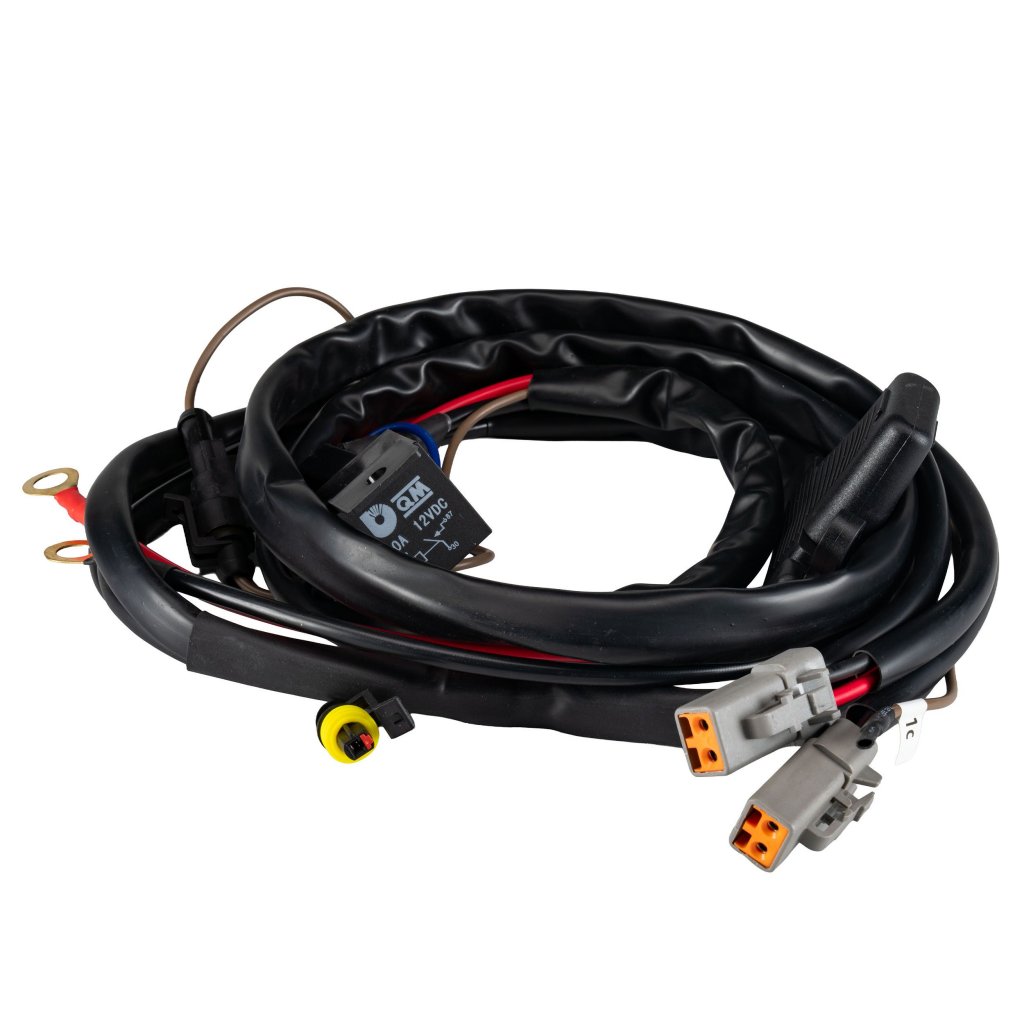

The Connect ATP/DTP cable comes equipped with one or two ATP/DTP connectors (for one or two extra lights/bars), each output capable of handling a maximum of 25A, more than enough for even the most powerful extra lights and LED bars. The Connect cable set has a cable length of 3 metres and is intended for use in passenger cars (12V).

Maximum power per cable:

1 x 2-pin DTP/ATP (7801010): Max 25A / 300W
2 x 2-pin DTP/ATP (7801019): Max 2 x 25A / 500W
3 x 2-pin DTP/ATP (7801020): Max 3 x 25A / 750W

Ledson Connect – easily connect your lighting

Easy connection for everyone

Ledson Connect is designed to make it easy for everyone to connect extra lights, LED bars or other lighting to their vehicles. The relay cable is unique on the market, as it is possible to expand and connect several cables from the Ledson Connect series in series – so you can easily control several lights at the same time.

Ledson Connect works perfectly regardless of whether you have LED, halogen or Xenon on your high beam. The total length of the cable from the battery connection point to the DTP connector is 300 cm.

With quality in mind

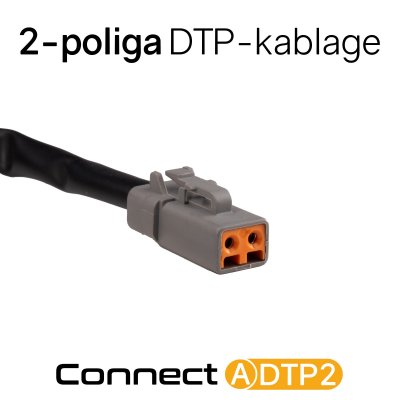

Ledson Connect has IP-rated DTP connectors and the cable is designed to be flexible enough to be pulled through tight spaces, and sheathed in durable material to withstand abrasion from sharp edges or vibrations. All packages include crimp connectors to ensure watertight connections when connecting.

Connection for cars with halogen, xenon and LED headlights

Ledson Connect works excellently with XBB for control via CAN bus. Use the Connect cable together with the Connect control cable (item no. 7801011). This makes the cable suitable for vehicles with LED or Xenon headlights.

For vehicles with halogen headlights, connect the brown cable to the high beam's positive (+) terminal for direct connection. Use the included power tap or one of our adapter cables to avoid damaging the car's original wiring.

Want to be able to easily turn off your extra lights in snow or fog? Then check out the Connect switch cable (item no. 7801009), which connects directly to the Connect system.

Documents:
attachment

Mounting instructions for LEDSON Connect 7801010
attachment

Mounting instructions for LEDSON Connect 7801019
attachment

Mounting instructions for LEDSON Connect 7801020
