XBB Lightswitch - Extra light relay without affecting the original electrical system

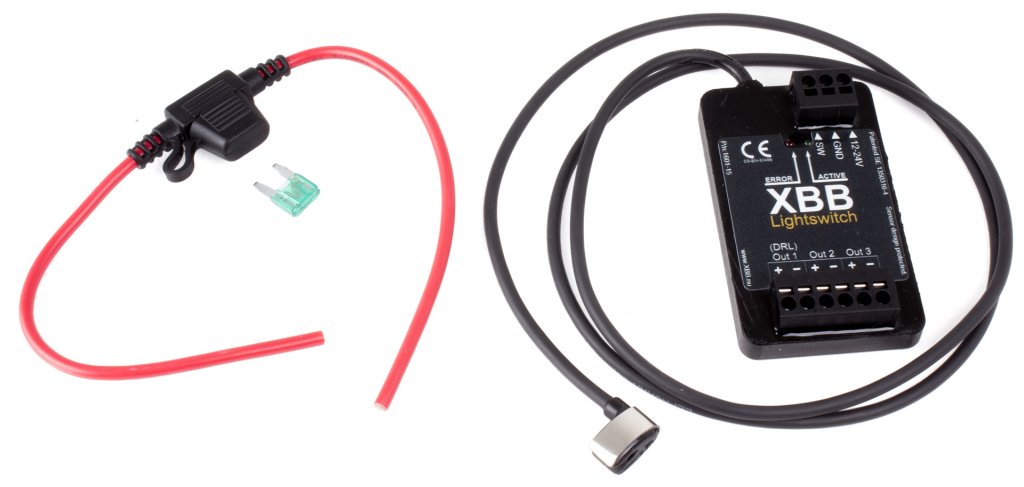

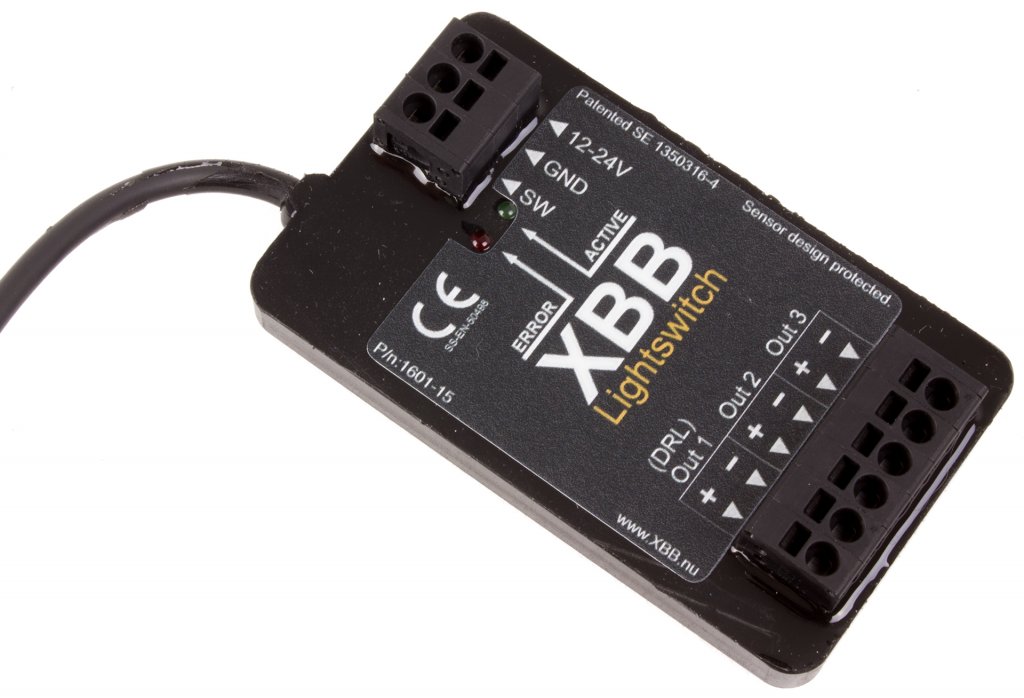

XBB Lightswitch

Item ID: 780022

Sorry - this product is currently not avaiable for purchase.

XBB Lightswitch is an innovative Swedish product that works by passively reading the signal from the vehicle's high beam.

XBB Lightswitch

Fast power connection for your auxiliary lights!
Works on all existing vehicles!
No impact on the vehicle's original wiring!
Does not interfere with the vehicle's electrical system!
Connect up to three auxiliary lights or connect two auxiliary lights and DRL function.
Possibility to connect the outputs in parallel to connect, for example, a light bar that draws up to 30A.
Short-circuit protected!
Voltage monitoring

The patented technology together with the software can detect the high beam signal from halogen, xenon and LED headlights.

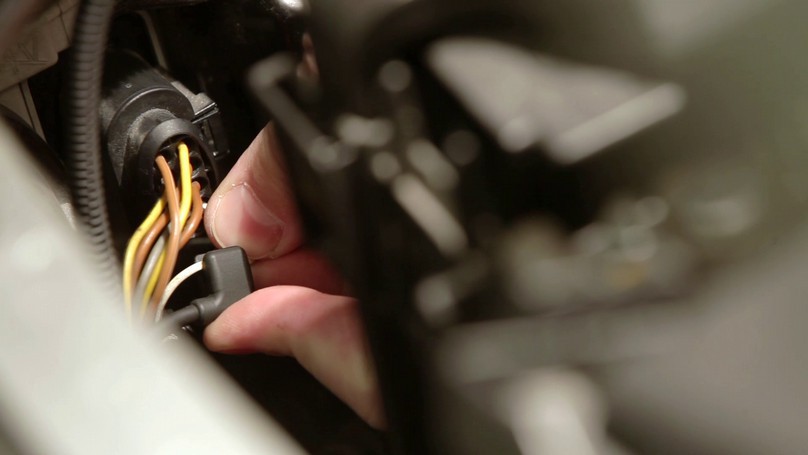

1. Identify the power cable to the vehicle's high beam.

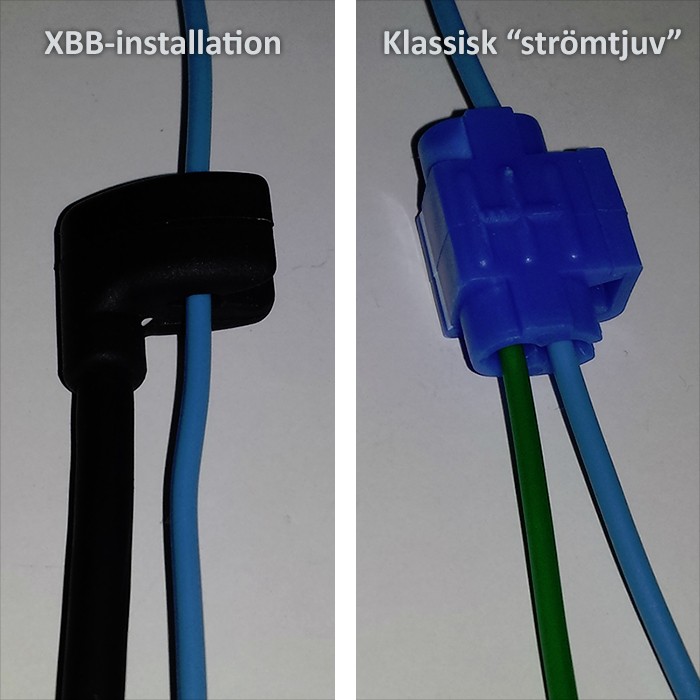

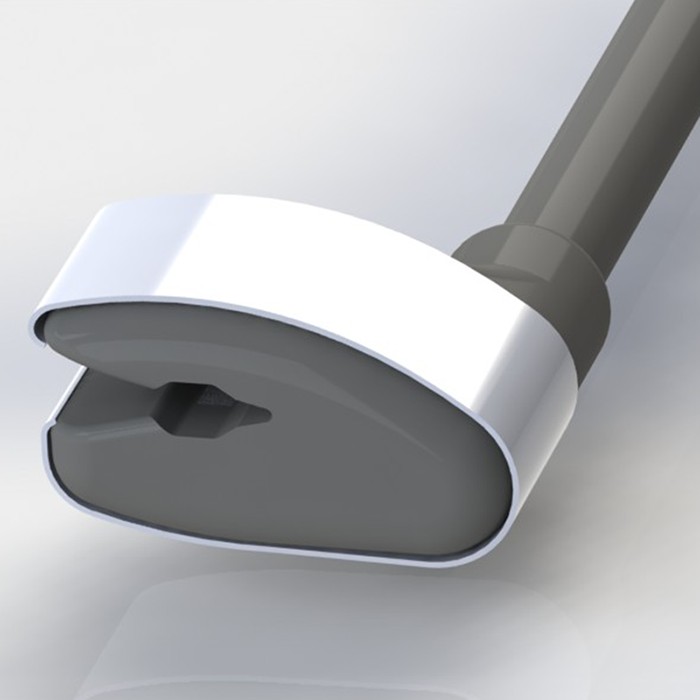

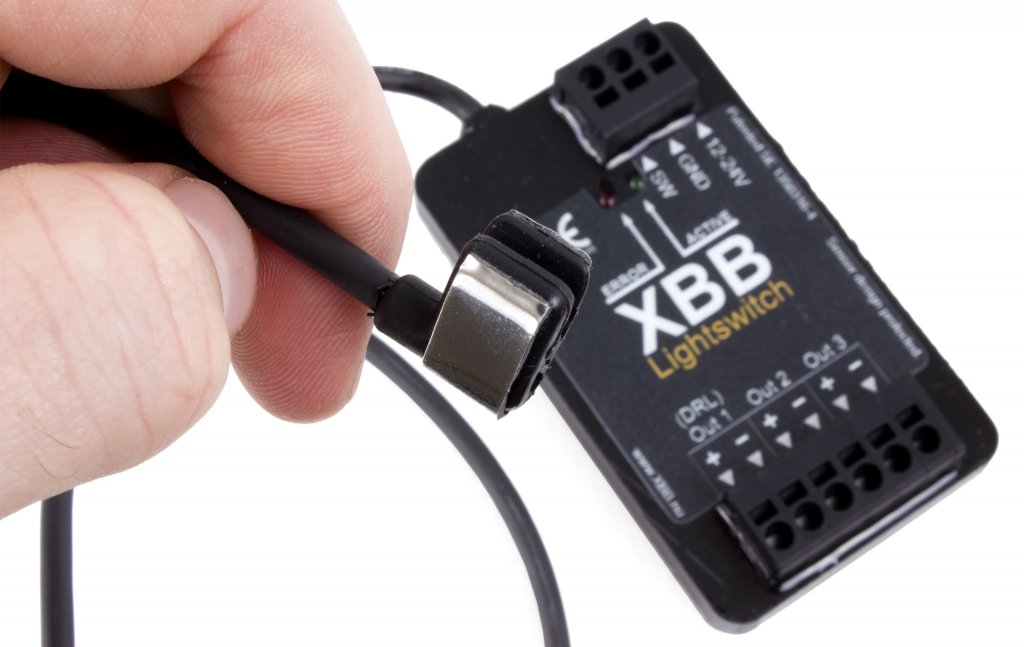

2. Press the XBB sensor connector onto the power cable.
3.You now have signal to the XBB module connected lighting!

XBB Lightswitch can control LED ramps, reversing lights, work lights, xenon, halogen and LED auxiliary lights.

XBB Lightswitch works for both 12V and 24V.

Voltage and current monitoring on each individual output as well as the vehicle battery voltage is continuously monitored.

Technical specification:

Working voltage: 12/24V
Outputs: 3x 10A
Dimensions: 90x55x20 mm
Weight: 92 g
Material: ABS/Polyurethane
Contact connection: Spring-loaded terminal block
Protection class: IP65
Standby current: <22mA
Sensor cable length: 950 mm
