Reversing Camera & Brake Light Volkswagen Transporter T5 from 2003-2009

Item ID: 75001-2350

€257

Incl. VAT

Which kit do you want?

Rear view camera only

75001-2350

€257

Not available

Rear view camera with 7" rear view mirror screen

75001-2357

€475

Not available

Available

Made to order | ~4–6 weeks delivery time

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | ~4–6 weeks delivery time

Product Description:

This complete reversing camera system is custom-fit for Volkswagen Transporter T5 from 2003-2009 and eliminates blind spots behind the commercial vehicle. The system combines an integrated camera module with a digital TFT-LCD color monitor, providing the driver with a full overview and a wide image reproduction with a 122-degree wide-angle for reversing and precision maneuvering.

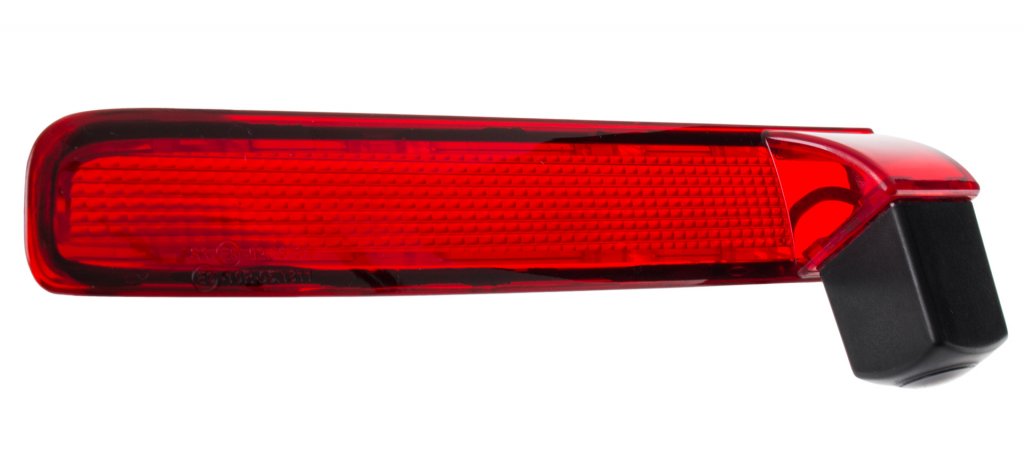

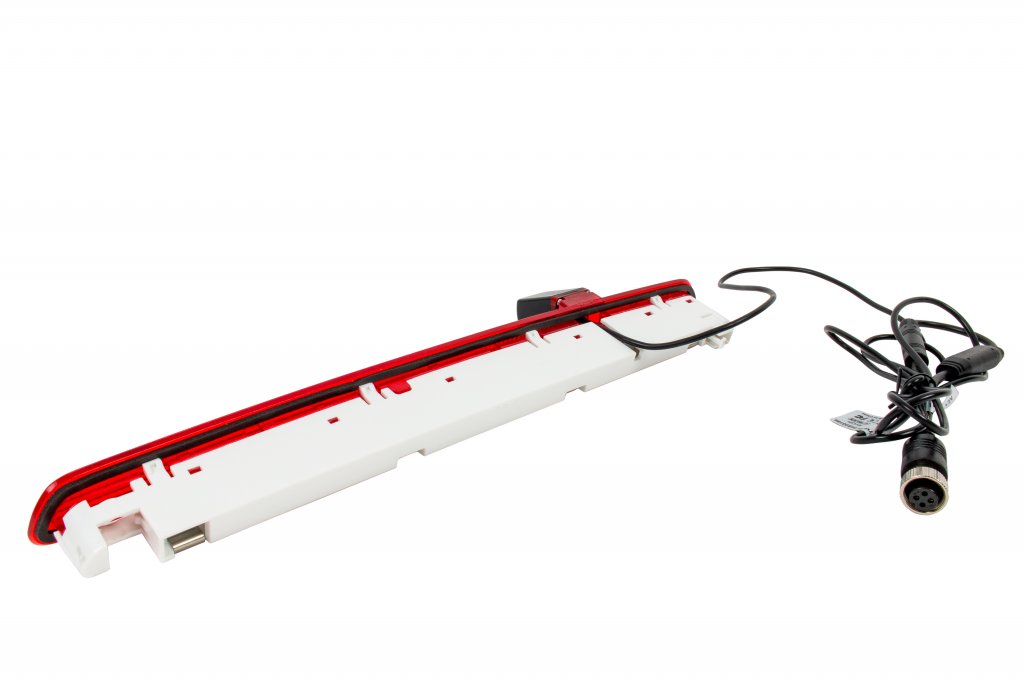

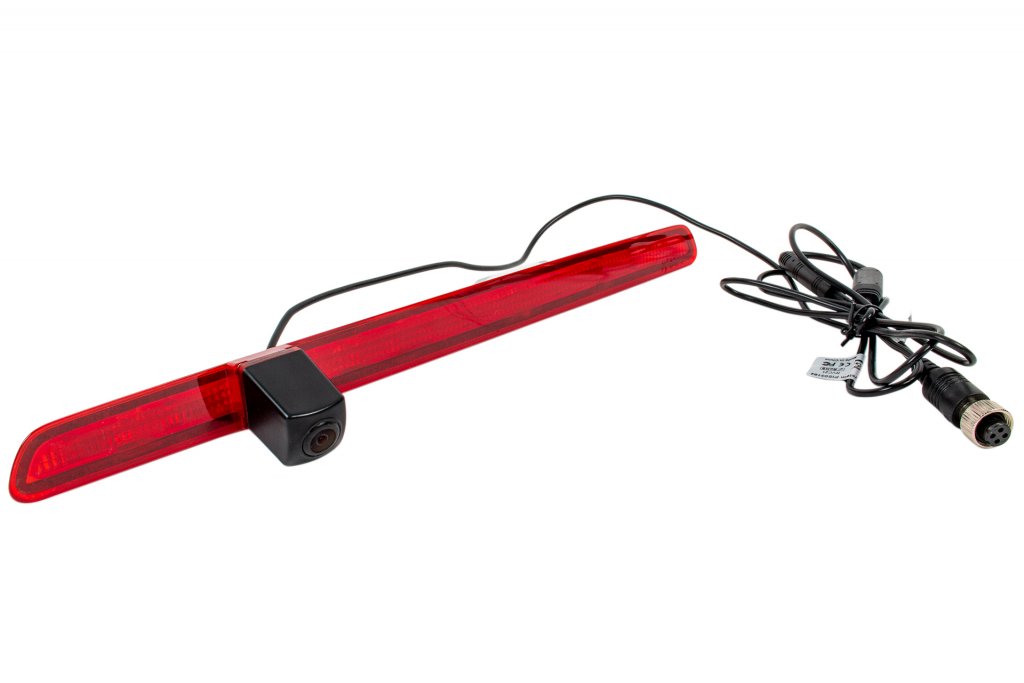

Installation is done by replacing the vehicle's existing third brake light with a unit featuring an integrated brake light and camera. The design preserves your Volkswagen Transporter T5's original lines without the need for drilling holes in the bodywork.

When purchasing only the reversing camera, a 10-meter cable with a 4-pin connector and an adapter for RCA connection are included.
For vehicles with sensitive electrical systems, a power resistor or relay control may be required.

Reversing Camera System for Volkswagen Transporter T5 – Clear Overview

The camera part is based on a 1/3" CMOS image sensor with f/2.8 aperture and IR technology for reliable visibility in the dark. The unit is designed for Nordic climates with an ingress protection rating of IP69K against moisture and high-pressure washing, as well as vibration resistance of 10 G. The included color screen handles temperatures between -20 and +60 degrees and has built-in trigger control for direct activation when reverse gear is engaged.

Technical specifications for reversing camera system for Volkswagen Transporter T5

Fitment: Volkswagen Transporter T5 from 2003-2009
Camera type: Combined brake light and reversing camera module
Image sensor: 1/3" CMOS
Aperture: f/2.8
Wide angle: 122 degrees
Night vision: IR technology
Ingress Protection (camera): IP69K
Vibration resistance: 10 G
Voltage range (camera): 12 V (12–24 V when connected to monitor)
Screen type: Digital TFT-LCD color monitor
Screen dimensions (incl. bracket): Width 249 mm x Height 108 mm x Depth 39 mm
Voltage range (screen): 10–32 V
Camera connections: 2 pcs
Cable connection: 4-pin (4-pin)
Temperature range (screen): -20 to +60 °C
Control: Trigger control and remote control

What's included in the delivery?

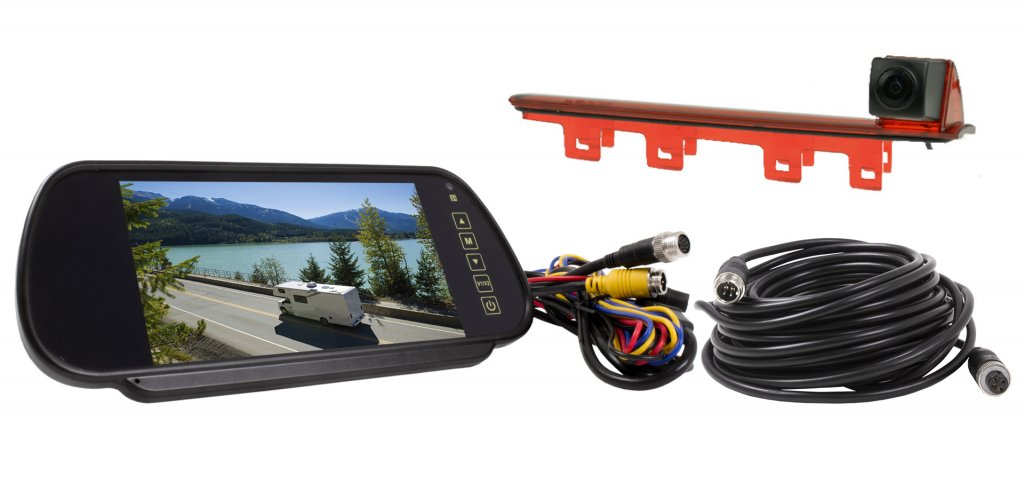

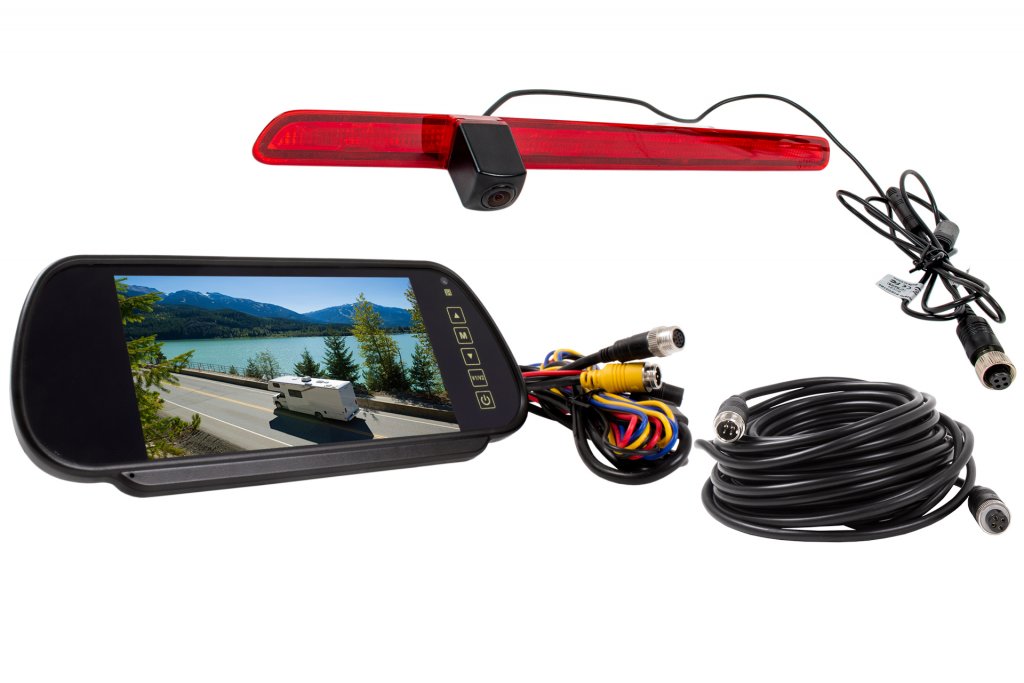

The complete package includes a model-specific brake light module with integrated reversing camera, digital TFT-LCD color monitor with mounting bracket, extension cable, and remote control

A reliable camera system for your Volkswagen Transporter T5
