  6. Rear view camera with brake light for Volkswagen Transporter T5/T6 from 2003-2019
Categories

Rear view camera Transporter T5/T6 (VW)

  • Rear view camera Transporter T5/T6 (VW) from 2003-
  • Rear view camera Transporter
  • Rear view camera with brake light for Volkswagen Transporter T5/T6 from 2003-2019
  • Rear view camera with brake light for Volkswagen Transporter T5/T6 from 2003-2019
  • Rear view camera with brake light for Volkswagen Transporter T5/T6 from 2003-2019
Item ID:  7522-3000
€194
Incl. VAT
Which kit do you want?
Which model do you have?
Available
Made to order | ~4–6 weeks delivery time
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | ~4–6 weeks delivery time

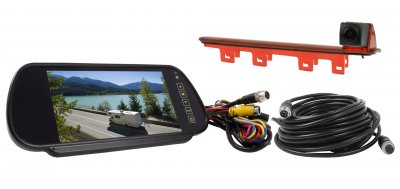

Product Description:

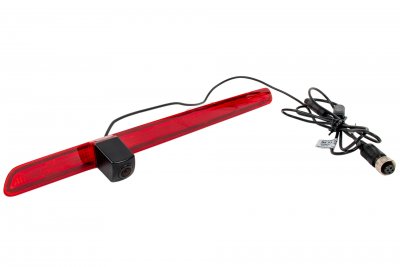

Rearview camera that replaces the third brake light on Volkswagen Transporter T5, T6 and from 2003-2019. A model-adapted rearview camera designed for our tough Nordic conditions with very clear and detailed image reproduction. The tow bar is visible in the camera image!

Rear view camera VW Transporter

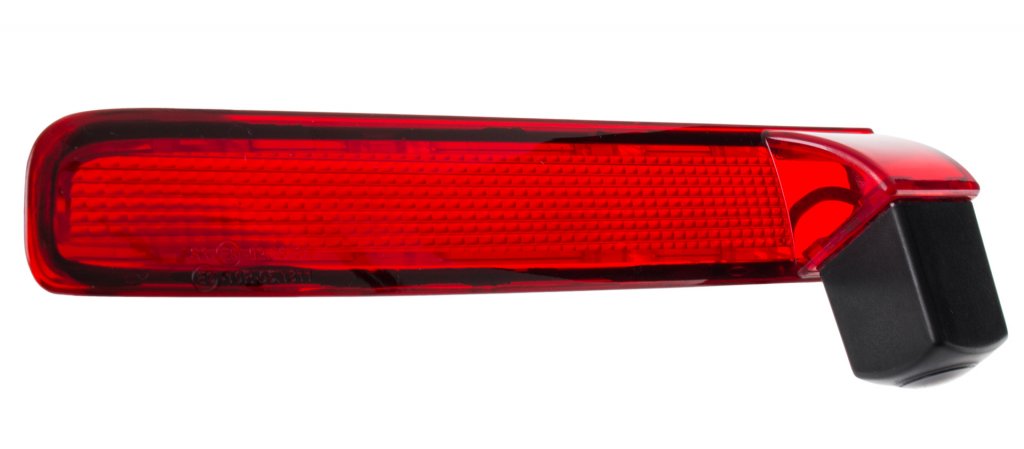

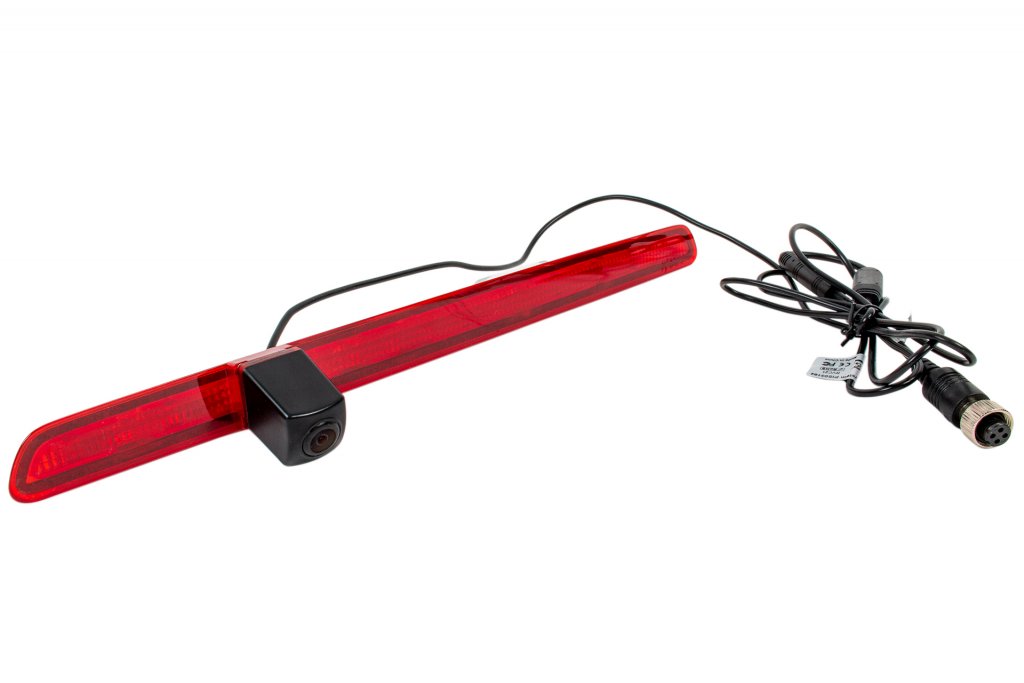

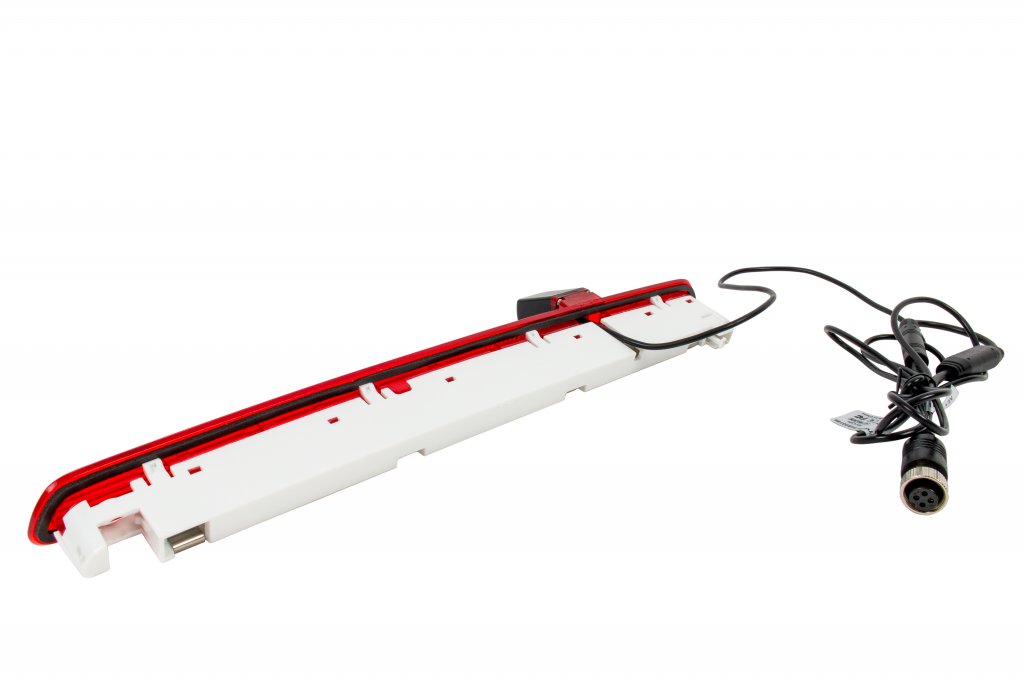

Simple and stylish installation when the third brake light is replaced with this module. Brake light and camera combined for mounting in VW Transporter.

Specifications rear view camera:

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • Wide angle: 170 degrees
  • Brightness: f/2.8
  • Image sensor: 1/3" CMOS
  • IR technology: Yes
  • Protection class: IP69K
  • Vibration resistance: 10 G
  • When purchasing the rear view camera only, 10 meters of cable with 4-pin connector and a transition for RCA connection are included.
  • For cars with sensitive electrical systems, power resistors or relay control may be required.

Our external monitors are very well suited for professional use. They are suitable for most types of industries and are easily installed in transportation vehicles. The LCD screen provides a detailed image and has a fast response time.

Specifications screens:

  • Screen type: Digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Camera connections: 2 pcs
  • Dimensions incl. bracket (7" rear view mirror): W 249 mm x H 108 mm x D 39 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes

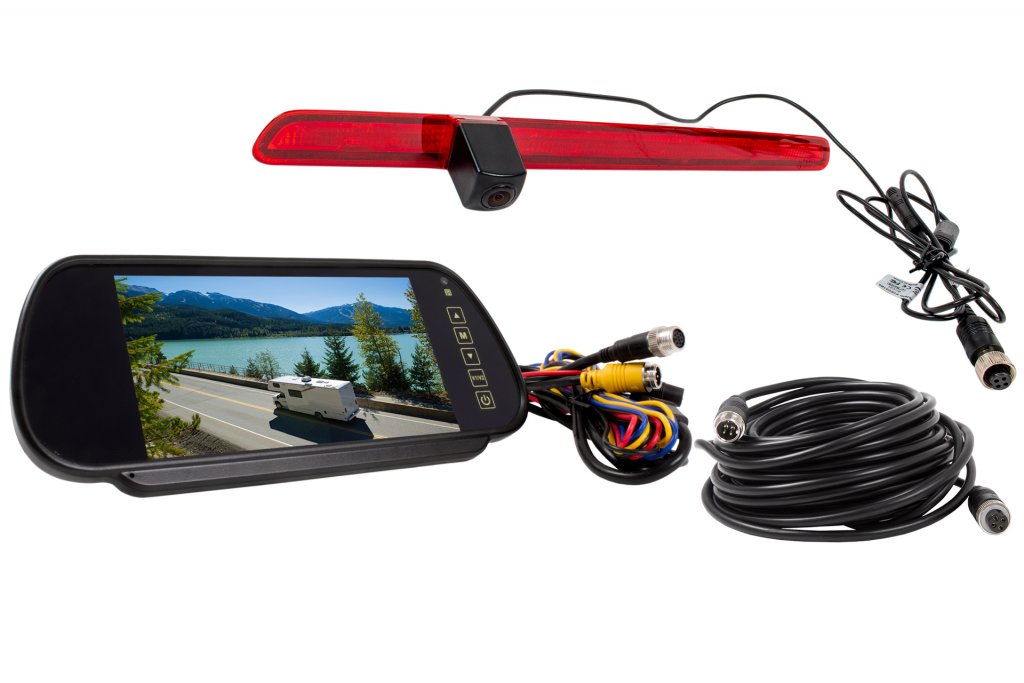

Supplied as a complete kit.

This product is suitable for the following car models:

Volkswagen Transporter T6 from 2016-2019
2016, 2017, 2018, 2019

Den här produkten passar till Volkswagen Transporter T6 2016-2019

Volkswagen Transporter T5 from 2010-2015
2010, 2011, 2012, 2013, 2014, 2015

Den här produkten passar till Volkswagen Transporter T5 2010-2015

Volkswagen Transporter T5 from 2003-2010
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

Den här produkten passar till Volkswagen Transporter T5 2003-2009




Documents:
attachment Assembly instructions for the reversing camera kit
