Lazer Grille kit Glide for Volkswagen Transporter T7 from 2024-

Grille kit Lazer Volkswagen Transporter T7

Item ID: 75046-830

€638

Incl. VAT

Which variant do you want?

Glide

75046-830

€638

Available in external warehouse | Dispatched within 1-4 working days

Glide with Position lights

75046-830P

€677

Available in external warehouse | Dispatched within 1-4 working days

Elite

75046-830E

€900

Available in external warehouse | Dispatched within 1-4 working days

Elite with Position lights

75046-830EP

€938

Available in external warehouse | Dispatched within 1-4 working days

Assembly parts only

75046-830M

€116

Available in external warehouse | Dispatched within 1-4 working days

Available

Available in external warehouse | Dispatched within 1-4 working days

.

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days

Product Description:

Complete auxiliary light kit containing everything you need for installation on the Volkswagen Transporter T7 from 2024 onwards.

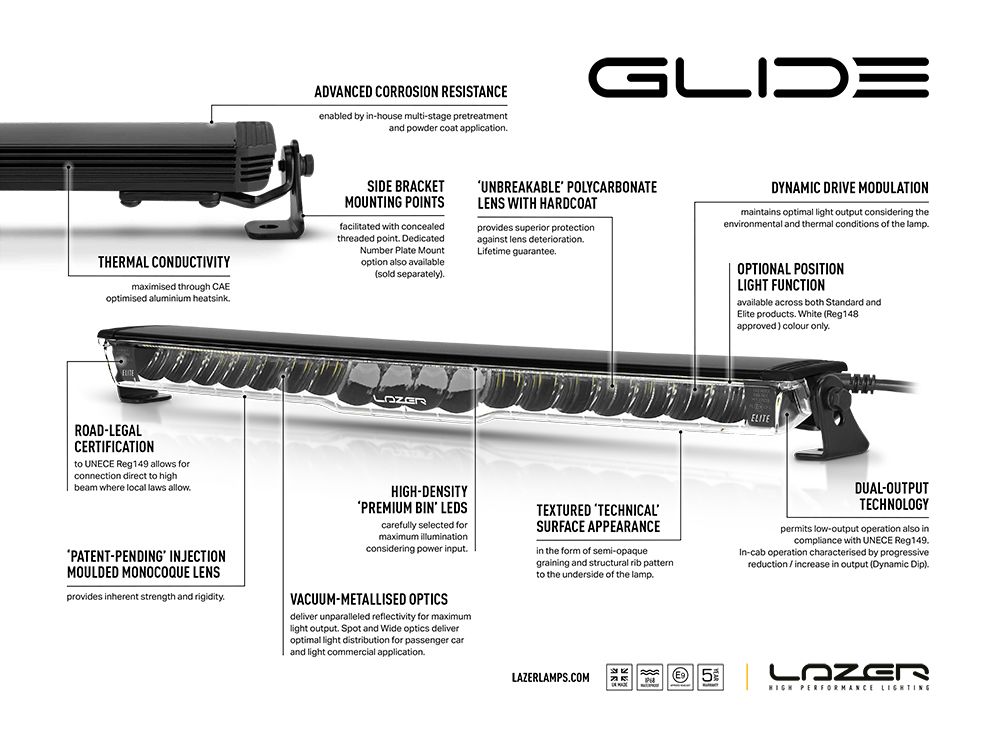

Complete grille kit Lazer Volkswagen Transporter T7 containing model-specific 3D printed mounting parts together with relay kit and Lazer ramp Glide. You choose whether you want the Lazer Glide, or the Elite model for longer range and increased power.

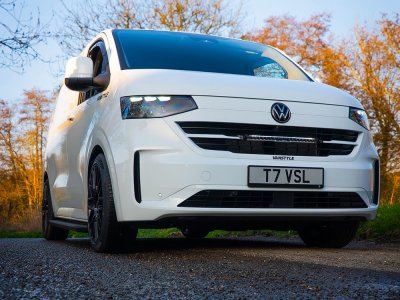

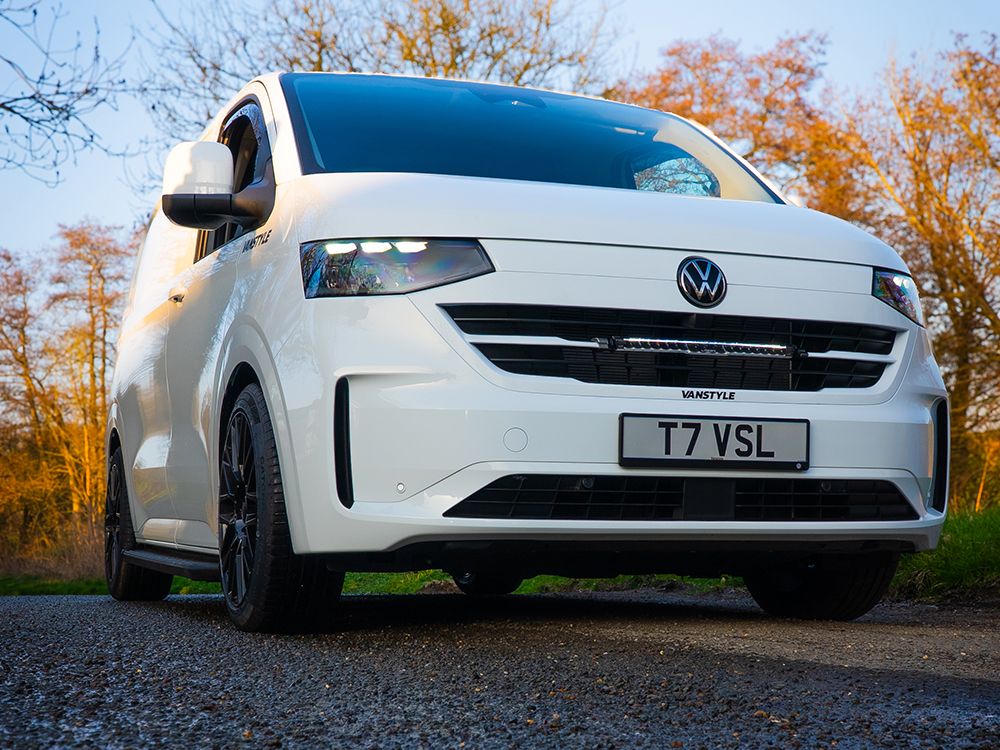

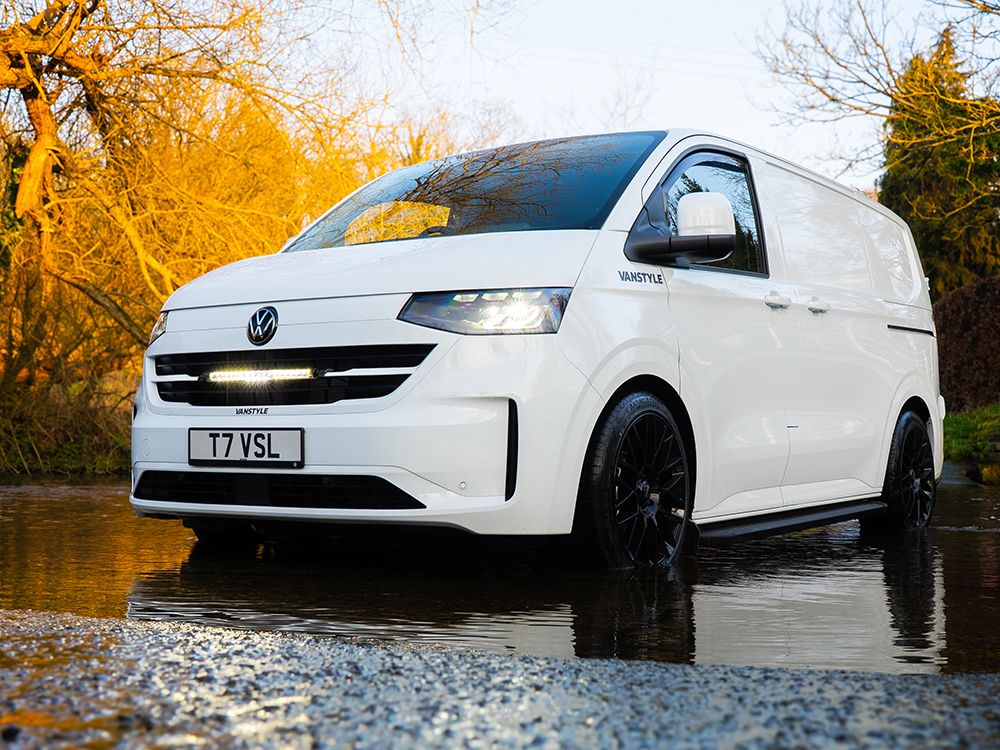

Grille kit Lazer Volkswagen Transporter T7

Glide	Standard	with Position lights	Elite	with Position lights
Voltage range	10-32V	10-32V	10-32V	10-32V
Luminous flux	11500 lm	11500 lm	12800 lm	12800 lm
Color temperature	5000 K	5000 K	5000 K	5000 K
Number of LEDs	18 pcs	18 pcs	18 pcs	18 pcs
Position light	No	Yes	No	Yes
Power output	120 W	120 W	130 W	130 W
Load (at 14.4V)	8,3 A	8,3 A	9,2 A	9,2 A
Certification
Reference number	2 x 12,5 (2 x 12,5 E-marked mode)	2 x 12,5 (2 x 12,5 E-marked mode)	2 x 12,5 (2 x 12,5 E-marked mode)	2 x 12,5 (2 x 12,5 E-marked mode)
High beam	ECE R149	ECE R149	ECE R149	ECE R149
Luminous flux

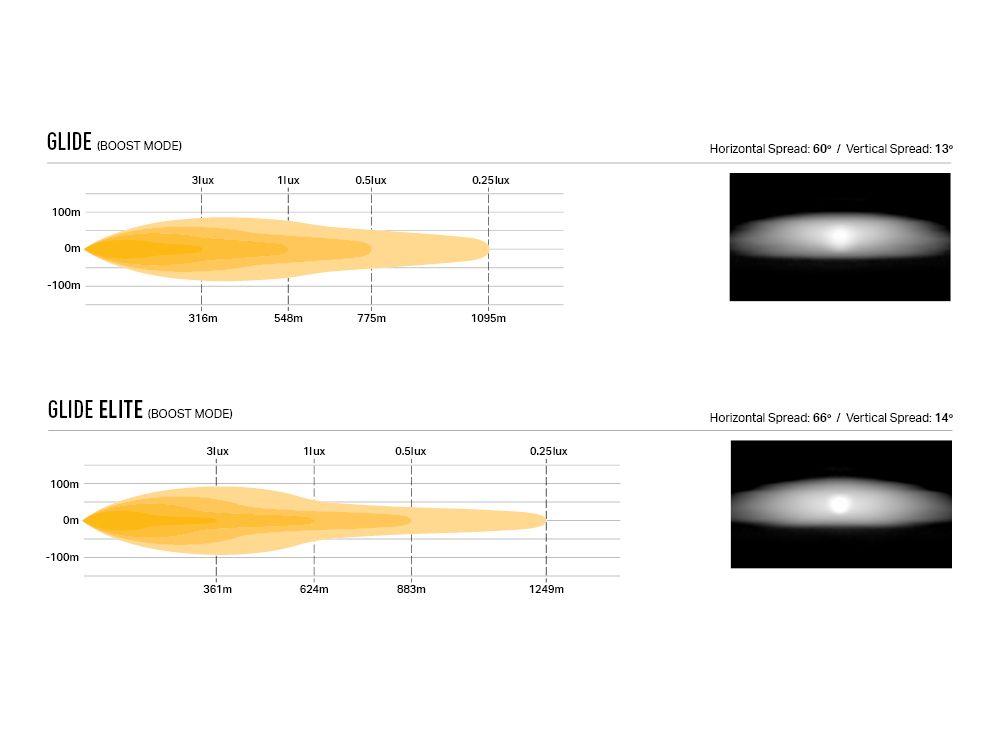

Light angle horizontal/vertical	60/13 degrees	60/13 degrees	66/14 degrees	66/14 degrees
Range (1 lux)	548 meters	548 meters	624 meters	624 meters
Range (0.25 lux)	1095 meters	1095 meters	1249 meters	1249 meters

Installation

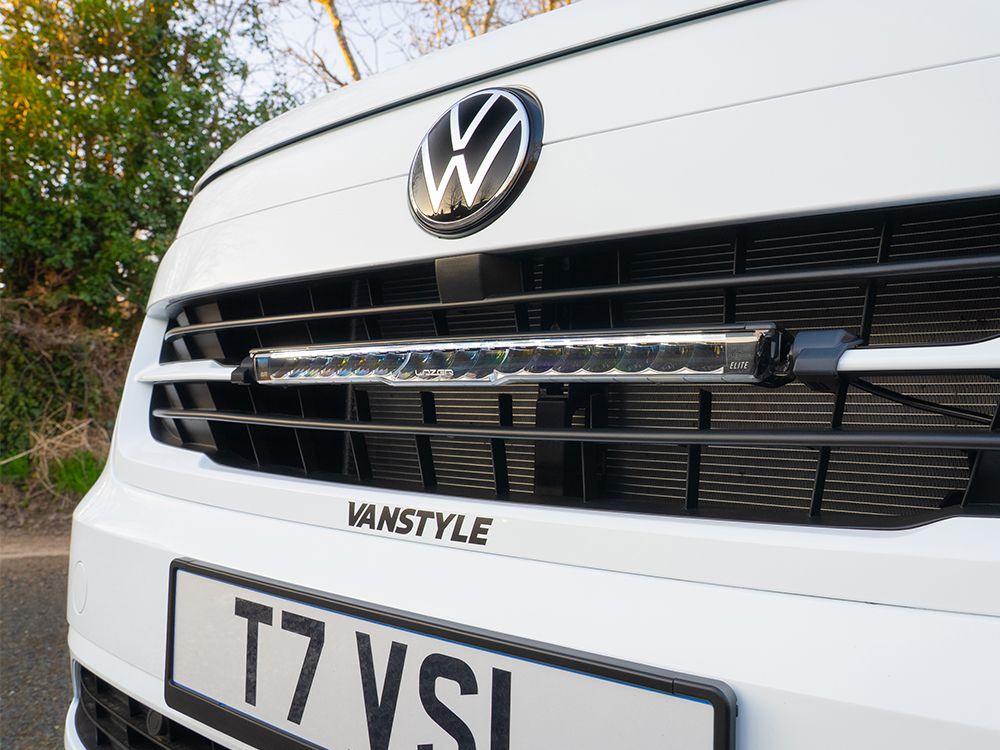

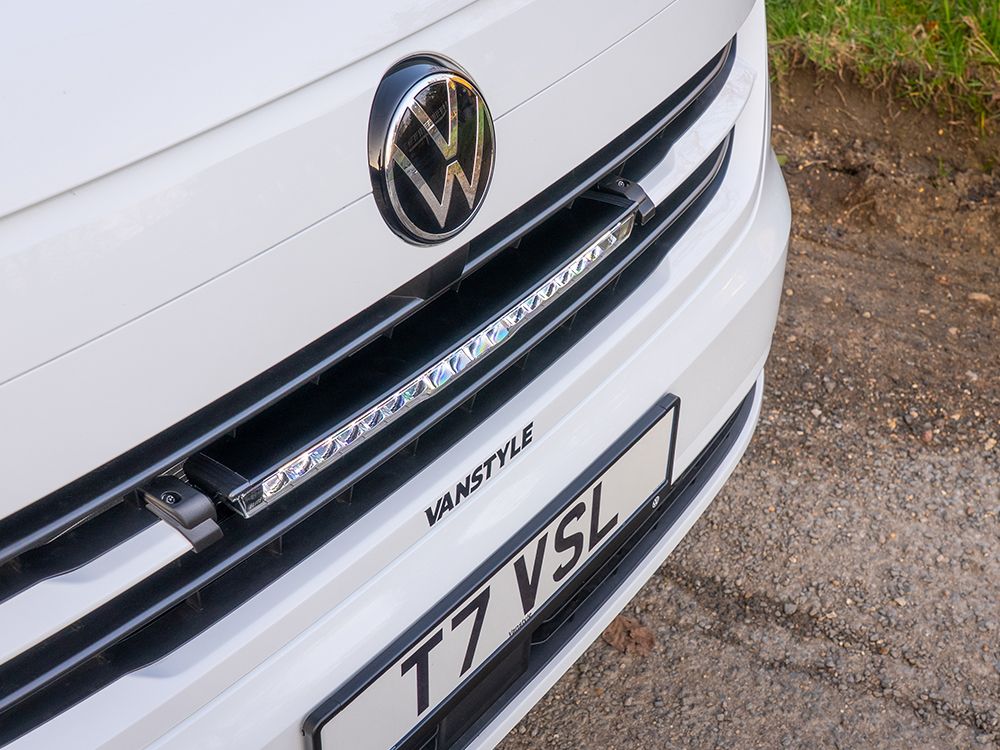

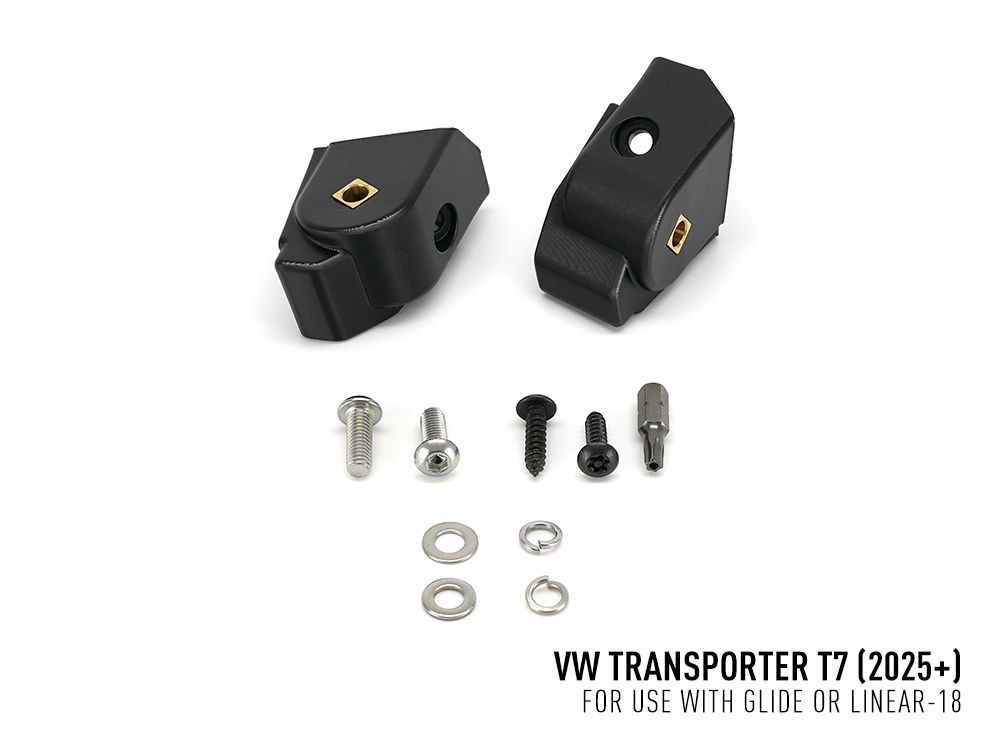

Installation requires damage to the grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.

What is included in the Grille kit Lazer Volkswagen Transporter T7

1 piece Lazer Glide
Mounting details

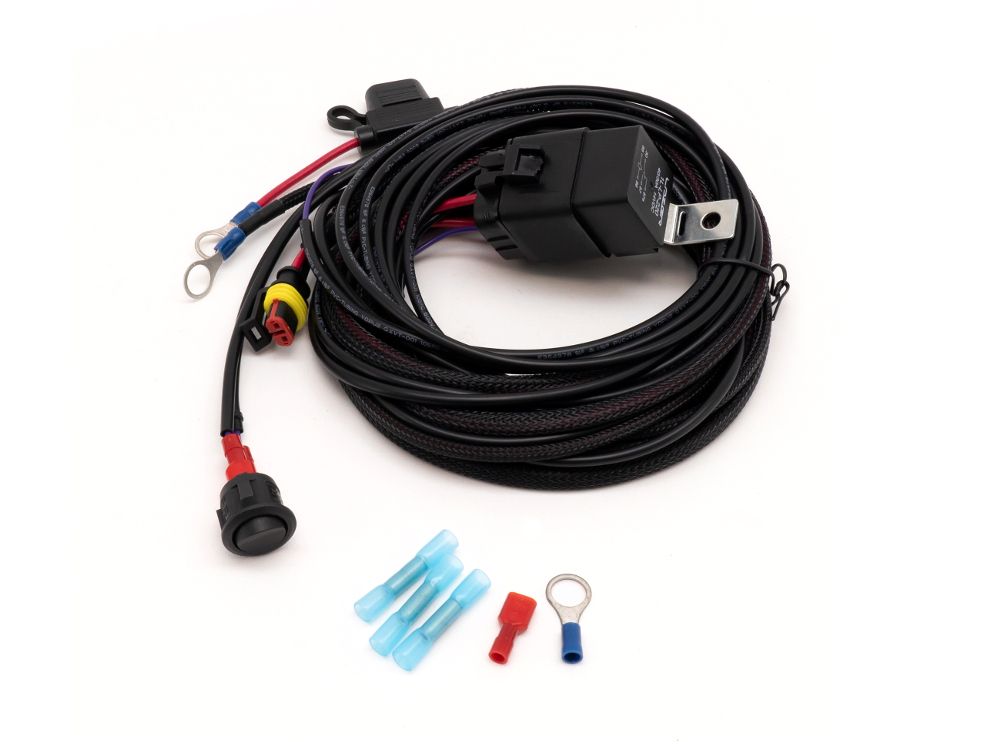

Relay kit
Mounting instructions

Grille kit Lazer Volkswagen Transporter T7 is supplied as a complete kit

Documents:
attachment

attachment

Mounting instructions for Lazer Grille kit 75046-830
