Lazer Grille kit Linear 18 for Volkswagen Transporter T7 from 2024-

Grille kit Lazer Volkswagen Transporter T7

Item ID: 75046-831E

€894

Incl. VAT

Which variant do you want?

Linear 18

75046-831E

€894

Available in external warehouse | Dispatched within 1-4 working days

Linear 18+

75046-831EP

€1 049

Available in external warehouse | Dispatched within 1-4 working days

Only mounting details

75046-830M

€116

Available in external warehouse | Dispatched within 1-4 working days

Available

Available in external warehouse | Dispatched within 1-4 working days

.

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days

Product Description:

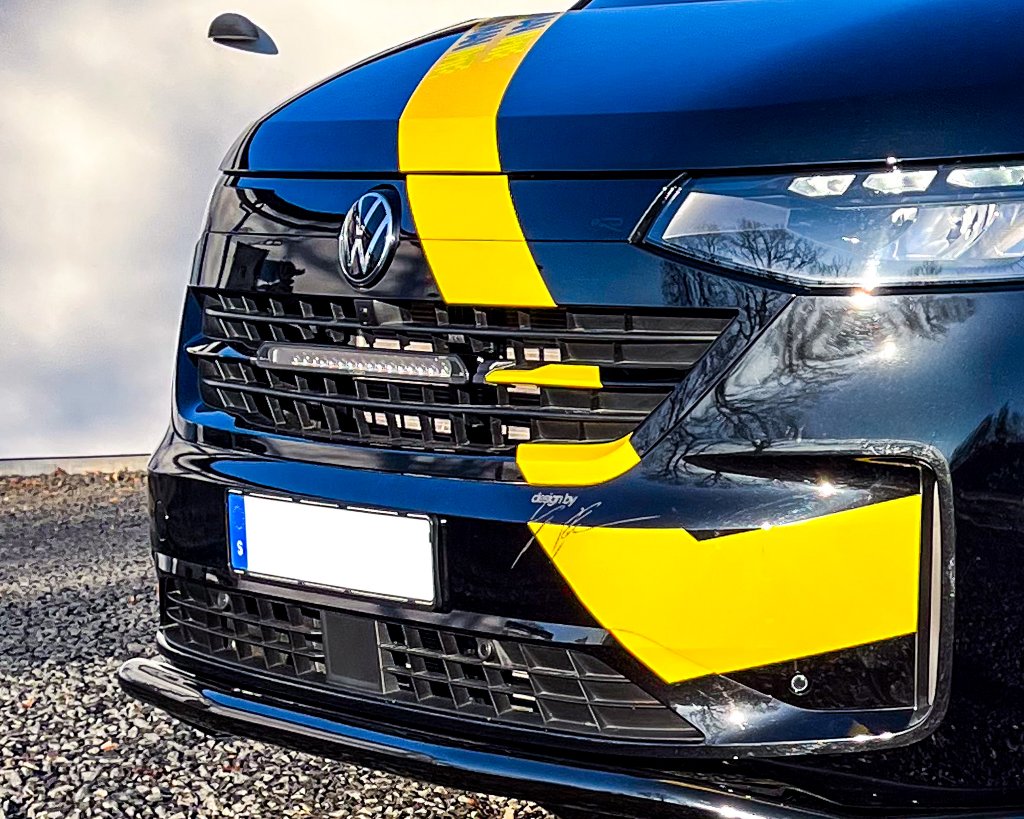

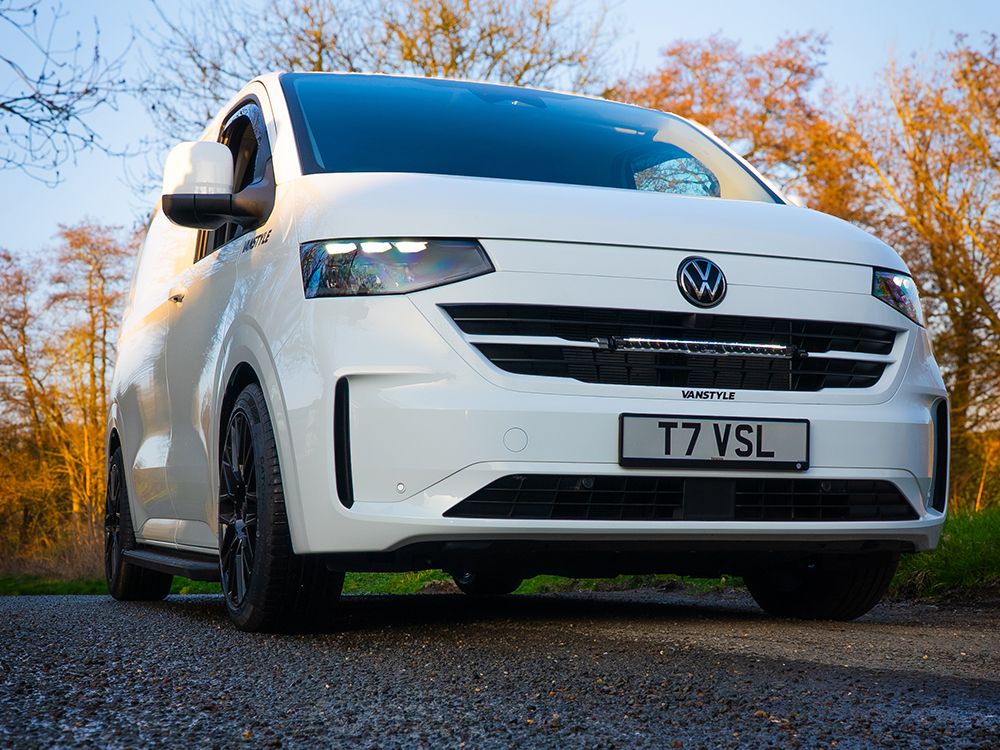

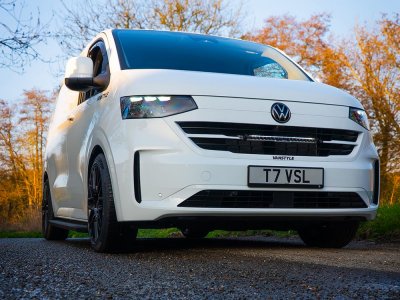

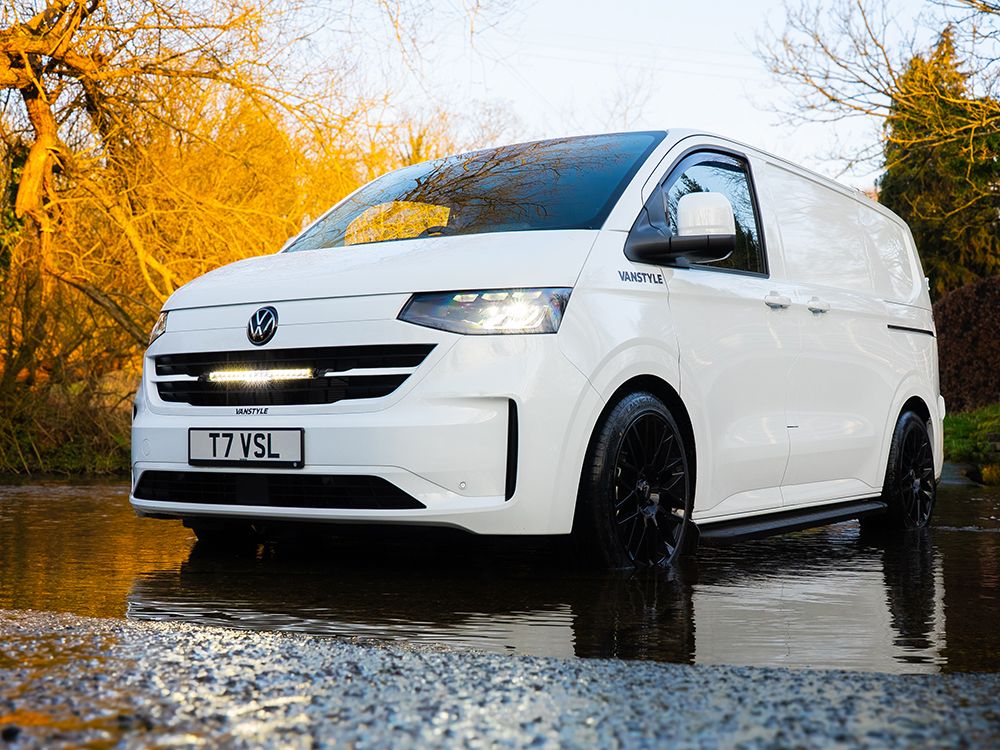

Complete auxiliary light kit containing everything you need for installation on the Volkswagen Transporter T7 from 2024 onwards.

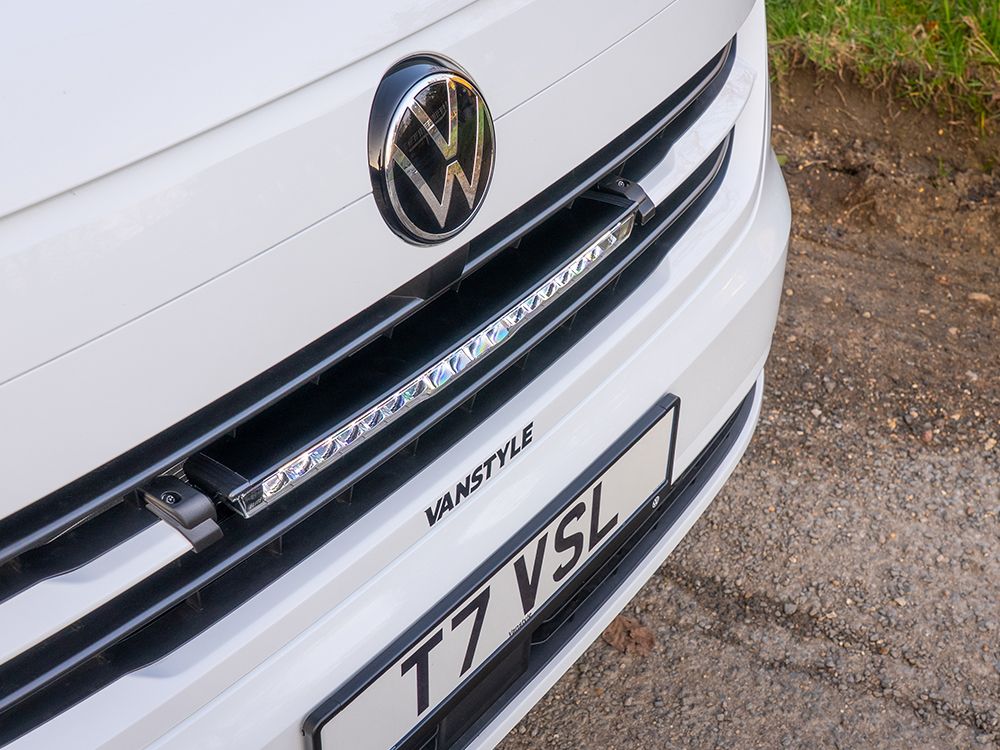

Complete grille kit Lazer Volkswagen Transporter T7 containing model-specific 3D printed mounting parts together with relay kit and Lazer ramp Linear 18. You choose whether you want the Lazer Linear 18, or the Elite model for longer range and increased power.

Grille kit Lazer Volkswagen Transporter T7

Linear 18	Standard	Elite
Voltage range	10-32V	10-32V
Luminous flux	6750 lm	13500 lm
Color temperature	5000 K	5000 K
Number of LEDs	18 pcs	36 pcs
Position light	No	No
Power output	63 W	130 W
Load (at 14.4V)	4,4 A	9 A
Certification
Reference number	30	2 x 25 (2 x 10 E-marked mode)
High beam	ECE R112	ECE R112

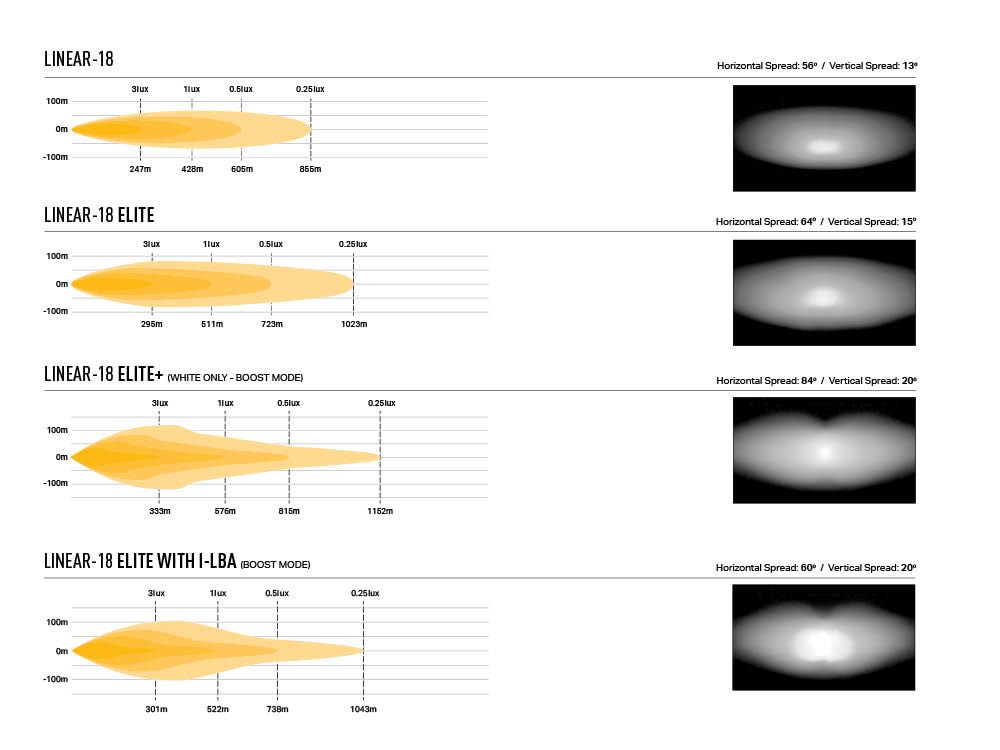

Luminous flux
Light angle horizontal	56 degrees	64 degrees
Range (1 lux)	428 meters	511 meters
Range (0.25 lux)	855 meters	1023 meters

Installation

Installation requires damage to the grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

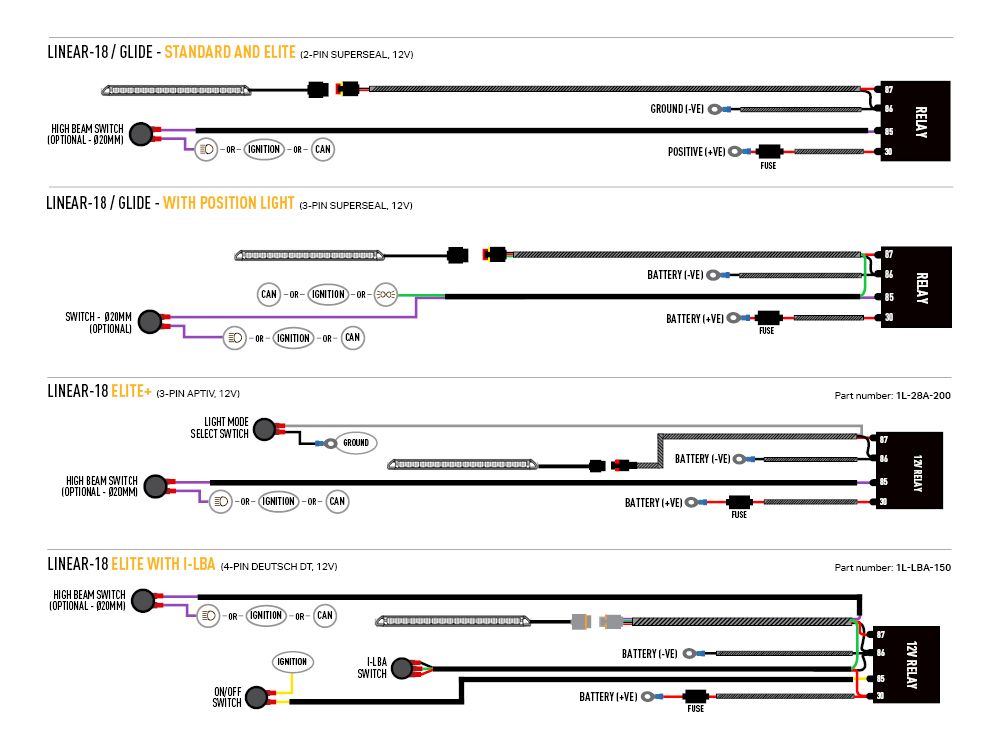

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.

What is included in the Grille kit Lazer Volkswagen Transporter T7

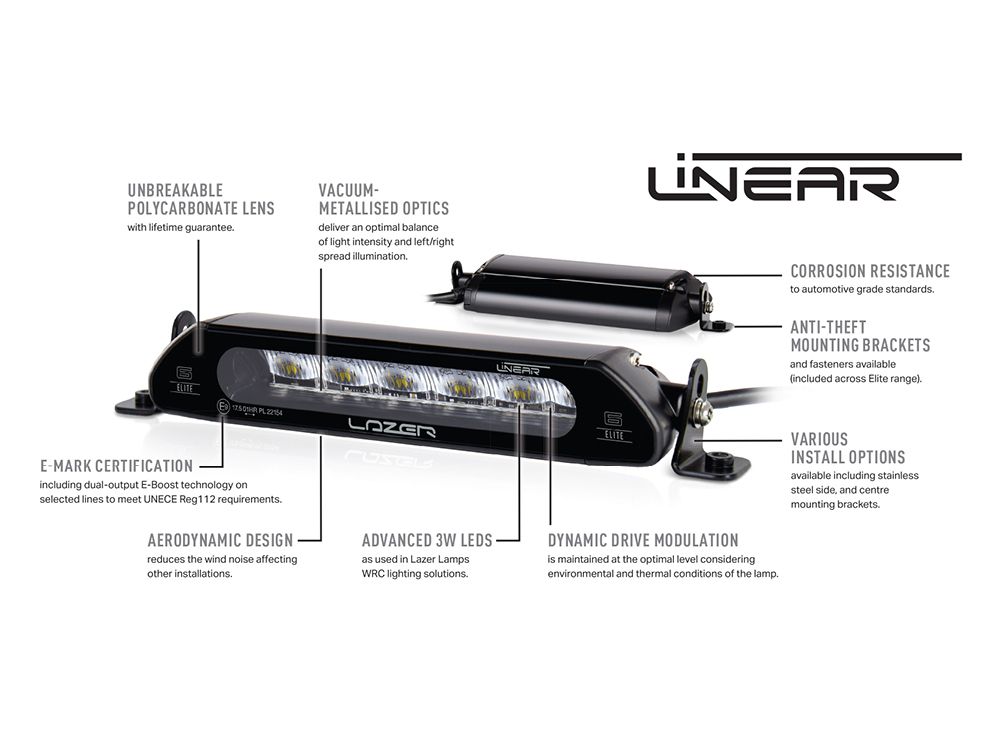

1 piece Lazer Linear 18

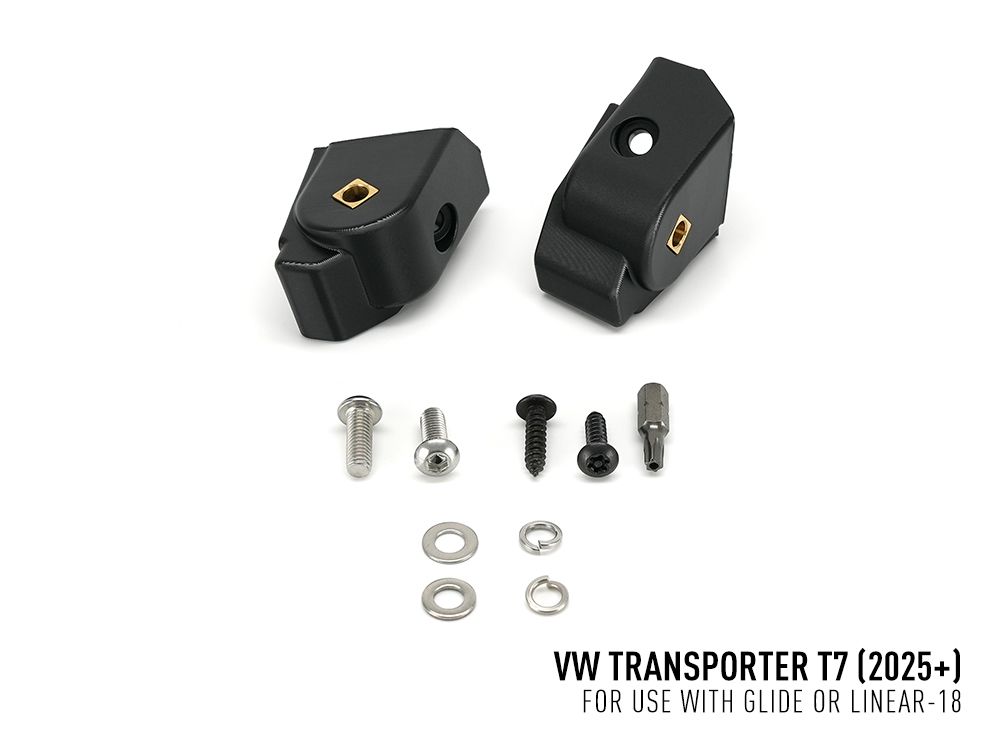

Mounting details

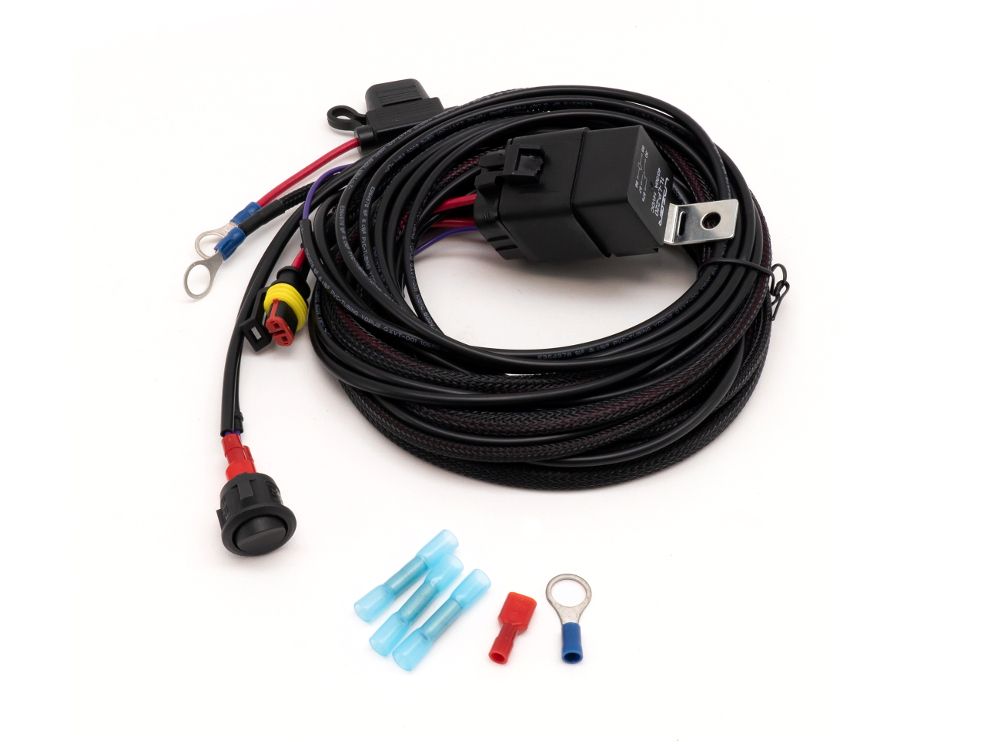

Relay kit
Mounting instructions

Grille kit Lazer Volkswagen Transporter T7 is supplied as a complete kit

Documents:
attachment

attachment

Mounting instructions for Lazer Grille kit 75046-831
