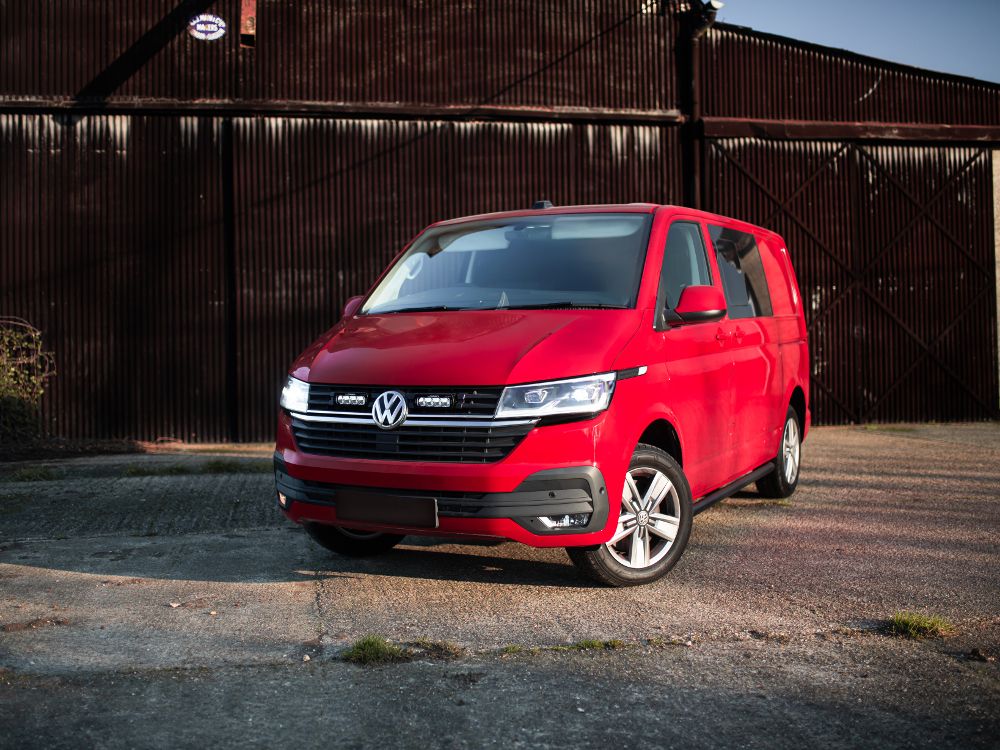

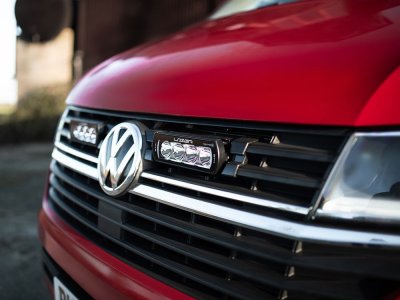

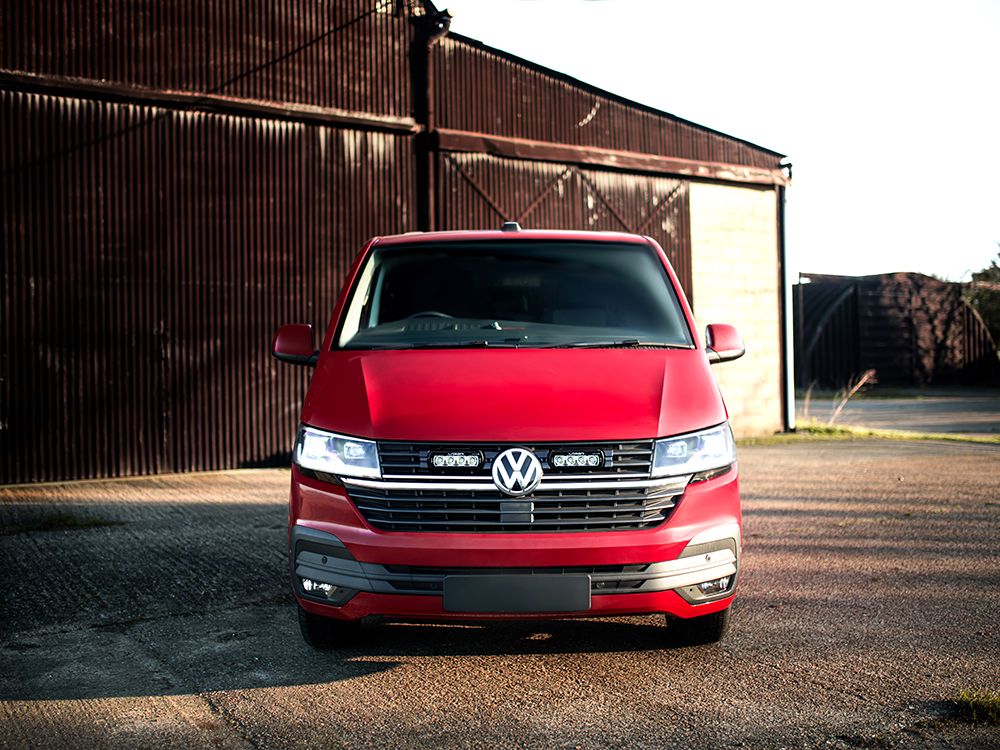

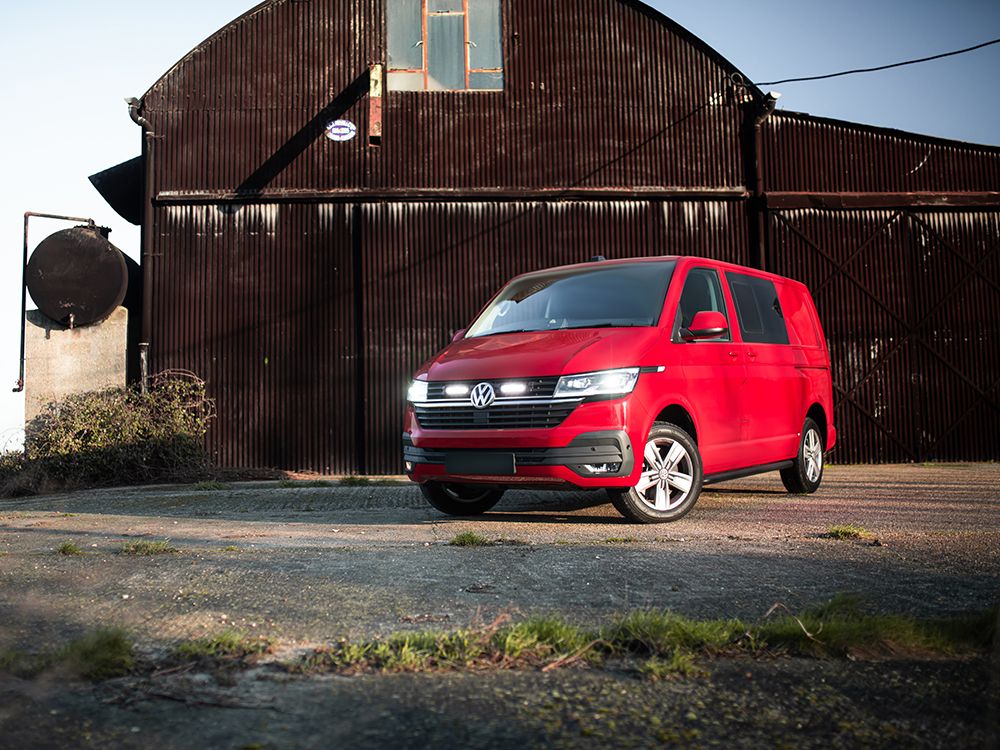

Complete extra light package containing everything you need for installation in the upper grill of the Volkswagen Transporter T6.1 from 2020-2024.
Complete extra light package Lazer Volkswagen Transporter T6.1 containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps ST4 Evolution.
Extra light package Lazer Volkswagen Transporter T6.1

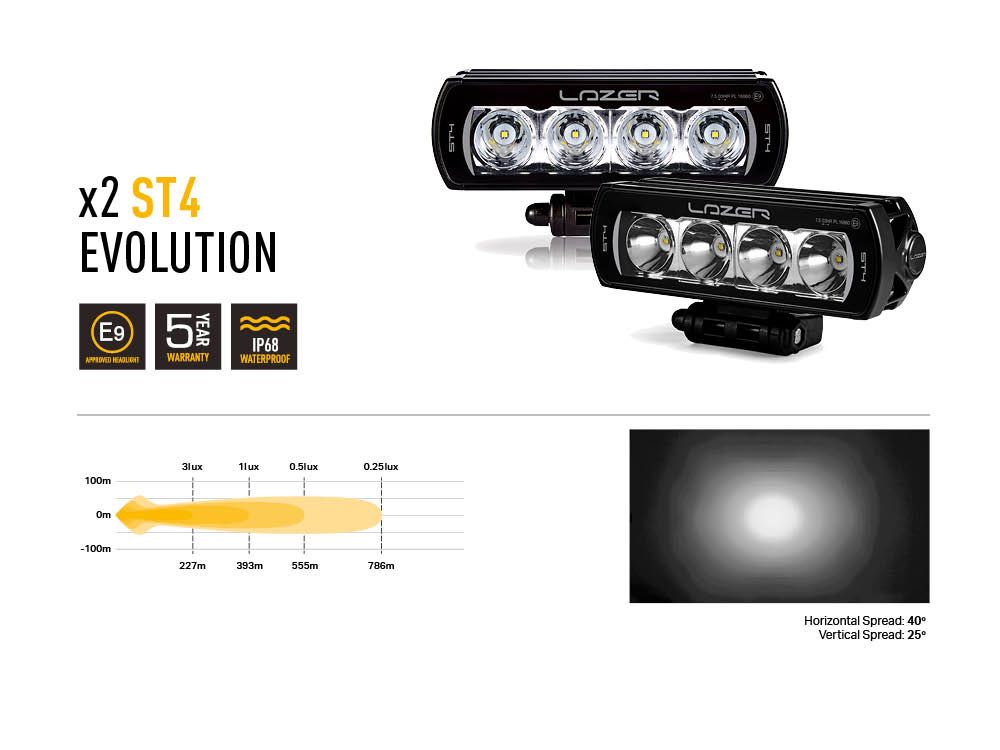

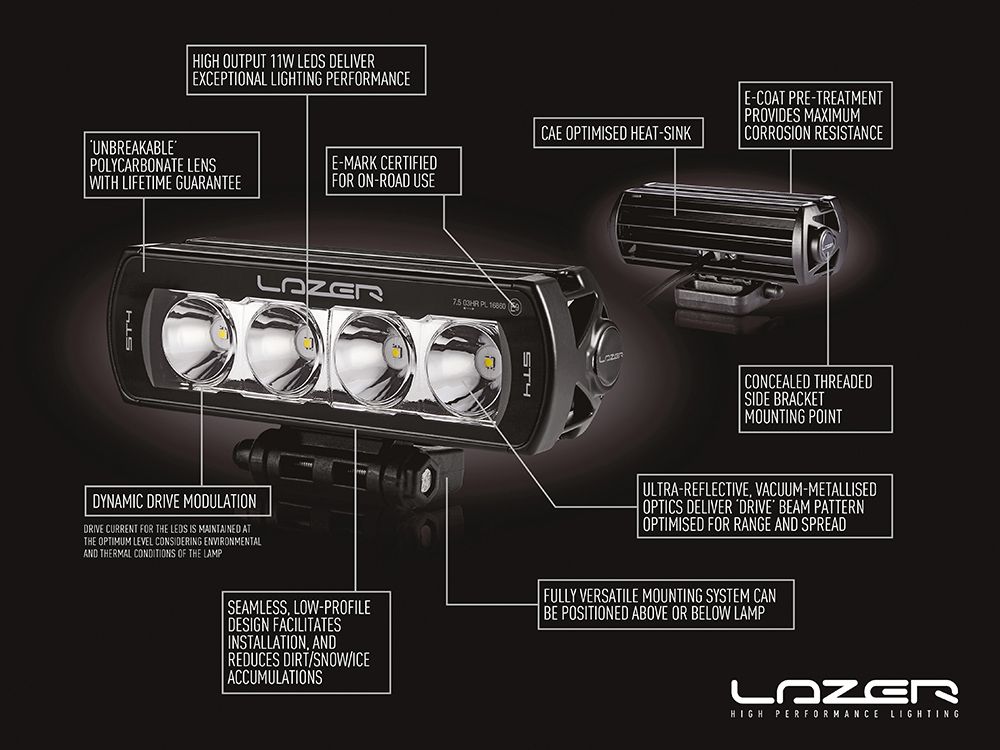

| ST4 Evolution | |
| Voltage range | 10-32V |
| Luminous flux | 8272 lm |
| Color temperature | 5000 K |
| Number of LEDs | 2 x 4 pcs |
| Position light | Not available |
| Power output | 94 W |
| Load (at 14.4V) | 6,6 A |
| Certification | |
| High beam | ECE R112 |
| Luminous flux | |
| Horizontal light angle | 40 degrees |

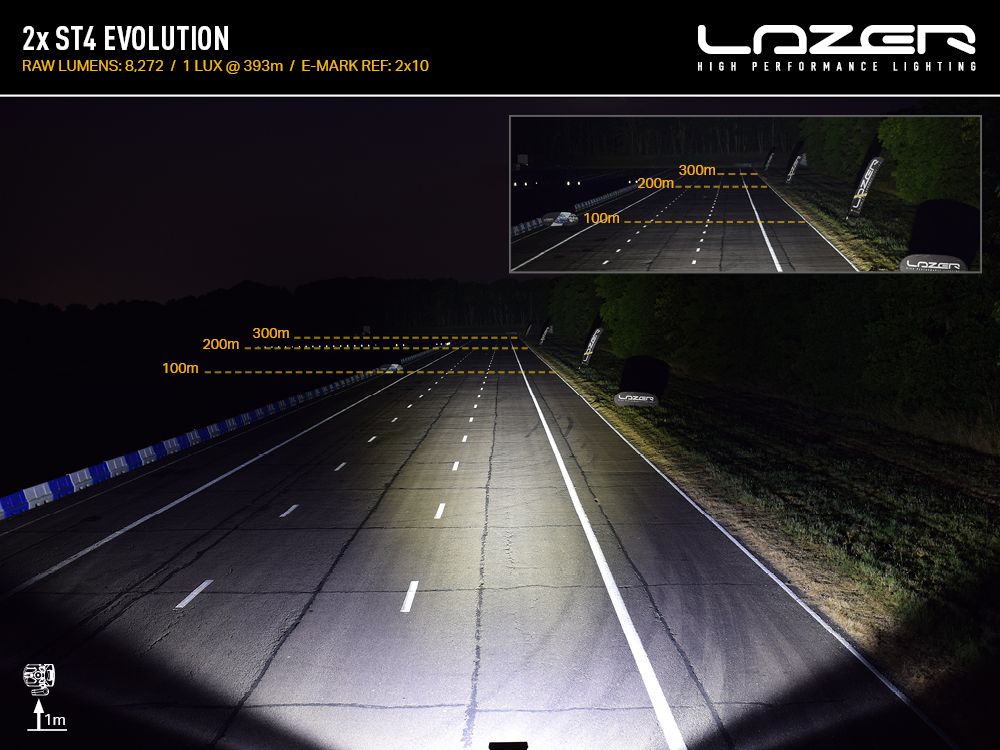

| Range (1 lux) | 393 meters |
| Range (0.25 lux) | 876 meters |
Installation
- Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

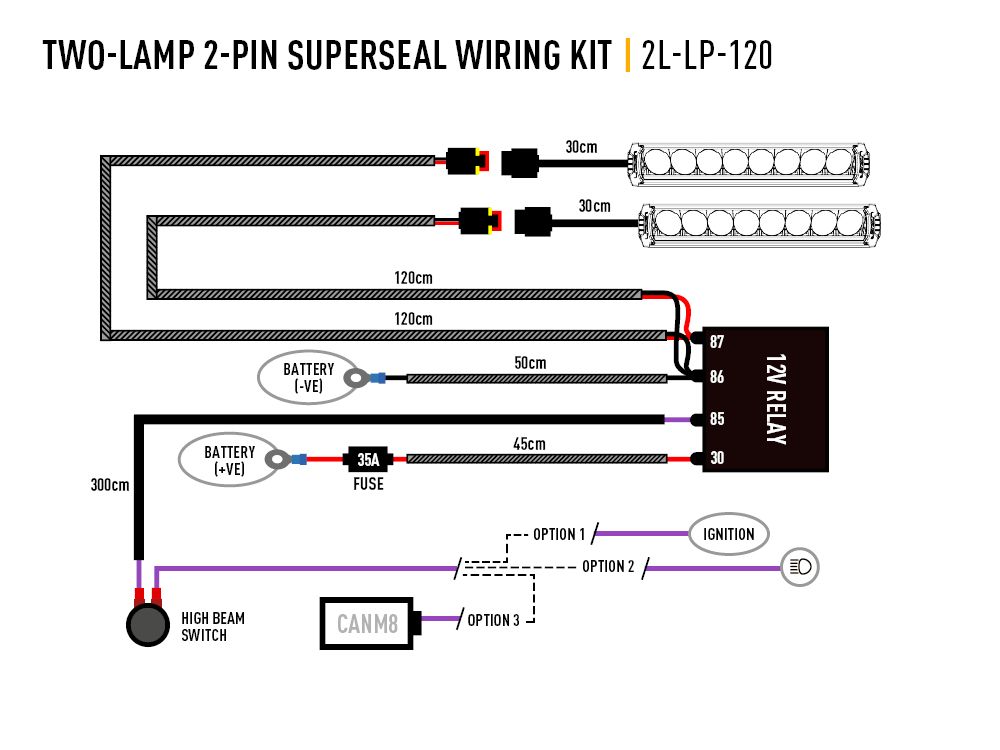

Wiring
- Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.
What is included in the Lazer Volkswagen Transporter T6.1 auxiliary light kit
- 2 pcs Lazer ST4 Evolution

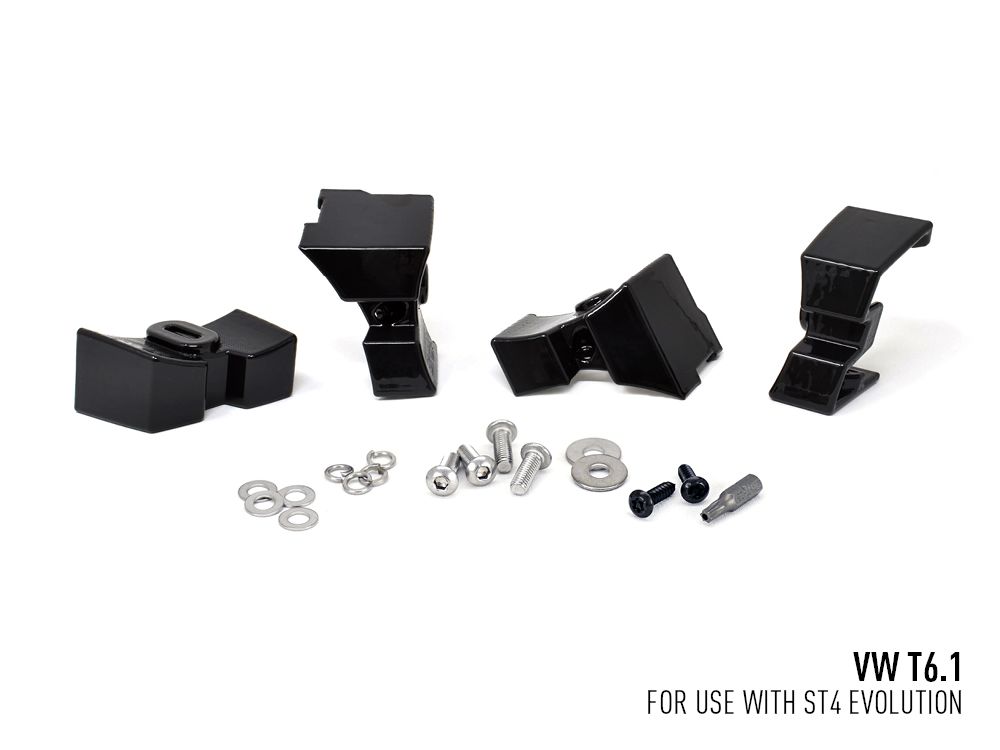

- Mounting parts
- Relay kit
- Mounting instructions
Extra light kit Lazer Volkswagen Transporter T6.1 is delivered as a complete kit
