Auxiliary Light Bracket for 4 Driving Lights Volkswagen Transporter T6 from 2016-2019

Auxiliary Light Bracket for 4 Lights for VW Transporter T6 2016-2019 | Qpax

Item ID: 75003-4340

€851

Incl. VAT

Which variant would you like?

Matte Silver

75003-4340

€851

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

75003-4340-O

€851

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

75003-4340-S

€851

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

75003-4340-S80

€851

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

75003-4340-V

€851

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

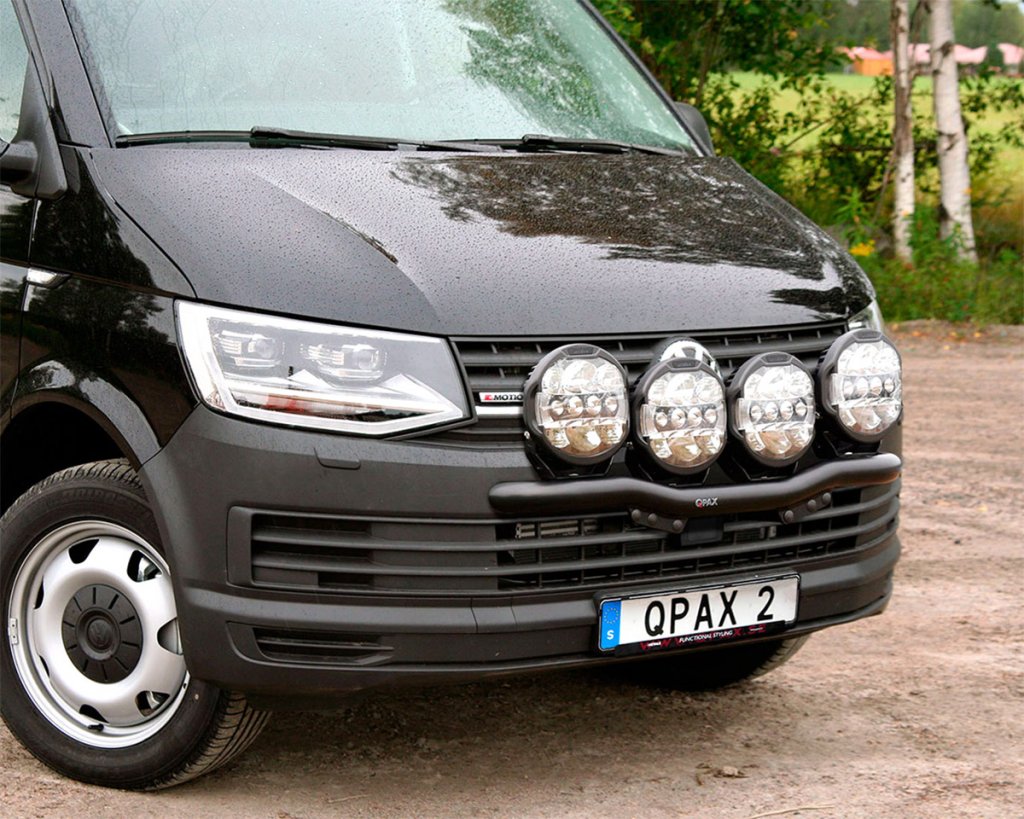

This model-specific auxiliary light bracket for Volkswagen Transporter T6 from 2016-2019 provides a stable platform when mounting extra driving lights to the front. The bar is equipped with four fixed, welded mounting tabs accommodating a total of four driving lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminium tube and features a durable powder-coated finish that withstands stone chips, road salt, and harsh Nordic climates. The bar is specifically engineered for your Volkswagen Transporter T6 and anchors securely to the vehicle's load-bearing structure for optimal strength.

Auxiliary Light Bracket - Gentle Q-GRIP Mounting Around the Crash Beam

The light bracket is mounted using QPAX's Q-GRIP system, which clamps firmly around the vehicle's existing crash beam to provide vibration-free attachment. Detailed step-by-step instructions for installation on your Volkswagen Transporter T6 are provided in the fitting instructions attached as a PDF on this product page. To ensure a steady beam pattern on uneven roads, the driving lights must be stabilised at the top using the included stay bars.

Mounting and attachment: Clamps directly around the crash beam using the QPAX Q-GRIP system.
Radar and licence plate: Fully compatible with the radar unit in the lower air intake. The licence plate retains its original position.
Stabilisation requirements and max weight: Recommended maximum weight is 2 kg per auxiliary light. The included top stay bars must always be used.
Important safety information: Heavier lights (e.g. heavier LED driving lights) must not be fitted to the bar, as the beam to which the radar is mounted risks being affected by the load.

Choose Your Variant for Volkswagen Transporter T6

Five available colours (powder coated)

The light bracket can be ordered in five different colours to match your Volkswagen Transporter T6's paintwork or accents:

Silver: Classic powder-coated silver finish.
Satin Black (matte): Understated matte black finish.
Black (gloss 80): Gloss black finish with a gloss rating of 80.
White (RAL9016): Powder coating in white RAL 9016.
Orange (RAL2008): Powder coating in orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube diameter: 60 mm
Surface finish: Powder coated
Number of mounting points for driving lights: 4 pcs
Fixed/adjustable mounting tabs: Fixed (welded)
Max auxiliary light size: 240 mm diameter
Recommended max weight per light: 2 kg each
Mounting system: QPAX Q-GRIP clamp mount around the crash beam (see PDF fitting instructions)

What is Included?

Supplied as a complete kit tailored for Volkswagen Transporter T6, containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Model-specific mounting kit (Q-GRIP for crash beam)
Stay bars for auxiliary lights
Fitting instructions (enclosed and available as downloadable PDF)

A durable, custom-fit solution for Volkswagen Transporter T6 from 2016-2019 that provides a rigid mount and optimal beam pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Volkswagen Transporter T6 2016–2019
