Rear view camera with brake light for Volkswagen Crafter from 2017-

Rear view camera Volkswagen Crafter from 2017-

Item ID: 7560-660

€101

Incl. VAT

Which kit do you want?

Rear view camera only

7560-660

€145 €101

Available

Rear view camera with 7" rear view mirror screen

7560-667

€338 €237

Available

Made to order | ~4-8 weeks delivery time

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | ~4-8 weeks delivery time

Product Description:

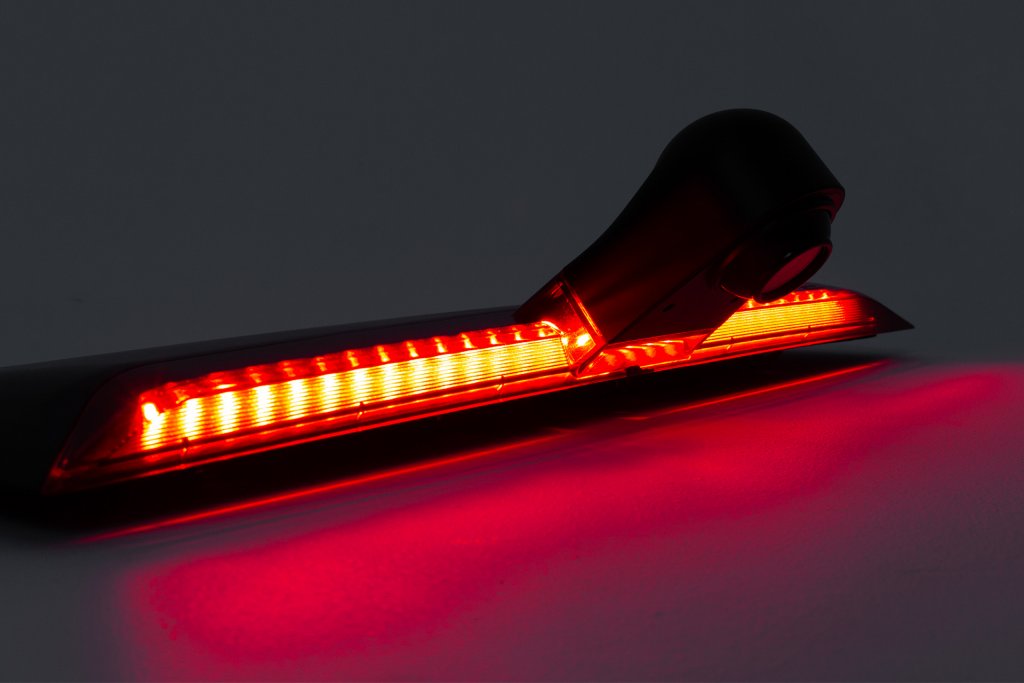

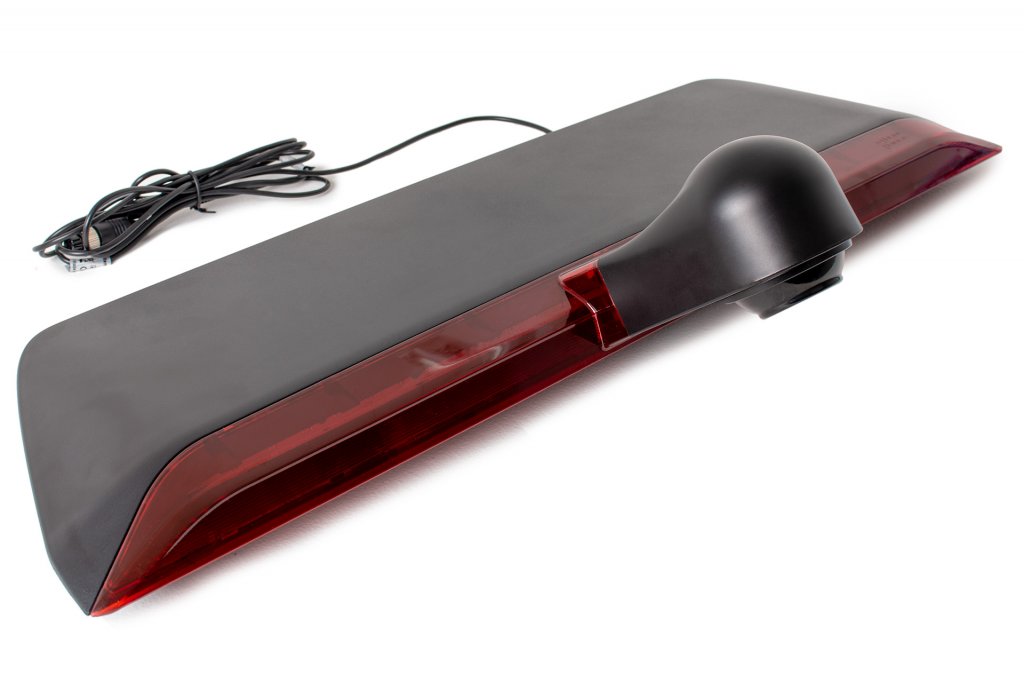

Rear view camera Volkswagen Crafter from model year 2017 onwards replaces the third brake light. The brake light camera is model-adapted and designed for our tough Nordic conditions with very clear and detailed image reproduction.

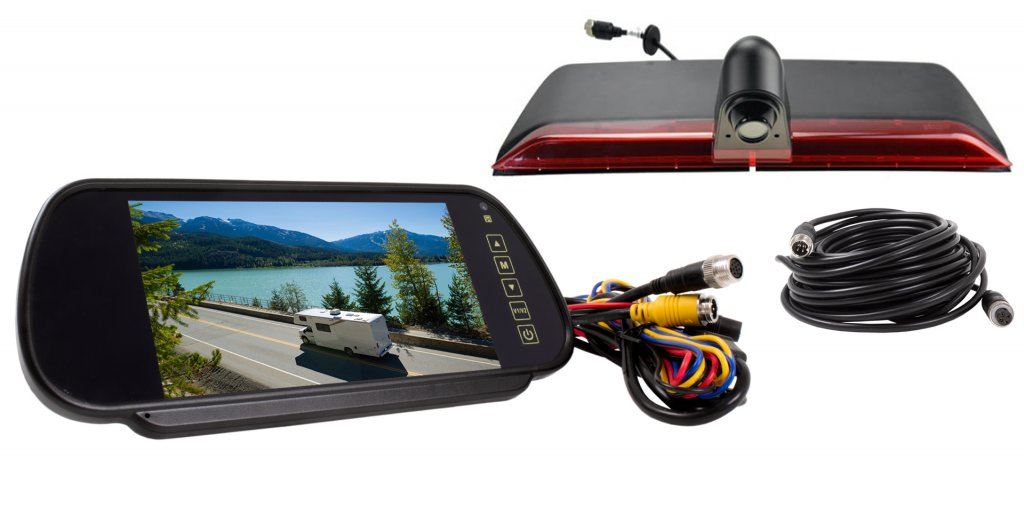

If you want to buy an external screen, there is a 7 "rearview mirror screen (hung over the existing rearview mirror) to choose from the drop-down list above.

When purchasing only a rear view camera, 2 meters of cable with 4-pin connector is included .
For cars with sensitive electrical systems, a power surge may be required.

Reversing camera Volkswagen Crafter blends nicely into the appearance of the car by replacing original brake lights with this module. Simple and smooth assembly.

Rear view camera Volkswagen Crafter:

Voltage range: 12 V (12-24 V when connected to monitor)
Wide angle: 120 degrees
Brightness: f/2.8
Image sensor: 1/3" CMOS
IR technology: Yes
Protection class: IP69K
Vibration resistance: 10 G

Our external monitor is very suitable for professional use. The Volkswagen Crafter rear view camera is suitable for most types of industries and is advantageously installed in transport vehicles. The LCD screen provides a detailed image and has a fast response time.

Rearview mirror screen 7":

Screen type: Digital TFT-LCD color monitor
Connection: 4-pin/4-pin
Voltage range: 10-32 V
Camera connections: 2 pcs
Dimensions incl. bracket: W 249 mm x H 108 mm x D 39 mm
Temperature range: -20 to +60 degrees
Trigger control: Yes
Remote control: Yes

Rearview camera Volkswagen Crafter is delivered as a complete kit.

This product is suitable for the following car models:

Volkswagen Crafter from 2017-
From model year 2017 onwards

Den här produkten passar till Volkswagen Caddy från 2016-

Documents:
attachment

Mounting instructions for original screen
attachment

Mounting instructions for external screen
