  6. CANBUS Interface Auxiliary Lights for Volkswagen Crafter from 2017-2025
Categories

CanM8 CANBUS Interface Auxiliary Lights Volkswagen Crafter from 2017-2025

  • Extra light Volkswagen Crafter from 2017-2025
  • Auxiliary light Volkswagen Crafter from 2017-2025
Item ID:  7560-2400
€106
Incl. VAT
Available
In stock at external warehouse | Ships within 2-7 business days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days
Product Description:

Upgrade your Volkswagen Crafter, specifically models manufactured from 2017 up to 2025, with a model-specific CANBUS interface for auxiliary lights. This CanM8 module presents the optimal and most reliable solution for seamlessly integrating auxiliary lights or an LED light bar into vehicles featuring existing CANBUS light monitoring systems, ensuring impeccable functionality.

Tailored CANBUS Module for Auxiliary Lights in Volkswagen Crafter

Our expertly engineered CANBUS interface is specifically developed for Volkswagen Crafter models produced between 2017 and 2025. Its primary purpose is to significantly simplify the installation of supplementary lighting. By precisely interpreting the car's CANBUS system data, the interface emits a stable +12V control signal to an external relay kit. This results in your auxiliary lights activating and deactivating in perfect synchronization with the vehicle's standard high beams. If your Crafter is equipped with adaptive high beam functionality, this intelligent feature will seamlessly extend to the newly retrofitted auxiliary lights.

Seamless Connection of CANBUS Interface in Volkswagen Crafter

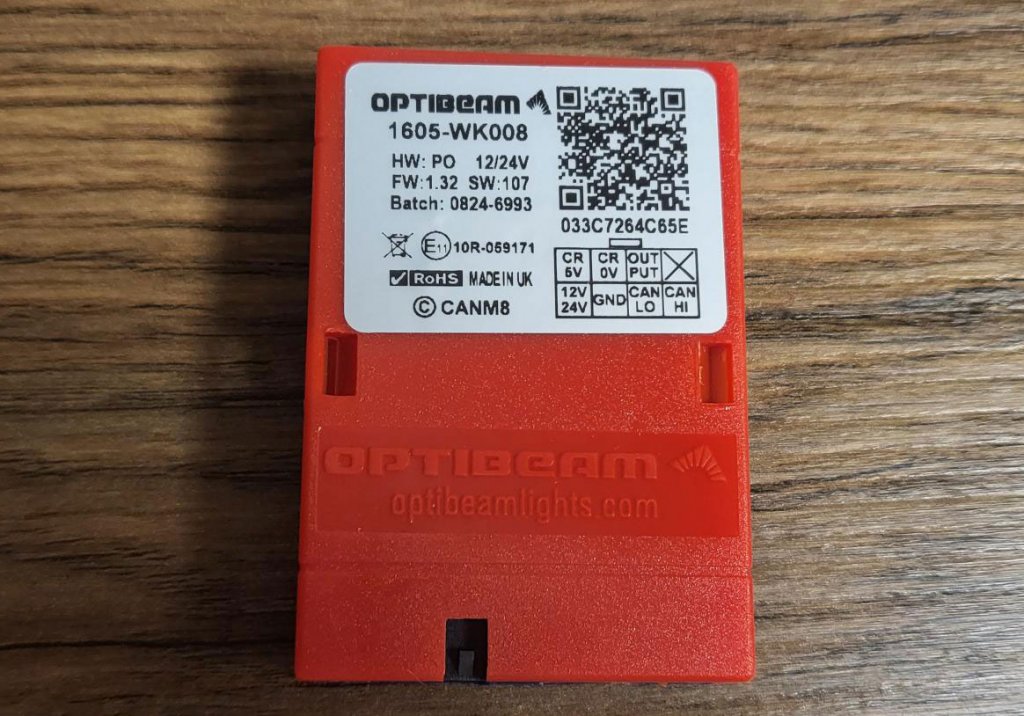

The installation of this interface is designed to be both logical and direct. It connects effortlessly to the vehicle's CAN HI and CAN LO lines. An integrated LED indicator provides clear visual feedback on the unit's status, confirming its connection to the vehicle's system. The interface features five distinctly color-coded wires for a structured and straightforward hook-up:

  • RED - Connects to +12V from the car's battery (protected by a 5A fuse)
  • BLACK - Connects to a chassis ground point/negative terminal on the car's battery
  • WHITE - Connects to CAN HI (the exact connection point is detailed within the provided installation manual)
  • BLUE - Connects to CAN LO (the exact connection point is detailed within the provided installation manual)
  • PURPLE - Connects to input 85 of the external relay kit (serving as the control current for the relay), providing a stable +12V output (maximum 1A)
Solid red LED indicatorSolid red: The CANBUS interface has contact but the vehicle is not identified
Flashing red LED indicatorFlashing red: The CANBUS interface has contact with the car and is checking the vehicle status
Solid green LED indicatorSolid green: The CANBUS interface has contact and the vehicle is identified
Flashing green LED indicatorFlashing green: The CANBUS interface has contact, the vehicle is identified, and the interface indicates that the car is in motion

Order your CANBUS interface for auxiliary lights for Volkswagen Crafter, models from 2017 to 2025, to ensure a professional, seamless, and fully integrated lighting installation.


Documents:
attachment Mounting description for canbus interface 7560-2400

Fits the following car models:

Volkswagen Crafter from 2017-2025

Model year from 2017-2025

Volkswagen Crafter från 2011-2016 Volkswagen Crafter från 2017-2025 Volkswagen Crafter från 2025- och nyare

Body code:

  • Typ SY/SZ
  • Typ SY/SZ Facelift

Engine:

  • Diesel
  • Electric

Body type:

  • Van

Warranty: 2-year warranty

Installation time: approx. 60 minutes

Origin: Origin Europe Europe
