Handrail for Volkswagen Crafter from 2017-

LED light bar Crafter (Volkswagen) from 2017-

Item ID: 7560-831

Sorry - this product is currently not avaiable for purchase.

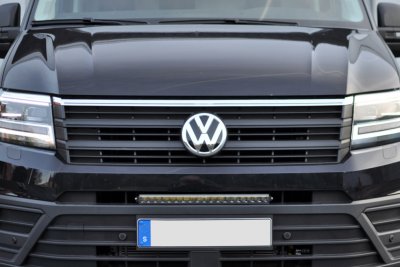

Complete kit with handrail, model-specific brackets and wiring harness for mounting in the lower grill of Volkswagen Crafter from 2017-

Available in four variants:

As loose brackets without handrail
With Viklight Ymer 20" articulated ramp
With Rigid SR20 E-marked handrail
With Rigid SR30 handrail

Both Viklight Ymer 20" and Rigid SR20 are e-marked.

Crafter handrail

Technical specifications:

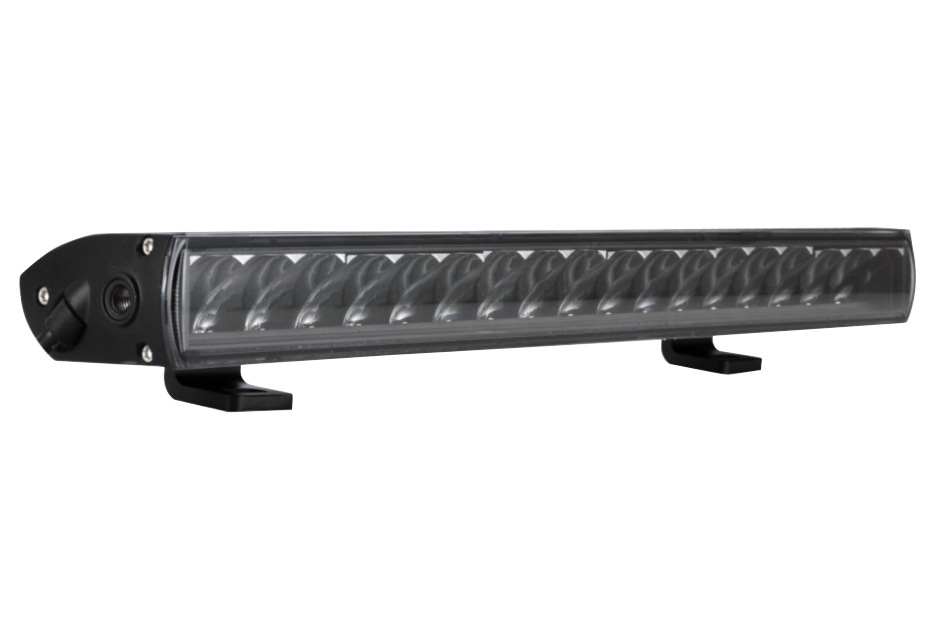

Viklight Ymer 20"

Ventilating membrane according to the Gore-Tex principle releases any condensation.
Number of LEDs: 18 5 watt LG LEDs (90W)
Number of lumens: 8100 theoretical
Light length with 1 lux: 448 meters
E-marked: Yes, E8 ECE R112 Reference number 20
Voltage: 9-30 volts DC
Power consumption: 7.5 Amp at 12 v
Color temperature: approx. 6500 K
Light pattern: Driving beam, extends the high beam
IP class: IP68, withstands weather and wind.
Warranty: 36 months

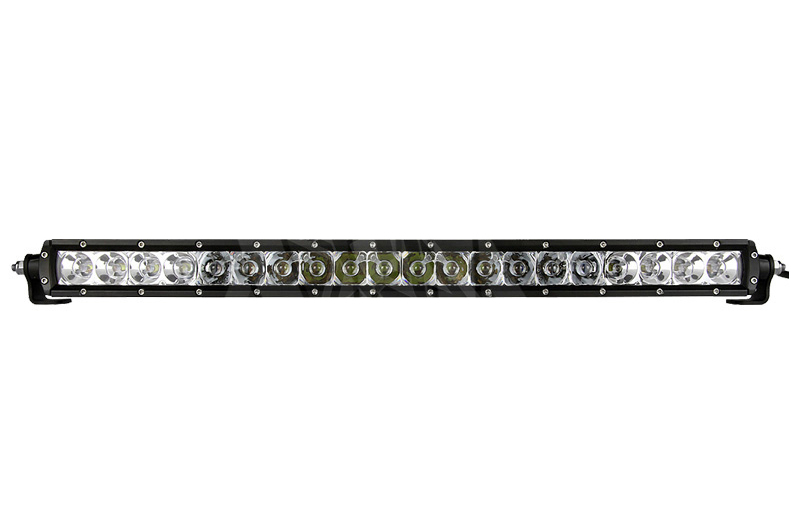

Rigid SR20 E-marked

Voltage: 9-32 V
Power consumption: 5.5 A
Over and under voltage protection, short circuit protection.
Moisture-proof cable with fuse and on/off switch included.
Withstands harsh weather conditions, extremely resistant to vibration and shock.
Protection class: IP68
Vibration rating: MIL810-STDG
Salt spray rated: ASTMB117
E-marked: Yes
Number of lumens: 7500
Wattage: 76
Lifetime: Up to 50 000 hours
Working range: -40°c to +63°c
Lens: Polycarbonate
Patented optics
5 years warranty

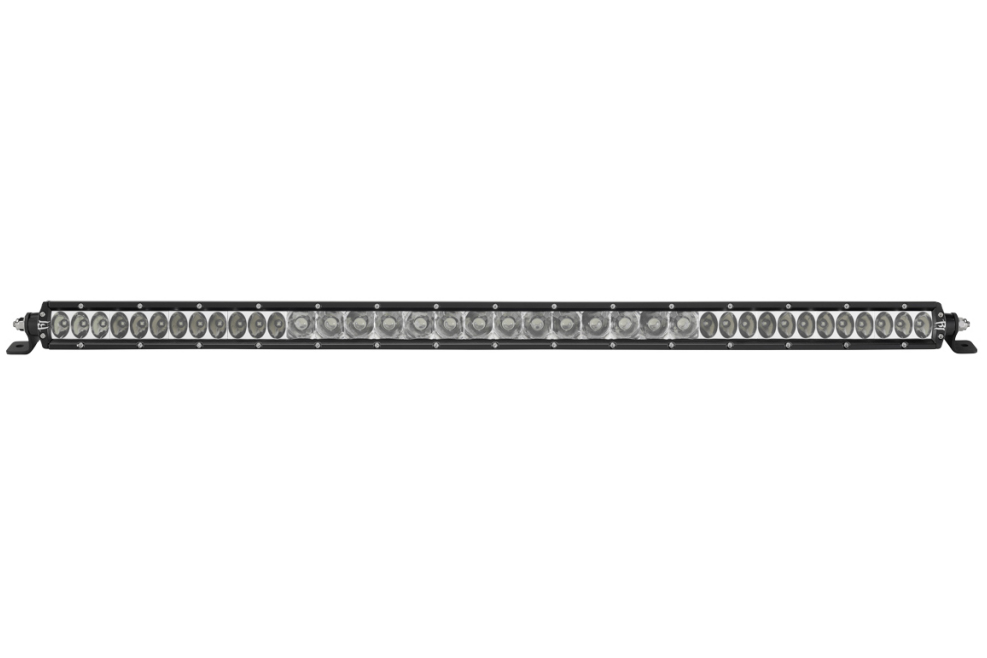

Rigid SR30

Mounting: Side mounted L-brackets, rotatable 360 degrees.
Number of LEDs: 34
Number of lumens: 21 318 theoretical
E-marked: No
Voltage: 12v/24v
Power: 205 Watt
Power consumption: 15 Amps
IP rating: IP68
Length: 810 mm
Height (excl. mounting bracket): 48 mm
Depth: 95 mm
Warranty: 5 years

If you choose one of our complete packages, the bracket, handrail, relay kit and CANBUS interpreter are included. CANBUS interpreter for connection to the car's electrical system.

This product fits the following car models:

Volkswagen Crafter from 2017-
From model year 2017 onwards

Den här produkten passar till Volkswagen Crafter från 2017-
