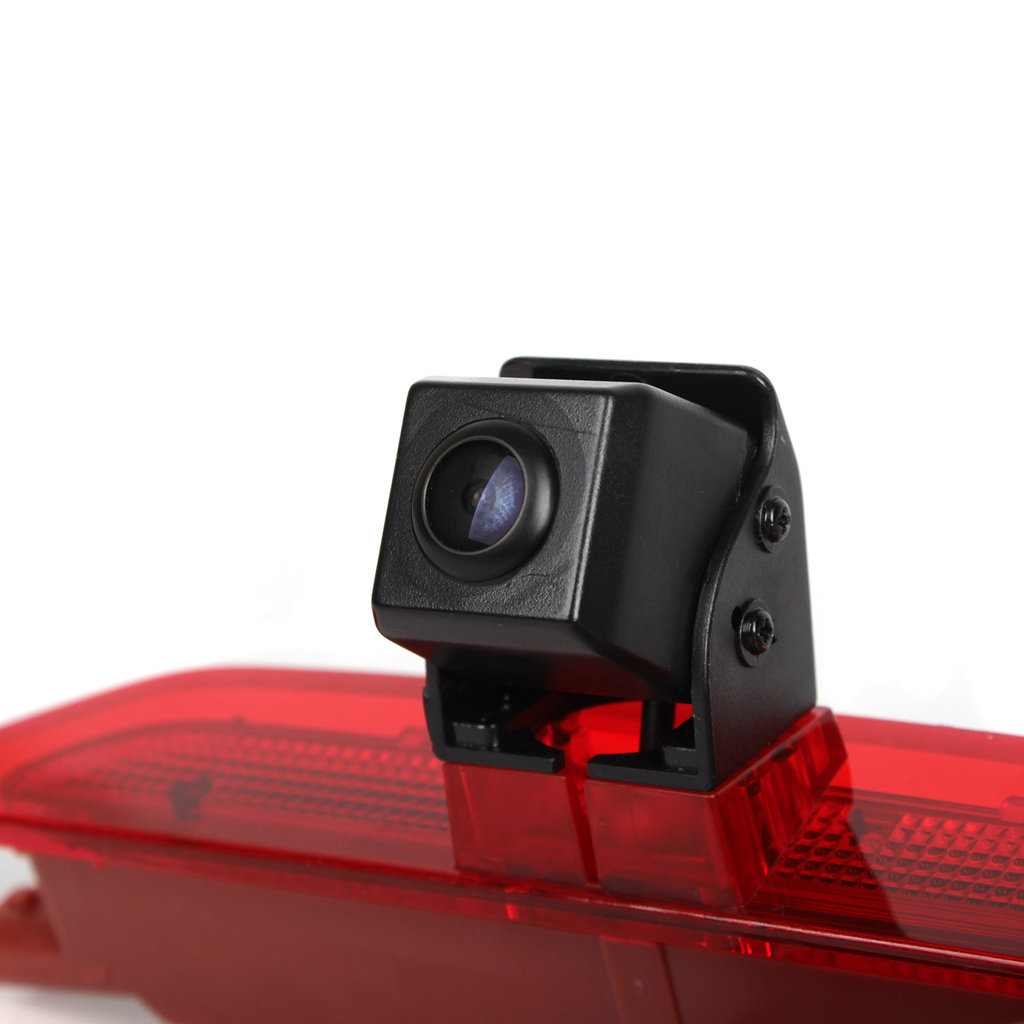

Rear view camera that replaces the third brake light on Volkswagen Caddy from 2021 onwards. A model-adapted rearview camera designed for our tough Nordic conditions with very clear and detailed imaging. Fits cars with both rear doors and tailgate.

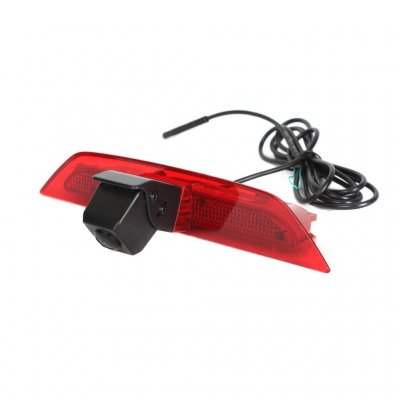

Rear view camera Volkswagen Caddy

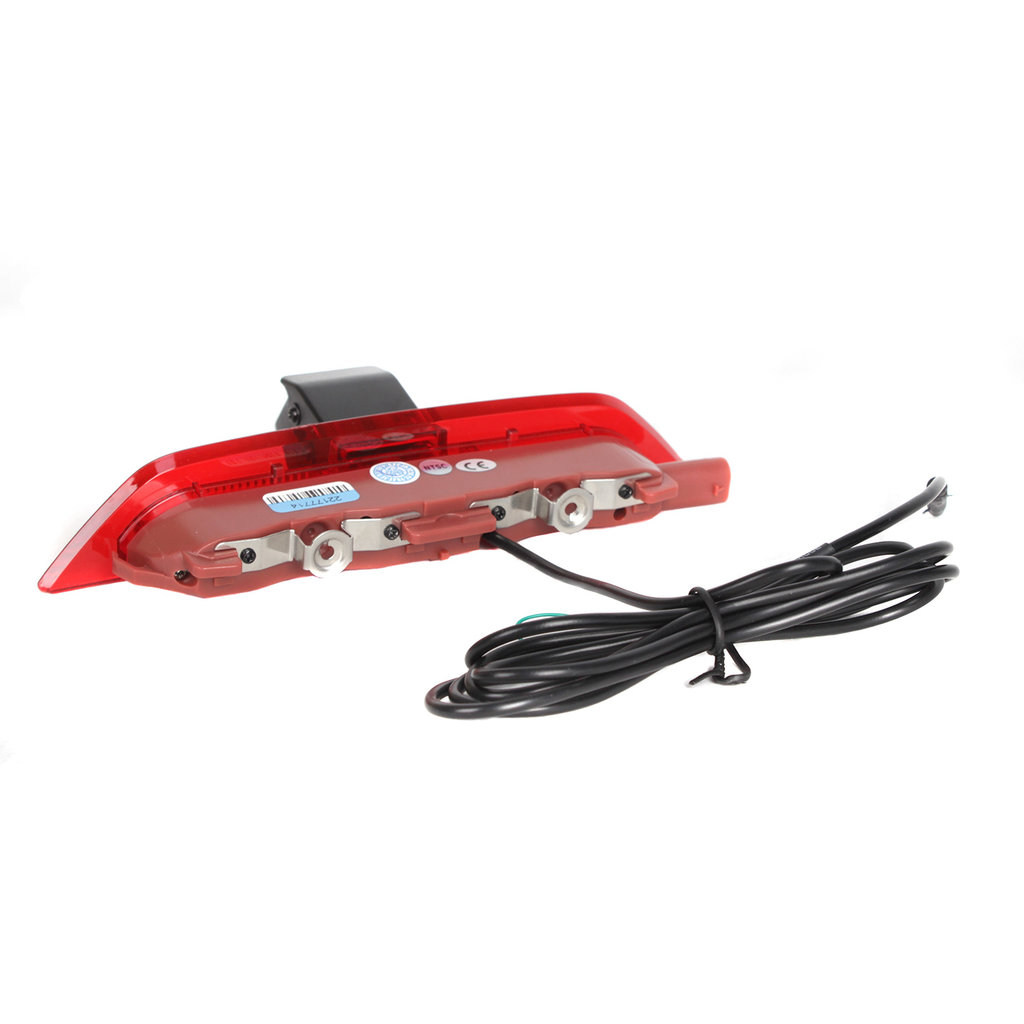

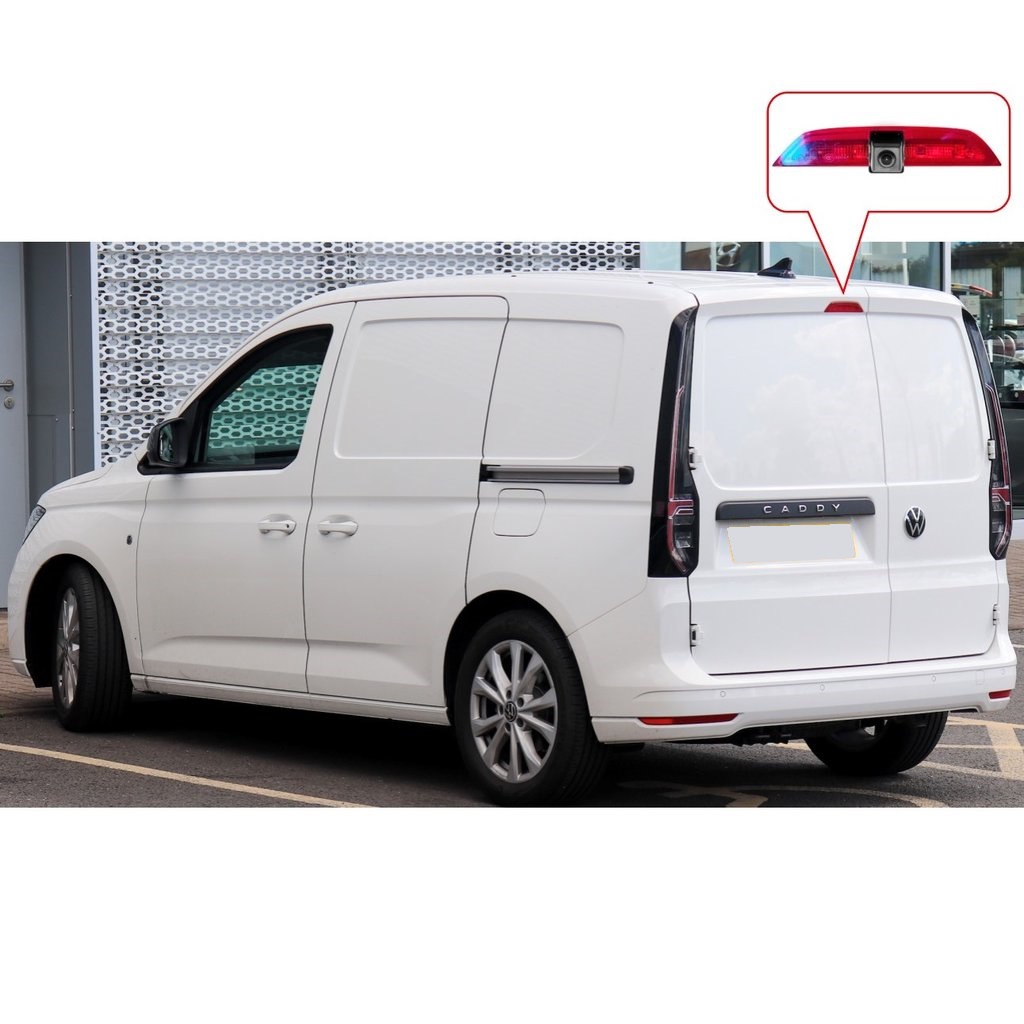

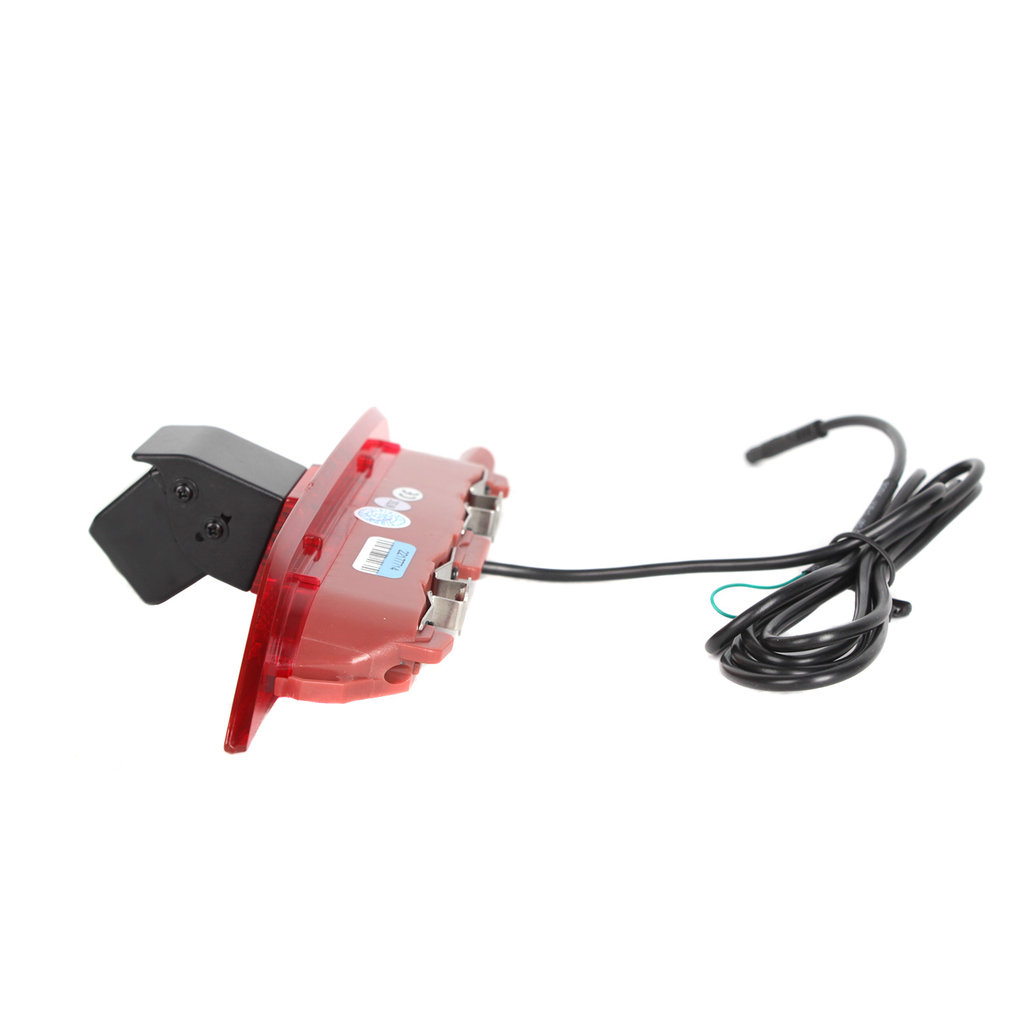

Simple and stylish installation as the third brake light is replaced with this module. Brake light and camera combined for installation in Volkswagen Caddy
Specifications reversing camera:
- Voltage range: 12 V (12-24 V when connected to monitor)
- Wide angle: 122 degrees
- Brightness: f/2.8
- Image sensor: 1/3" CMOS
- IR technology: Yes
- Protection class: IP69K
- Vibration resistance: 10 G
- When purchasing the rear view camera only, 10 meters of cable with 4-pin connector and a transition for RCA connection are included.
- For cars with sensitive electrical systems, power resistors or relay control may be required.
Our external monitors are very well suited for professional use. They are suitable for most types of industries and are easily installed in transportation vehicles. The LCD screen provides a detailed image and has a fast response time.
Specifications screens:
- Screen type: Digital TFT-LCD color monitor
- Connection: 4-pin/4-pin
- Voltage range: 10-32 V
- Camera connections: 2 pcs
- Dimensions incl. bracket: W 249 mm x H 108 mm x D 39 mm
- Temperature range: -20 to +60 degrees
- Trigger control: Yes
- Remote control: Yes

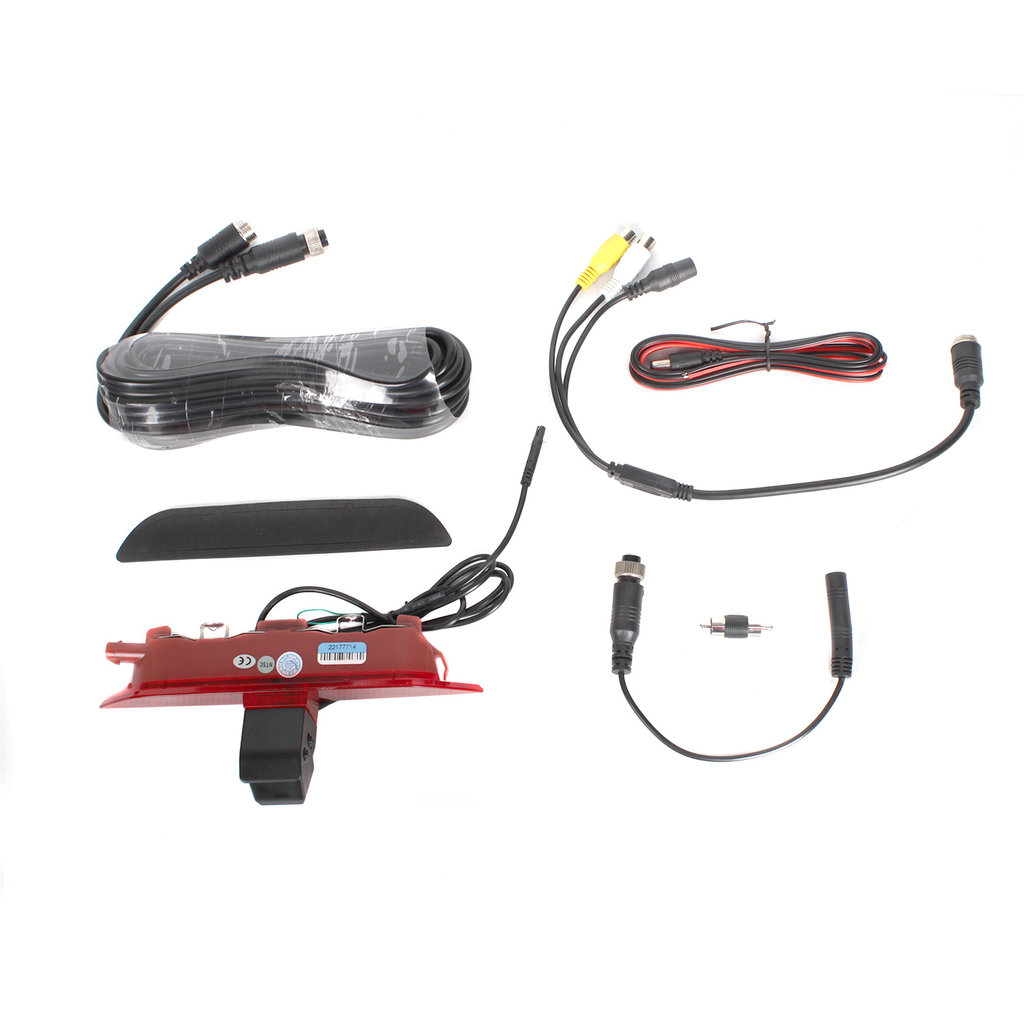

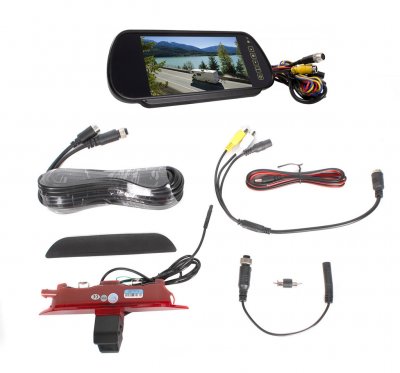

Supplied as a complete kit.
