  6. Rear view camera with brake light for Volkswagen Caddy from 2004-2020
Categories

Rear view camera Volkswagen Caddy 2004-2020

  • Rear view camera Volkswagen Caddy 2004-2020
  • Rear view camera Volkswagen Caddy from 2004 to 2020
  • Rear view camera VW Caddy from 2004-2020
  • Rear view camera Volkswagen Caddy from 2004-2020

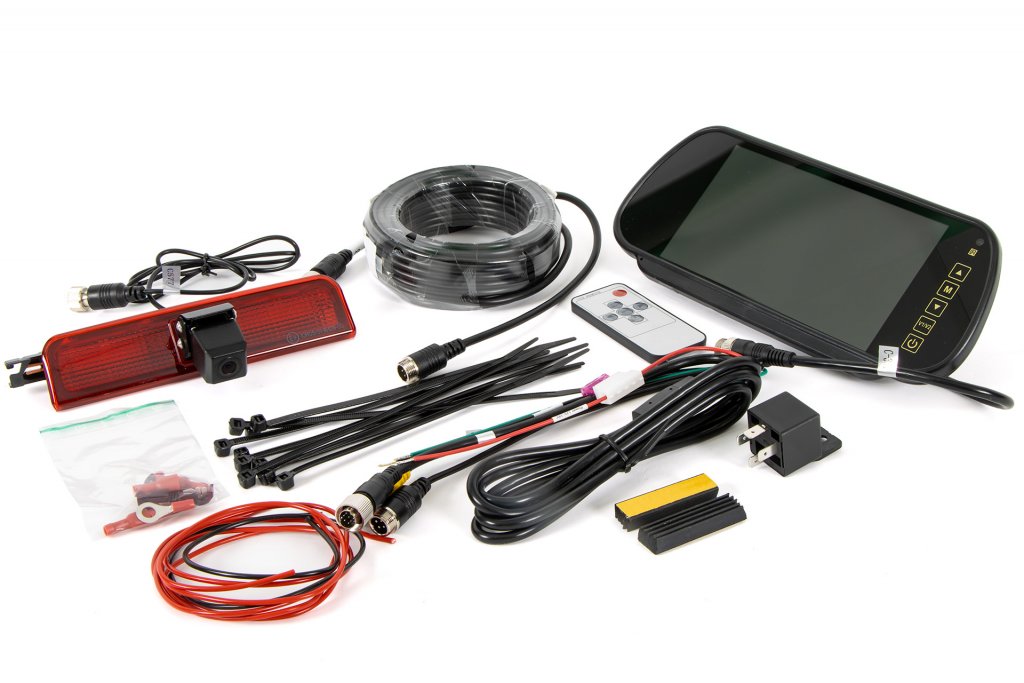

  • Complete kit with camera, rearview mirror screen and cable for Volkswagen Caddy from 2004-2020.
Item ID:  7520-2350
€271
Incl. VAT

Which kit do you want?

€271
Available
€475
Available
Available
Available in external warehouse | Shipped within 2-7 business days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 2-7 business days
Product Description:

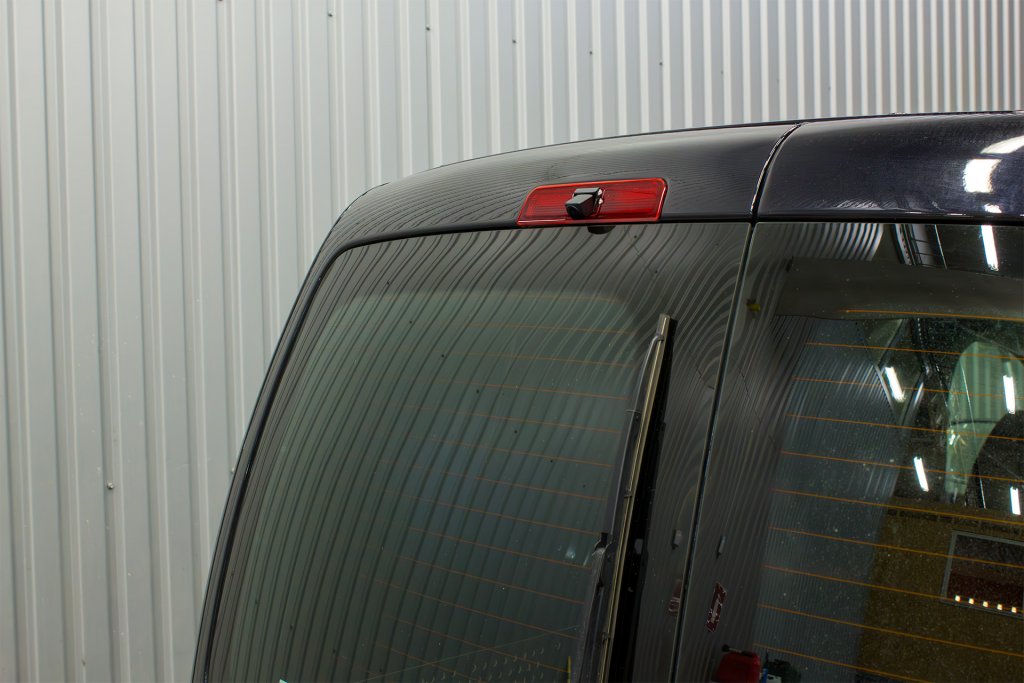

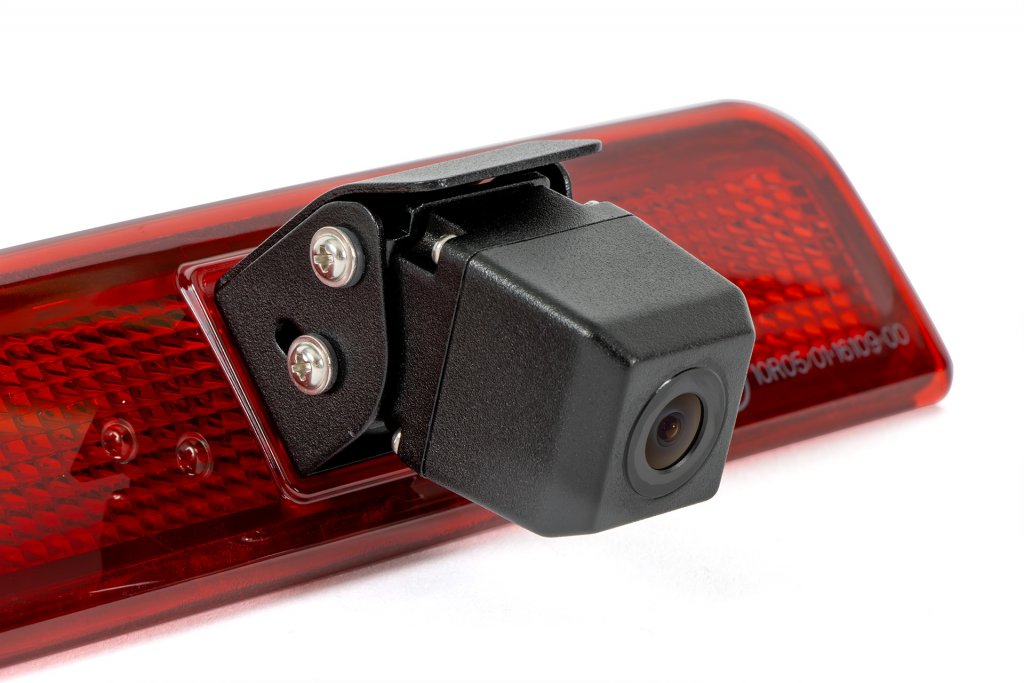

Rear view camera that replaces the 3rd brake light on Volkswagen Caddy from model year 2004-2020. A model-adapted rear view camera designed for our tough Nordic conditions with very clear and detailed image reproduction. The camera can be adjusted in height, to meet your specific needs.

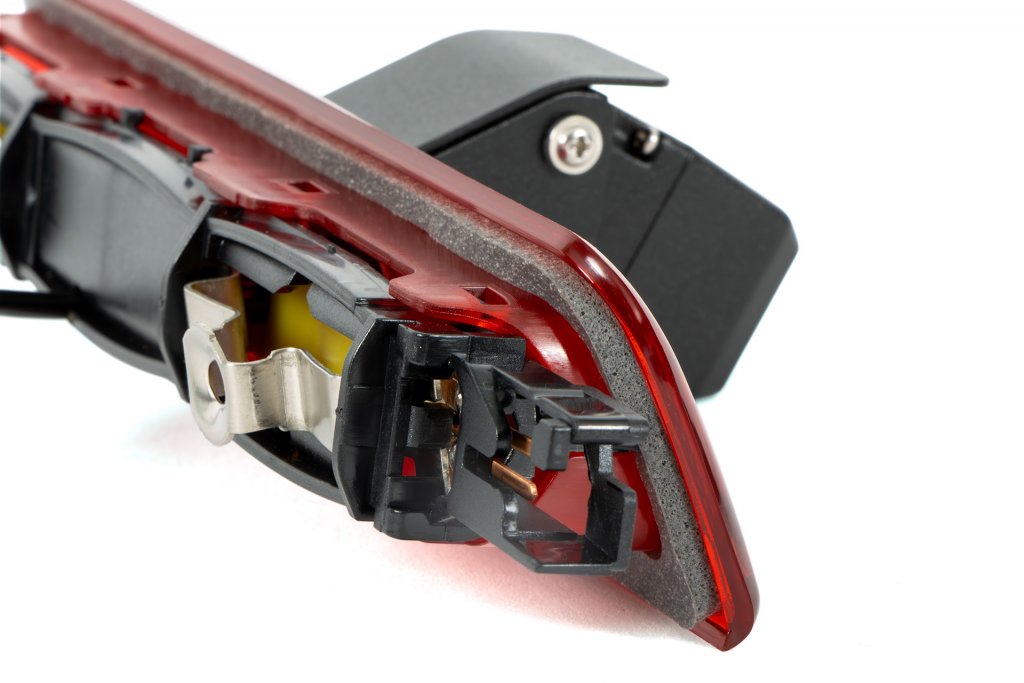

Simple and neat installation as the 3rd brake light is replaced with this module. Brake light and camera combined for installation in Volkswagen Caddy.

Specifications rear view camera:

  • Voltage range: 12 V (12-24 V when connected to monitor)
  • LED lighting included to replace original light source
  • Wide angle: 120 degrees
  • Brightness: f/2.8
  • Image sensor: 1/3" CMOS
  • IR technology: Yes
  • Protection class: IP69K
  • Vibration resistance: 10 G

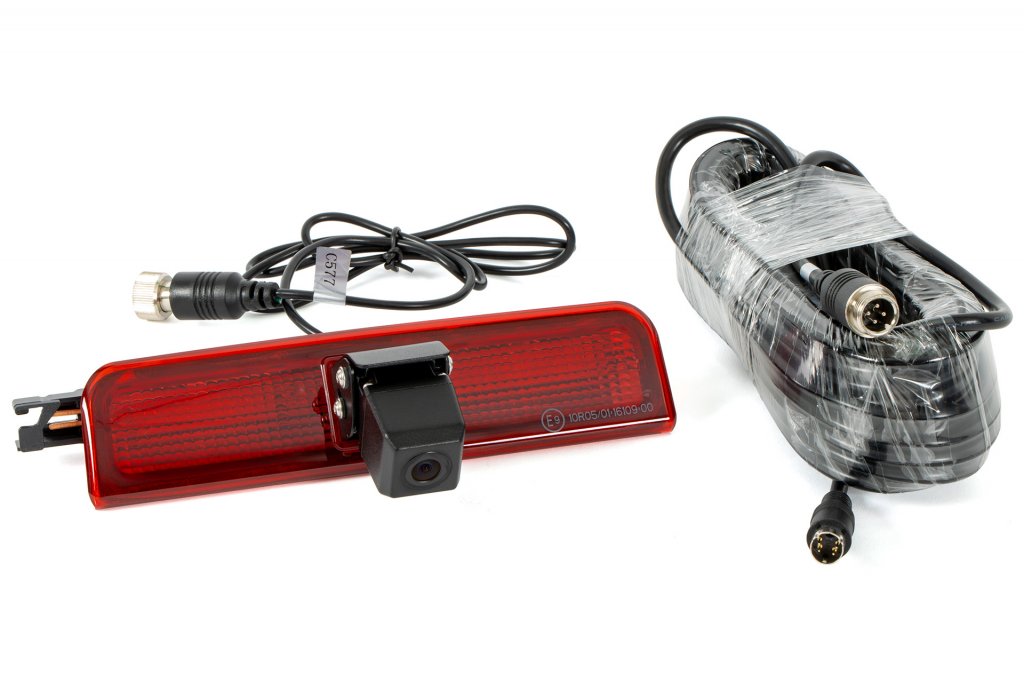

  • When purchasing the rear view camera only, 10 meters of cable with 4-pin connector is included. It is not compatible with the car's original screen.
  • For cars with sensitive electrical systems, a power surge may be required.

Our external 7" rearview mirror screen is very suitable for professional use. Fits most types of industries and is advantageously installed in transport vehicles. The LCD screen provides a detailed image and has a fast response time.

Specification rearview mirror screen:

  • Screen type: Digital TFT-LCD color monitor
  • Connection: 4-pin/4-pin
  • Voltage range: 10-32 V
  • Camera connections: 2 pcs
  • Dimensions incl. bracket (7" rear view mirror): W 249 mm x H 108 mm x D 39 mm
  • Temperature range: -20 to +60 degrees
  • Trigger control: Yes
  • Remote control: Yes

Supplied as a complete kit.

This product is suitable for the following car models:

Volkswagen Caddy from 2016-2020
2016, 2017, 2018, 2019, 2020

Den här produkten passar till Volkswagen Caddy från 2016-

Volkswagen Caddy from 2010-2015
2010, 2011, 2012, 2013, 2014, 2015

Den här produkten passar till Volkswagen Caddy från 2010-

Volkswagen Caddy 2004-2010
2004 ,2005, 2006, 2007, 2008, 2009, 2010

Den här produkten passar till Volkswagen Caddy 2004-2010




Documents:
attachment Mounting description for rear view camera system 7520-660N

Specifications:

  • Rear doors
  • Car boot
